PP Battery Case ABS PS WEEE Plastic Crushing Separating Washing Recycling Line
PP Battery Case ABS PS WEEE Plastic Crushing Separating Washing Recycling Line is used to recycle waste rigid plastics.Contact us to submit your product inquiries and receive professional solutions and quotes.
At a Glance
Equipment Overview
- Category
- Washing Machine
- Capacity options
- 1000kg/h, 2000kg/h, 3000kg/h
- Typical application
- PP Car Battery,PP Tube,HDPE Bottle,Other Rigid Plastic scrap.
- Output
- Clean flakes or recycled pellets — confirmed per project
Product 01
Overview
Our PP Battery Case ABS PS WEEE Plastic Crushing Separating Washing Recycling Line is used to recycle and reprocessing waste plastic like HDPE bottle,barrel,drum,PP pipe,PP battery case,etc.

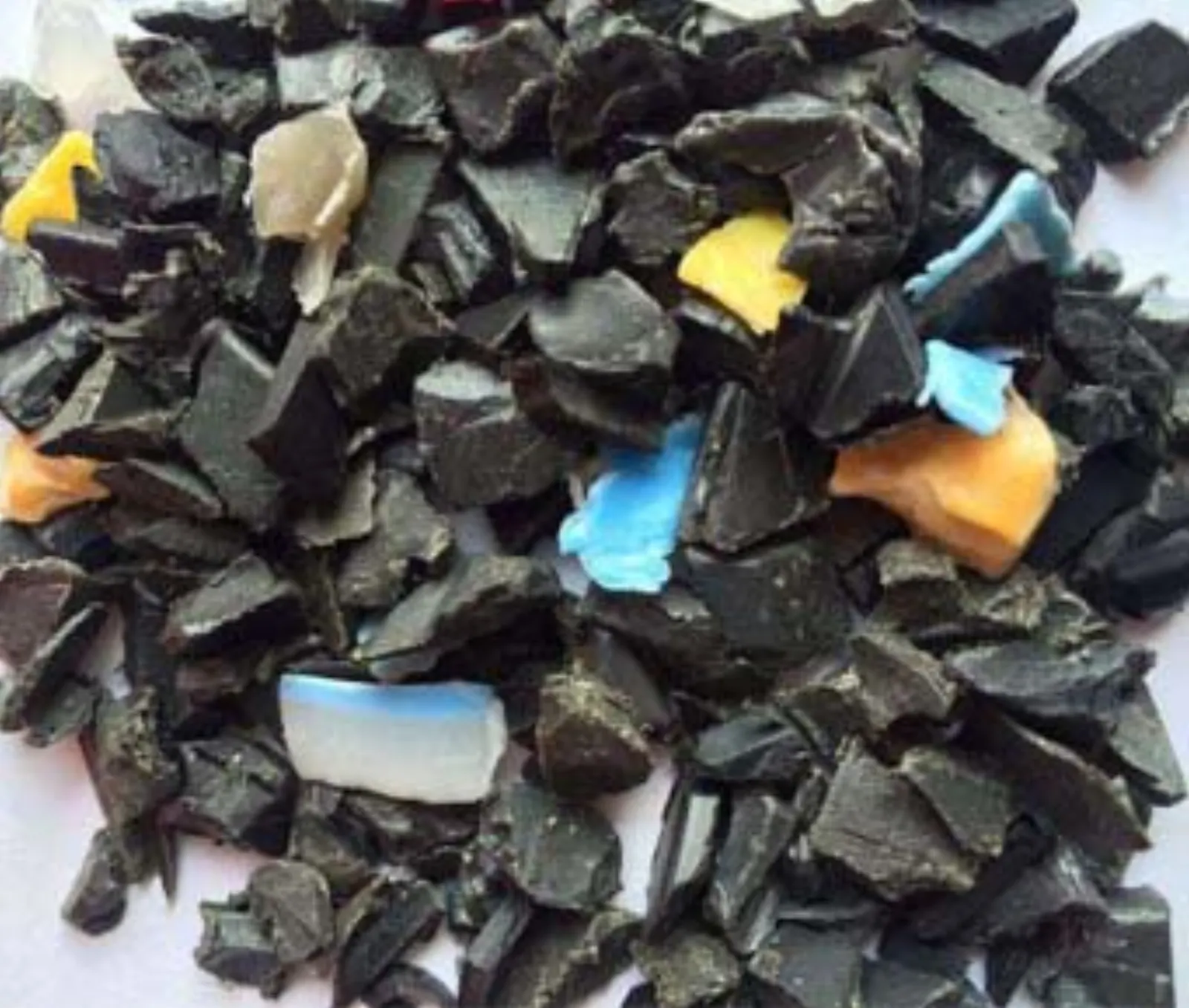

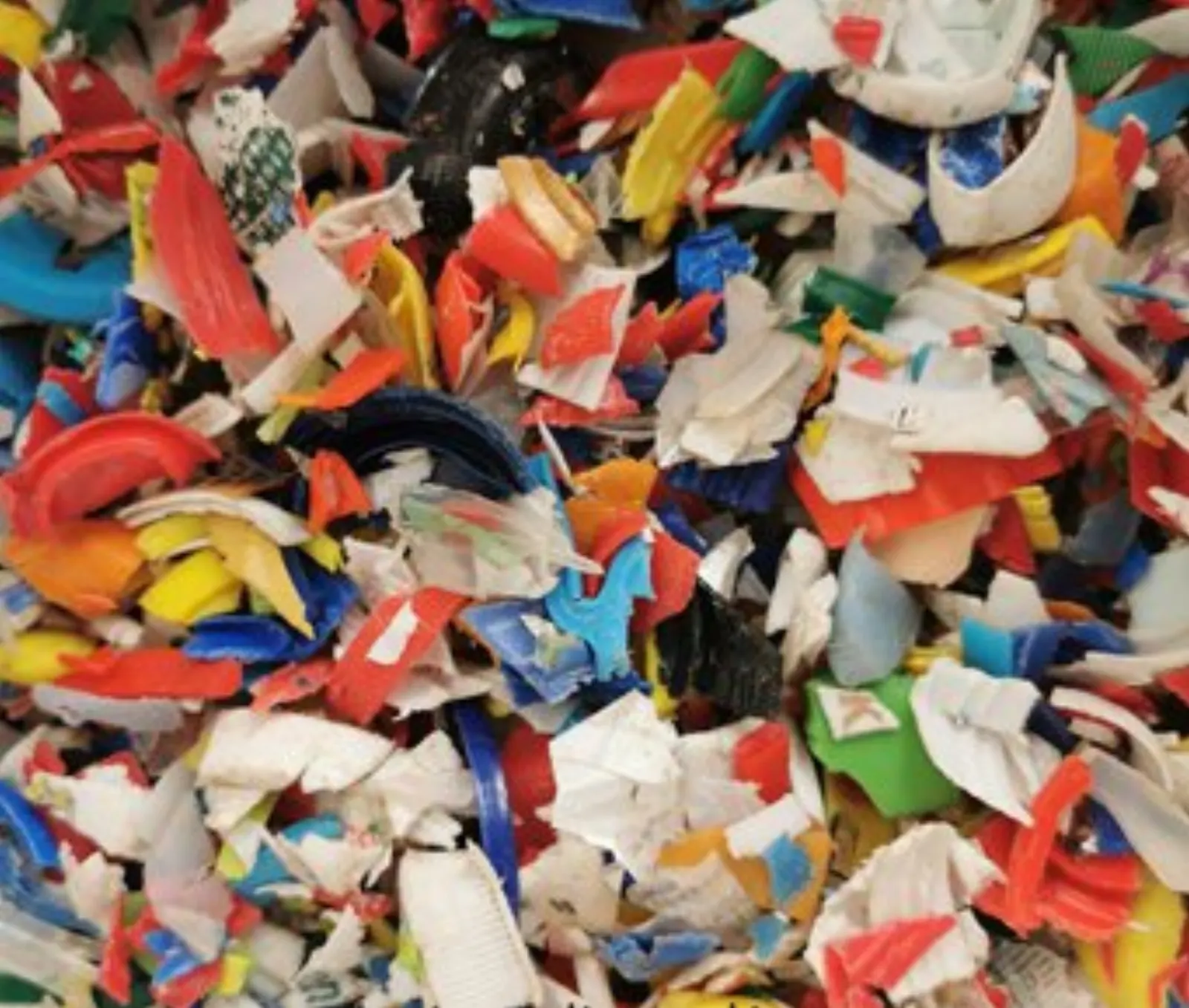

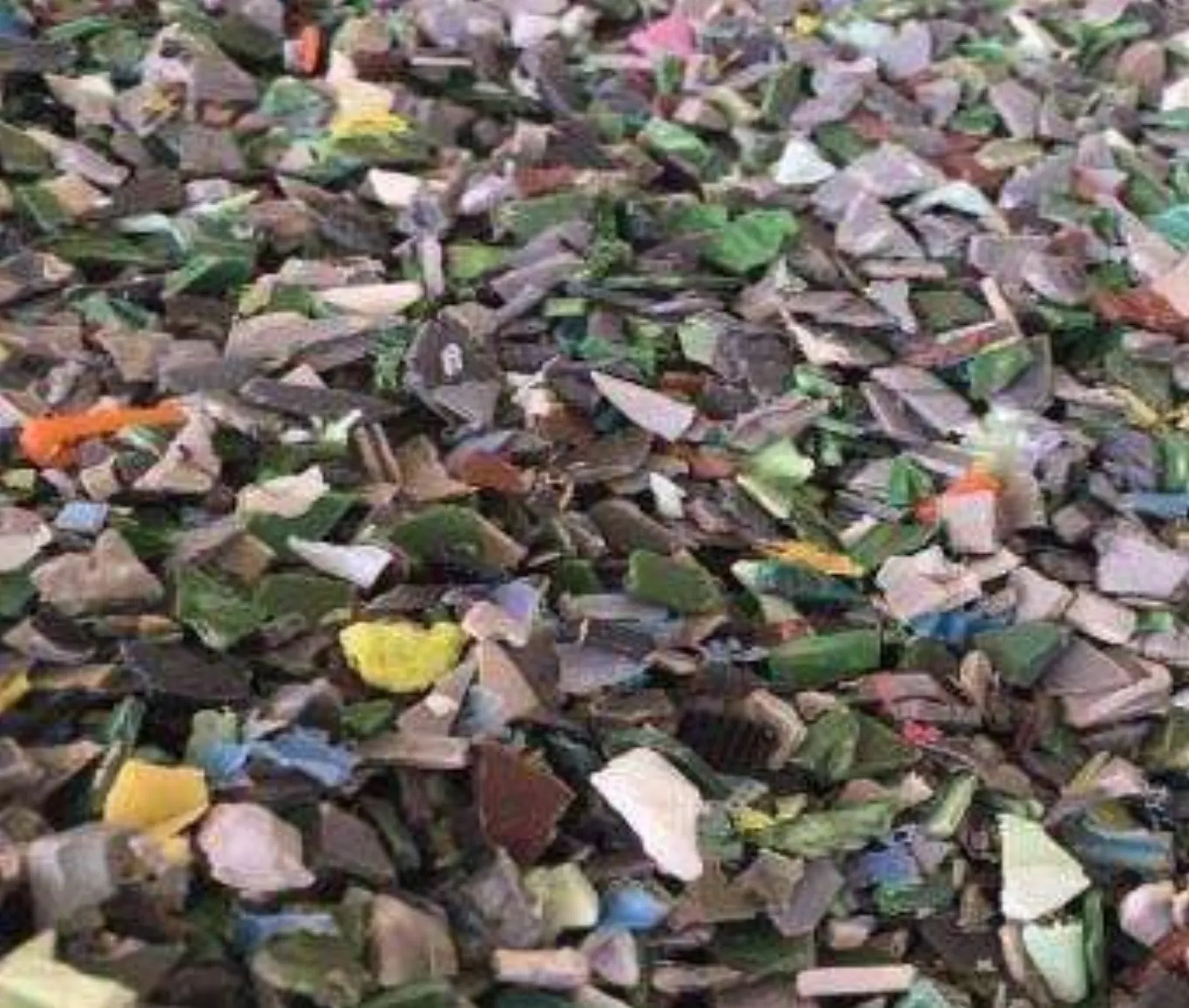

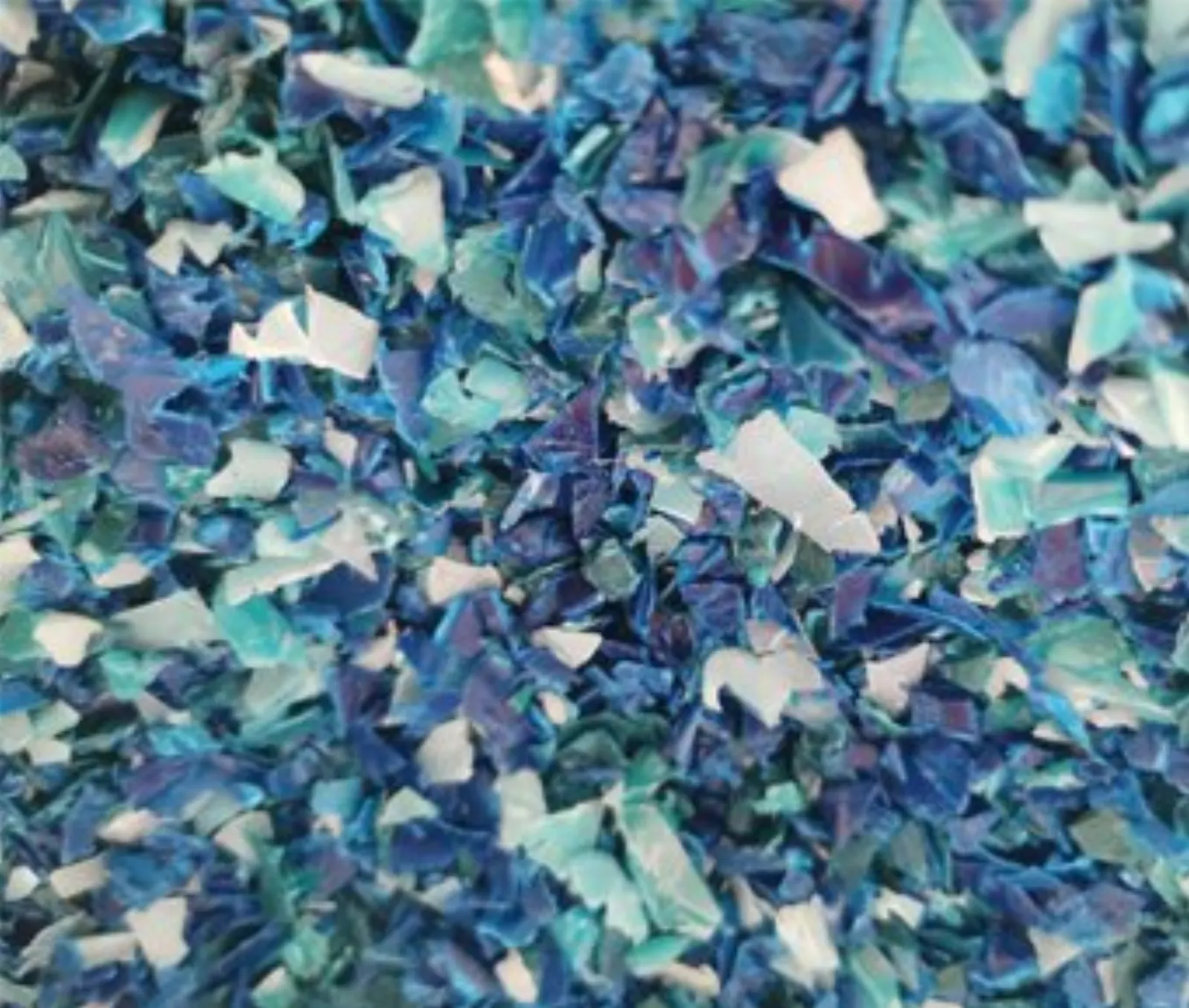

The final flakes humidity will be less than 1% after processing by our PP Battery Case ABS PS Washing Recycling Machine,dry and clean flakes could send to our pelletizing machine to make granules directly.We could supply the PP Battery Case ABS PS WEEE Plastic Crushing Separating Washing Recycling Machine between 1000kg/h to 3000kg/h.
Product 02
Applications & Suitable Materials

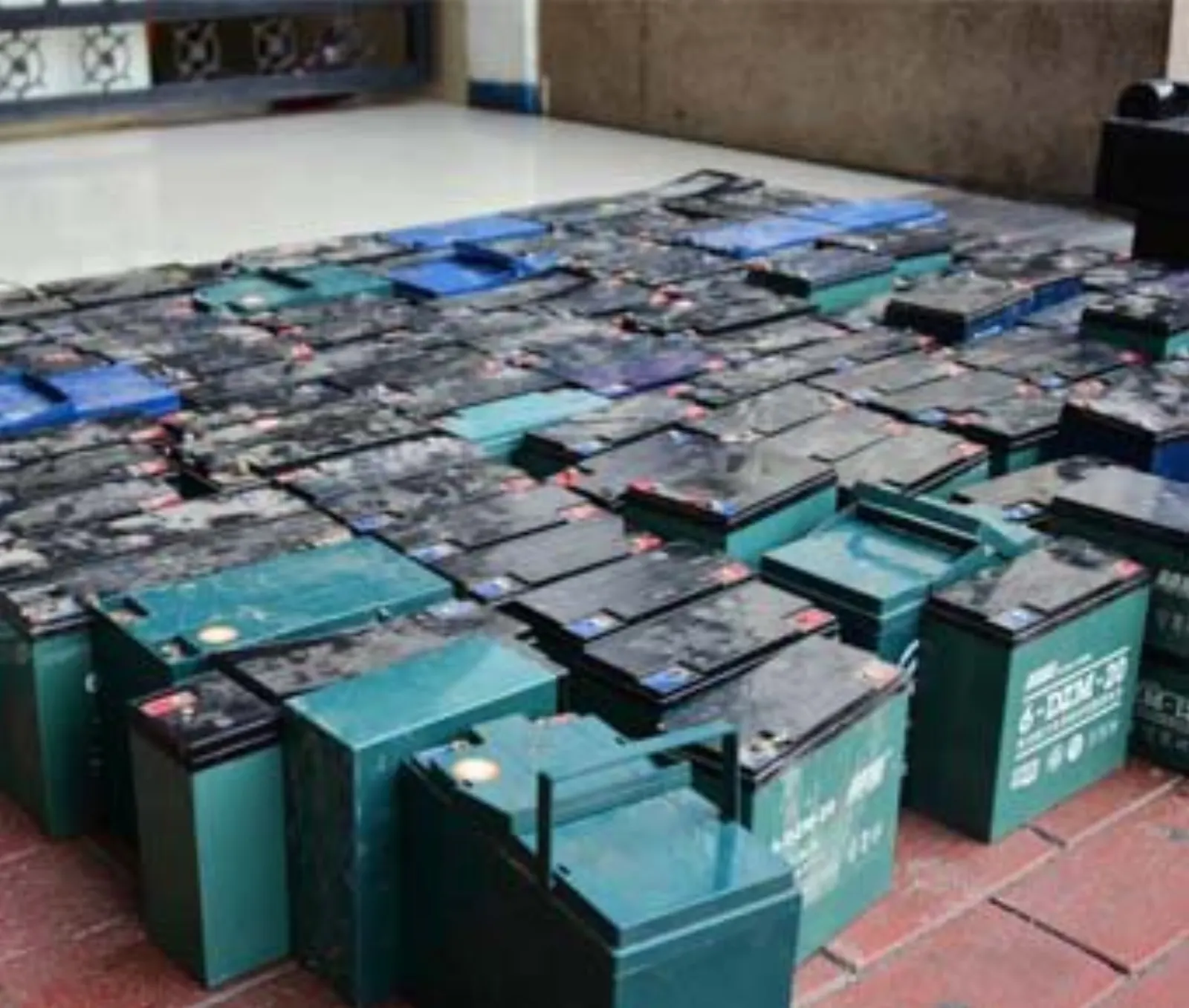

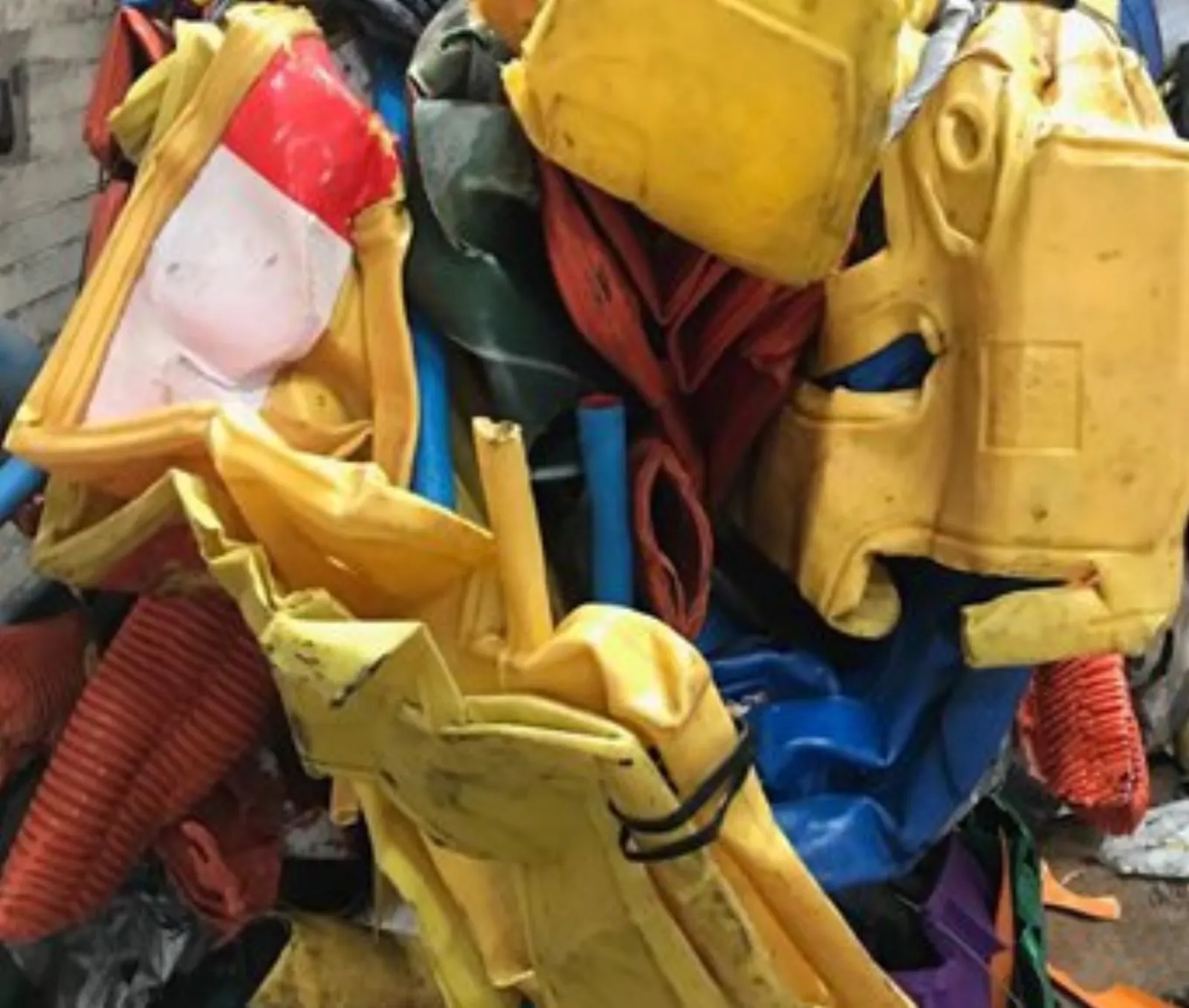

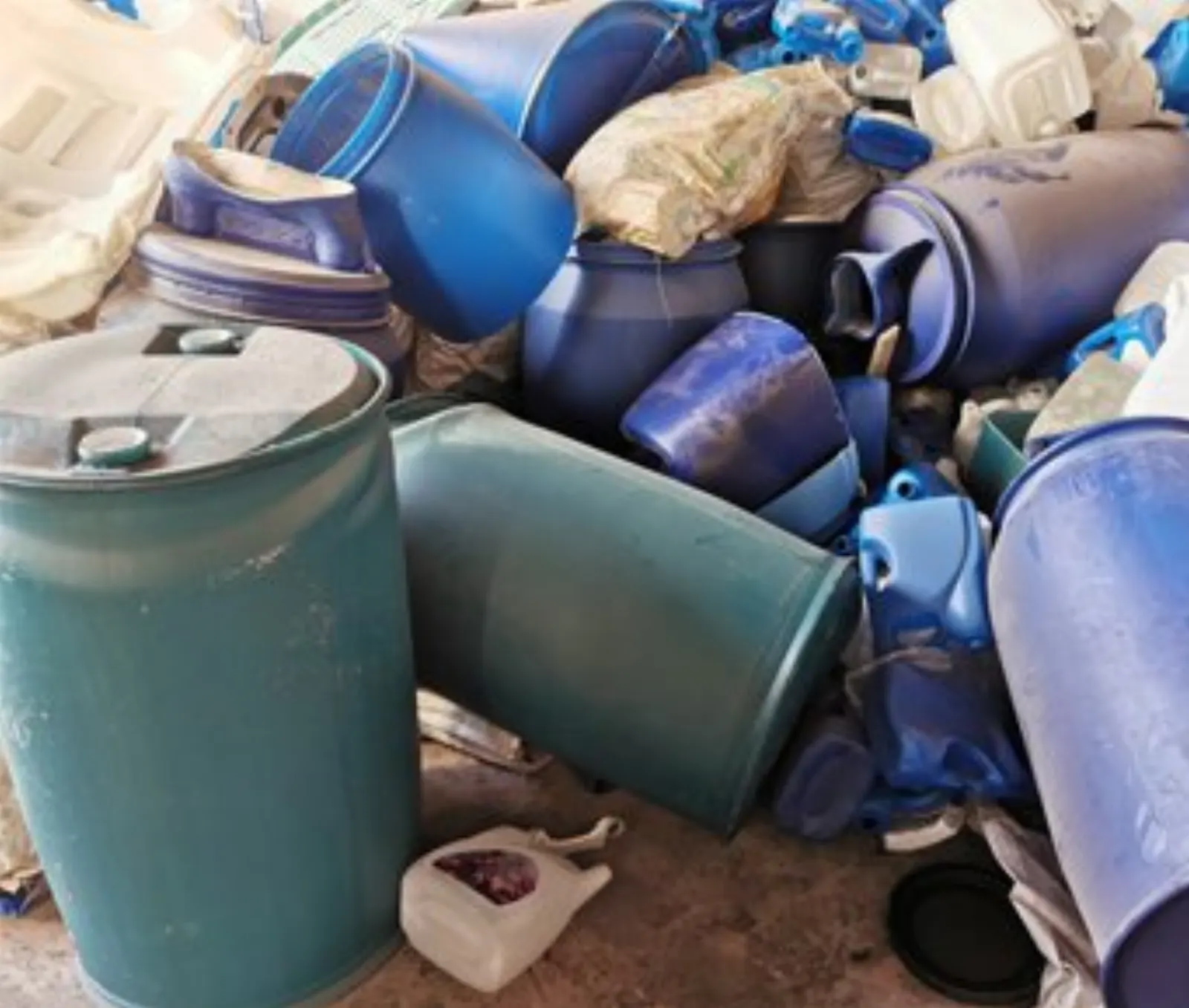

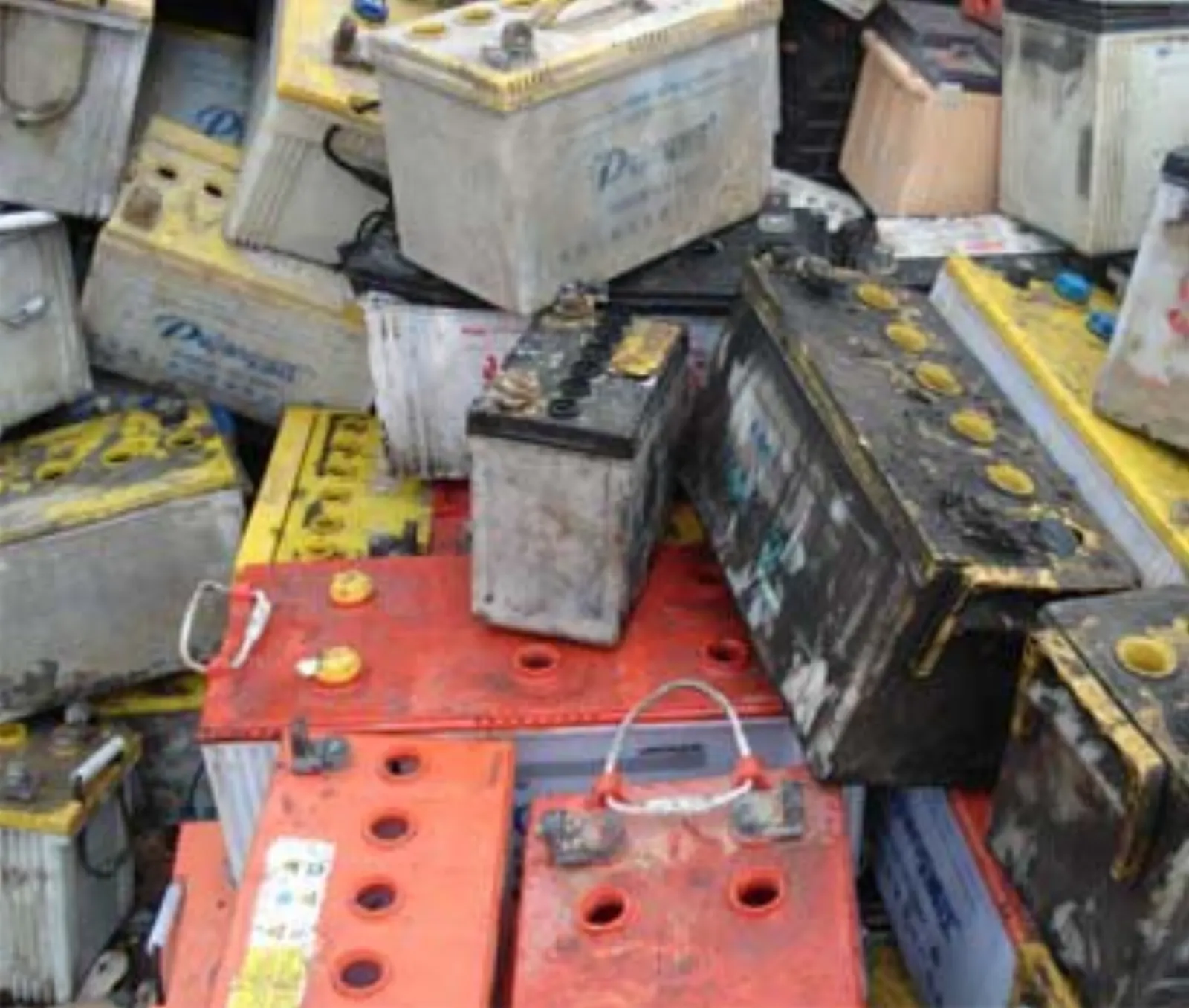

PP Car Battery,PP Tube,HDPE Bottle,Other Rigid Plastic scrap.
Product 03
Cleaning Process
- * Shredder crusher as a group to cut the big bale or normal plastic shape.
- * Unique design new angle of blades in crusher to max capacity.
- * High speed friction washer and hot washing system to wash and remove the dirt like oil,glue,mud,etc.
- * High efficiency dehydrator dryer in moving speed 2000 RPM .
- * Easy operation with low consumption.
| No | Equipment name | Quantity |
|---|---|---|
| 1 | Belt conveyor | 1 |
| 2 | Wet crusher | 1 |
| 3 | Double screw conveyor | 1 |
| 4 | Sinking floating tank | 1 |
| 5 | Screw conveyor | 1 |
| 6 | High speed friction washer | 1 |
| 7 | Screw conveyor | 1 |
| 8 | Dewatering machine | 1 |
| 9 | Storage hopper | 1 |
| 10 | Electric panel | 1 |
Technical Data
Specifications & Parameters
| Model | Power | Water | Capacity |
|---|---|---|---|
| RH1000 | 120kw/h | 3-4 t/h | 1000kg/h |
| RH2000 | 185kw/h | 5-6 t/h | 2000kg/h |
| RH3000 | 260kw/h | 6-8 t/h | 3000kg/h |
Quality
Quality Assurance
Final moisture within 1%. Dry and clean.
Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,SUS 304 stainless steel, SKD-11 blades,etc.
FAQ
PP Battery Case ABS PS WEEE Plastic Crushing Separating Washing Recycling Line — Questions
Are you trading company or manufacturer?
We are a manufacturer which producing the machines by ourselves.
What’s your guarantee or the warranty of the quality if we buy your machines?
Our warranty year is one year. During the period, we provide you spare parts free of charge asap. But the technical guide is forever.
How can I install my machine when it arrives?
We will send the instruction manual and videos to you,your workers can install the machine accorded to it. If the situation is ok, we can arrange our engineer to your factory, who will teach your labors how to install machines.
How to maintenance machines in factory?
We will provide maintenance instruction, it will mark the oil model and time. And how many times you should check the machines. Any problems about machines, you can ask us anytime.
If our machine is not working suddenly, but we have not spare parts, how to solve?
We promise our machine’s quality. Also we will prepare enough spare parts from the beginning for using urgently. Some vulnerable parts(blades), we will suggest you to buy. The last way,we send you spare parts by DHL.
How to maintence recycling machine:
We will send you manuals for product maintenance and how to solve common problems. By the way, you can contact with us, we will try our best to teach you by instruction book or video.
Warranty:
We provide 12 months’ warranty period usually.In this Period, any machine’s quality problem,we will send spare parts soon by DHL. We will do our best to teach your worker how to change the spare parts by video or instruction.
24hours technical service:
We will online 24 hours every day, You can contact with us anytime. Our engineer will send you machine maintenance manuals.
