Our PP PE LDPE LLDPE film woven bag crushing washing squeezing drying recycling line is used to recycle plastic films like LDPE LLDPE film,PP woven bag,PP jumbo bag.etc. By our PP PE LDPE LLDPE film woven bag recycling machine, the final humidity of film flakes will be less than 5%, it could send to our pelletizing machine to make granules directly. We can supply customized plastic recycling solutions according to client's specific requirements between capacity 300kg/hr-2000kg/hr.

Share this:

Product Description

Our PP PE LDPE LLDPE film woven bag recycling line is used to recycle waste plastic like LDPE agriculture film, LLDPE stretch film, PP woven bag, PP jumbo big bag, etc.

Post-consumer LDPE/LLDPE agricultural film, PP/PE shopping bags will be washed and cleaned by our high-efficiency PP PE LDPE LLDPE film washing line. The final film humidity will be less than 5% after processing by our film washing line, dry film could send to our compactor pelletizing machine to make granules directly. You can choose the quality of the granuels based on the mesh standard and layers. Recycled PP PE pellets will be used for blown film to make clean film. We could supply the PP PE LDPE LLDPE film film washing line between 300kg/h to 2000kg/h.

RETECH Machinery provides turnkey recycling and cleaning solutions for PP PE LDPE LLDPE film recycling. Our goal is to provide a complete solution for plastic film crushing washing/drying systems. No matter what kind of plastic film you are processing, what output quality and yield you are looking for, RETECH Machinery will develop a recycling plant solution that exactly meets your requirements. With perfectly coordinated shredding, separation and washing process steps, we guarantee a smooth workflow, delivering a 100% clean and homogeneous output material.

Main features of PP PE LDPE LLDPE film woven bag recycling line

1. The main processes of the cleaning line are crushing, cleaning and drying.
2. The crusher can crush the film and woven bag into small pieces of 70mm to 120mm.
3. The cold water sedimentation tank can wash away common dirt such as mud, sand, mud, stones, glass and so on.
4. High-speed friction washer and heat sink swimming tank can remove strong dirt such as grease, oil, glue and so on.
5. Large capacity, double drying system can ensure that the moisture content of the final product PE PP sheet is less than 5%.
6. With the extruder, the moisture content of PE PP sheet can be lower than 3%.
7. The final PP PE sheet can be directly sent to the pelletizing/pelletizing line to make pellets.

8. All steel parts are treated with anti-corrosion treatment, and all stainless steel materials are pickled with SUS 304.


The PP PE LDPE LLDPE film bag washing line is suitable for PE PP film, agriculture film, greenhouse film, color film, LDPE wrap film, LLDPE package film, HDPE LDPE film bags, water bags, shopping bags, T-shirt bags, PP woven bags, non-woven bags, jumbo bags, sugar bags, cement bag......

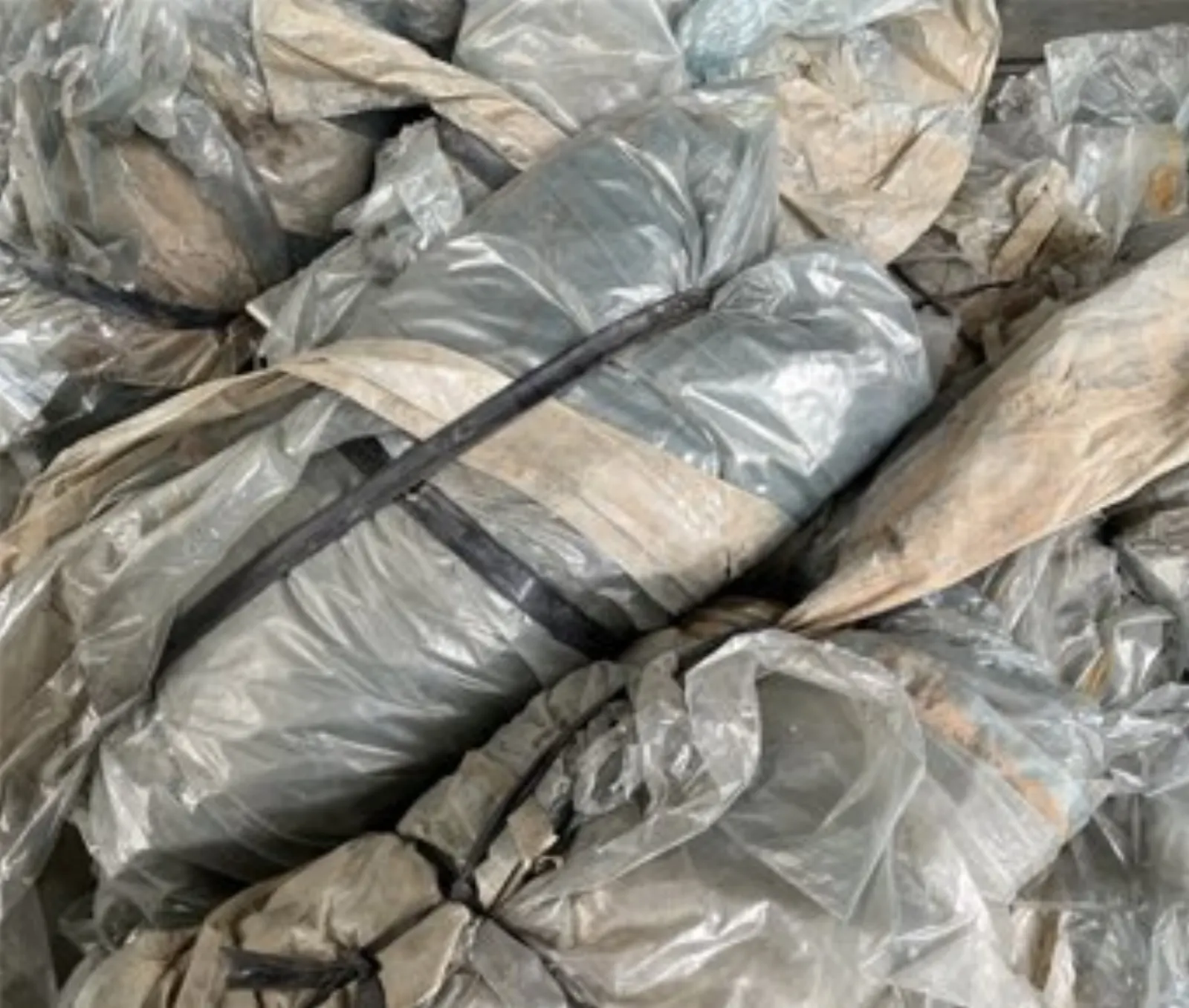

LDPE agriculture film

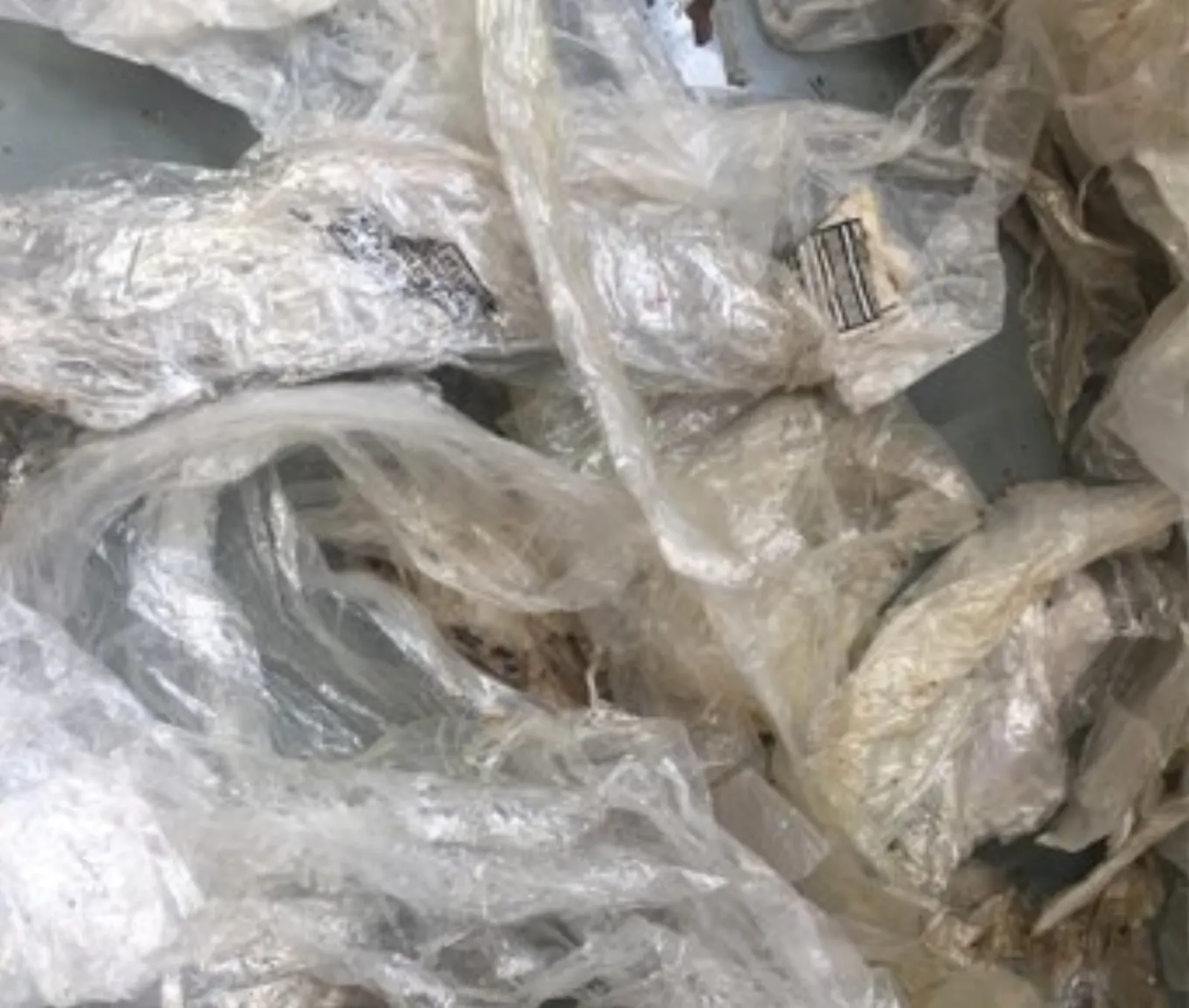

LLDPE wrapping film

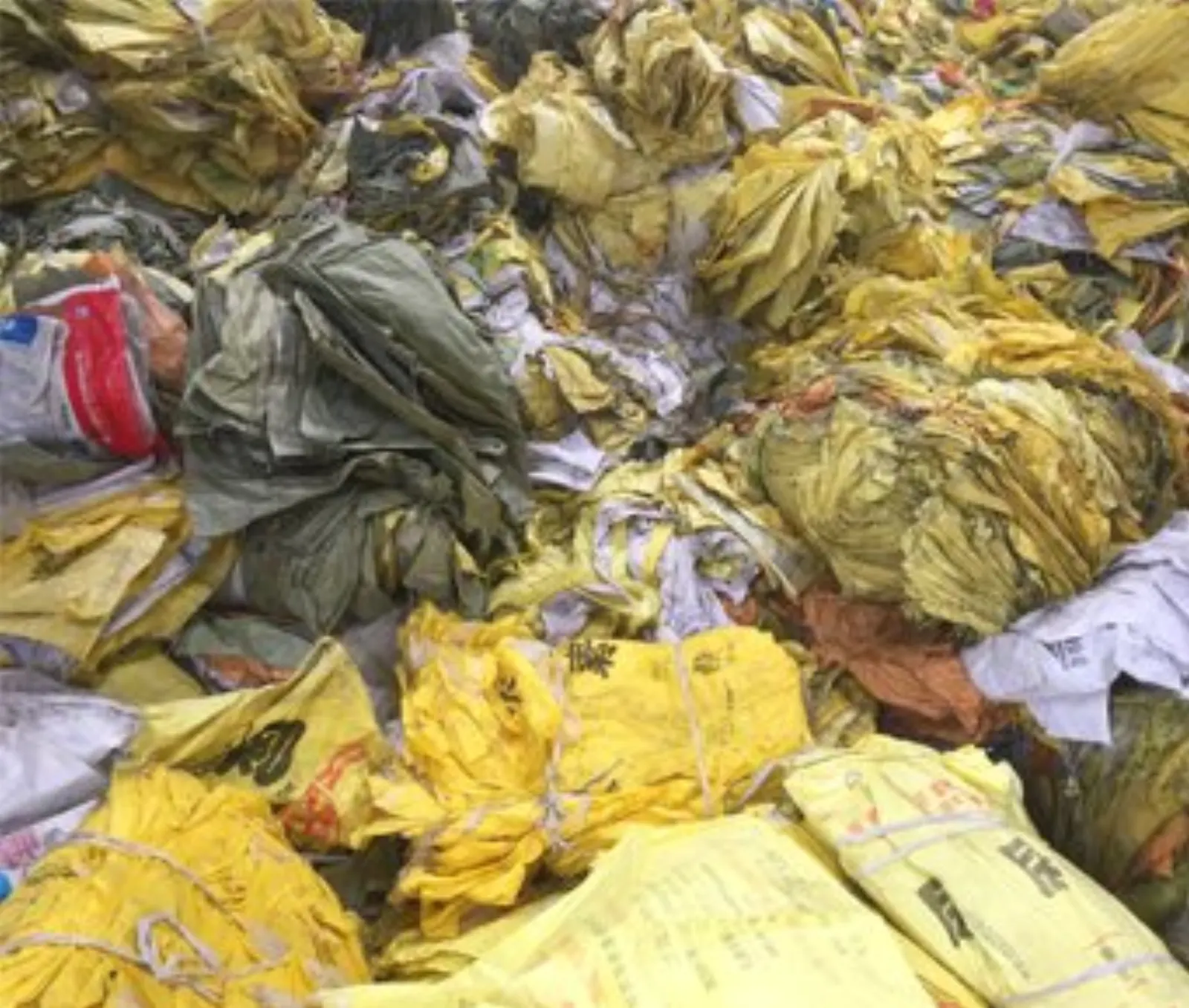

PP woven bag

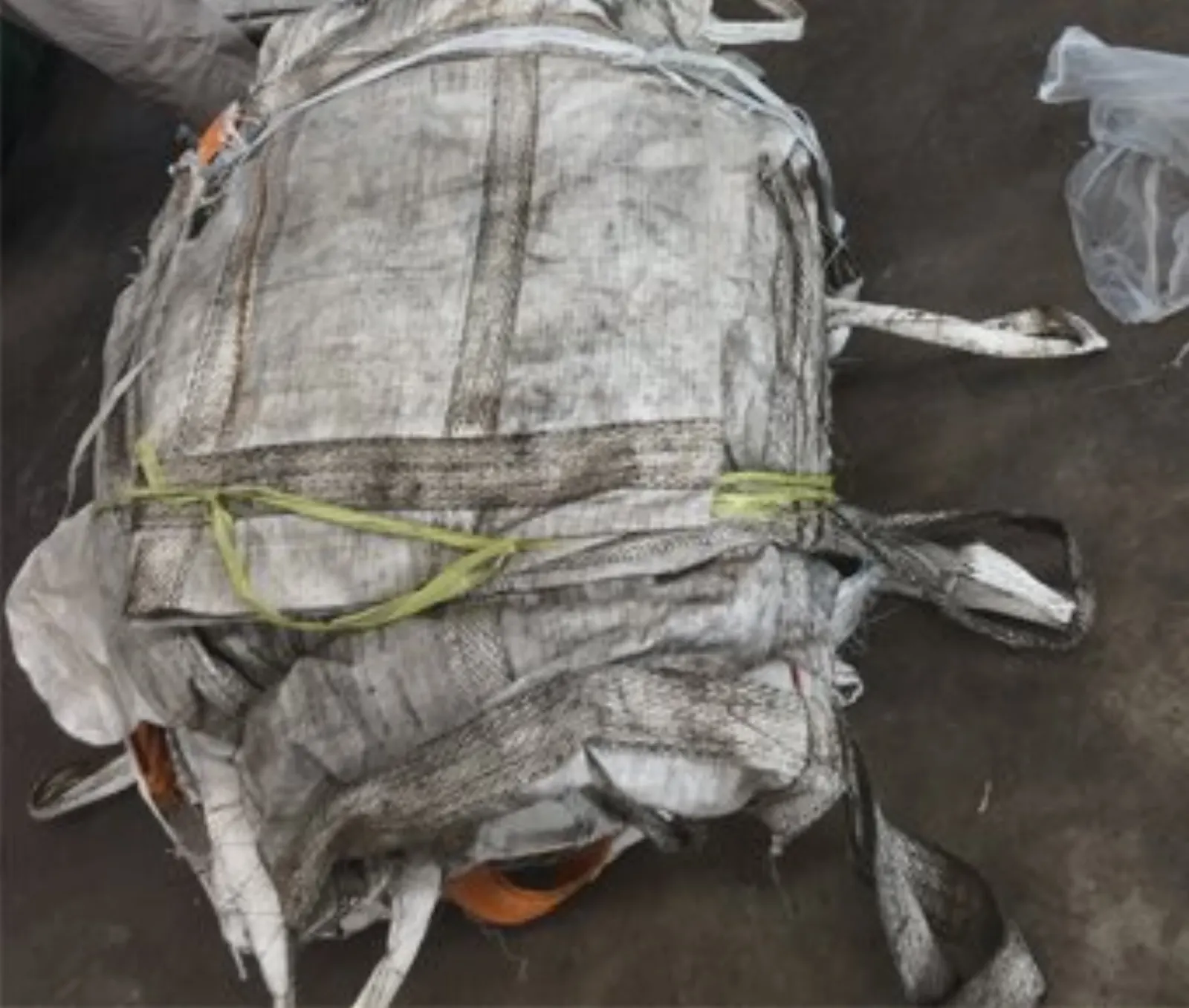

PP jumbo bag

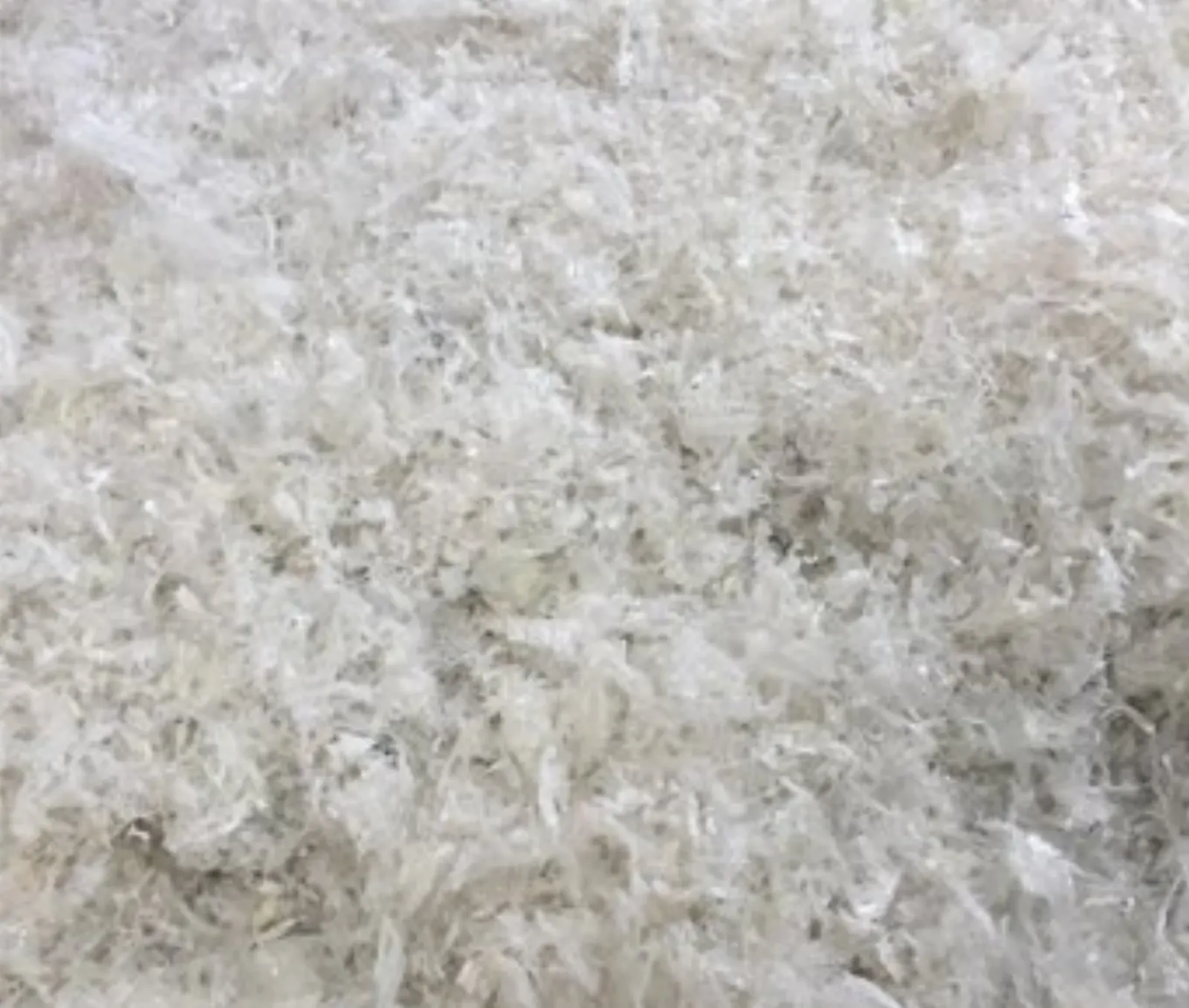

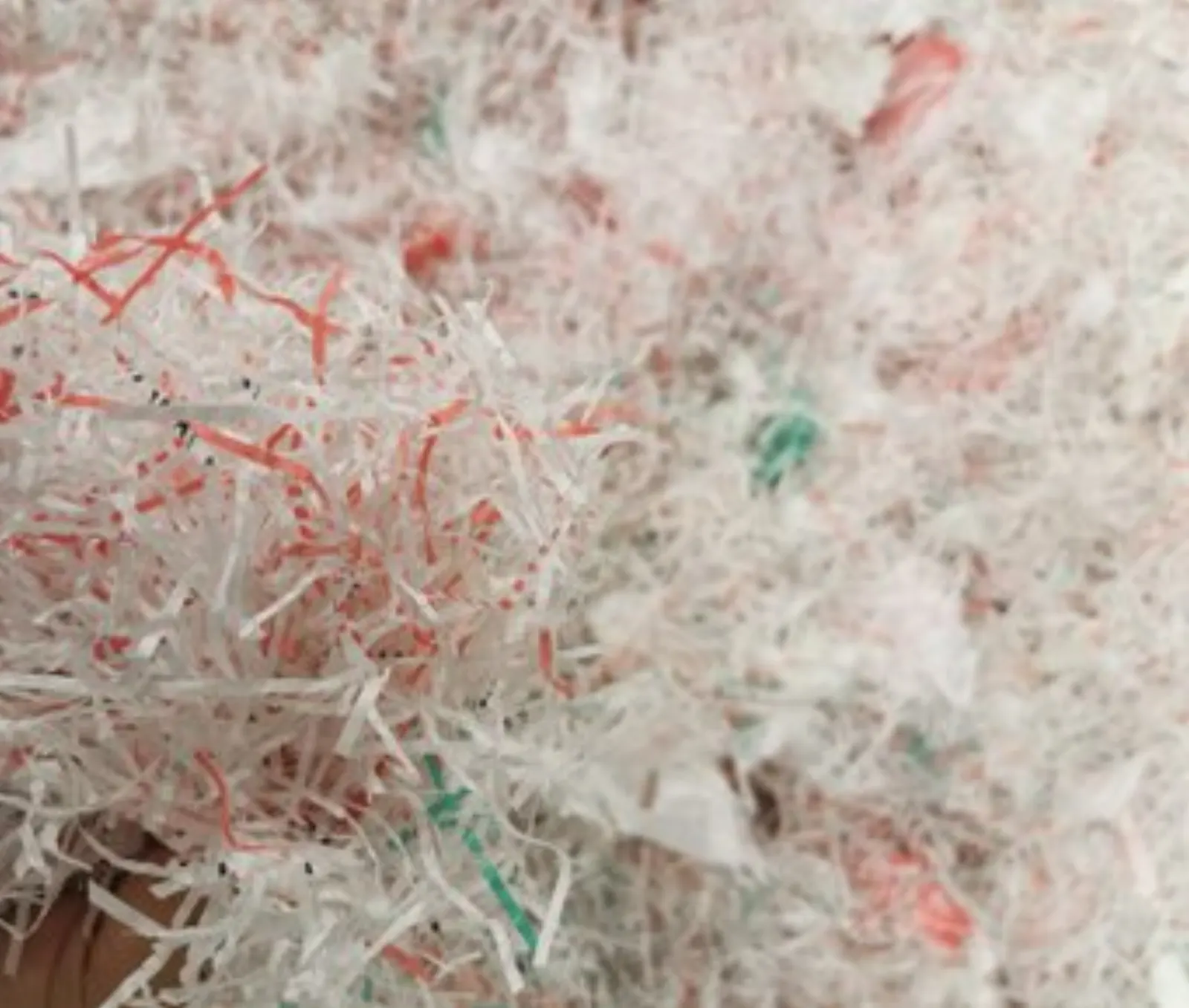

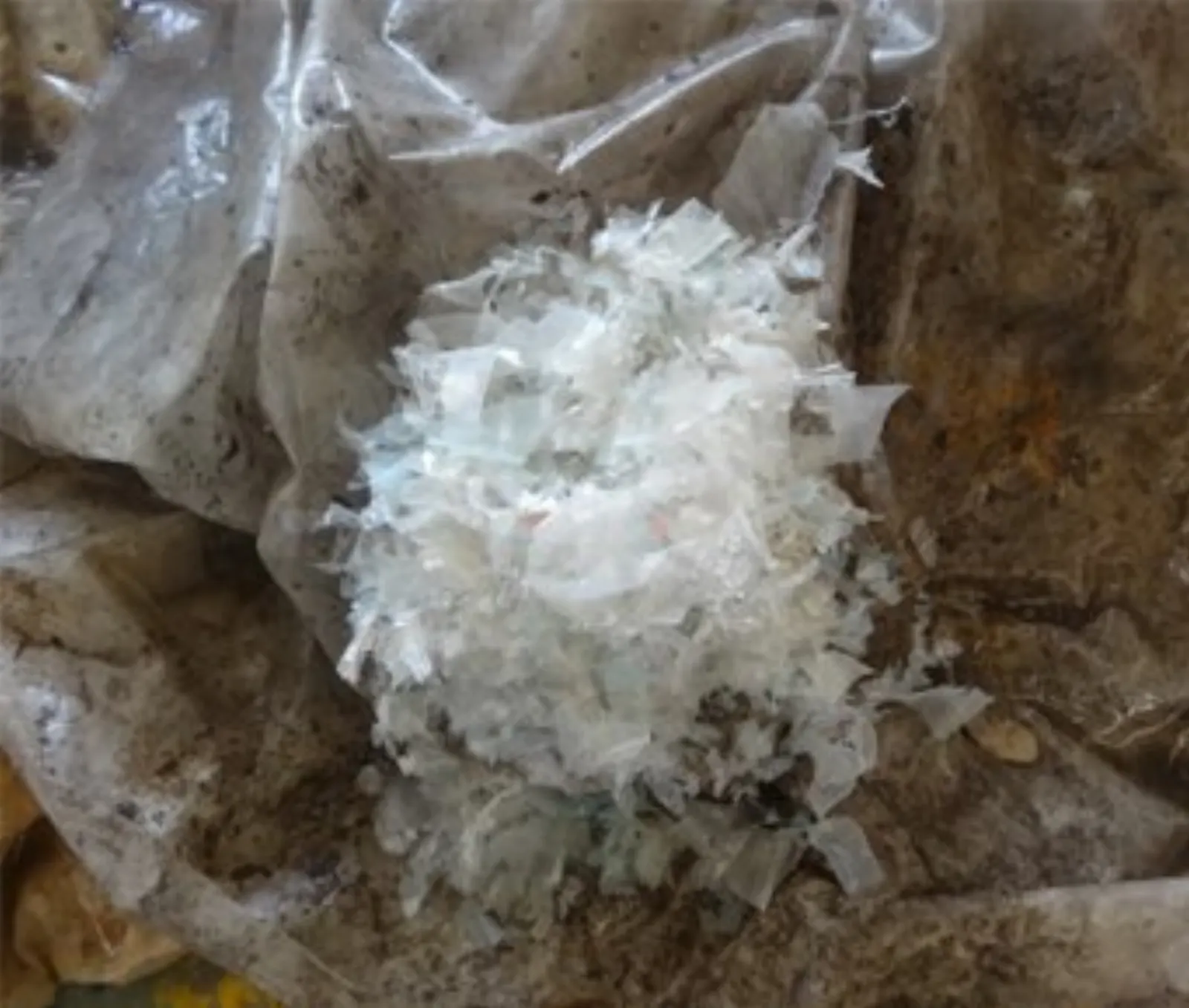

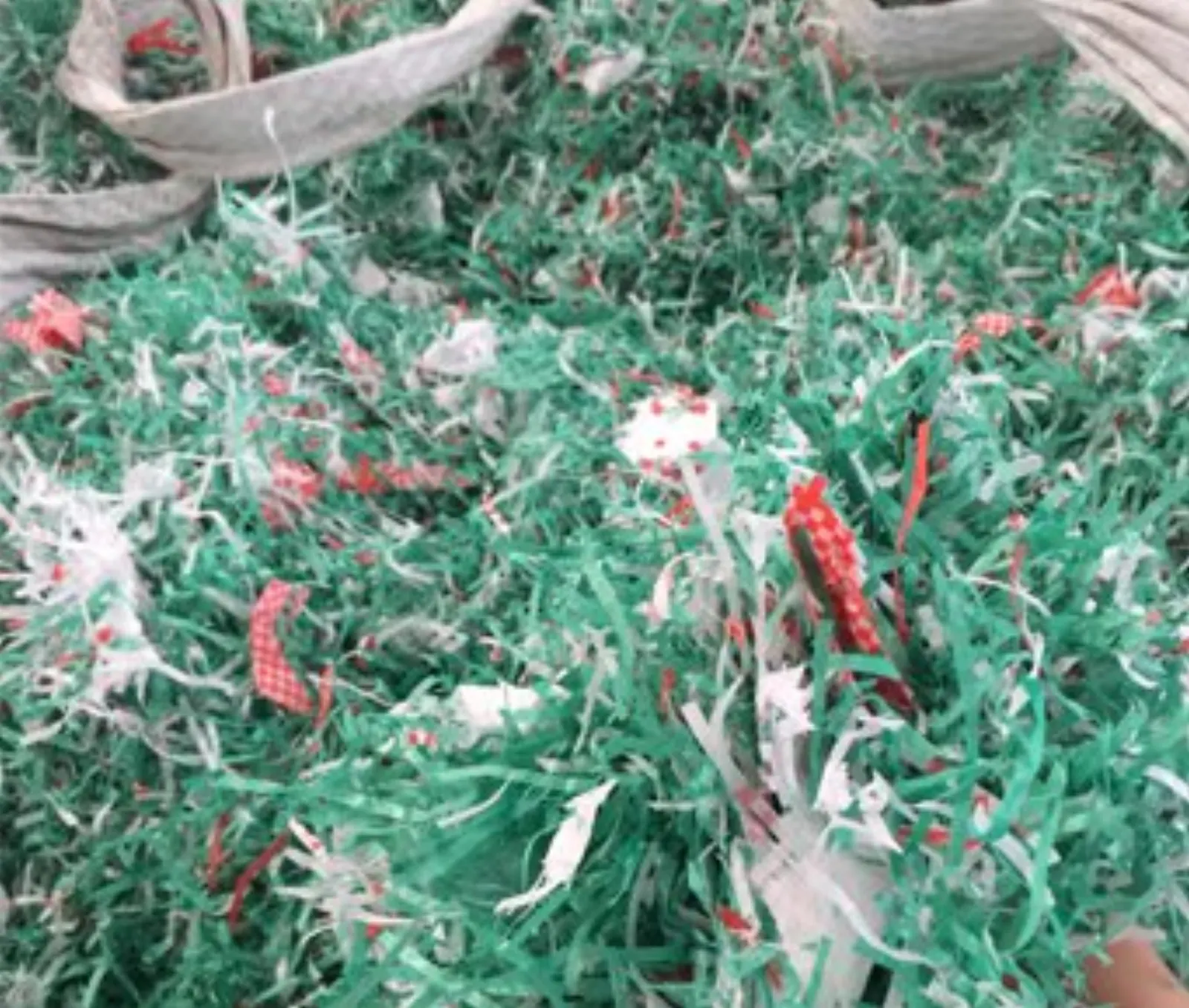

After process

After process

After process

After process


Model Power Water  Capacity
RM300 85kw/h 4-6 t/h 300kg/h
RM500 155kw/h 6-8 t/h 500kg/h
RM1000 320kw/h 8-10 t/h 1000kg/h

Cleaning Process


Workflow of PP PE LDPE LLDPE film woven bag recycling line

Belt conveyer → wet film crusher → friction washer → washing floating tank → high-speed friction washer→ film dryer/dehydrator/squeezer → storage silo


Key parts of PP PE LDPE LLDPE film woven bag washing recycling line

1. Wet film shredder crusher

As long plastic films are easily entangled and clogged, our wet film shredder crusher as a group to cut the large plastic films into small plastic flakes with a size between 60mm-80mm, controlled by mesh screen diameter. Unique design new angle of blades in the crusher to make max capacity.


2. Friction washer

Some dirty agricultural films contain about 25-30% or more sand. In order to reduce the pressure of the washing floating tank, we usually place a friction washer before it.


3. High-speed friction washer

High-speed centrifugal force can separate film and stickers, especially for LLDPE packaging film.


4. Film dryer/dehydrator/squeezer

Film squeezing machine or centrifuge dryer are both optional and easily operated with low consumption. The squeezing dryer works with the screw to squeeze the film into the compactor, and remove the moisture through the squeezing force pressure. The centrifuge dewatering machine is working by high-speed rotation force to remove the water.

No Equipment name Quantity
1 Belt conveyor 1
2 Wet film crusher 1
3 Double screw conveyor 1
4 Film floating washer 1
5 Screw conveyor 1
6 High speed friction washer 1
7 Screw conveyor 1
8 Squeezing machine 1
9 Storage hopper 1
10 Electric panel 1

Quality Assurance

Final moisture between 3%-5%. Dry and clean.

Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,SUS 304 stainless steel, SKD-11 blades,etc.




Are you trading company or manufacturer?


We are a manufacturer which producing the machines by ourselves.


What’s your guarantee or the warranty of the quality if we buy your machines?


Our warranty year is one year. During the period, we provide you spare parts free of charge asap. But the technical guide is forever.


How can I install my machine when it arrives?


We will send the instruction manual and videos to you,your workers can install the machine accorded to it. If the situation is ok, we can arrange our engineer to your factory, who will teach your labors how to install machines.


How to maintenance machines in factory?


We will provide maintenance instruction, it will mark the oil model and time. And how many times you should check the machines. Any problems about machines, you can ask us anytime.


If our machine is not working suddenly, but we have not spare parts, how to solve?


We promise our machine’s quality. Also we will prepare enough spare parts from the beginning for using urgently. Some vulnerable parts(blades), we will suggest you to buy. The last way,we send you spare parts by DHL.


How to maintence recycling machine:


We will send you manuals for product maintenance and how to solve common problems. By the way, you can contact with us, we will try our best to teach you by instruction book or video.




We provide 12 months’ warranty period usually.In this Period, any machine’s quality problem,we will send spare parts soon by DHL. We will do our best to teach your worker how to change the spare parts by video or instruction.


24hours technical service:


We will online 24 hours every day, You can contact with us anytime. Our engineer will send you machine maintenance manuals.
