HDPE PP Milk Bottle Drum Bucket Container Pipe Tube Waste Plastic Recycling Shredding Cleaning Washing Line is used to process and wash kinds of rigid bottles such as HDPE milk bottle, shampoo bottle, beer box, plastic tube, chemical barrel,etc.

Share this:

Product Description

Our HDPE PP ABS PC crushing washing drying recycling line is specially designed to recycle and reprocess waste plastic like HDPE bottle, barrel, drum, PP pipe, etc. Our HDPE PP washing recycling line is composed of bale opener, crushing section, continuous washing section and drying section. The waste HDPE PP containers will get fully cleaned and dry by our friction washing and dehydrator dryer.

The final flakes humidity will be less than 1% after processing by our HDPE PP washing line, dry and clean flakes could send to our plastic pelletizing machine to make granules directly. As a professional HDPE PP plastic recycling machine manufacturer, we could supply the HDPE PP rigid plastic washing line between 1000kg/h to 3000kg/h. The HDPE PP rigid recycling plant is with high automatic operation and helps to reduce labor costs.

Most waste plastic materials come from urban and industrial collection points, and the composition of raw materials vary from country to country, even if the HDPE-PP composition varies within the same country. We adapt to different states of waste plastic bottles with advanced design, concept and technology, provide custom service to meet all your special application demands. Plastic HDPE PP recycling line can be arranged in "L", "S" or "U" shape according to different workshops.

Advantage of Plastic HDPE PP recycling line

1. The HDPE PP cleaning machine has the characteristics of high efficiency, stable work and large capacity.
2. The part in contact with the material is made of SUS304, the thickness is more than 3mml, and the service life is long.
3. The HDPE PP rigid recycling plant adopts the world famous brand components and PLC control system.
4. The whole HDPE PP pipe barrel recycling line has passed CE certification and IS09001 certification.

5. Provide complete factory layout, good machine installation, training and lifetime after-sales service.

Application

HDPE PP bottle recycling line is widely used for HDPE Bottle, PP Pipe, Waste Mould Lumps, Other Rigid Plastic scrap. After processed, they can become different sizes and shapes of plastic flakes.

HDPE Bottle

HDPE Barrel

PP Drum

PP Lumps

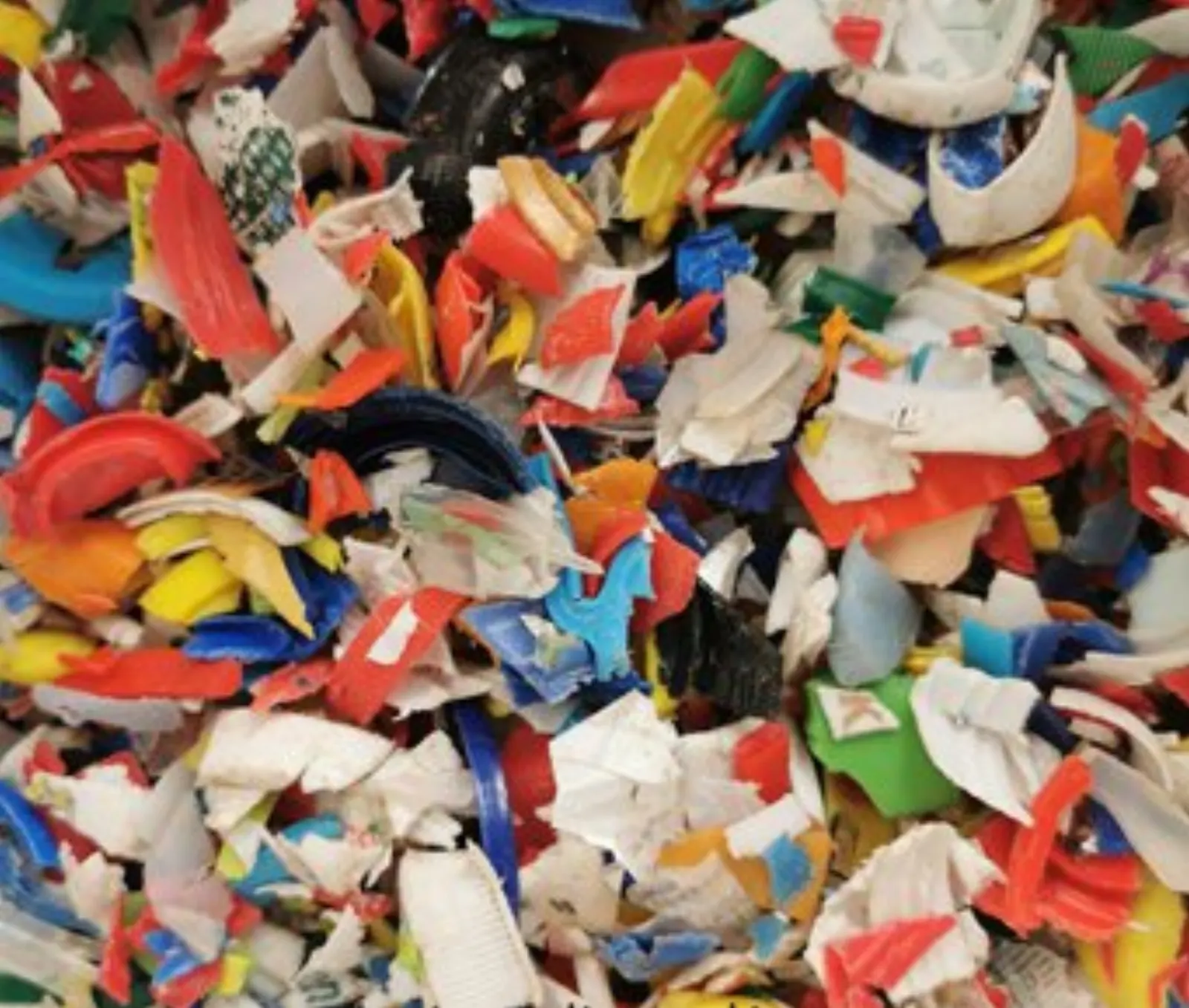

After process

After process

After process

After process

Parameter

Model Power Water  Capacity
RH1000 120kw/h 3-4 t/h 1000kg/h
RH2000 185kw/h 5-6 t/h 2000kg/h
RH3000 260kw/h 6-8 t/h 3000kg/h

Cleaning Process

  • * Shredder crusher as a group to cut the big bale or normal plastic shape.
  • * Unique design new angle of blades in crusher to max capacity.
  • * High speed friction washer and hot washing system to wash and remove the dirt like oil,glue,mud,etc.
  • * High efficiency dehydrator dryer in moving speed 2000 RPM .
  • * Easy operation with low consumption.
No Equipment name Quantity
1 Belt conveyor 1
2 Wet crusher 1
3 Double screw conveyor 1
4 Sinking floating tank 1
5 Screw conveyor 1
6 High speed friction washer 1
7 Screw conveyor 1
8 Dewatering machine 1
9 Storage hopper 1
10 Electric panel 1

Quality Assurance

Final moisture between 3%-5%. Dry and clean.

Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,SUS 304 stainless steel, SKD-11 blades,etc.



Faq

Q

Are you trading company or manufacturer?

A

We are a manufacturer which producing the machines by ourselves.

Q

What’s your guarantee or the warranty of the quality if we buy your machines?

A

Our warranty year is one year. During the period, we provide you spare parts free of charge asap. But the technical guide is forever.

Q

How can I install my machine when it arrives?

A

We will send the instruction manual and videos to you,your workers can install the machine accorded to it. If the situation is ok, we can arrange our engineer to your factory, who will teach your labors how to install machines.

Q

How to maintenance machines in factory?

A

We will provide maintenance instruction, it will mark the oil model and time. And how many times you should check the machines. Any problems about machines, you can ask us anytime.

Q

If our machine is not working suddenly, but we have not spare parts, how to solve?

A

We promise our machine’s quality. Also we will prepare enough spare parts from the beginning for using urgently. Some vulnerable parts(blades), we will suggest you to buy. The last way,we send you spare parts by DHL.

Q

How to maintence recycling machine:

A

We will send you manuals for product maintenance and how to solve common problems. By the way, you can contact with us, we will try our best to teach you by instruction book or video.

Q

Warranty:

A

We provide 12 months’ warranty period usually.In this Period, any machine’s quality problem,we will send spare parts soon by DHL. We will do our best to teach your worker how to change the spare parts by video or instruction.

Q

24hours technical service:

A

We will online 24 hours every day, You can contact with us anytime. Our engineer will send you machine maintenance manuals.

×
