300kg/hr PE PP Film Washing Recycling Line

Our complete PP PE film line is used for recycling and cleaning waste plastic materials like LDPE agriculture film, LLDPE packaging film, PP woven bag, PP jumbo big bag, etc. We could supply the PP PE film washing line in capacity between 300kg/h to 2000kg/h. As a professional manufacturer of plastic PE PP film washing line for over 15 years, we provide customers with one-stop PE PP film washing recycling solutions with our unique structure, professional design and global service experience. Our pe pp film washing  line has received unanimous approval from the plant, gteatly improved the plastic pp pe film recycling efficiency and output.

Advantage of Our PP PE film washing line

1. Obtained CE and ISO 9001 certification.

2. Perfectly remove all kinds of dirty attachments on the surface of materials, such as mud, oil, glue, etc.

3. Easy to operate and has low energy consumption.

4. High efficiency, large capacity and stable work

5. With 304 stainless steel materials with longevity.

6. Use world-renowned brand components to ensure good quality.

7. Composed of crushing part, continuous washing parts and squeezing & drying parts.

8. Could be displayed "I" "L" "U" shapes according to your workshop.

The PE/PP film washing line mainly used for recycling waste PE or PP film, agriculture film,  LDPE agriculture film,LLDPE stretch film, PP woven bag and PP jumbo bag scrap. After processed by our PE PP fim washing line, you can get the clean and dry film flakes.

LDPE agriculture film

LLDPE wrapping film

PP woven bag

PP jumbo bag

After process

After process

After process

After process

• Shredder & crusher as a group to cut the big bale or normal film shape, unique design new angle of blades in crusher chamber, cut the plastic in highest performance and in lowest current and noise. All the cutting way is balanced and stable and make max capacity.
• The friction washer is used to remove the dirt from plastics and it works with the fuction of centrifuge force to separate sand, mud, stones., etc. As soon as the film come into floating washing tank,it is in minimum dirt content. It will have a big help to film cleaning.
• High speed friction washer mainly handle and remove some stubborn dirt.  At the same time, get rid of stickers on film flakes with high speed centrifuge force.
• Film squeezing machine or centrifuge dryer optionally. Film squeezing machine uses pressure to squeeze water out of the PP/PE film directly from the washers. Centrifuge dryer uses centrifugal force to remove most of the moisture from the PP/PE film directly from the washer.

No	Equipment Functions	Details

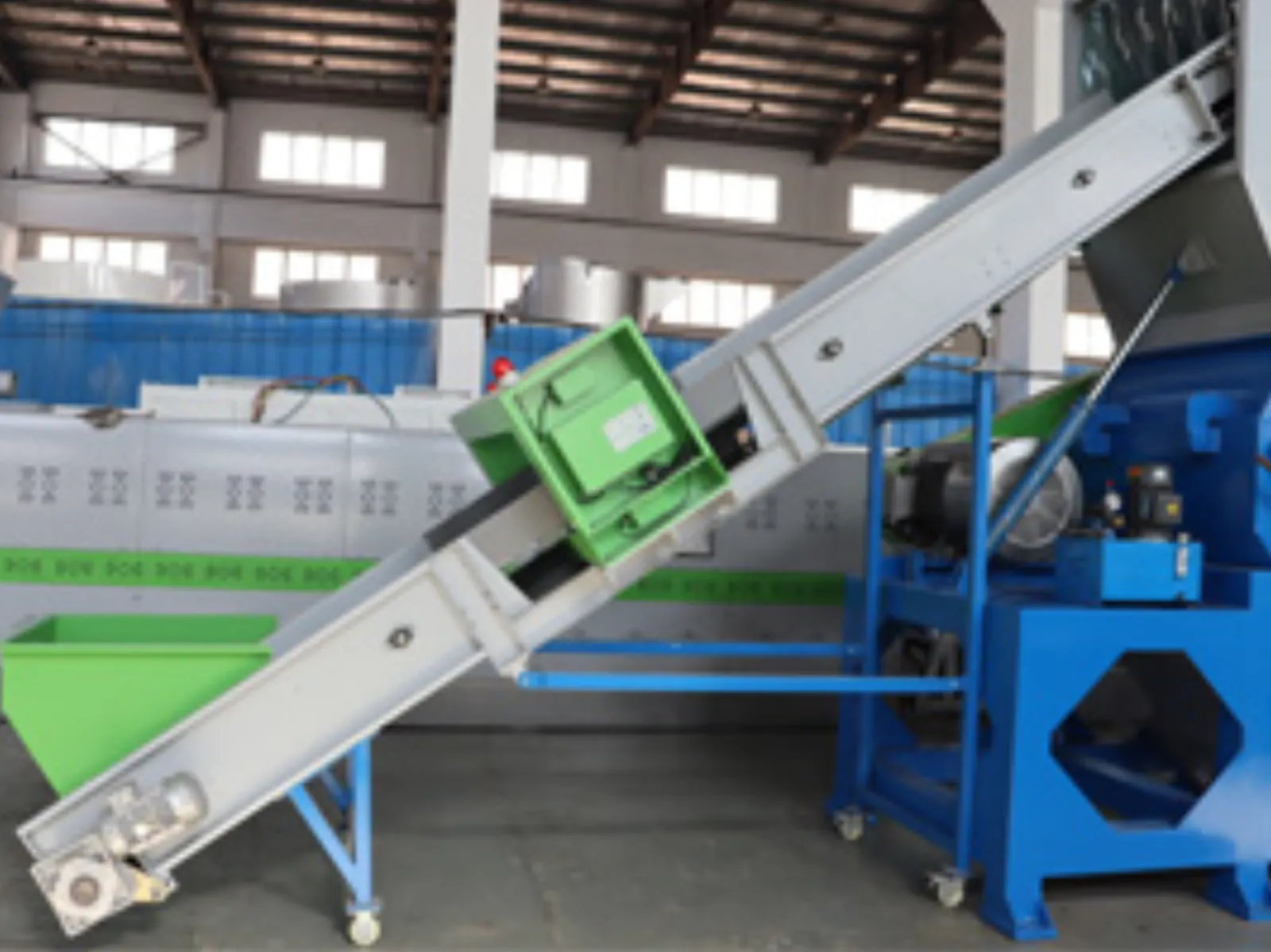

1	Belt conveyor To conveying film/bag to crusher,metal detector is to alarming and finding metals/protect blades in crusher.

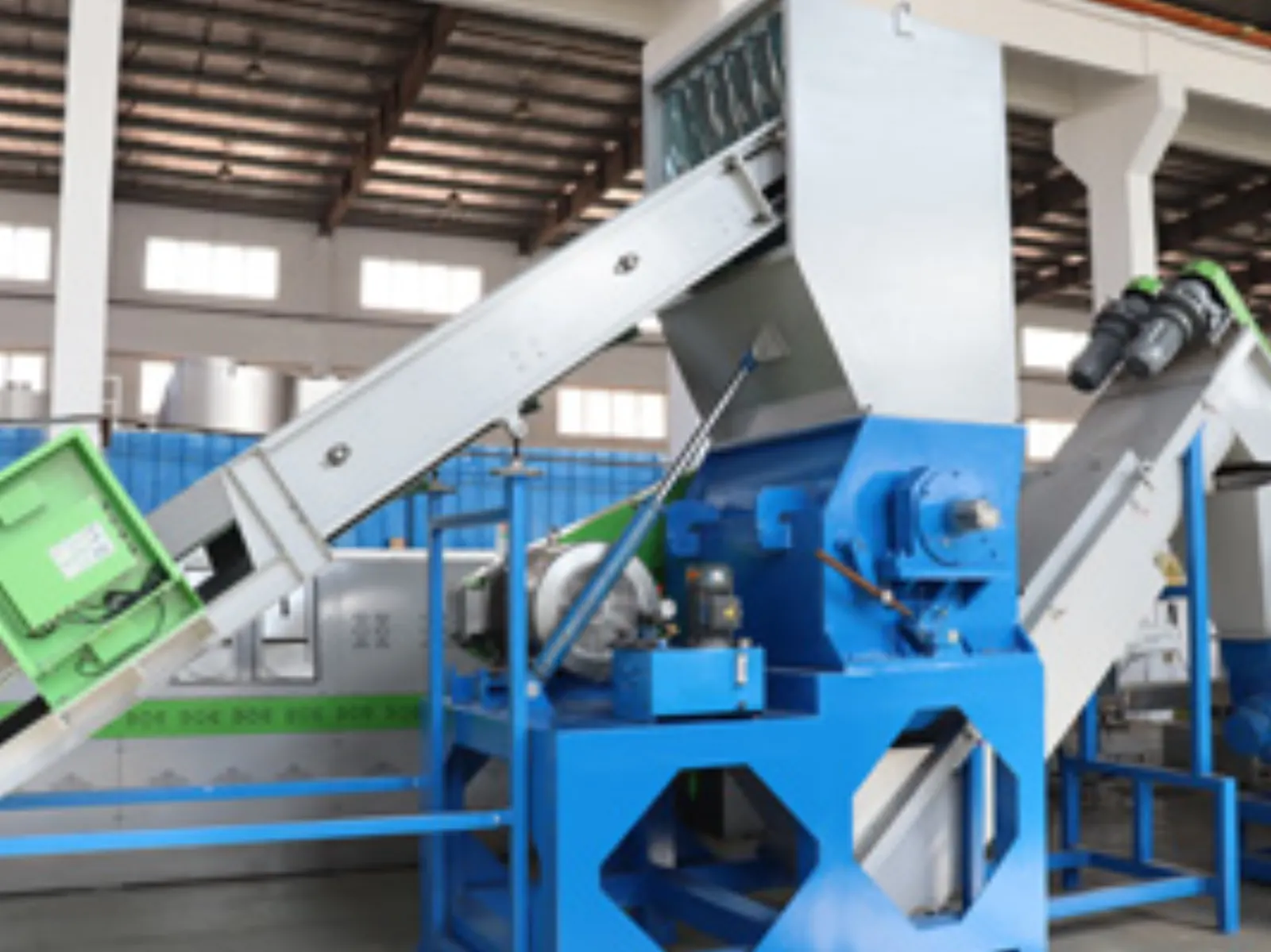

2	Wet crusher To crush the big film into small flakes,crushing with water is much more efficiently.Specially design with stagger blades will make the cutting stress and current more balance and getting higher capacity.

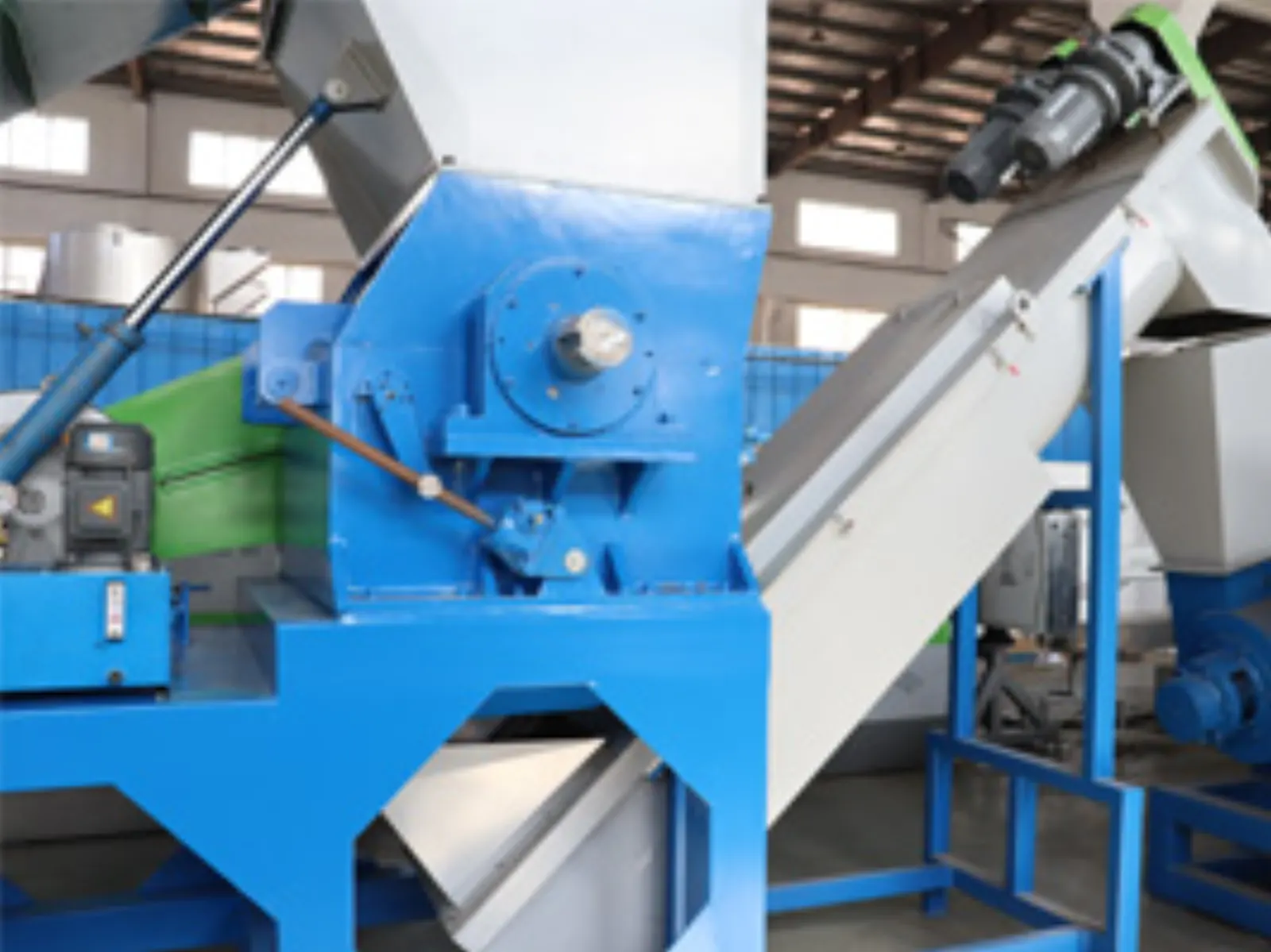

3	Screw conveyor To convey the crushed film flakes to next step and rub the film.

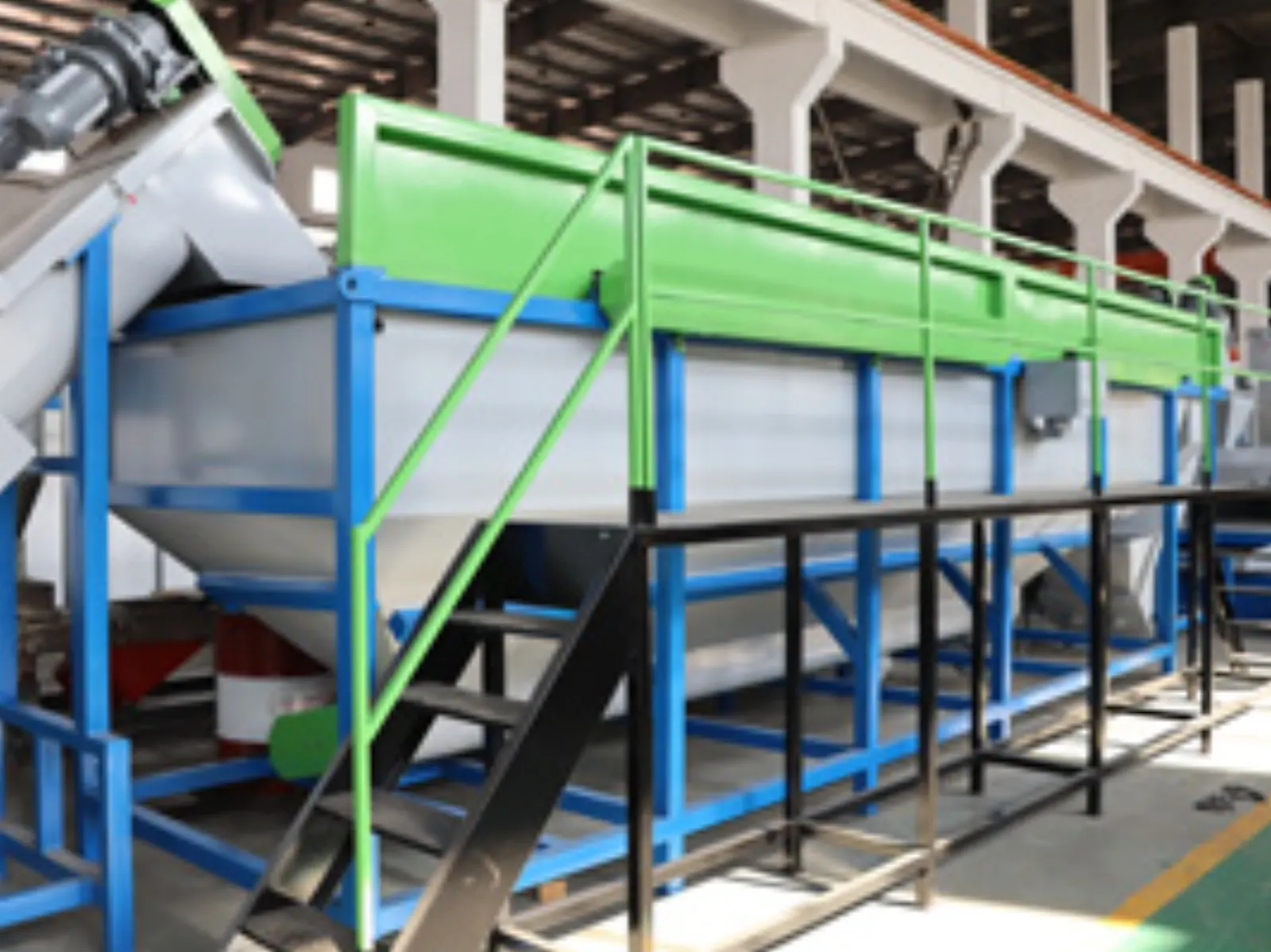

4	Film floating washer To fully wash the film flakes, the rollers will make films more unfolded and push them to the end of tank. The chain conveyor is more easily to convey the film to get more capacity.

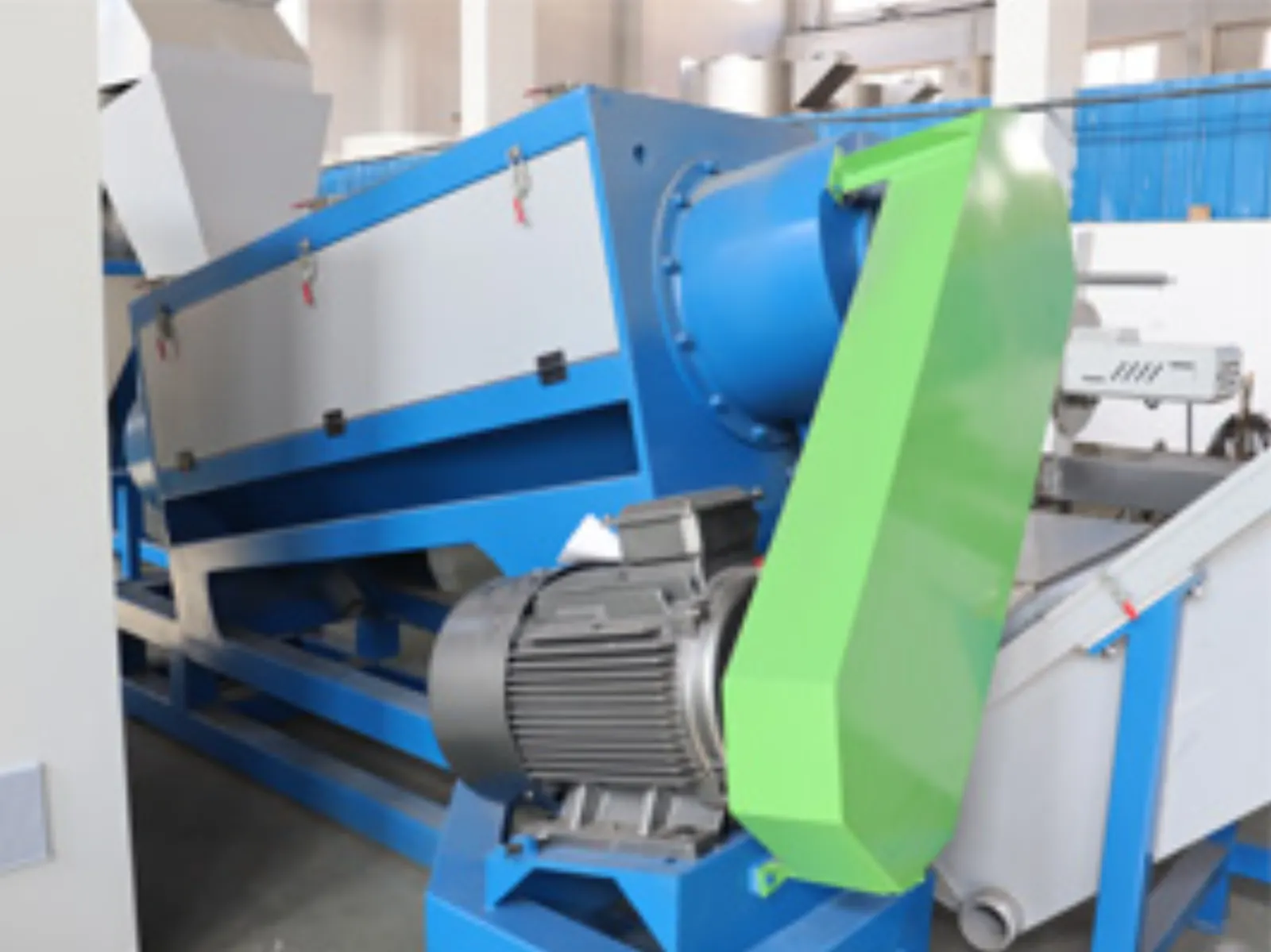

5	High speed friction washer To remove the dirt from film flakes by centrifuge force, thus,fewer dirt will go to floating washer.

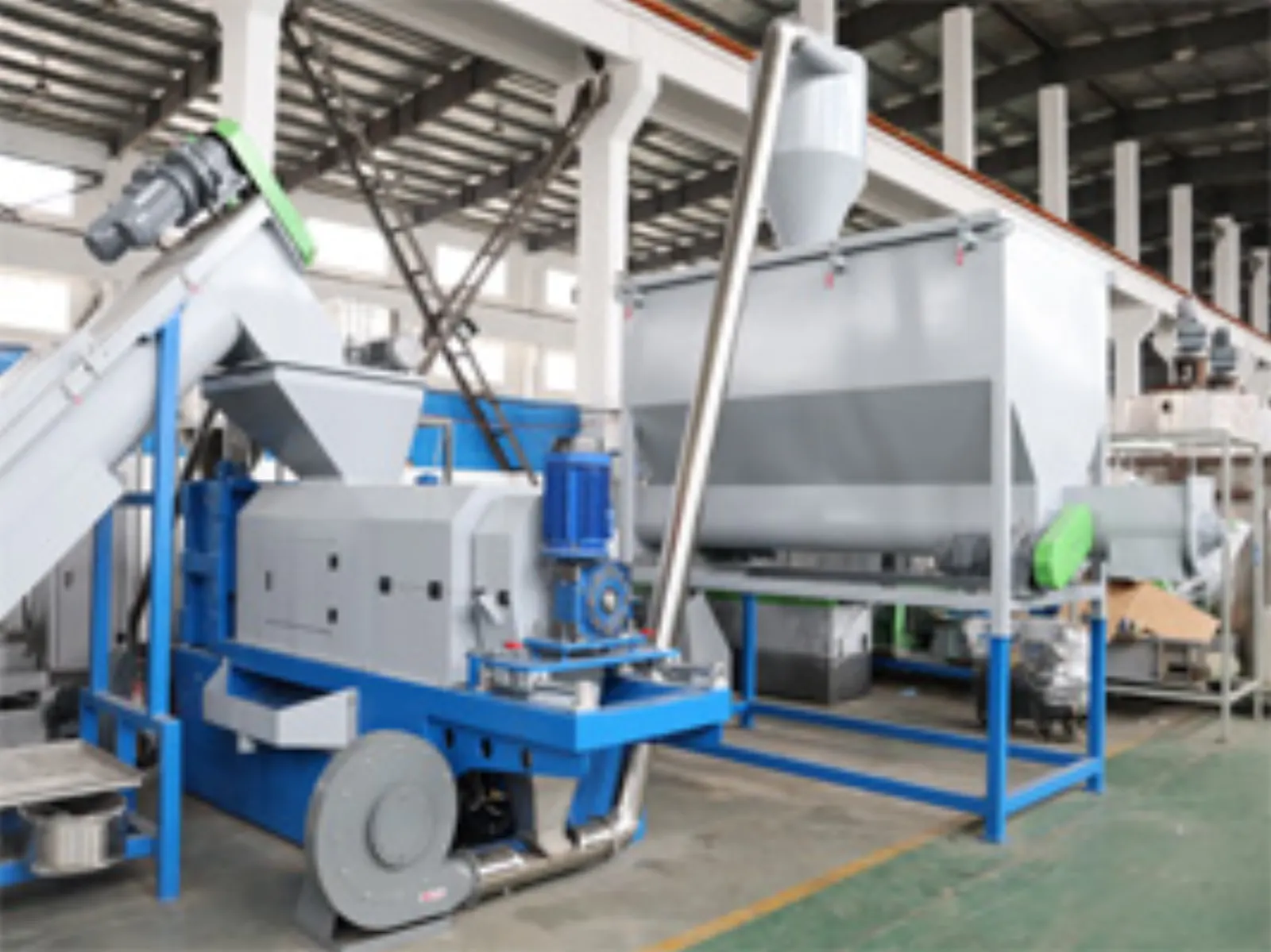

6	Squeezing machine To process PP/PE film, conical shape screw can be ensure minimum the moisture.

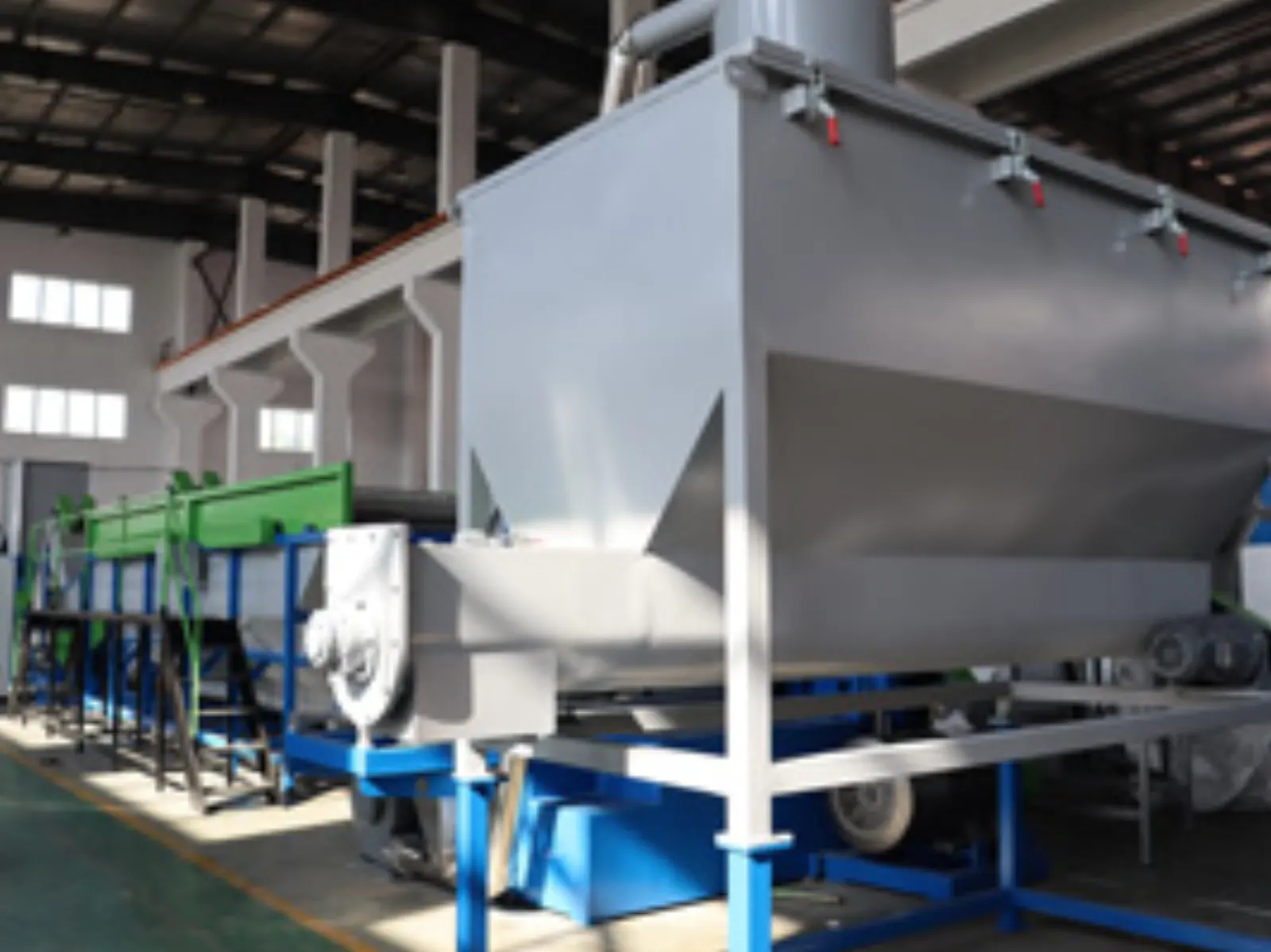

7	Storage hopper To storage the dried film. With screw to push and avoid blocking.

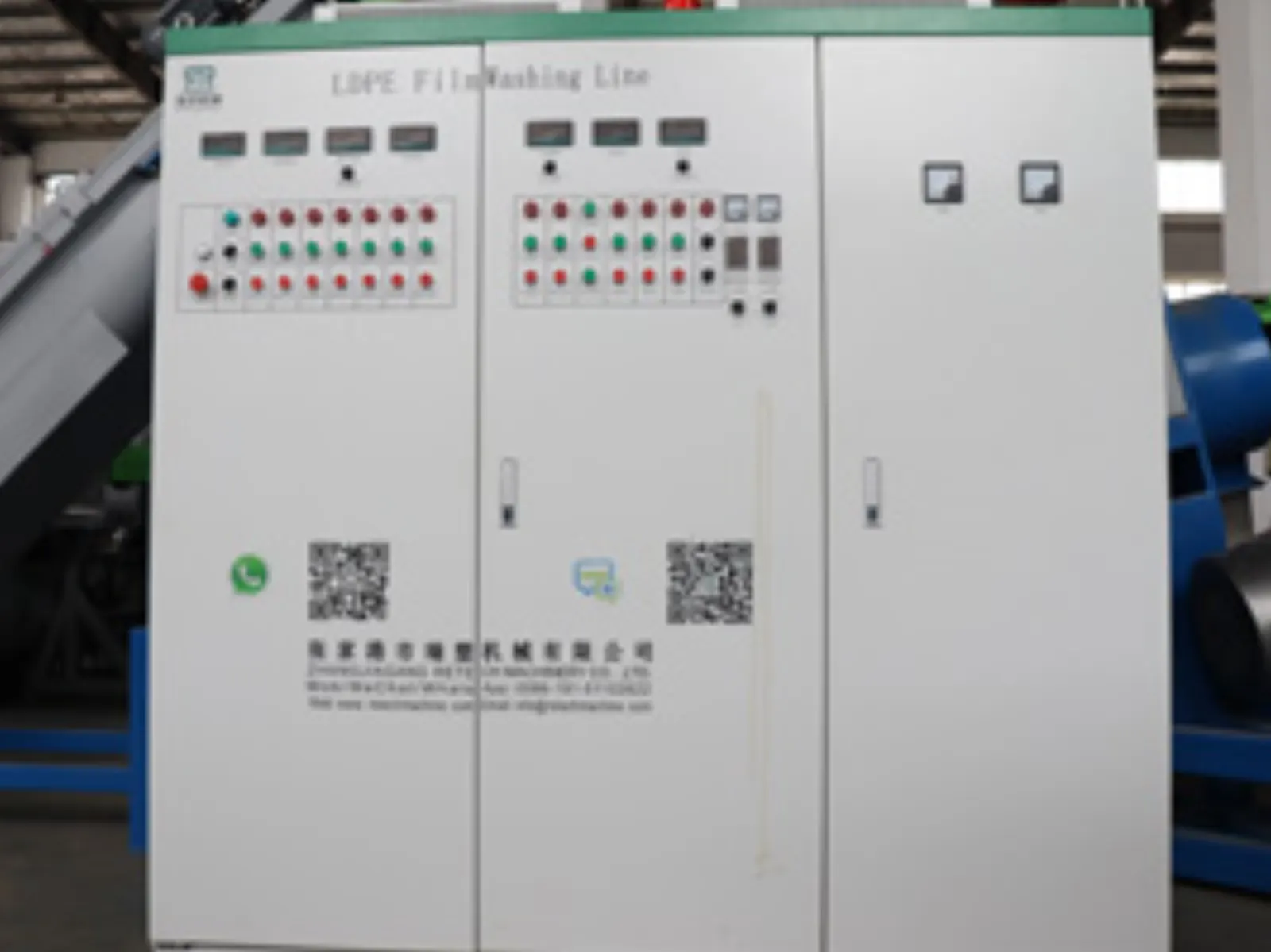

8	Electric panel To control the whole production line.
