Final moisture between 3%-5%.
Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,SUS 304 stainless steel, SKD-11 blades,etc.
Our PP PE film crushing washing drying recycling line is used to recycle plastic like LDPE LLDPE film,PP woven bag,PP jumbo bag.etc. By our PP PE film recycling machine,the final humidity of film flakes will be less than 5%, it could send to our pelletizing machine to make granules directly. We can supply customized plastic recycling solutions according to client's specific requirements between capacity 300kg/hr-2000kg/hr.
Our PP woven bag crushing/washing/squeezing/drying production line is mainly designed to deal with waste plastics like PP woven bag, PP jumbo big bag, materials of LDPE agriculture film, LLDPE stretch film also supports. offers pp woven bag recycling solutions that are high output and low energy consumption. As a top manufacturer of plastic recycling field, Retech Machine offers pp woven bag recycling solutions with high output and low energy consumption.
The whole process includes shredding, water rinsing, friction washing, dring and washing system, the final film humidity will be less than 5%, it could send to our compactor pelletizing machine to make granules directly. We could supply the PP PE film washing line between 300kg/h to 2000kg/h. Although our standard plastic woven bag recycling lines are sufficient for most facilities, to meet your specific needs, custom lines with additional machinery are warmly welcomed.
LDPE agriculture film,LLDPE stretch film,PP woven bag,PP jumbo bag scrap.
LDPE agriculture film
LLDPE wrapping film
PP woven bag

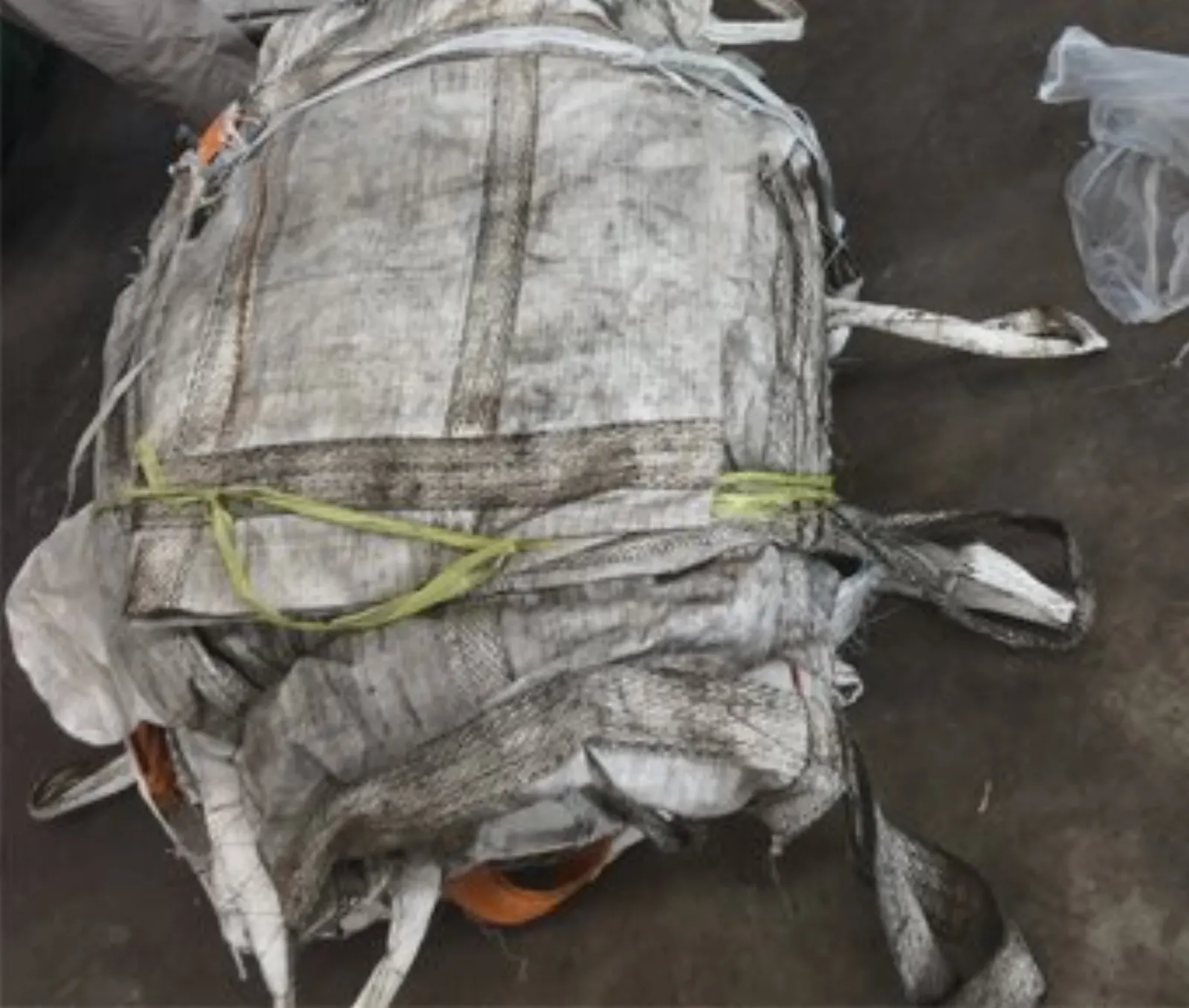

PP jumbo bag
After process
After process
After process
After process
Model | Power | Water | Capacity |
RM300 | 85kw/h | 4-6 t/h | 300kg/h |
RM500 | 155kw/h | 6-8 t/h | 500kg/h |
RM1000 | 320kw/h | 8-10 t/h | 1000kg/h |
No | Equipment name | Quantity |
1 | Belt conveyor | 1 |
2 | Wet film crusher | 1 |
3 | Double screw conveyor | 1 |
4 | Film floating washer | 1 |
5 | Screw conveyor | 1 |
6 | High speed friction washer | 1 |
7 | Screw conveyor | 1 |
8 | Squeezing machine | 1 |
9 | Storage hopper | 1 |
10 | Electric panel | 1 |
Final moisture between 3%-5%.
Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,SUS 304 stainless steel, SKD-11 blades,etc.
We are a manufacturer which producing the machines by ourselves.
Our warranty year is one year. During the period, we provide you spare parts free of charge asap. But the technical guide is forever.
We will send the instruction manual and videos to you,your workers can install the machine accorded to it. If the situation is ok, we can arrange our engineer to your factory, who will teach your labors how to install machines.
We will provide maintenance instruction, it will mark the oil model and time. And how many times you should check the machines. Any problems about machines, you can ask us anytime.
We promise our machine’s quality. Also we will prepare enough spare parts from the beginning for using urgently. Some vulnerable parts(blades), we will suggest you to buy. The last way,we send you spare parts by DHL.
We will send you manuals for product maintenance and how to solve common problems. By the way, you can contact with us, we will try our best to teach you by instruction book or video.
We provide 12 months’ warranty period usually.In this Period, any machine’s quality problem,we will send spare parts soon by DHL. We will do our best to teach your worker how to change the spare parts by video or instruction.
We will online 24 hours every day, You can contact with us anytime. Our engineer will send you machine maintenance manuals.
