Final PP PE scrap flakes are clean and dry,moisture between 3%-5%.
Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,SUS 304 stainless steel, D2 blades,etc.
Product Description
Our Plastic Complete Film Washing Line is working to recycle waste soft plastic material such as plastic bags, PP woven bags, plastic agriculture film, greenhouse films, mulching films, plastic package films, PE waste film, PP waste film, industrial film, printed film and etc. By high efficiency performance, our PP PE film washing line could remove very contaminated like sands ,stones,price tag stickers. Example of one case of our PE PP film washing plant: Belt Conveyor-Wet Crusher-High Speed Friction Washer-Hot Washer-Cold Washer-Dewatering machine-Packaging. By high efficiency performance, our PP PE film washing line could remove very contaminated like sands ,stones,price tag stickers.
Our PE film PP woven bag washing recycling machine process includes shredder, water rinsing, friction washing, drying and washing system, the final flakes scrap humidity will be less than 5%, it could send to our compactor granulating machine to make new granules directly. We could supply PP PE film bag washing line between 300kg/hr to 2000kg/hr. Although our standard plastic woven bag recycling lines are sufficient for most facilities, to meet your specific needs, custom lines with additional machinery are warmly welcomed.
Application
LDPE agriculture film,LLDPE wrapping film,PP woven bags,PP jumbo bag scraps.
LDPE agriculture film
LLDPE wrapping film
PP woven bags
PP jumbo bags
After process
After process
After process
After process
Parameter
| Model | Power | Water | Capacity |
| RM300 | 88kw/h | 4-6 t/h | 300kg/h |
| RM500 | 165kw/h | 6-8 t/h | 500kg/h |
| RM1000 | 330kw/h | 8-10 t/h | 1000kg/h |

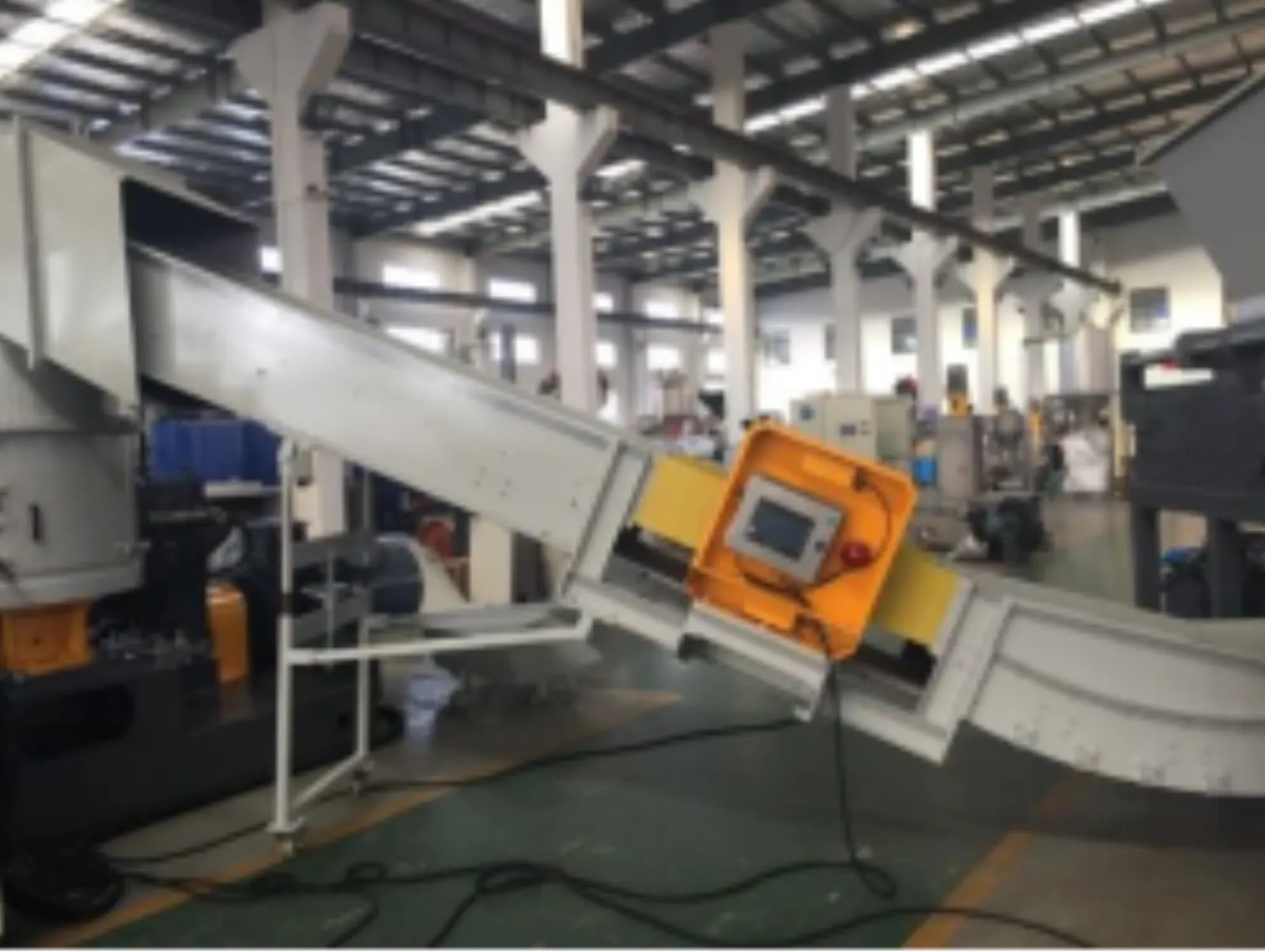

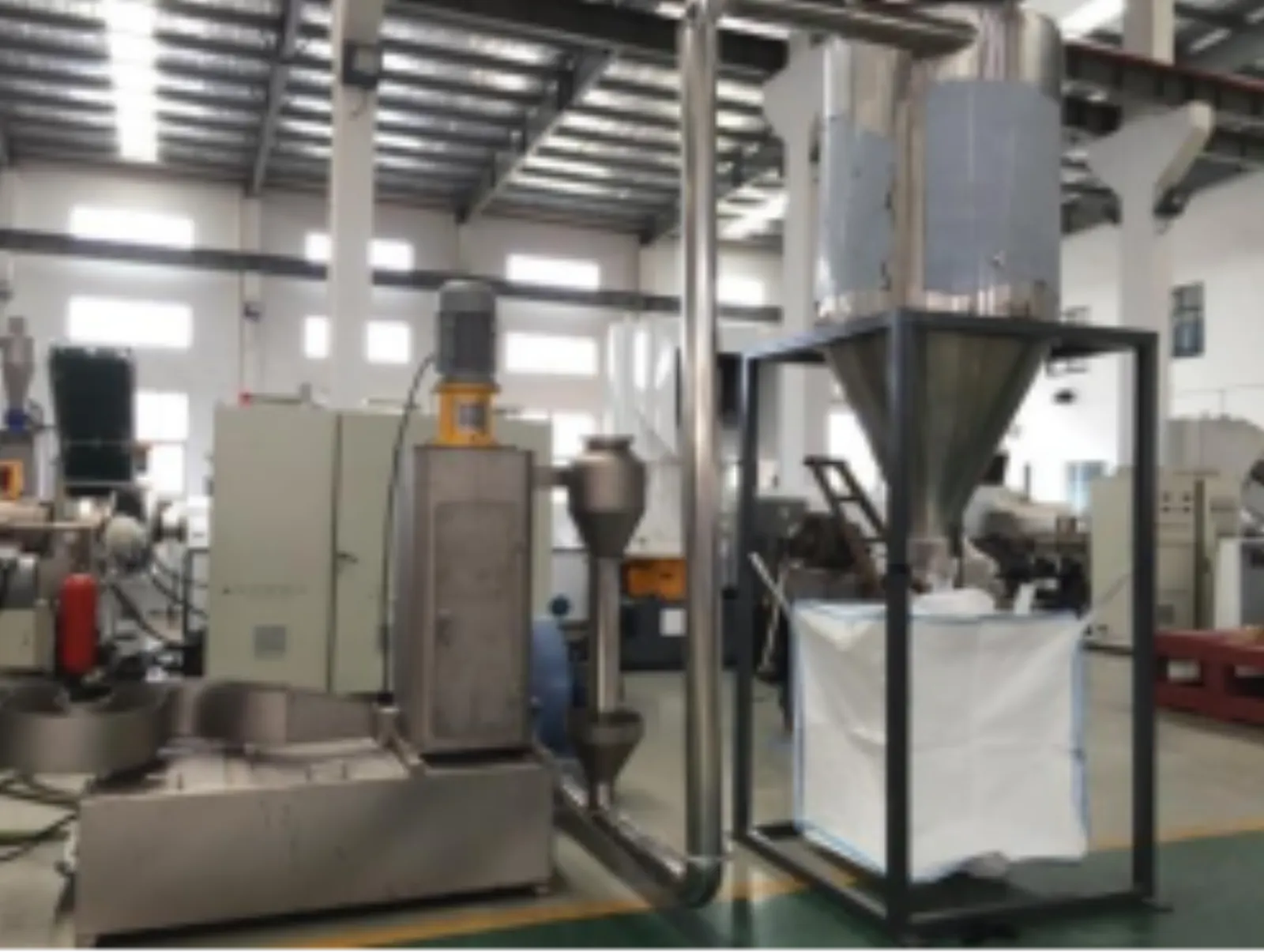

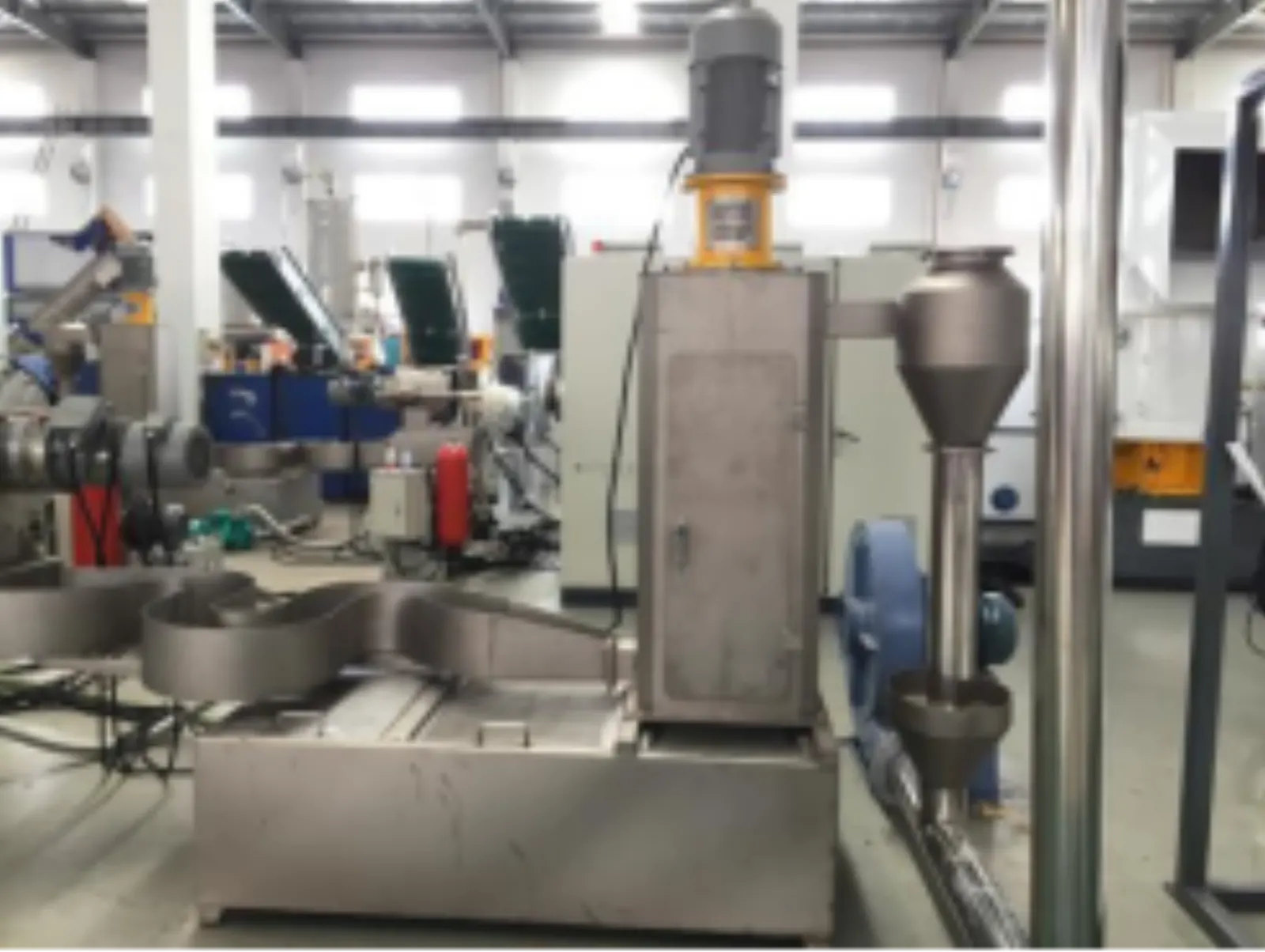

Cleaning Process
- * Shredder&crusher as a team to cut the big bale or normal film or PP big bag to standard sizes that are easy for washing cleaning drying.
- * Unique design new angle of blades in crusher to max improving crushing capacity.
- * High speed friction washer and label remover system to separate film and stickers especially for LLDPE packaging film,dirty like sand and stones are well removed.
- * PP PE Film&Bag squeezer machine or centrifuge dryer optionally.
- * Easy operation with low consumption of whole PP woven bag washing plant,dry scrap could make granules immediately.
| No | Equipment name | Quantity |
| 1 | Heavy Duty Shredder | 1 |
| 2 | Wet PE PP film bag crusher | 1 |
| 3 | High speed friction washer | 1 |
| 4 | PP PE Film floating washer | 1 |
| 5 | Hot floating tank | 1 |
| 6 | PP PE Film Washing Machine | 1 |
| 7 | Friction washer | 1 |
| 8 | Squeezer | 1 |
| 9 | Storage hopper | 1 |
| 10 | Electric panel | 1 |
