Final film moisture within 3%.
Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,SUS 304 stainless steel,SKD-11 blades,etc.
PP PE film woven bag squeezer machine is used to dry the washed wet plastic film scrap like LDPE film, LLDPE film, PP woven jumbo bag flakes, etc. It is a fully automatic squeezing compacting granulating dryer by screw and electrical heating. Plastic film after crush and wash usually contains moisture over 30%. Our film/bag squeezer machine could keep final film humidity within 3%.
Plastic squeezing dryer also called water squeezer, film squeezer, is a new designed drying machine instead of traditional dewatering machines. Plastic squeezing machine is an important part of plastic film washing line. Our plastic PE Film PP woven bag squeezing drying machine is used to dry wet waste soft plastic like PE film, LDPE LLDPE stretch film, PP woven bag, PP jumbo bag flakes, etc.
Washed films typically retain up to 30% humidity. High humidity can affect the efficiency and yield of the subsequent pelletizing process. Having a plastic squeezing dryer is necessary to dehydrate the washed film, reduce the volume of recycled material and further refine the essence of the final plastic pellets. The extruder adopts a specially designed screw structure and uses the principle of squeezing dehydratio to extrude the water in the plastic by rotating the screw. The water flows out from the bottom, the plastic is heated by high-intensity extrusion friction, and the mold will be gently plasticized after heating. Finally the blade will cut the granules from the mould. Therefore, the following granulation process can be improved.
After drying by plastic film squeezing machine, the final film humidity will be less than 3% and could be sent to our plastic pelletizing machine to make granules directly. With the automatic PP PE film squeezer, you can increase the subsequent granulating line production capacity. We could supply the capacity of plastic squeezing machine between 300kg/h to 800kg/h. Also, we support custom service of plastic squeezing dryer according to your special demands.
1. Unique screw squeezing design removing moisture theory, solving the common problem that it is hard to dry the wet film during the plastic film drying recycling field.
2. With the latest extrusion heating system, The material has a high degree of drying and sufficient plasticization, Good drying performance, could make the final moisture level lower than 3%. Can greatly increase the capacity of the subsequent pelletizing line.
3. Safe, lower noise, easy operating and maintenance, compared with ordinary heating system, can save electricity consumption by 40%-50%.
4. Mechanical squeezing dewatering way, comparing with the traditional centrifugal and hot air drying dewatering way, could save space and energy much more, stable running and high cost performance.
Our plastic squeezing machine is used for squeezing and re-pelletizing PP/PE film, woven bags, ton bags, nylon etc. It's equipped with advanced screw extrusion system, squeezing efficiency could reach 95%. The plastic film squeezer also can combine with plastic washing and pelletizing line, the whole Squeezing drying system is with stable capacity and whole process automation.
1. LDPE waste film recycling and washing line
2. PE agriculture using films crushing and washing line
3. Waste PE film recycling line
4. Ethylene ground film washing, drying and regranulating line
5. Waste film recycling and washing line
6. PP woven bag recycling and washing line
LDPE agriculture film
LLDPE wrapping film
PP woven bag
PP jumbo bag

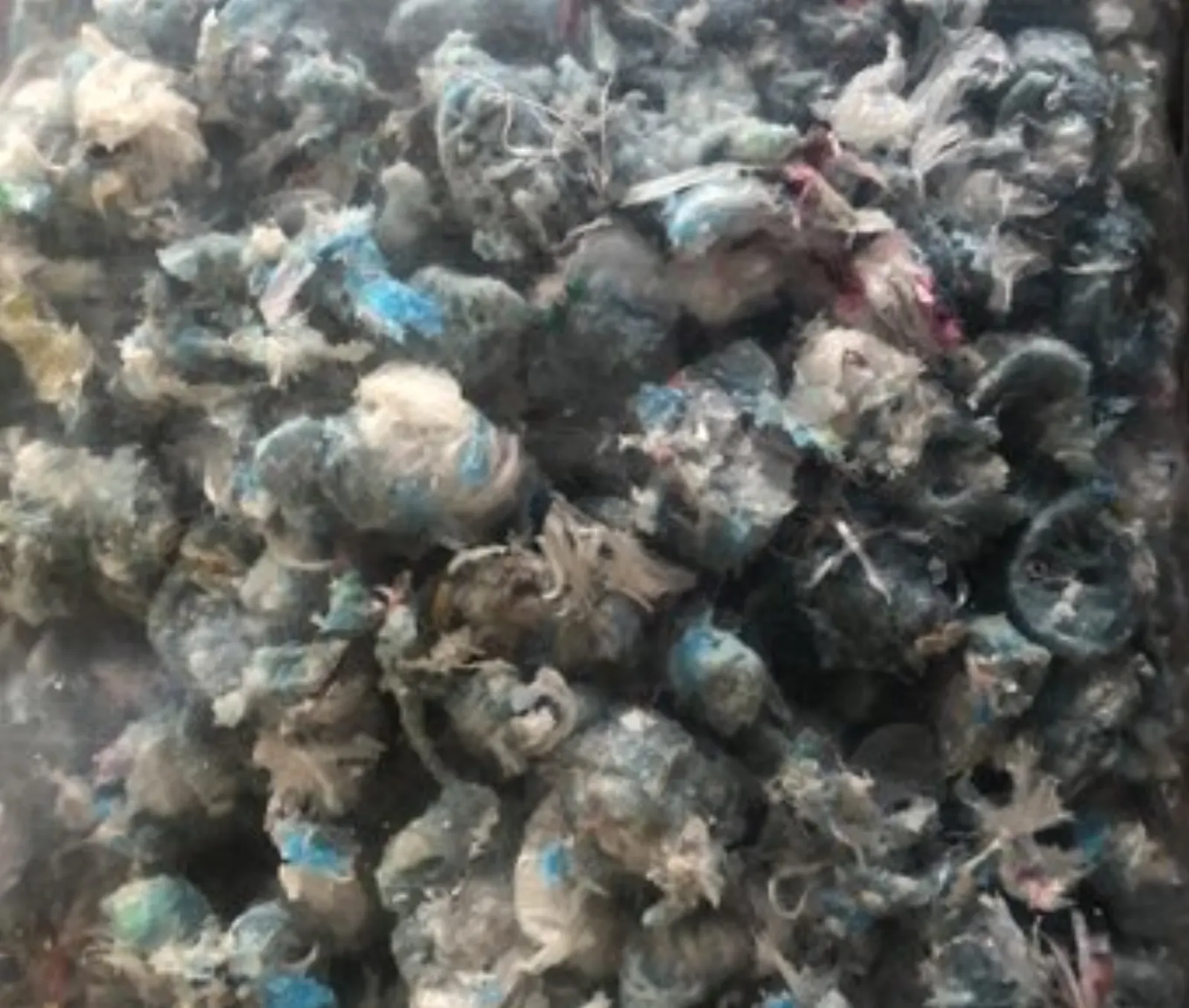

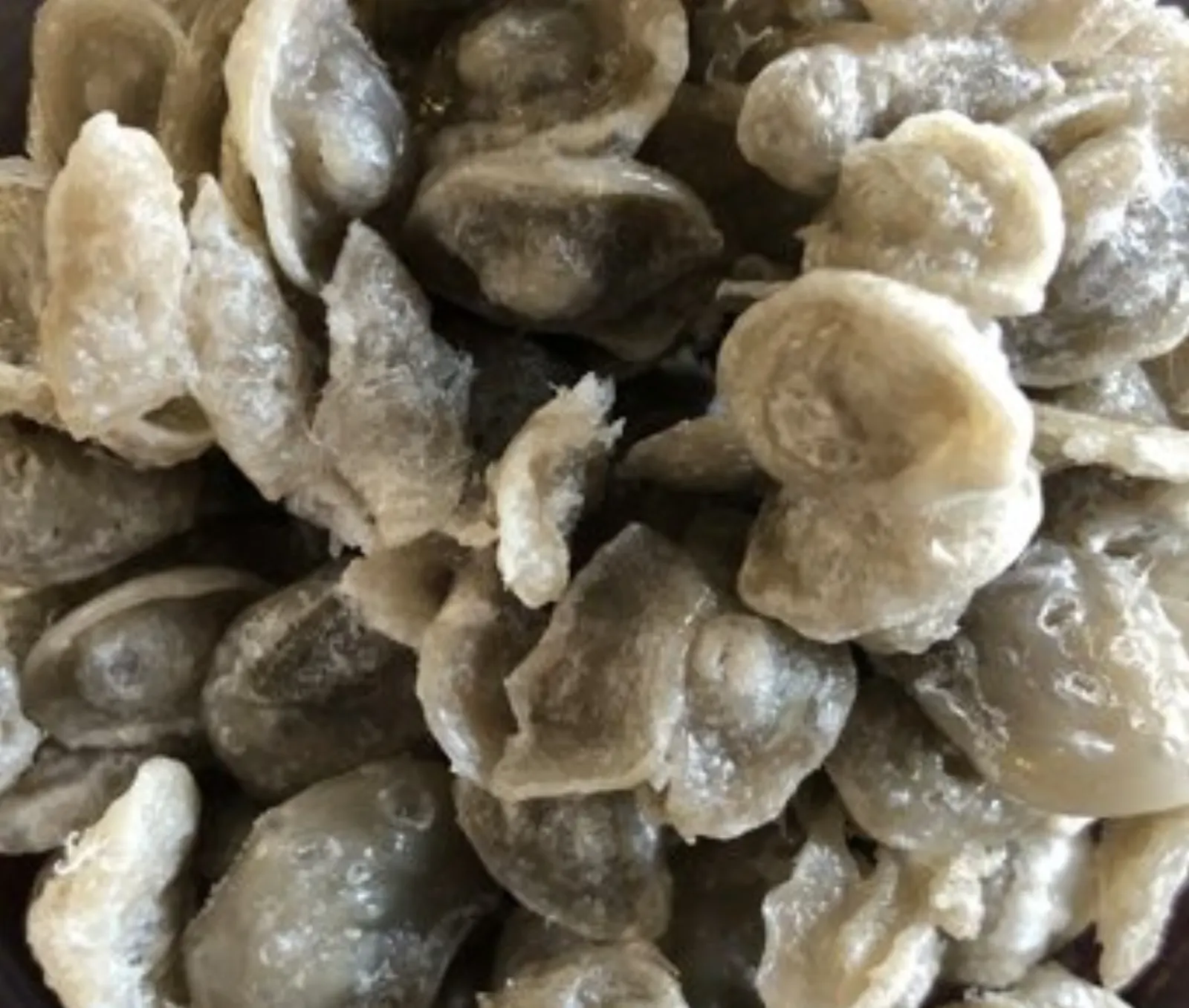

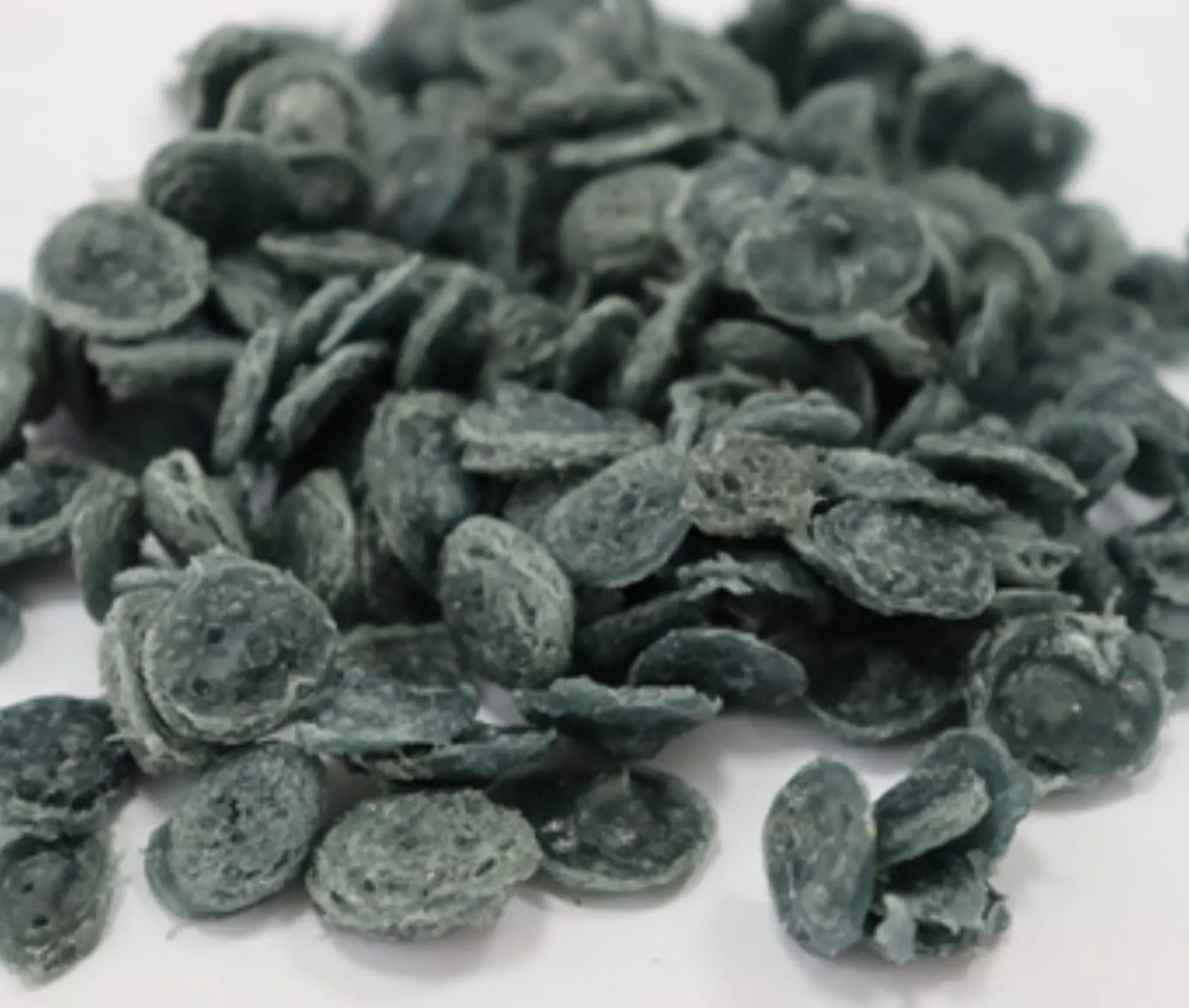

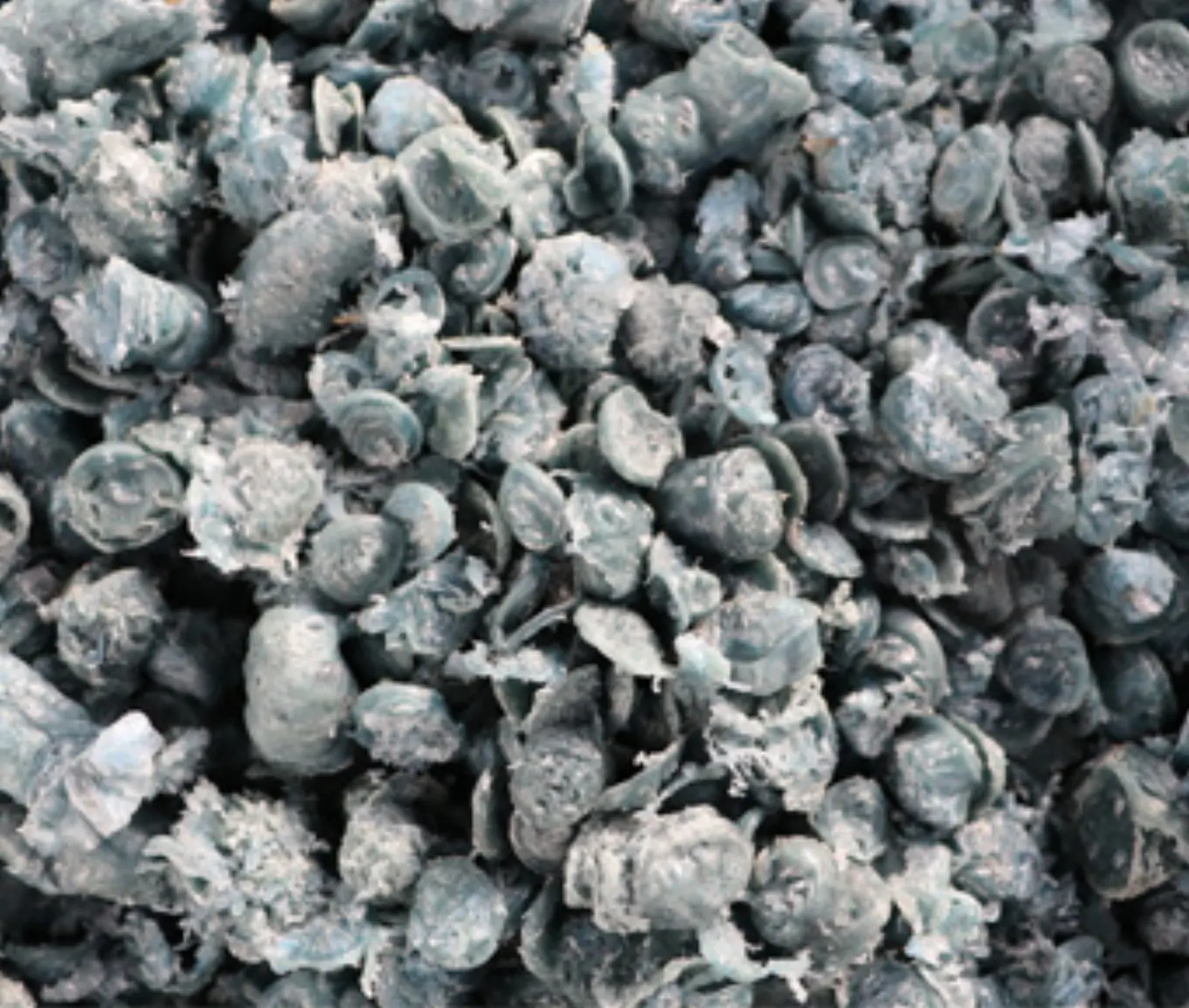

After process
After process
After process
After process
Model | Power | Screw | Capacity |
RSS1-300 | 90kw | 300mm | 350kg/h |
RSS1-320 | 132kw/h | 320mm | 500kg/h |
RSS1-380 | 160kw/h | 380mm | 800kg/h |
No | Equipment name | Quantity |
1 | Belt conveyor | 1 |
2 | PP PE film squeezer | 1 |
3 | Blowing system | 1 |
4 | Storage hopper | 1 |
5 | Electrics | 1 |
