Final Granules are uniform without air hole.
Use world famous brand elements,like Siemens motor,Fuji Inverter,SKF bearing,Mesutronic metal detector,38CrMoA1A bimetal screw,etc.
Product Description
Our Plastic LDPE LLDPE HDPE Film Bag Raffia Recycling Pelletizing Machine With Laser Filter is working for recycling and regranulator soft plastic materials such as,washed LDPE agriculture film,LLDPE rolling stretch packaging film,offcut HDPE film bag,BOPP CPP OPP POF film,EPS XPS foam,PP woven/non woven bag raffia,etc.
A powerful compactor cutter installed to cut-heat-agglomeration soft film semi-plasticing shortly.Specially designed screw with bimetal meterial melt and degassing the contaminated impurities.Equipped with latest self cleaning laser filter filtration system with automatic and continuous flow,it is ideal solution to remove paper,wood,aluminum,rope,etc.The final pellets after regranulating will be full strong and uniform after recycling by our laser filter equipped plastic pelletizing line.
Application
LDPE Washed Agriculture Film,LLDPE Stretch Wrapping Film,HDPE Offcut Film Bag,Other Soft Plastic Like OPP CPP BOPP film,EPS foam,PP Woven Bag Non Woven Fabric recycling,etc.

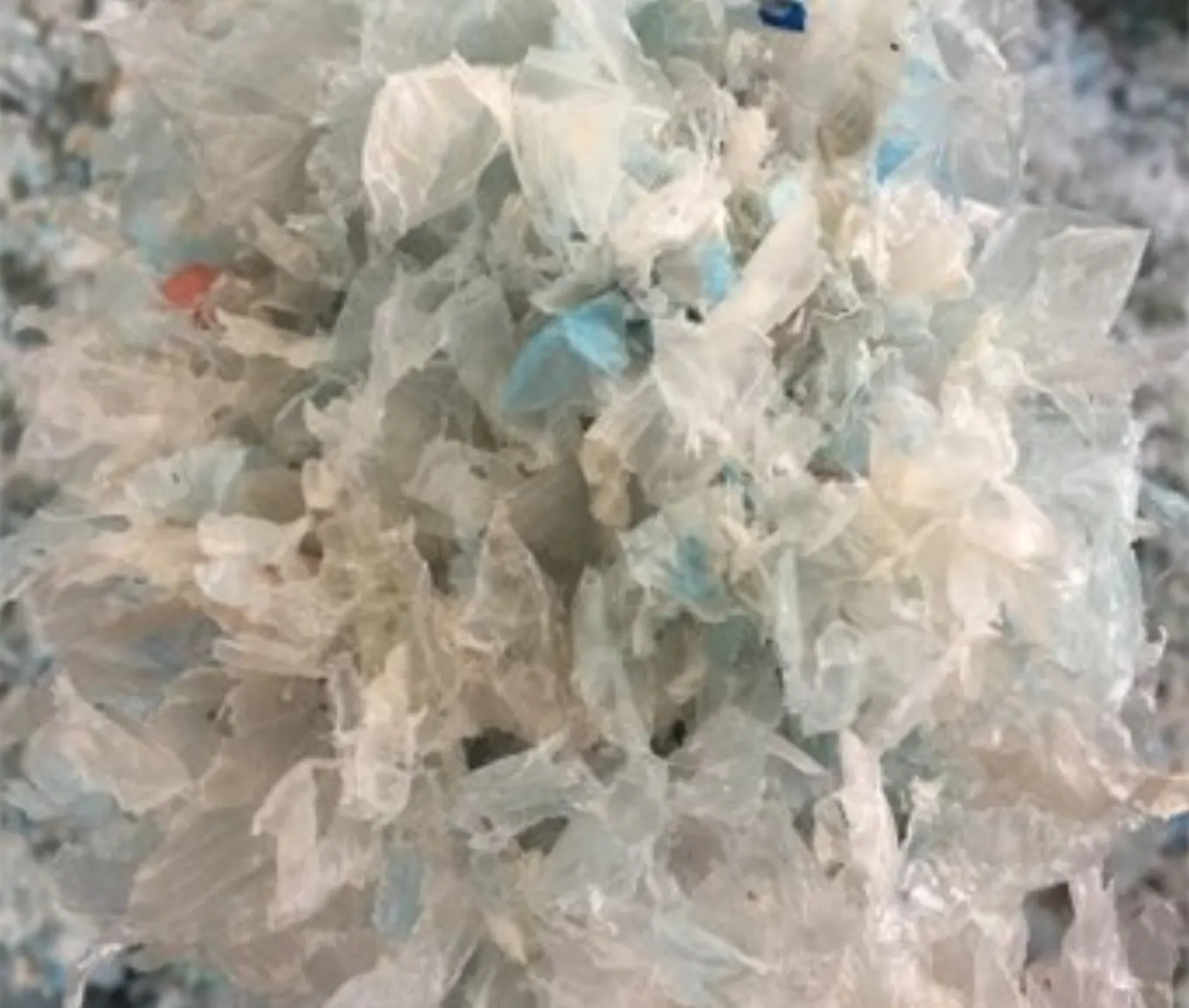

LDPE washed film

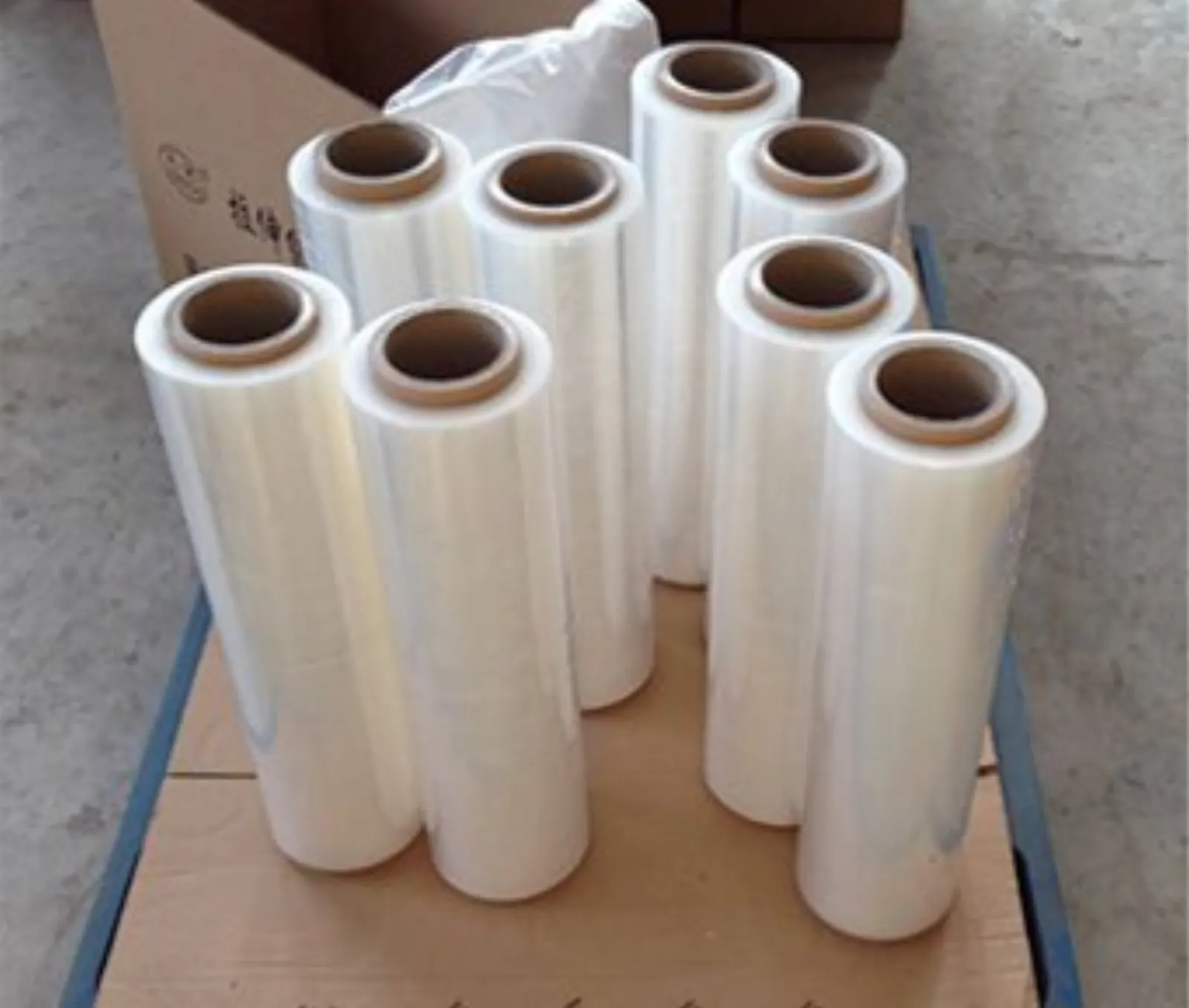

LLDPE wrapping film

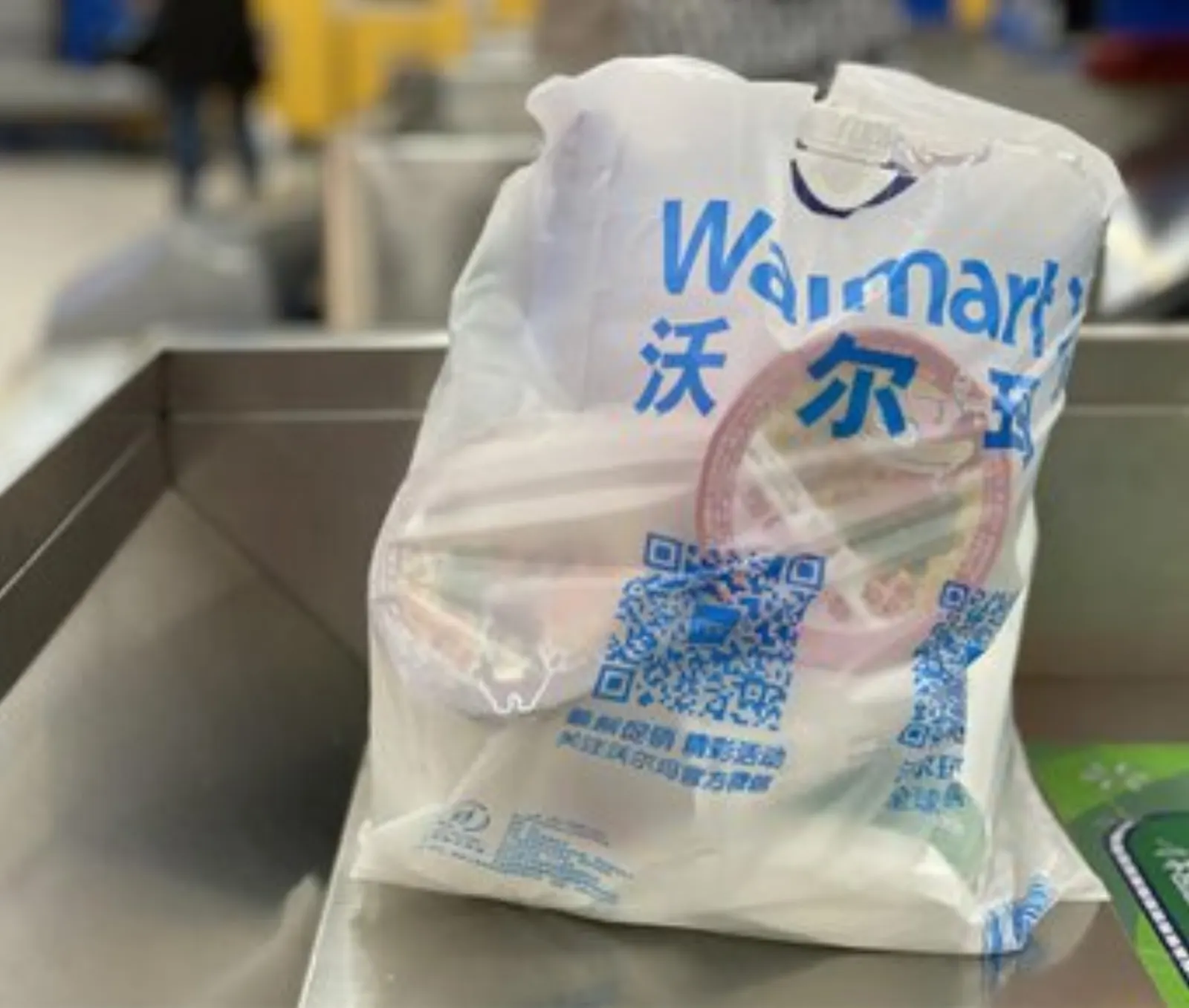

HDPE film

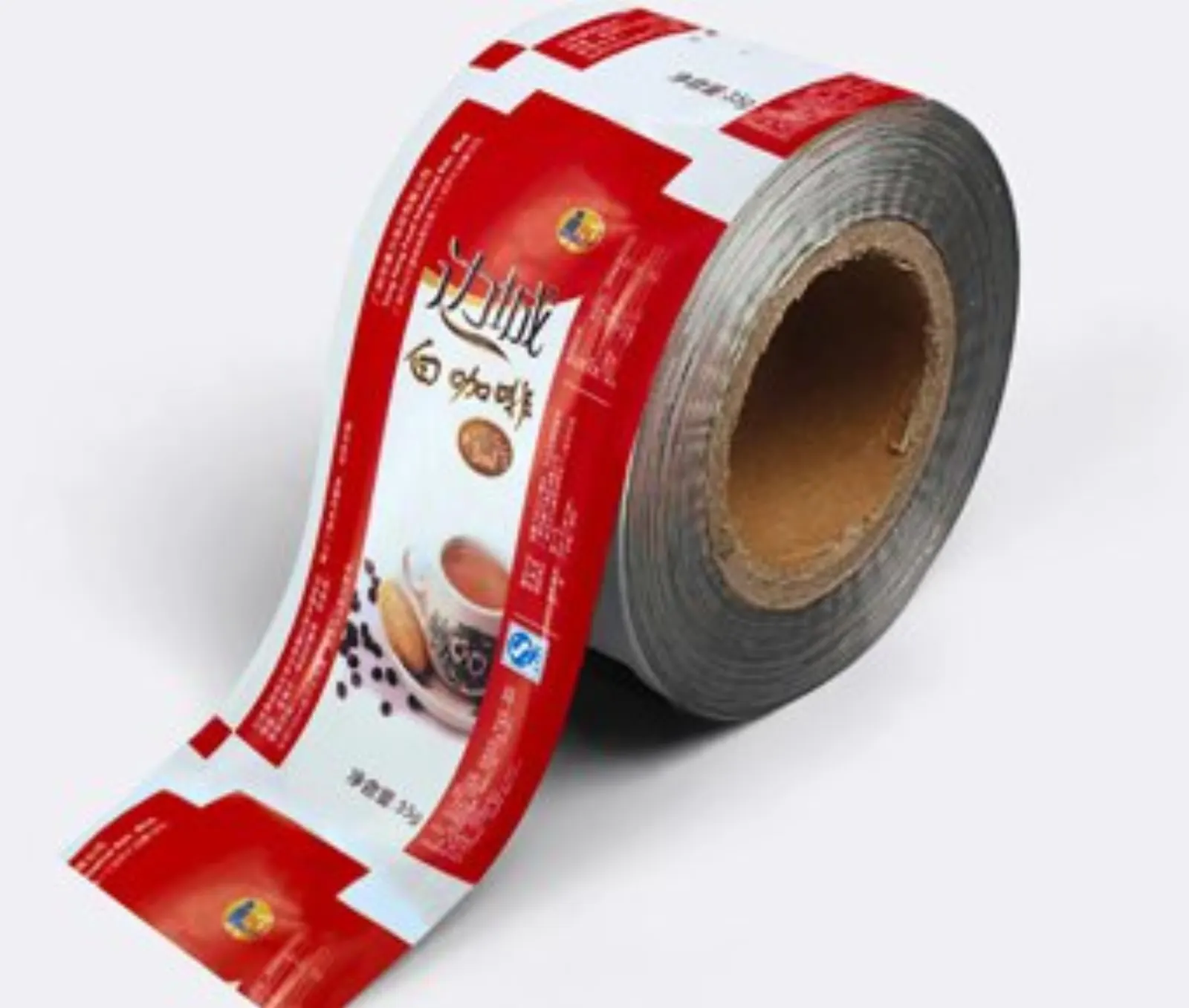

BOPP film

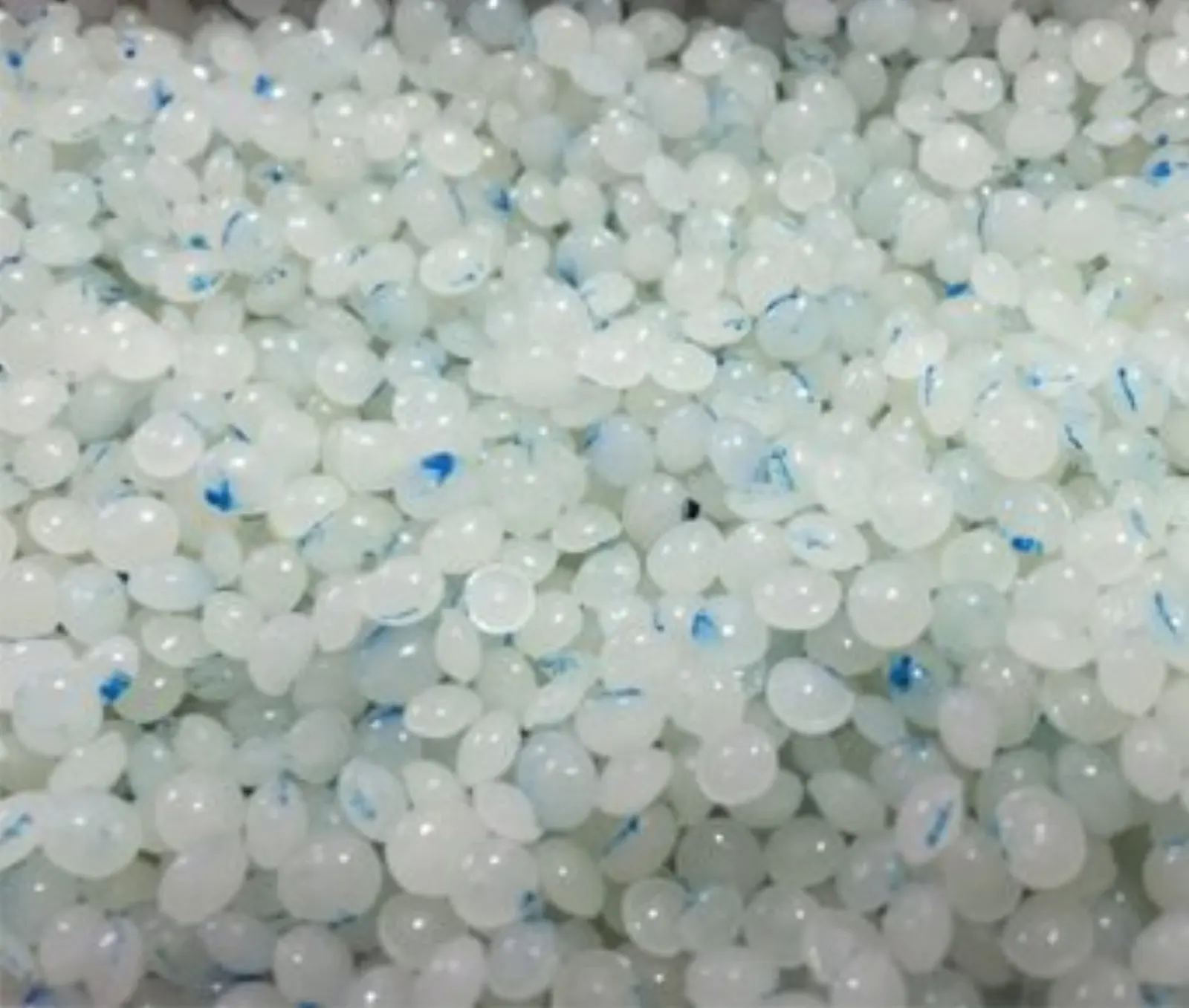

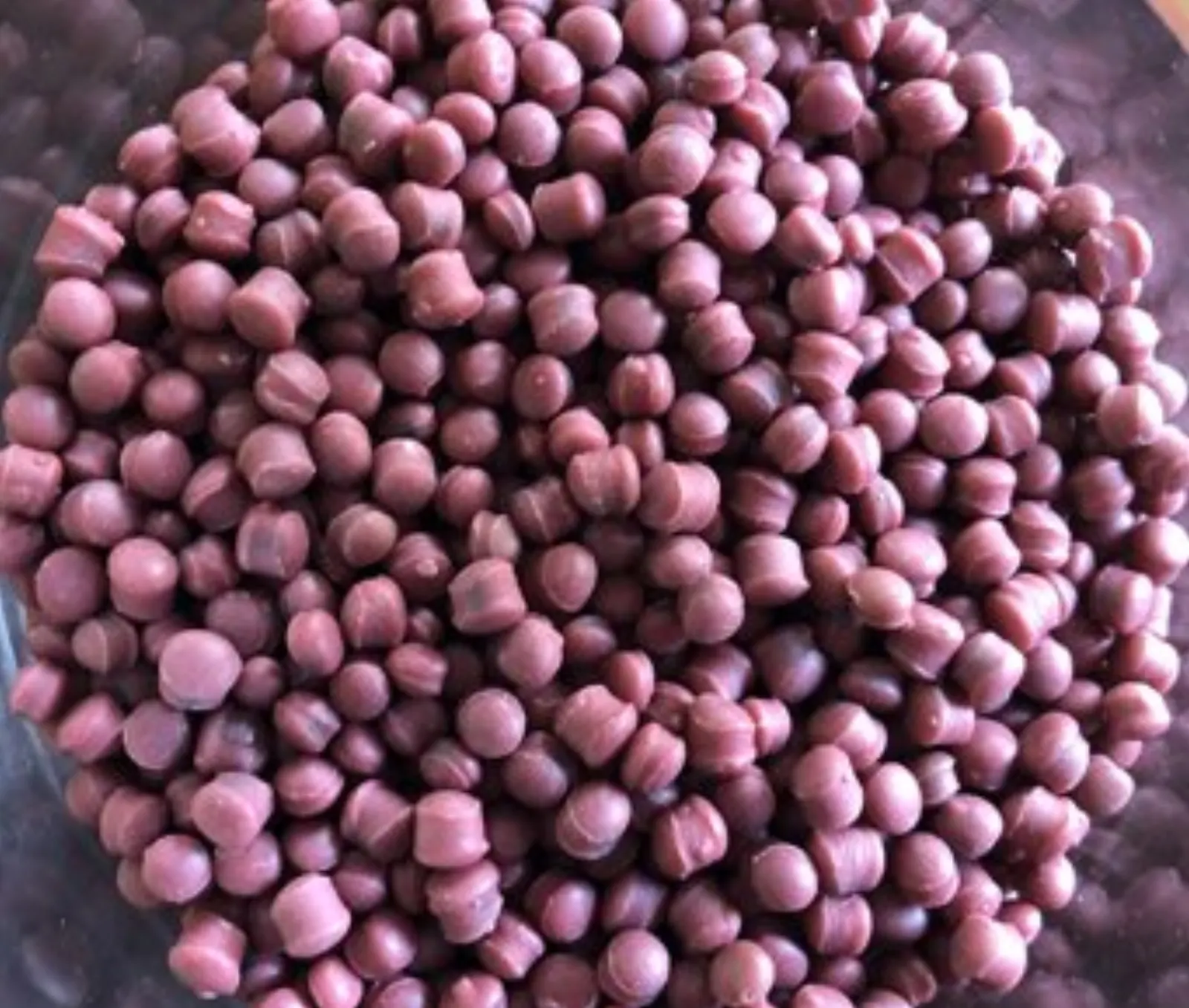

After process

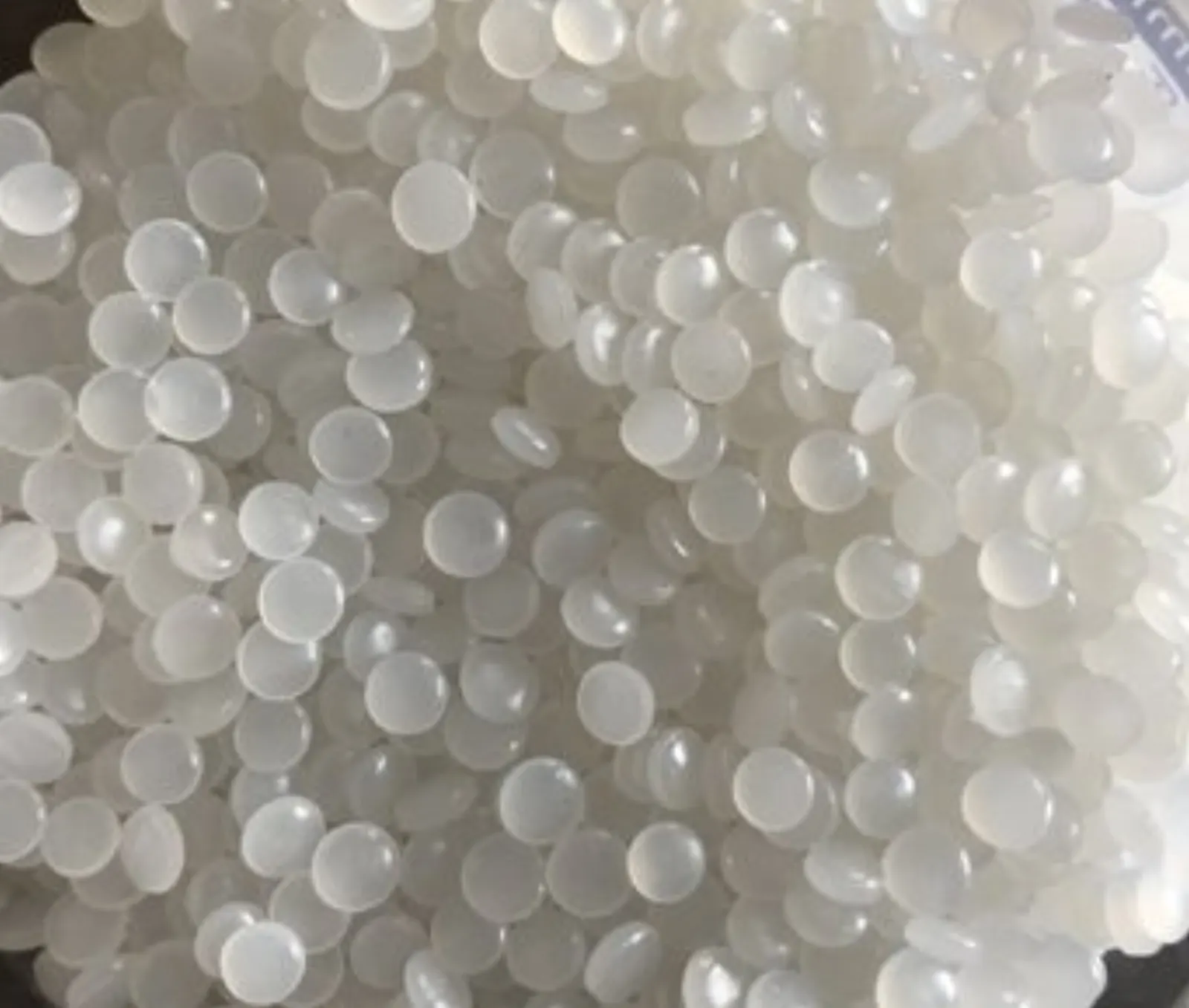

After process

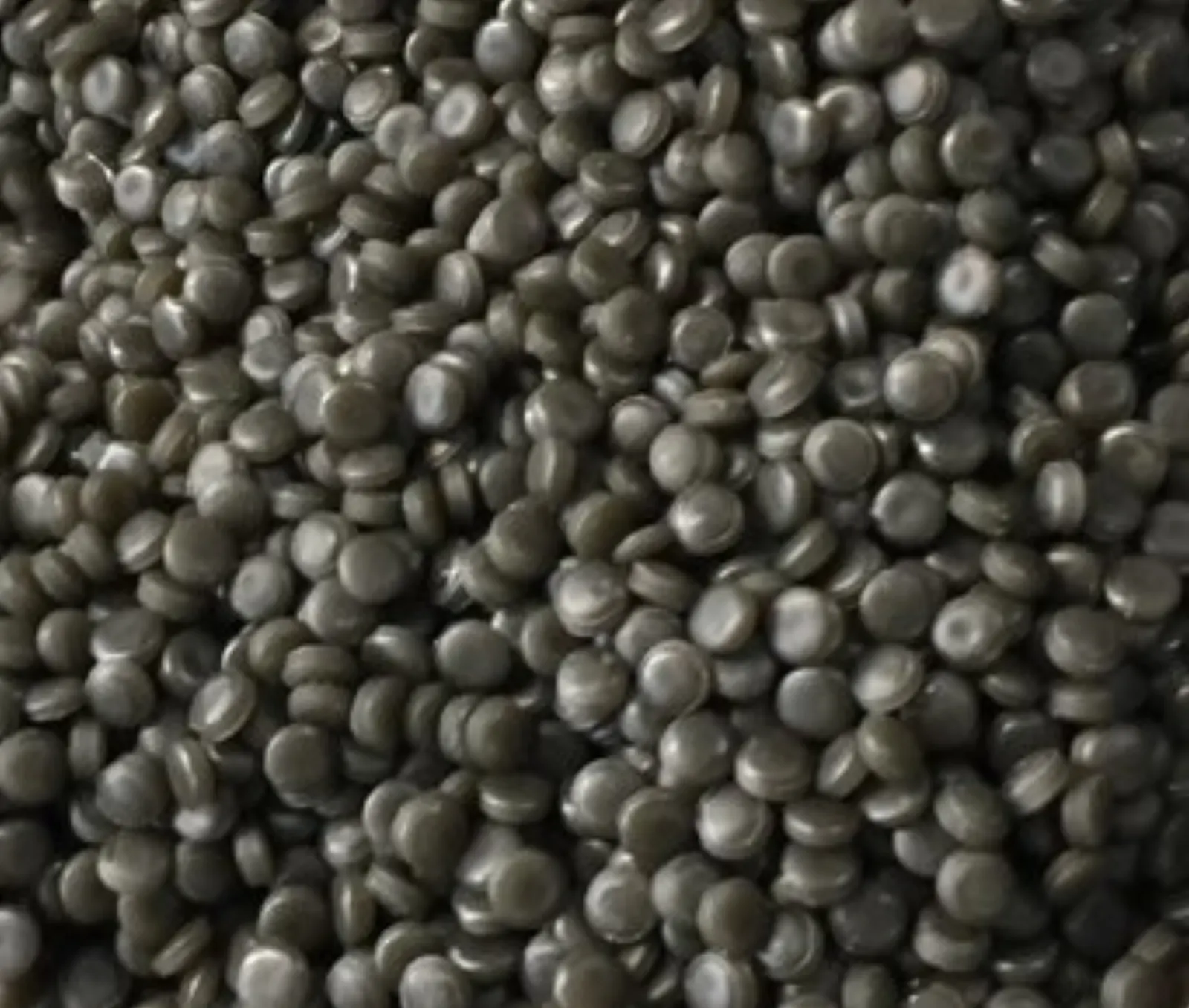

After process
After process
Parameter
| Model | Screw Dia | L/D | PE (kg/h) | PP (kg/h) |
| RCDJ85 | 85mm | 33 | 180-220 | 160-200 |
| RCSJ85/100 | 85/100mm | 33:12 | ||
| RCDJ100 | 100mm | 33 | 260-320 | 220-280 |
| RCSJ100/120 | 100/120mm | 33:12 | ||
| RCDJ130 | 130mm | 33 | 450-550 | 360-420 |
| RCSJ130/150 | 130/150mm | 33:12 | ||
| RCDJ160 | 160mm | 30 | 650-750 | 500-600 |
| RCSJ160/180 | 160/180mm | 30:10 | ||
| RCDJ180 | 180mm | 28 | 800-1000 | 650-800 |
| RCSJ180/200 | 180/200mm | 28:10 |
Recycling Process
- * Automatic belt feeding with current linkage with extruder.Optional with roll feeder,ration feeder.Metal detector.
- * Compactor cutter with fast rotation.
- * High efficiency new vacuum degassing system.
- * Die face cutting or strand noodle cutting.
- * Easy operation with low power consumption.
| No | Equipment name | Quantity |
| 1 | Belt conveyor with metal detector | 1 |
| 2 | Compactor/Cutter | 1 |
| 3 | Main degassing extruder | 1 |
| 4 | Second extruder | 1 |
| 5 | Laser Filter | 1 |
| 6 | Die face cutting system | 1 |
| 7 | Water cooling tank | 1 |
| 8 | Dewatering machine | 1 |
| 9 | Vibrator screen | 1 |
| 10 | Packaing silo | 1 |
Quality Assurance
