HDPE LDPE LLDPE Film Compactor Pelletizing Recycling Line
Get high quality and high capacity of HDPE LDPE LLDPE Film Compactor Pelletizing Recycling Line at Retech Machine, we are top manufacturer of plastic recycling field. Inquiry now!
At a Glance
Equipment Overview
- Category
- Pelletizing Machine
- Typical application
- LDPE Washed Film,LLDPE Stretch Film,HDPE Left Over Film Bag,Other Soft Waste Plastic Like OPP CPP BOPP film,PS foam,PP Woven Bag…
- Output
- Clean flakes or recycled pellets — confirmed per project
Product 01
Overview
Our HDPE LDPE LLDPE Film Compactor Pelletizing Recycling Line is used for recycling of industrial waste LDPE LLDPE film,PP woven bag,yarn and other left over of plastic waste.The waste plastic film can be fed directly without crushing.This 3 in 1 plastic recycling machine design do not require any support of crusher or agglomerator for pre-processing.
Extruder is vented vacuum degassing type for removing of volatile gases from waste material.Equipped with automatic laser filter screen and die face cutting system for best granules making performance.
Product 02
Applications & Suitable Materials

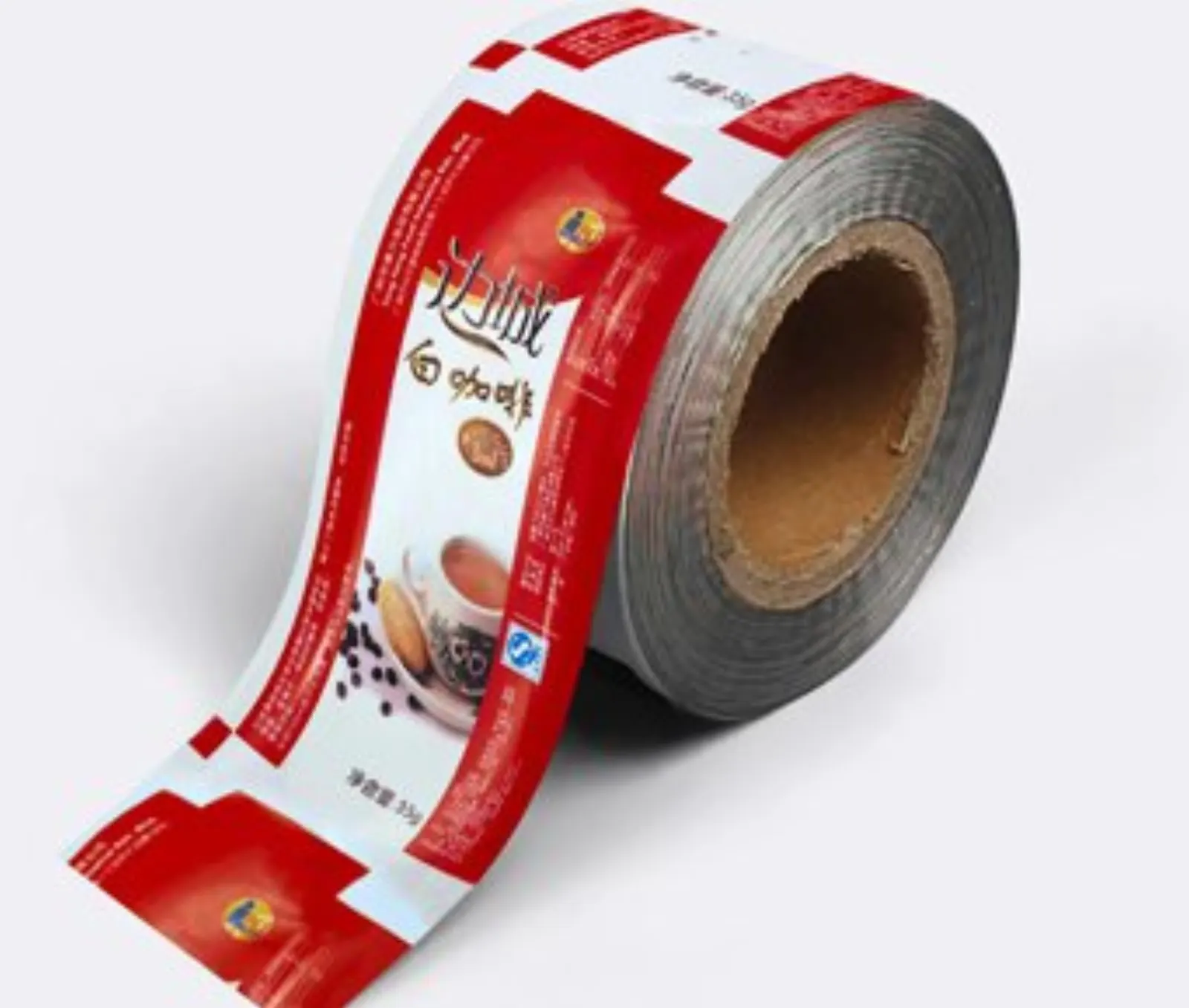

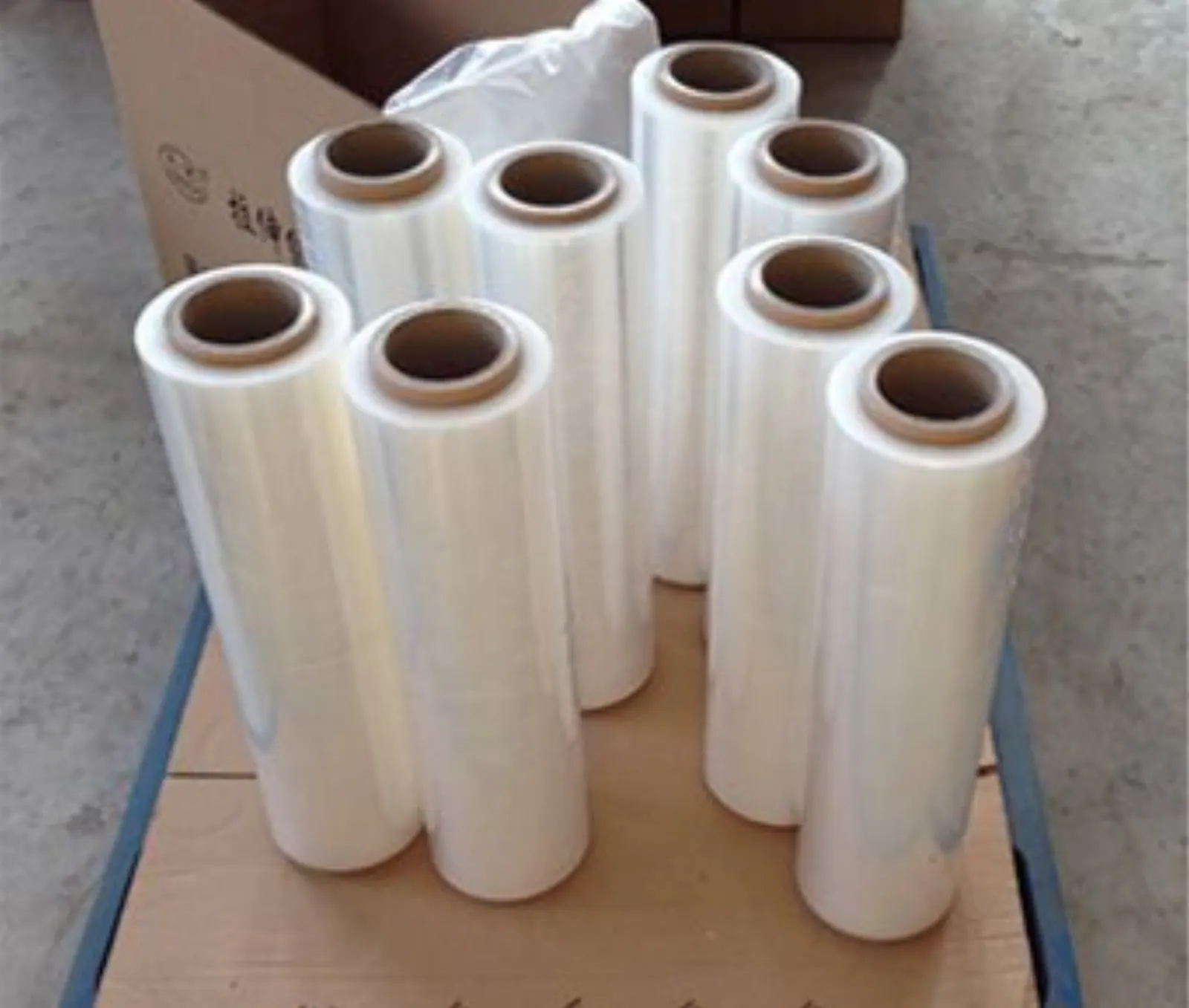

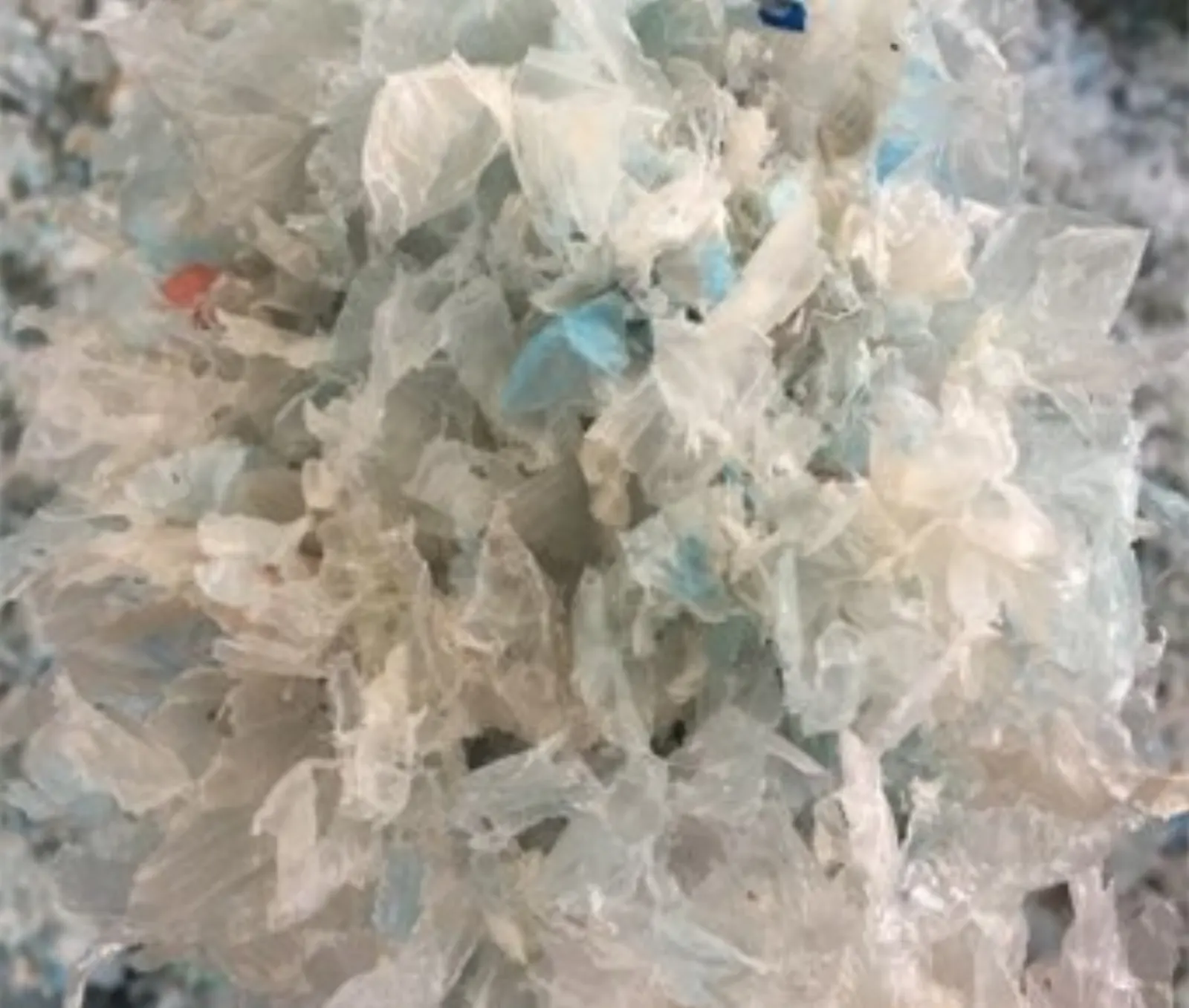

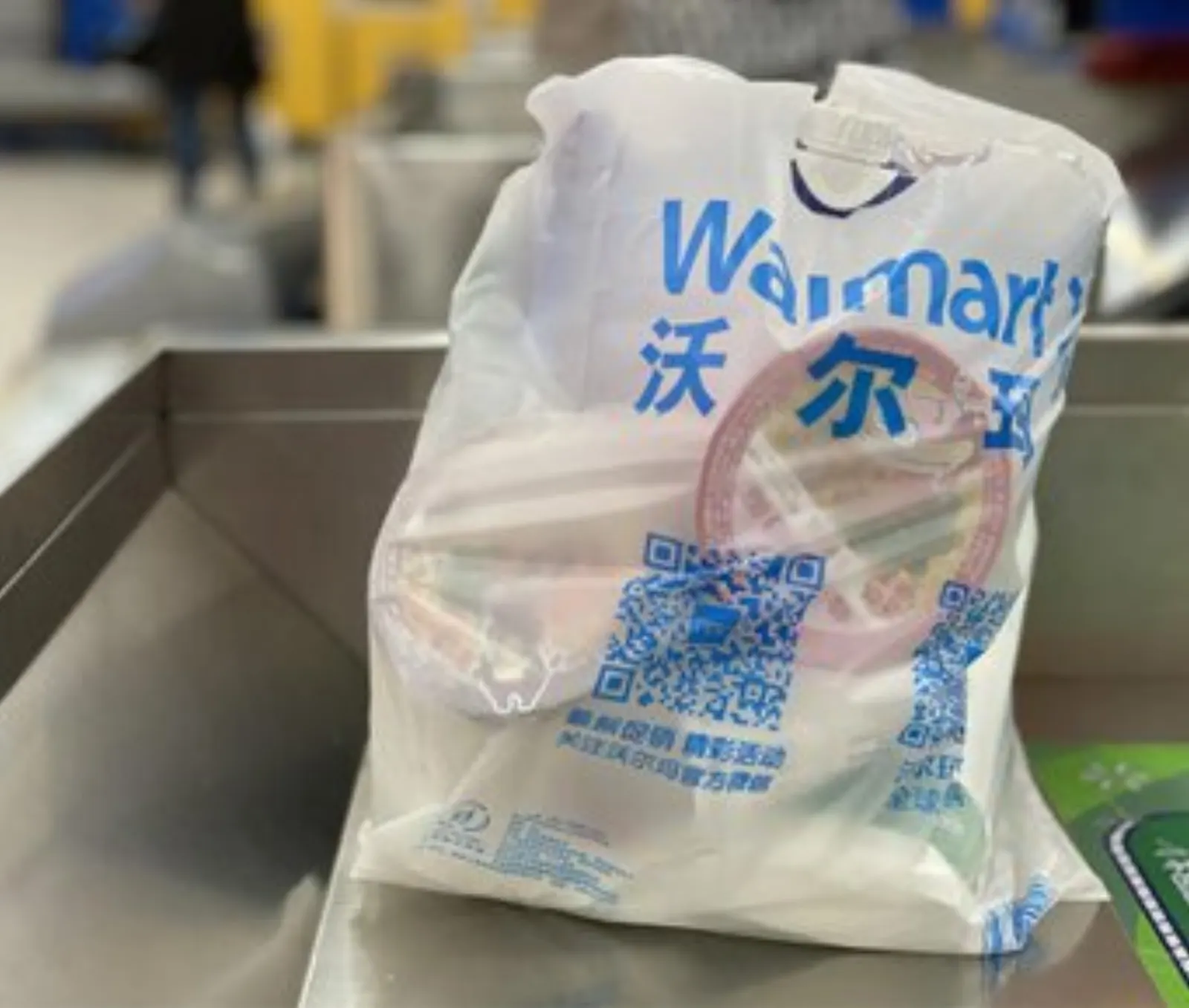

LDPE Washed Film,LLDPE Stretch Film,HDPE Left Over Film Bag,Other Soft Waste Plastic Like OPP CPP BOPP film,PS foam,PP Woven Bag Non Woven Fabric plastic recycling,etc.
Product 03
Recycling Process
- * Highest value to your plastic waste recycling.
- * Smart operation of economy film pelletizing production.
- * Cutter compactor helps in preheating,moisture removing before material entering extruder.
- * Degassing screw for humidity and useless molecule.
- * Automatically filter screen with big filtration area.
| No | Equipment name | Quantity |
|---|---|---|
| 1 | Belt conveyor with metal detector | 1 |
| 2 | Compactor | 1 |
| 3 | Main extruder | 1 |
| 4 | Second extruder | 1 |
| 5 | Hydraulic screen changer | 1 |
| 6 | Die face cutting system | 1 |
| 7 | Water cooling tank | 1 |
| 8 | Dewatering machine | 1 |
| 9 | Vibrator screen | 1 |
| 10 | Packaing system | 1 |
Technical Data
Specifications & Parameters
| Model | Screw Dia | L/D | PE (kg/h) | PP (kg/h) |
|---|---|---|---|---|
| RCDJ85 | 85mm | 33 | 180-220 | 160-200 |
| RCSJ85/100 | 85/100mm | 33:12 | ||
| RCDJ100 | 100mm | 33 | 260-320 | 220-280 |
| RCSJ100/120 | 100/120mm | 33:12 | ||
| RCDJ130 | 130mm | 33 | 450-550 | 360-420 |
| RCSJ130/150 | 130/150mm | 33:12 | ||
| RCDJ160 | 160mm | 30 | 650-750 | 500-600 |
| RCSJ160/180 | 160/180mm | 30:10 | ||
| RCDJ180 | 180mm | 28 | 800-1000 | 650-800 |
| RCSJ180/200 | 180/200mm | 28:10 |
Quality
Quality Assurance

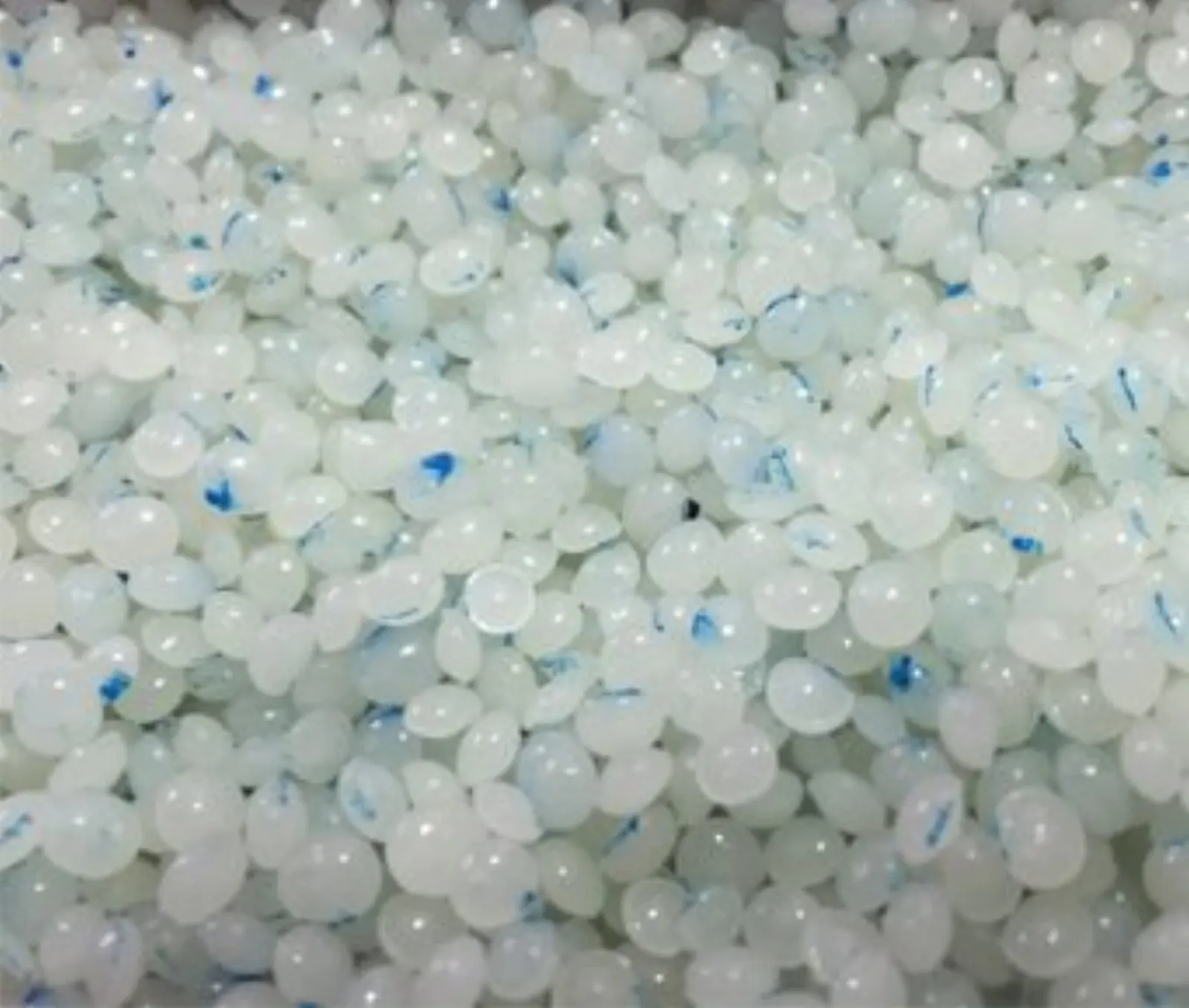

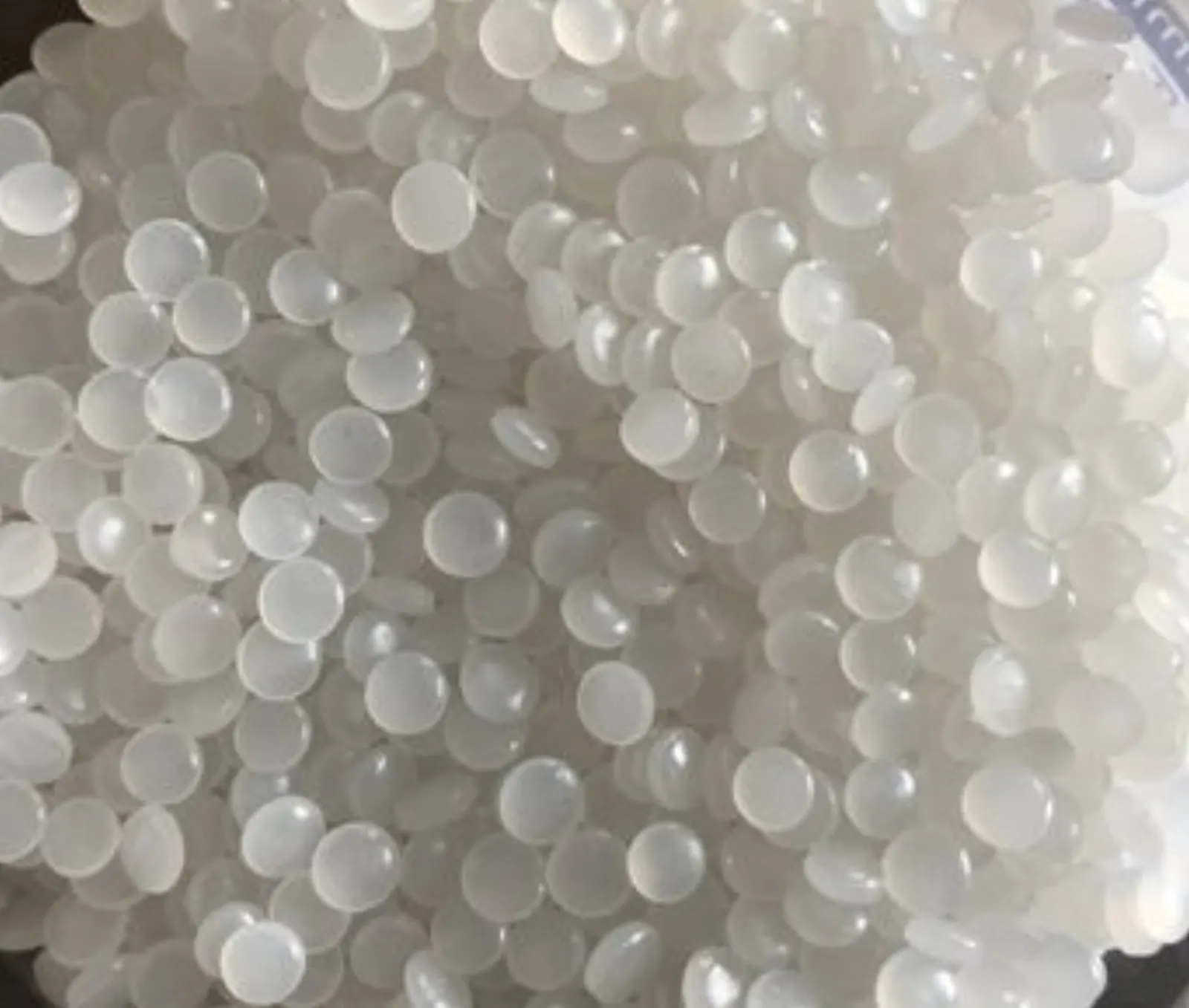

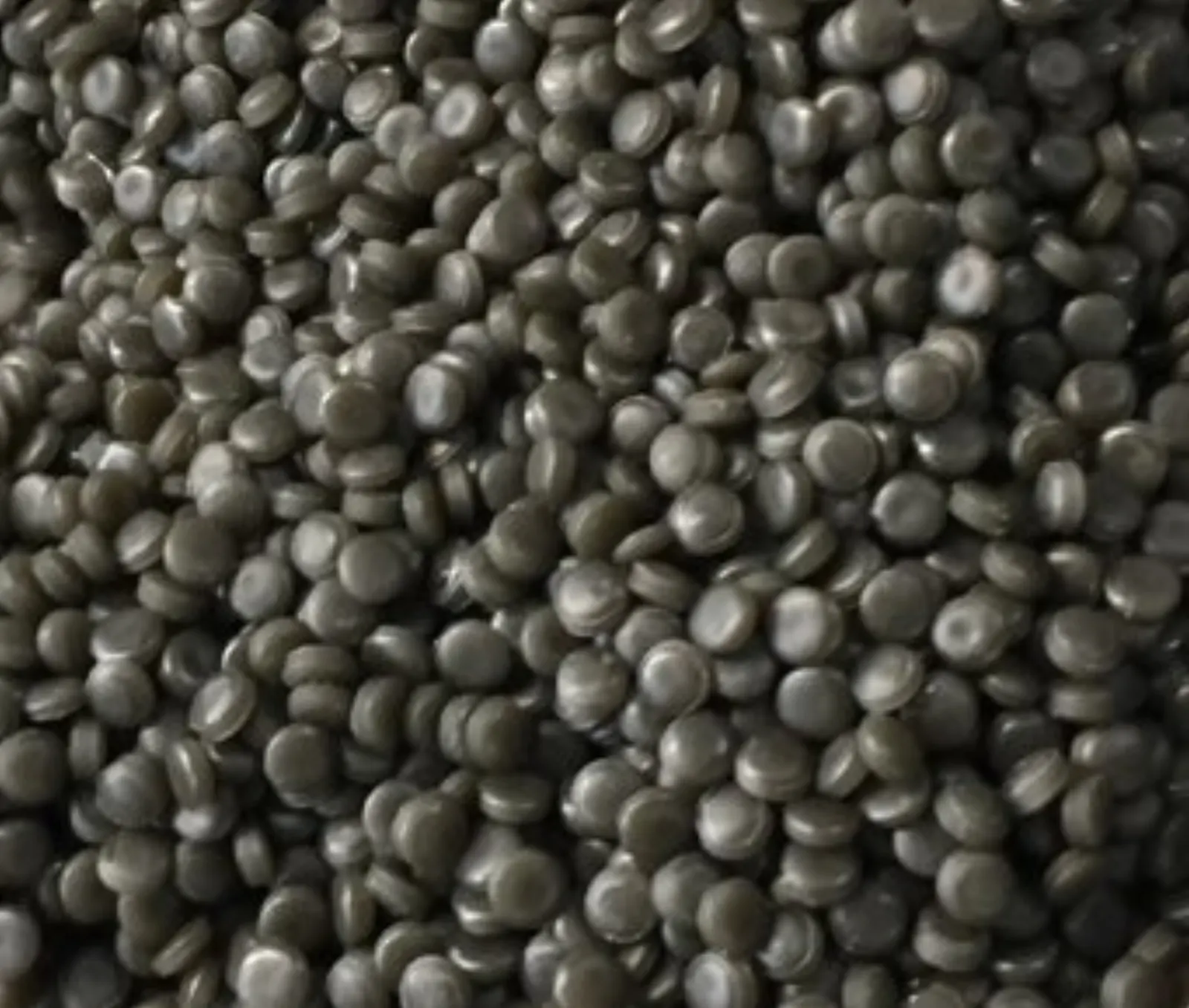

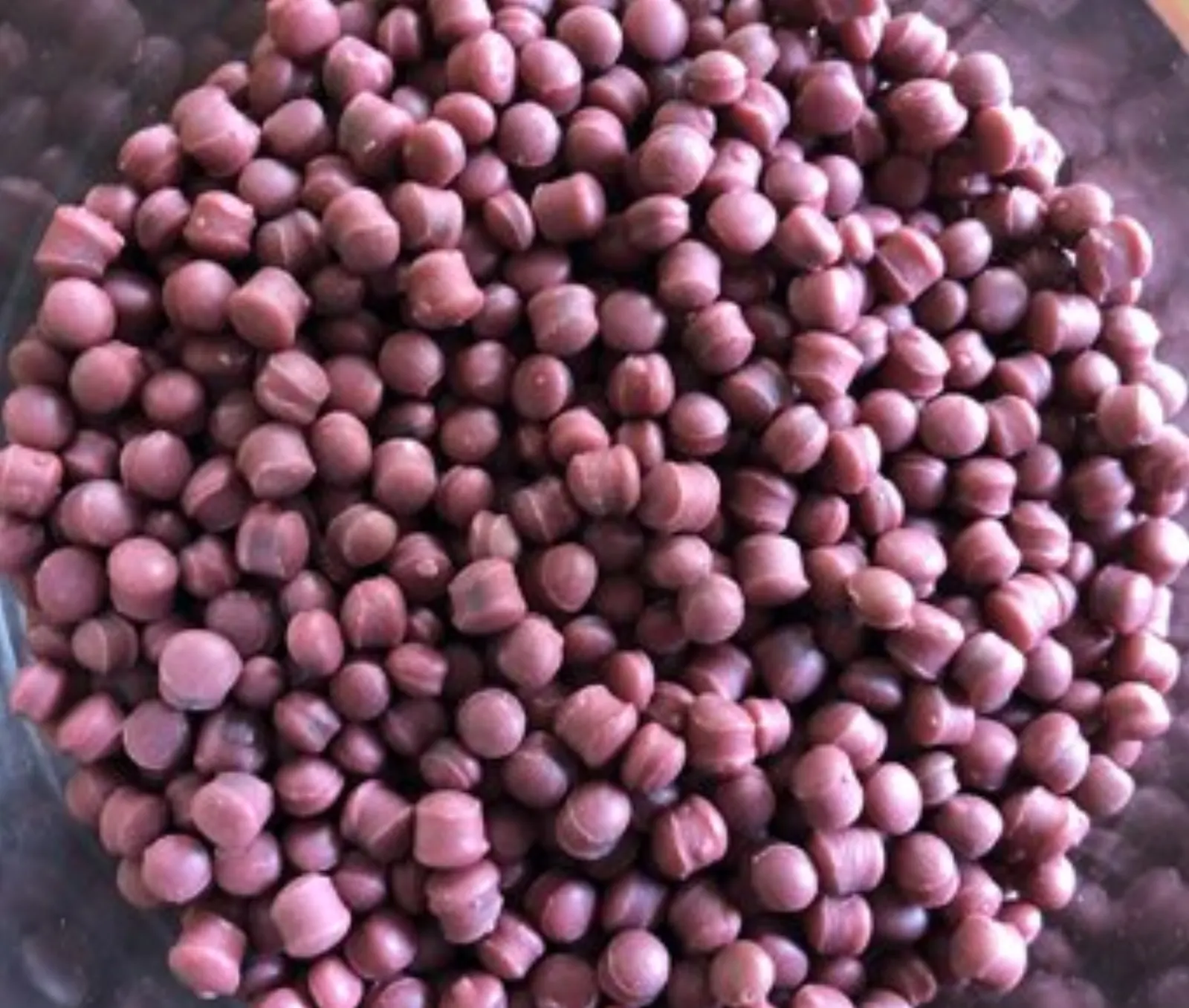

Final moisture below 1%. Granules in good looking for film blowing or injection.
Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,Mesutronic metal detector,38CrMoA1A bimetal screw,etc.
Ready to review your material?
Need a Configuration for HDPE LDPE LLDPE Film Compactor Pelletizing Recycling Line?
Send us your material form, contamination level and target capacity. We will come back with a preliminary process route and equipment configuration.
