Plastic LDPE LLDPE film squeezer
Get high quality and high capacity of Plastic LDPE LLDPE film squeezer at Retech Machine, we are top manufacturer of plastic recycling field. Inquiry now!
At a Glance
Equipment Overview
- Category
- Auxiliary Machine
- Capacity options
- 300kg/h, 500kg/h, 1000kg/h
- Typical application
- LDPE agriculture film,LLDPE wrapping film,other soft film scrap squeezing machine.
- Output

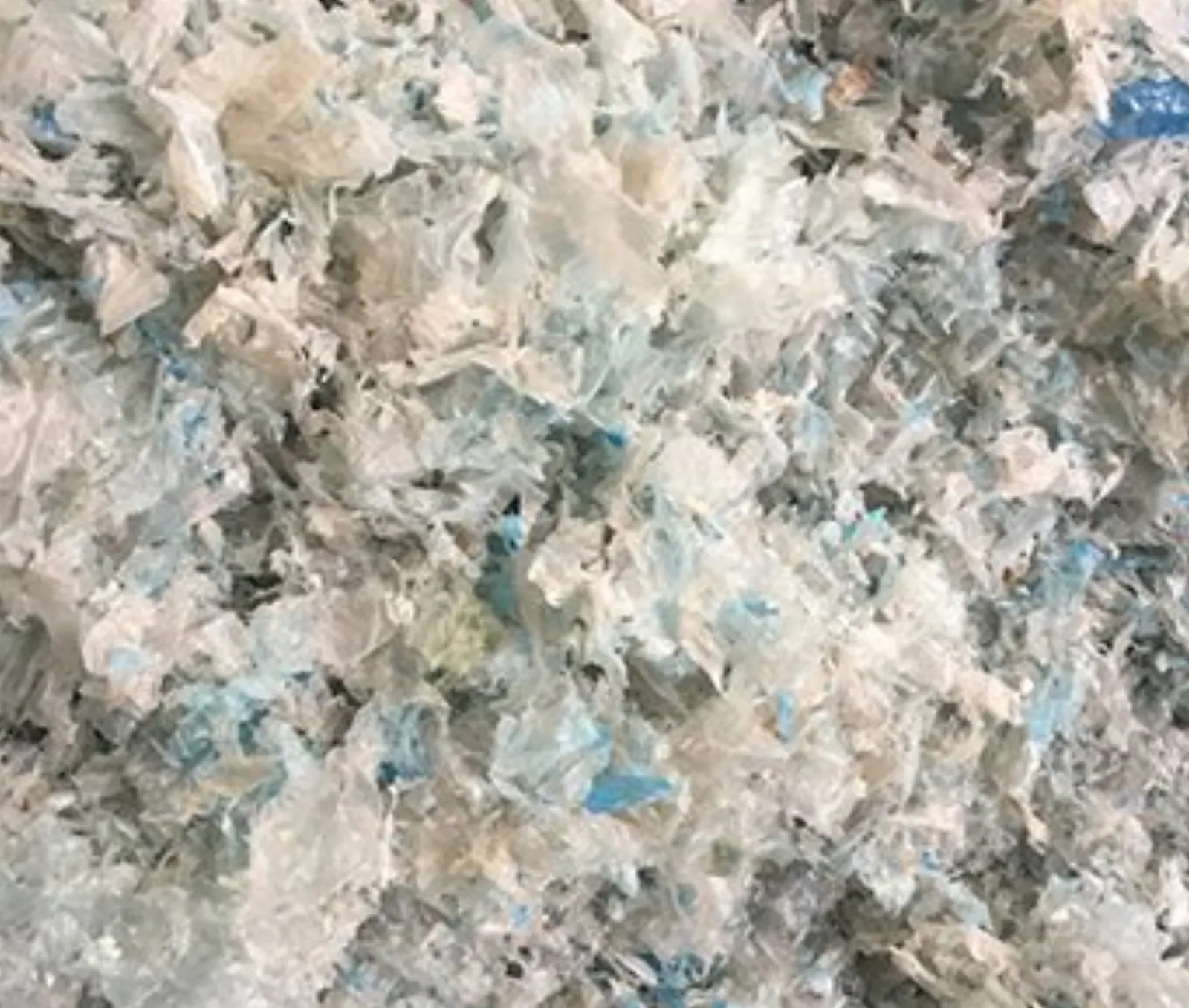

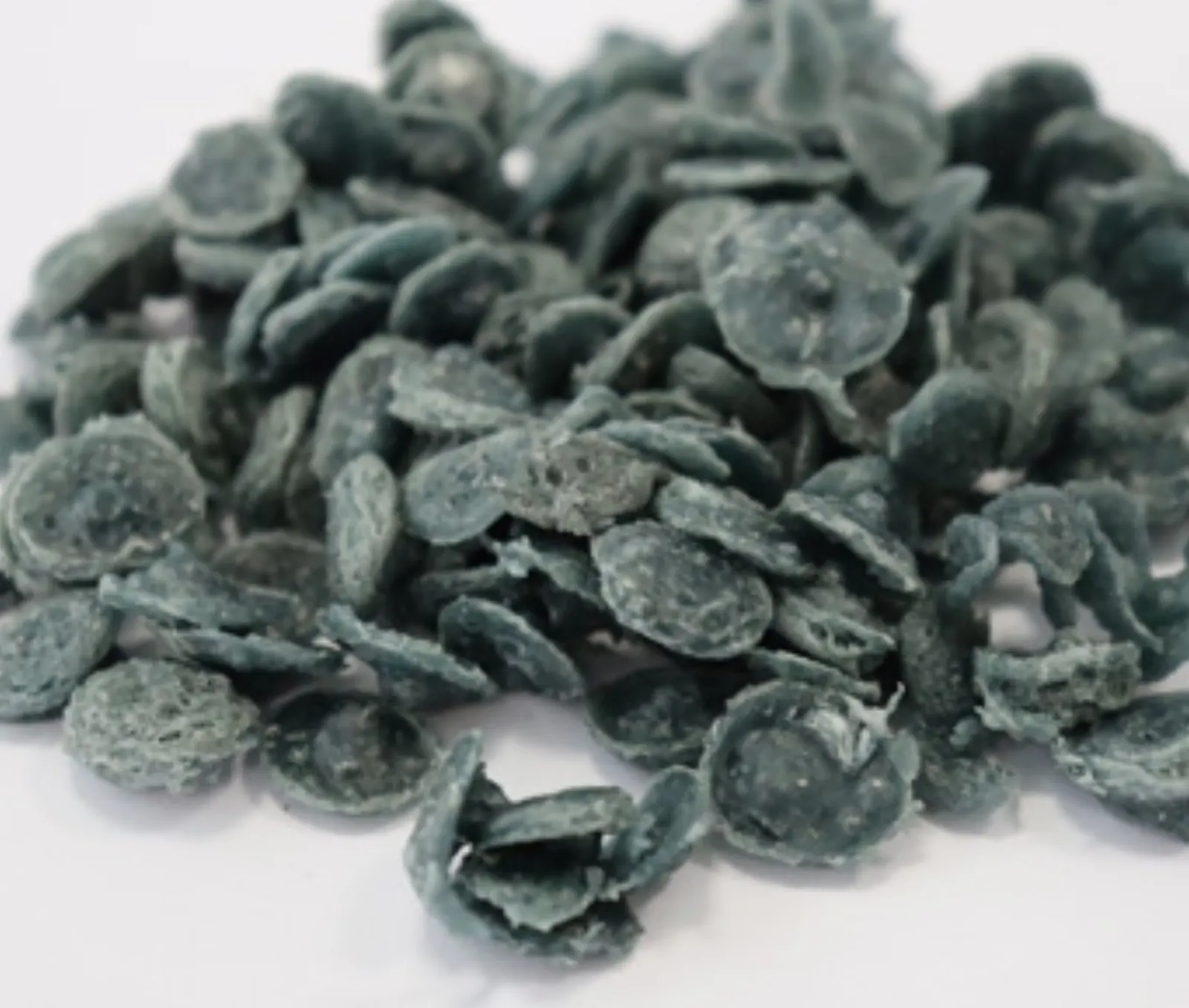

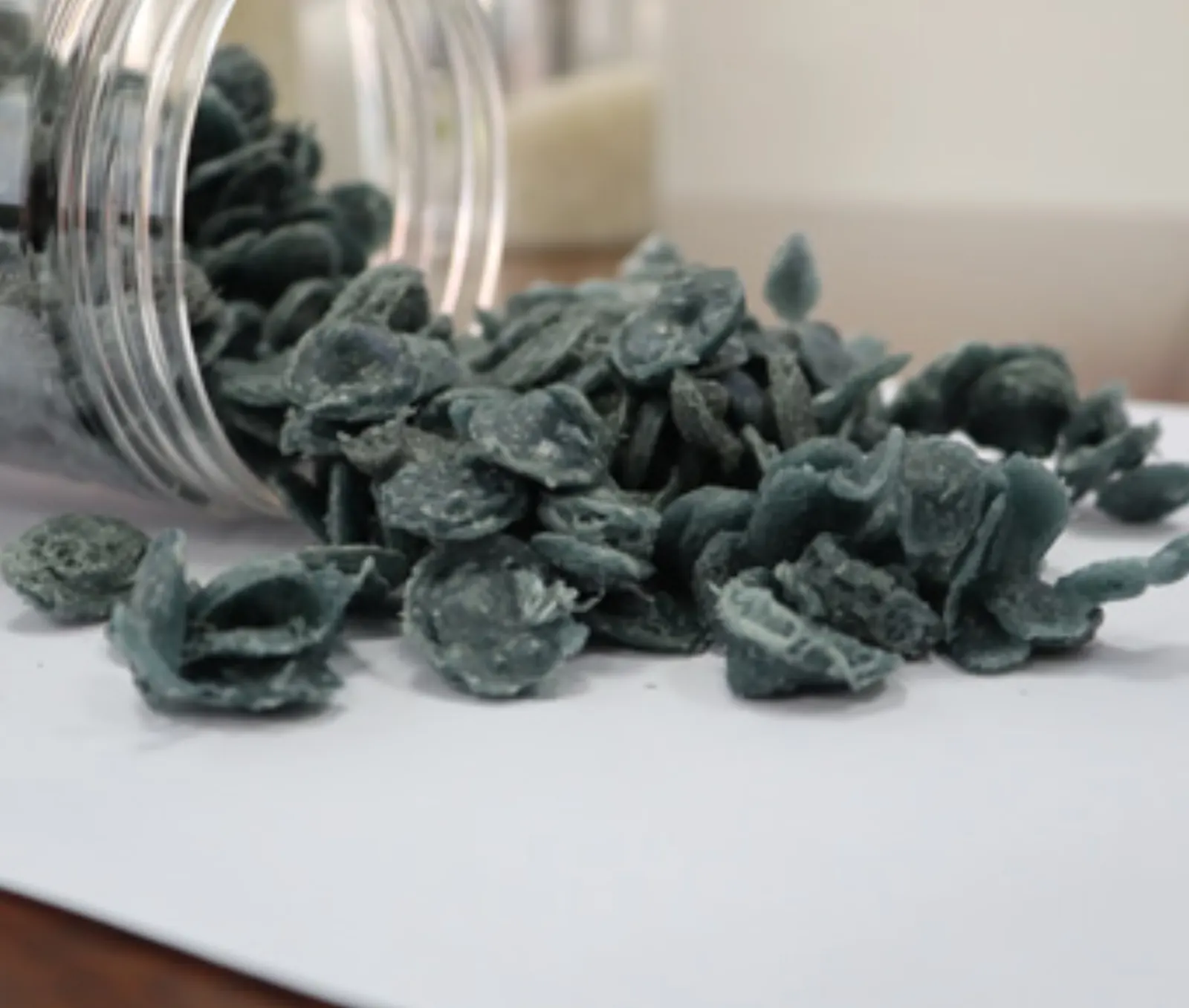

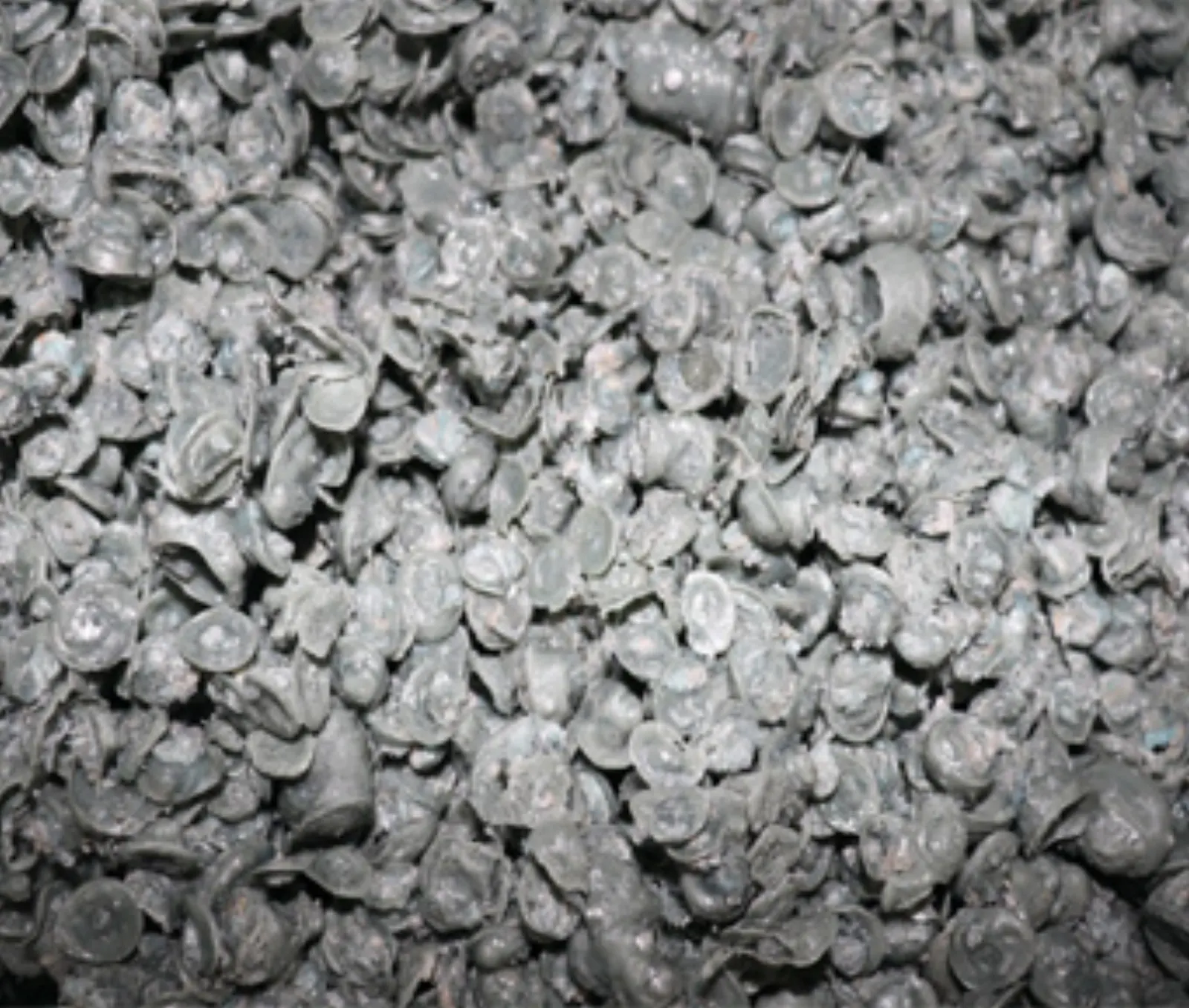

- Clean flakes or recycled pellets — confirmed per project
Product 01
Overview
Our Plastic LDPE LLDPE film squeezer is used to squeeze and dry wet waste soft plastic materials like PE film,LDPE HDPE LLDPE stretch film,etc.
After screw squeezing,the final PE film humidity will be less than 3%,it could send to our plastic compactor pelletizing machine to make granules directly.We could supply Plastic PE Film Moisture Squeezer Machine between 300kg/h to 1000kg/h.
Product 02
Applications & Suitable Materials

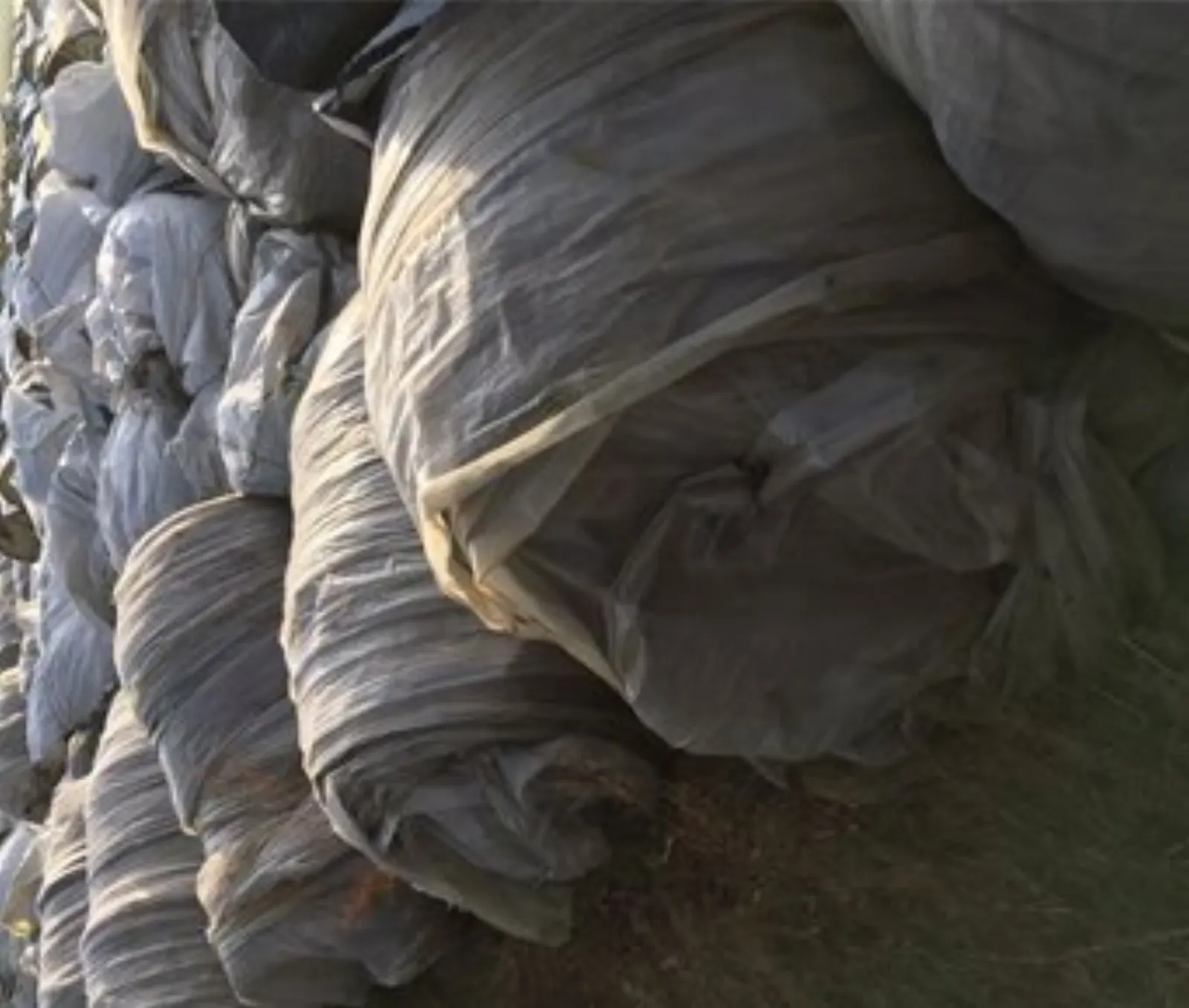

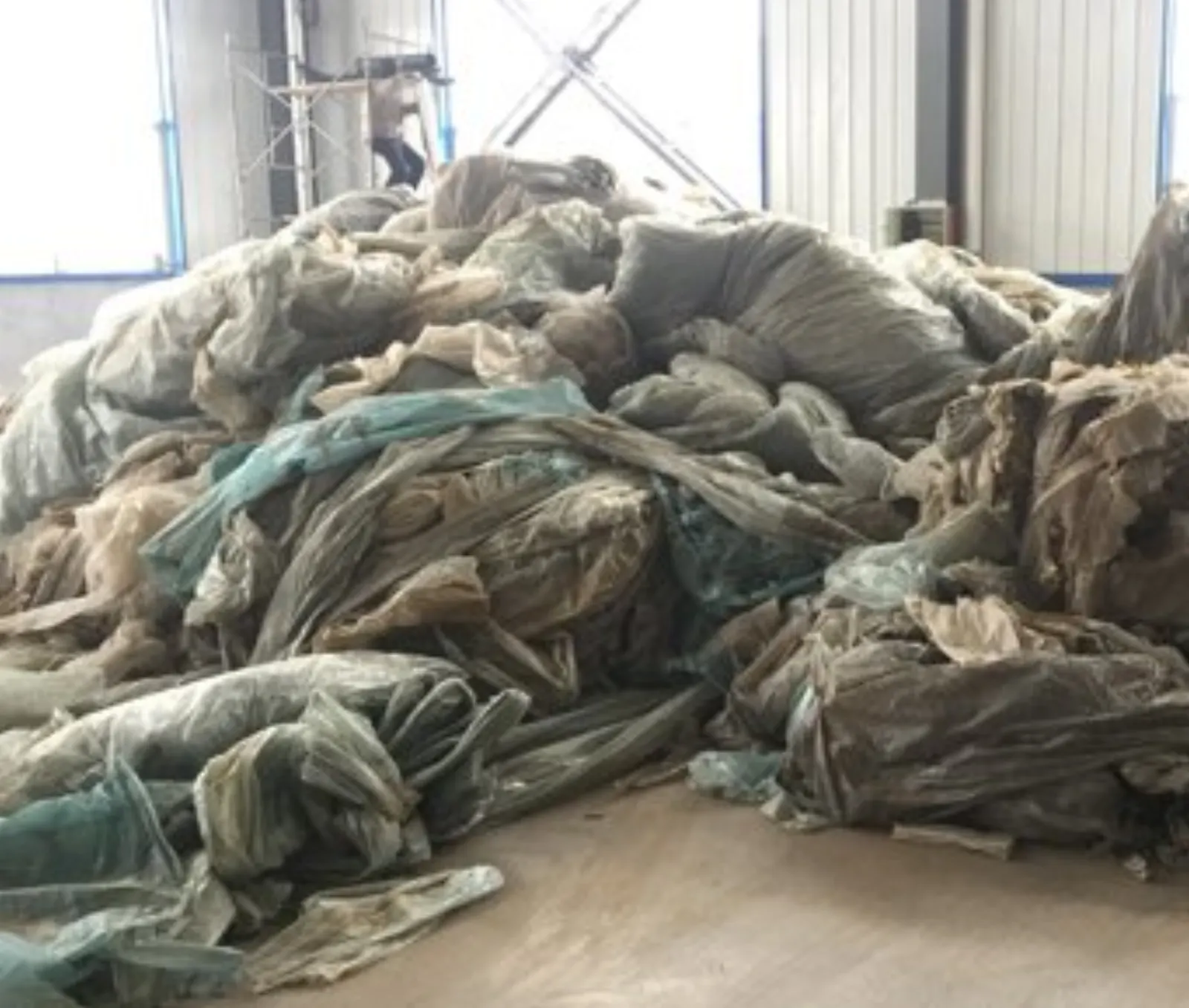

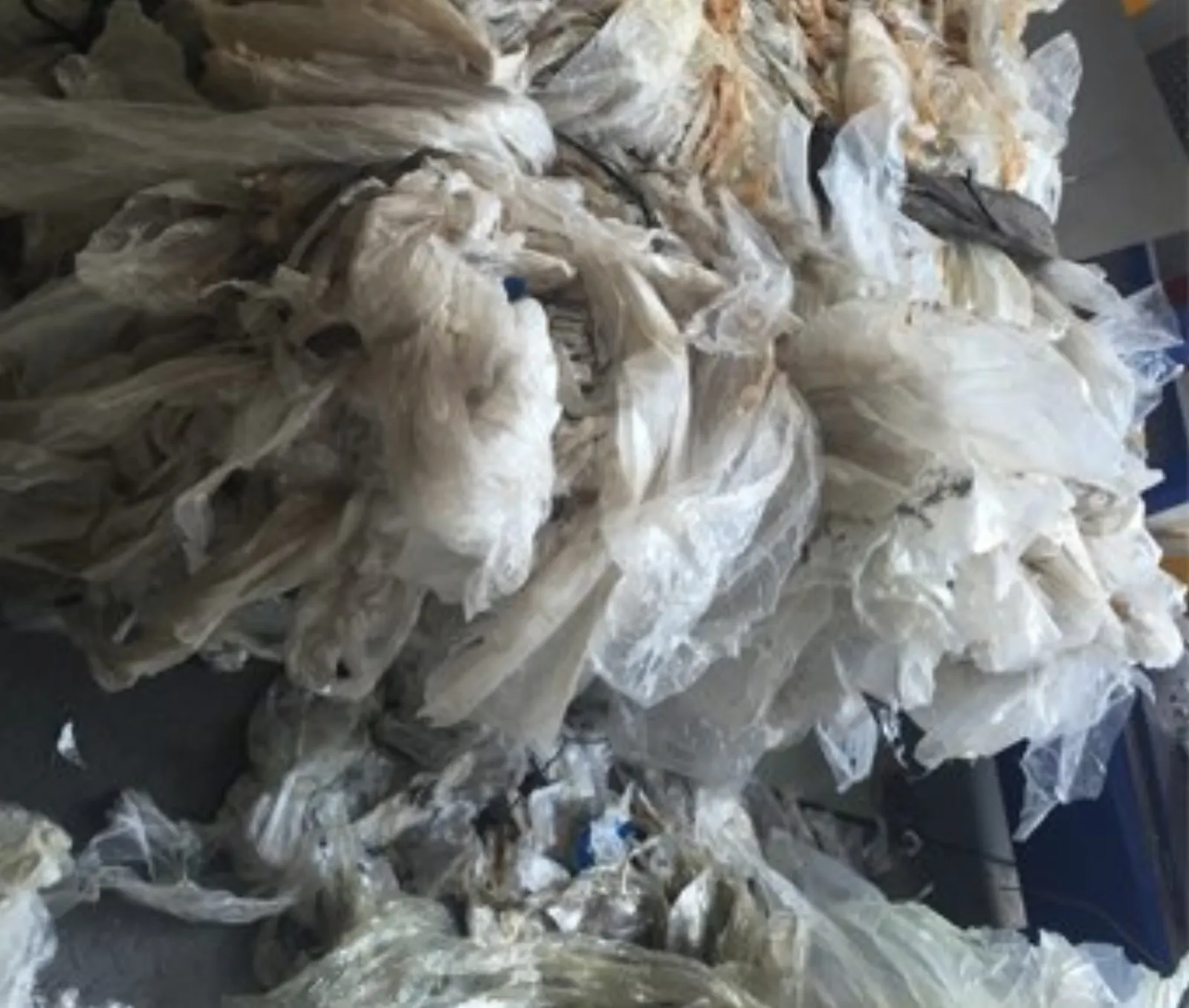

LDPE agriculture film,LLDPE wrapping film,other soft film scrap squeezing machine.
Product 03
Cleaning Process

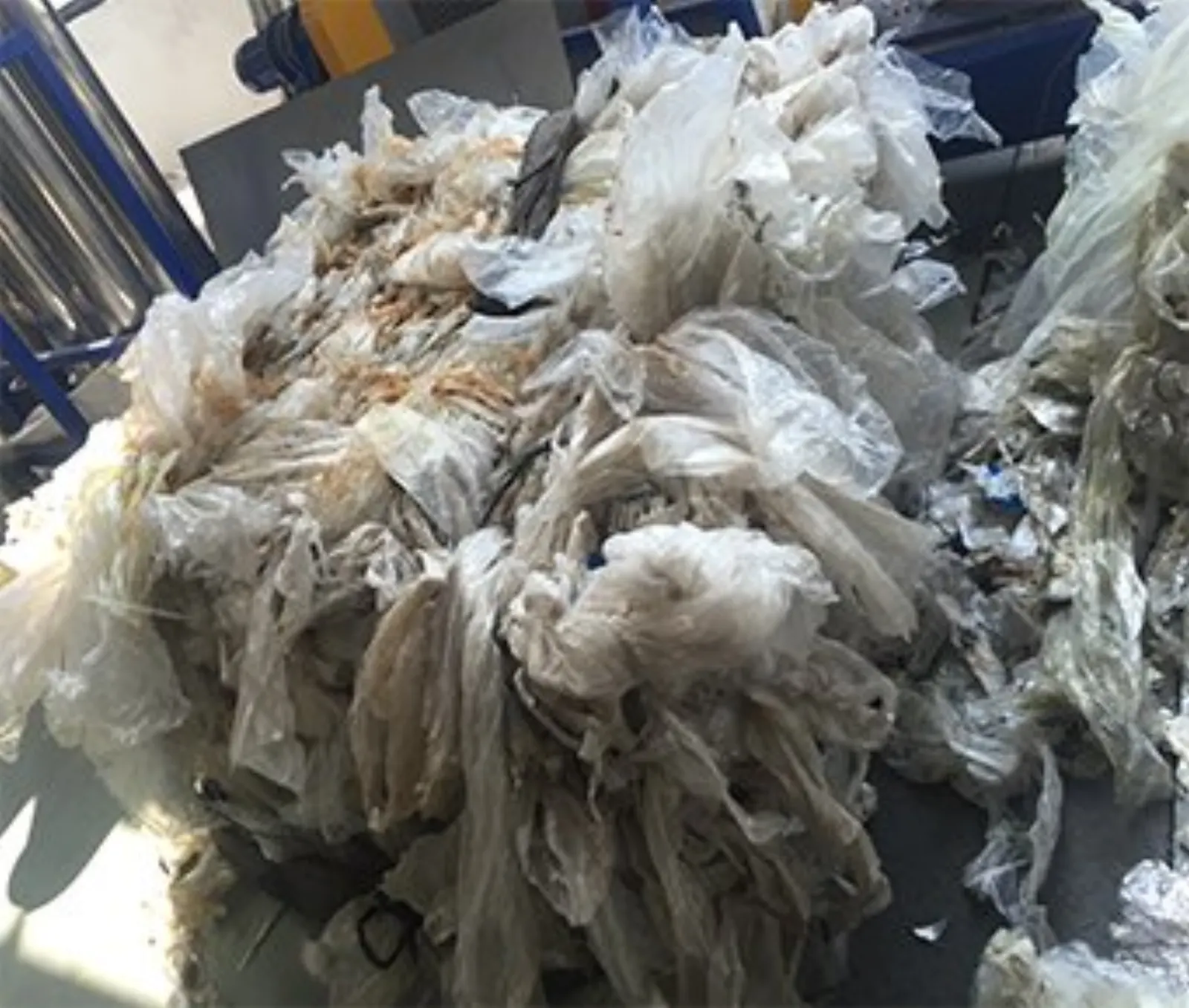

- * Adapt to PE LDPE LLDPE film bag scrap squeezing recycling.
- * Equipped with advanced conical shape screw in high capacity.
- * Lower humidity drying performance comparing with traditional dewatering machine.
- * Final dry film could improving the capacity on next pelletizing machine.
- * Easy operation with low consumption.
| No | Equipment name | Quantity |
|---|---|---|
| 1 | Belt conveyor | 1 |
| 2 | PP PE film squeezer | 1 |
| 3 | Blowing system | 1 |
| 4 | Storage hopper | 1 |
| 5 | Electrics | 1 |
Technical Data
Specifications & Parameters
| Model | Power | Screw | Capacity |
|---|---|---|---|
| RSS2-300 | 45kw | 300-180mm | 300kg/h |
| RSS2-350 | 75kw/h | 350-220mm | 500kg/h |
| RSS2-420 | 110kw/h | 420-280mm | 1000kg/h |
Quality
Quality Assurance
Final dry film moisture within 3%.
Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,38CrMoA1A screw,SKD-11 blades,etc.
Ready to review your material?
Need a Configuration for Plastic LDPE LLDPE film squeezer?
Send us your material form, contamination level and target capacity. We will come back with a preliminary process route and equipment configuration.
