Plastic HDPE PP Bucket Tube Rigid Flakes Recycling Pelletizing Production Line is mainly used to reprocessing and granulation the crushed plastic rigid flakes. The whole recycling production line is with high capacity in low consumption performance.

Share this:

Product Description

Our Plastic HDPE PP Bucket Tube Rigid Flakes Recycling Pelletizing Machine is designed for reprocessing hard plastic flakes like HDPE washed scraps,PP PE tube cutted flakes,plastic lumps,EPS EPE XPS PS crushed foam flakes,etc.

Extruder is vented vacuum degassing type for removing of volatile gases from waste material.Equipped with automatic filter screen and die face cutting system for best granules making performance.

Application

HDPE flakes,PP flakes,ABS PC PS EPS XPS flakes plastic recycling machine,etc.

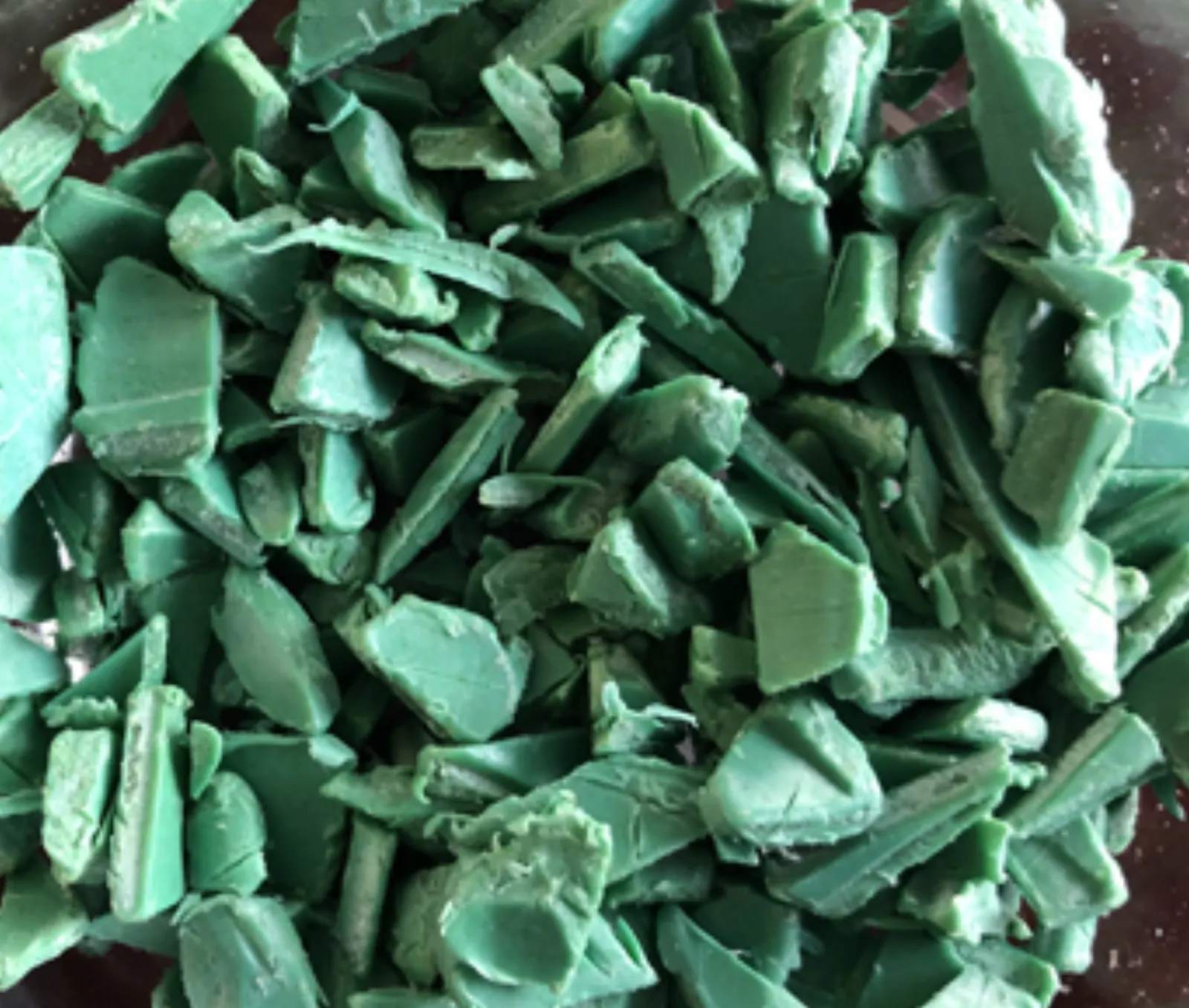

HDPE Flakes

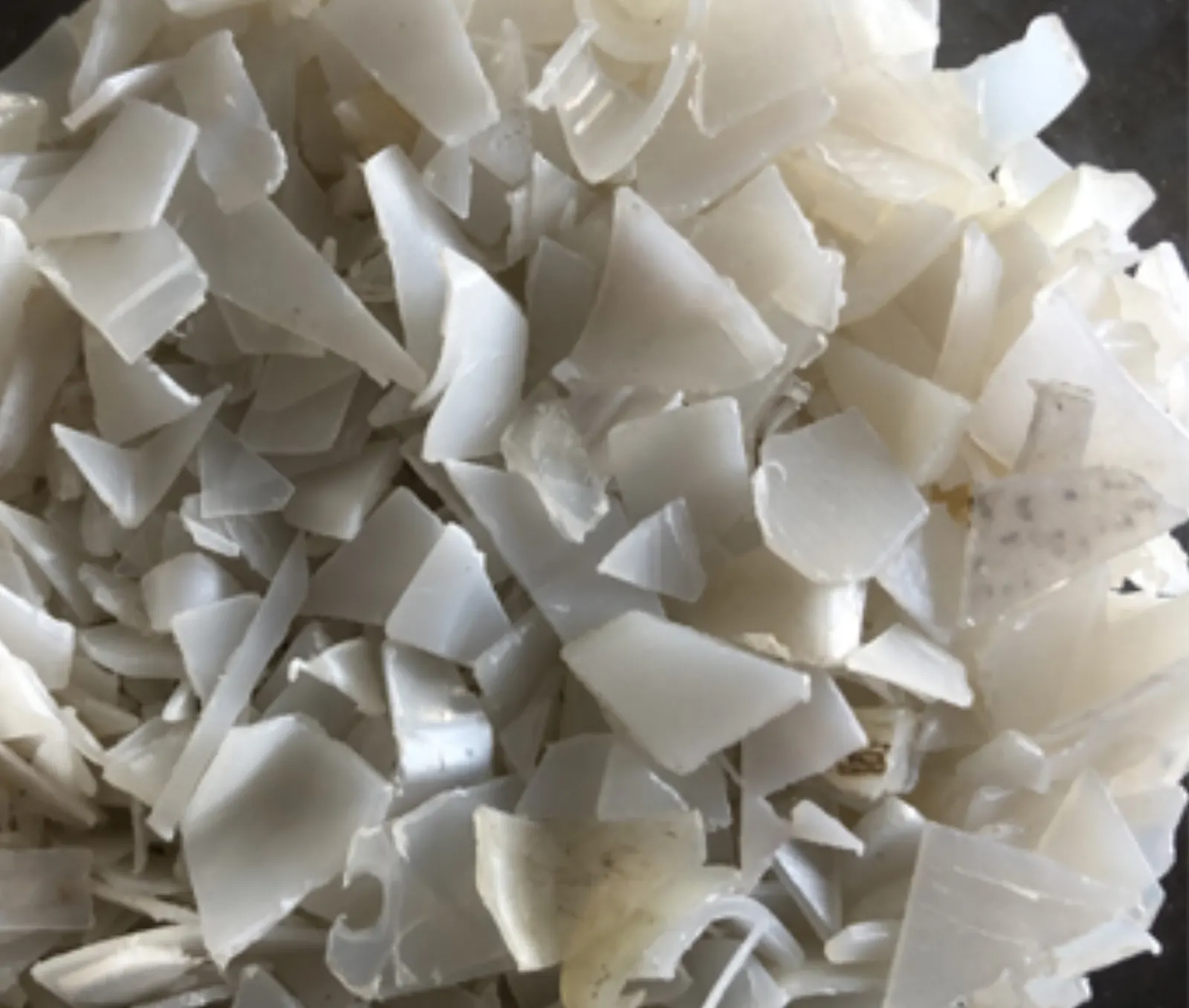

PP Flakes

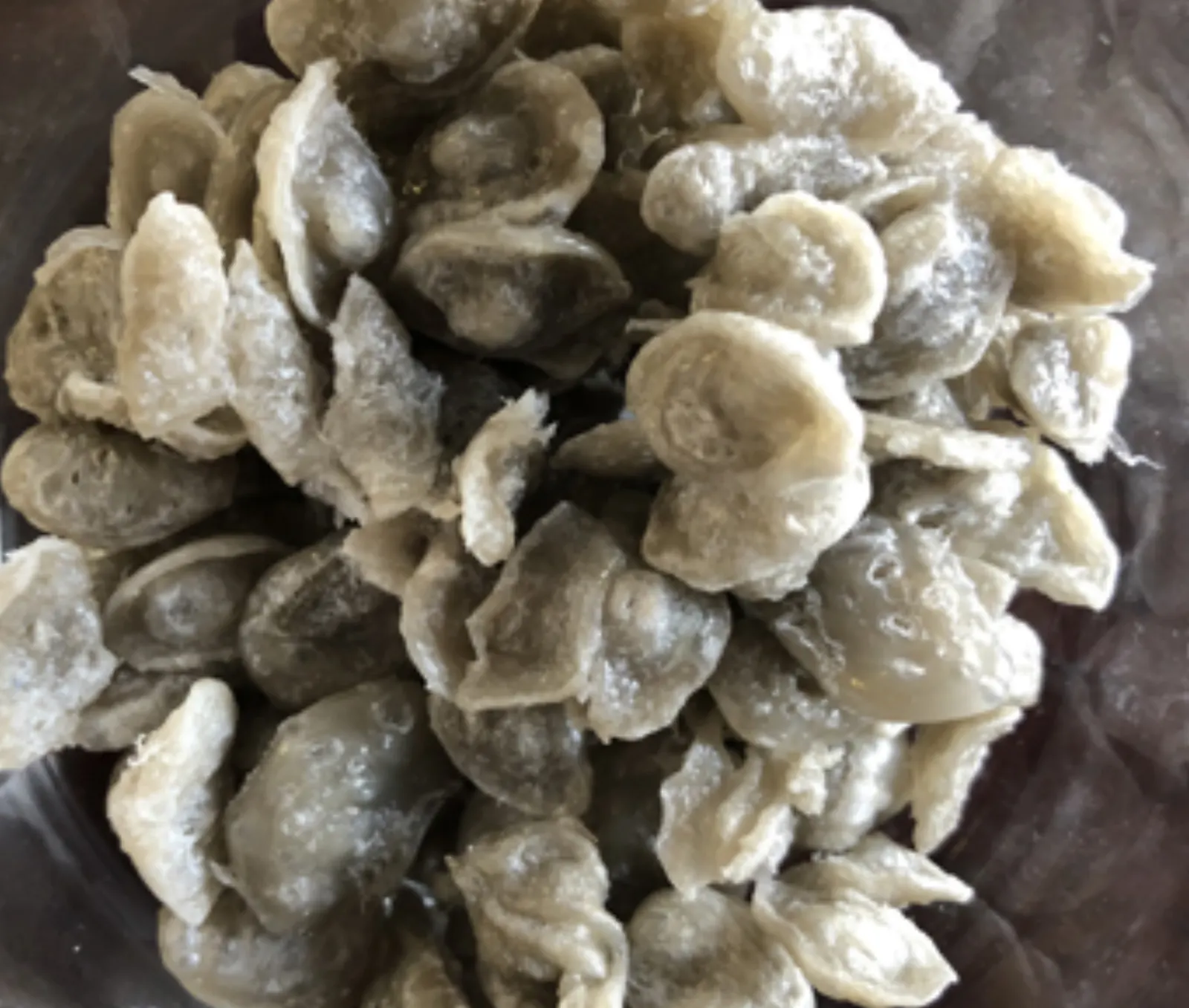

Squeezed Flakes

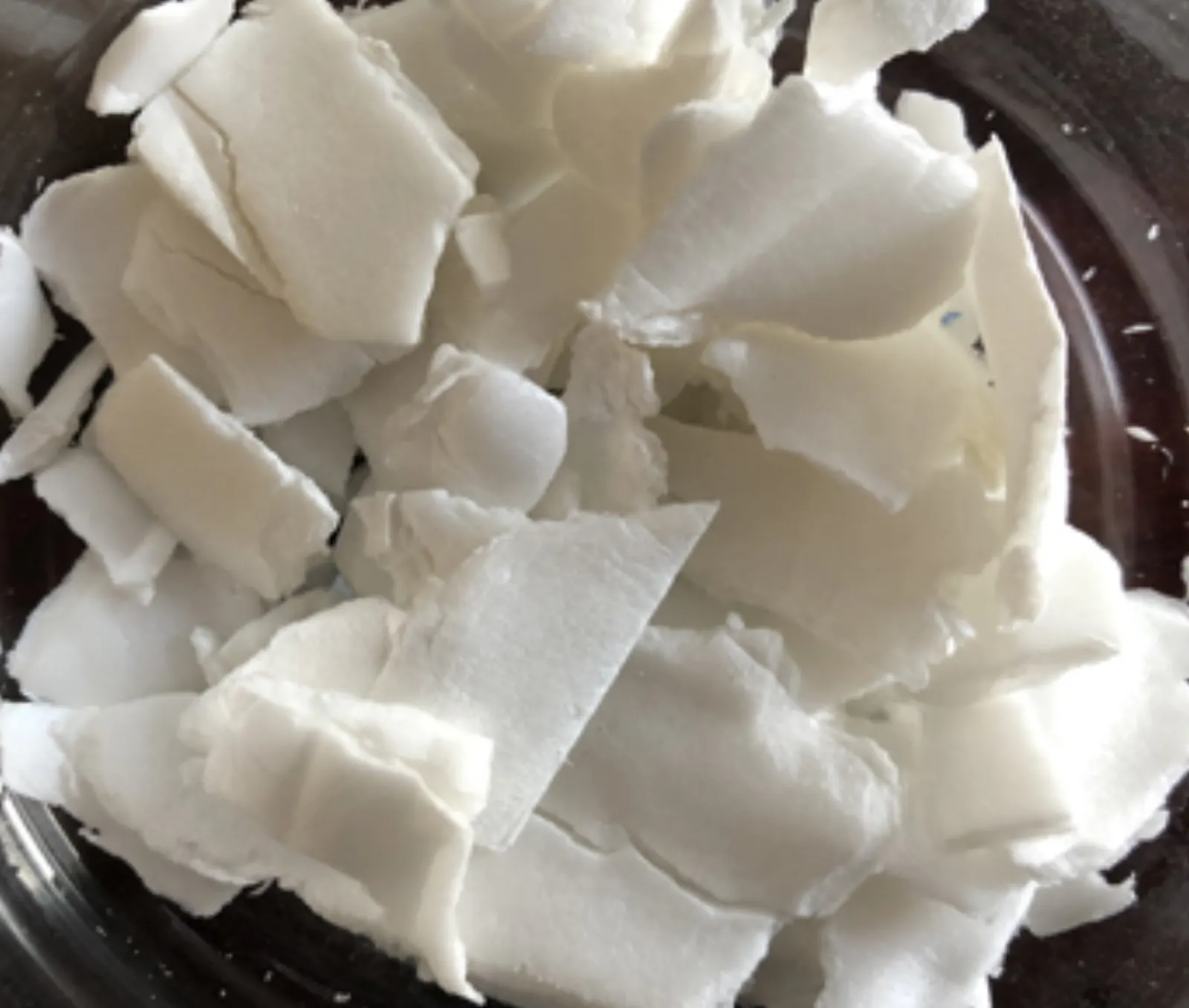

PS EPS XPS

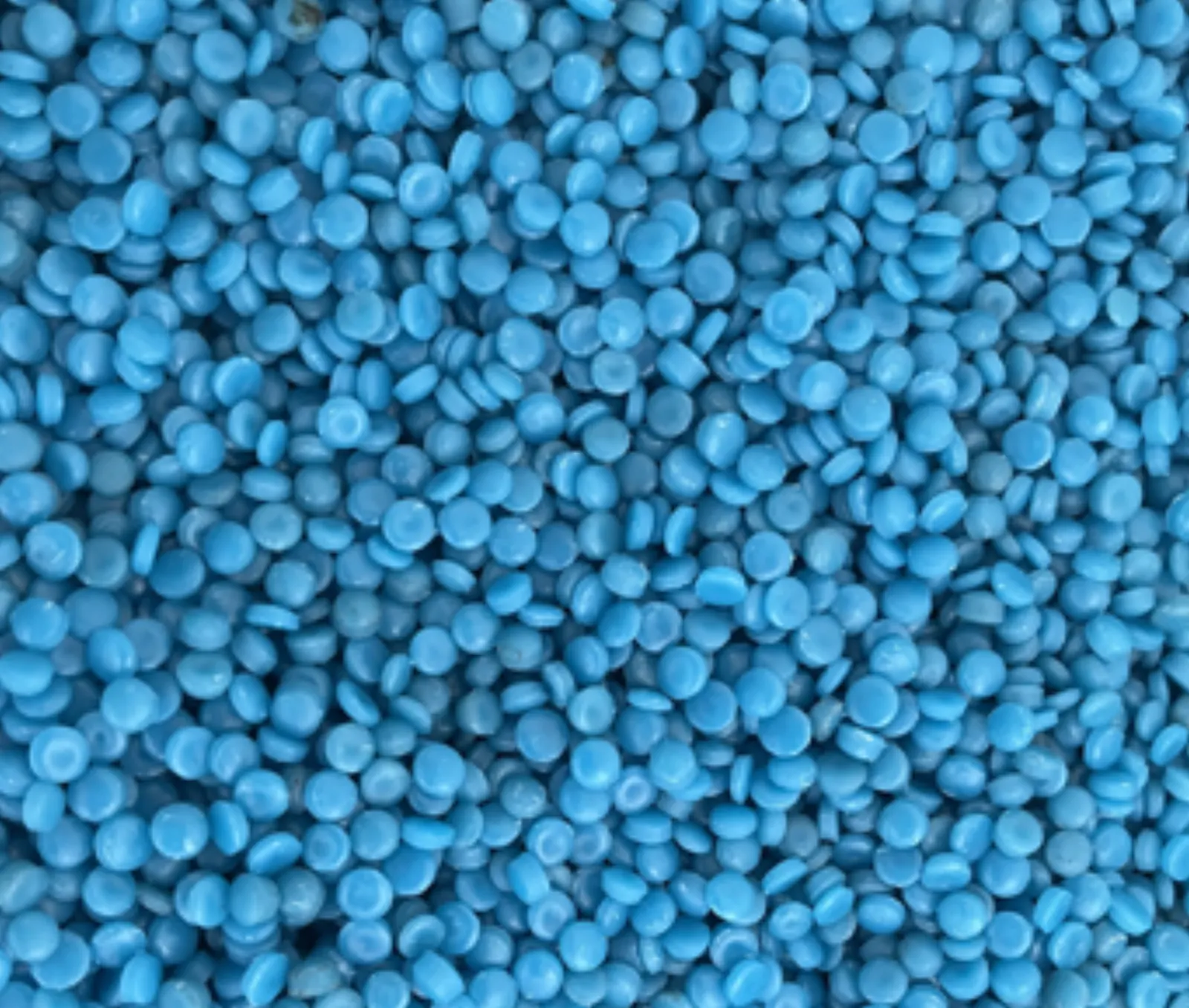

HDPE Granules

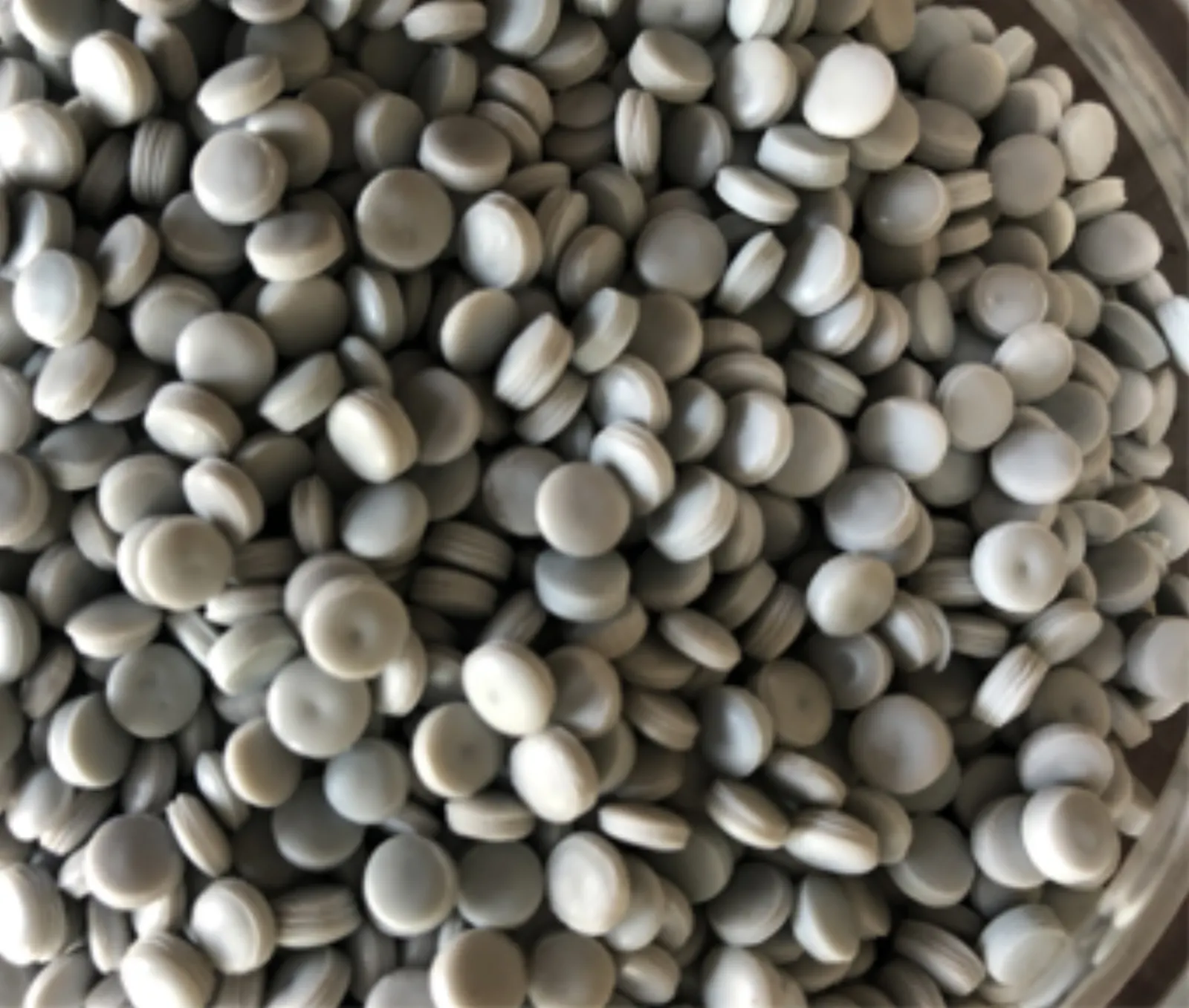

PP Granules

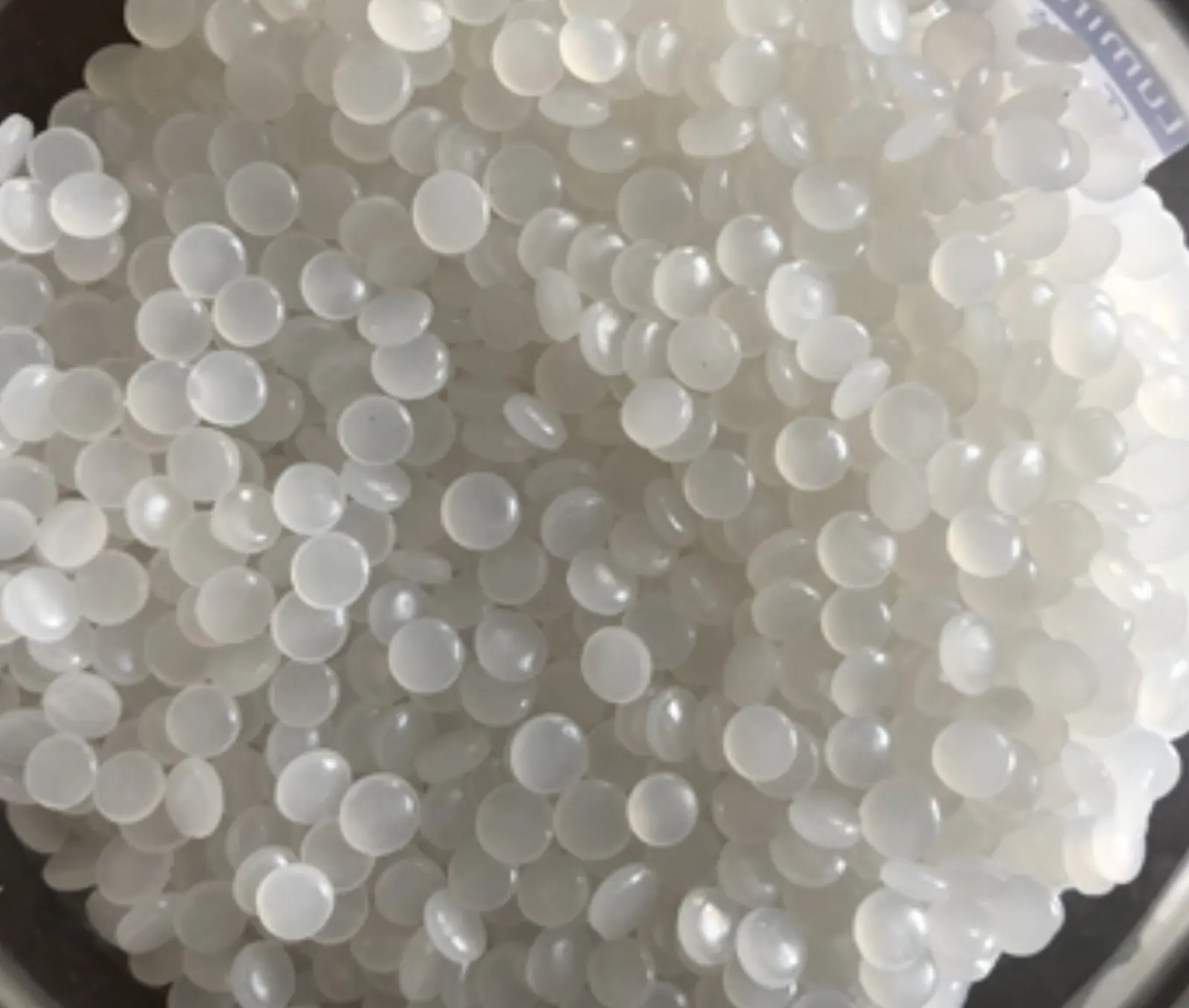

PE Granules

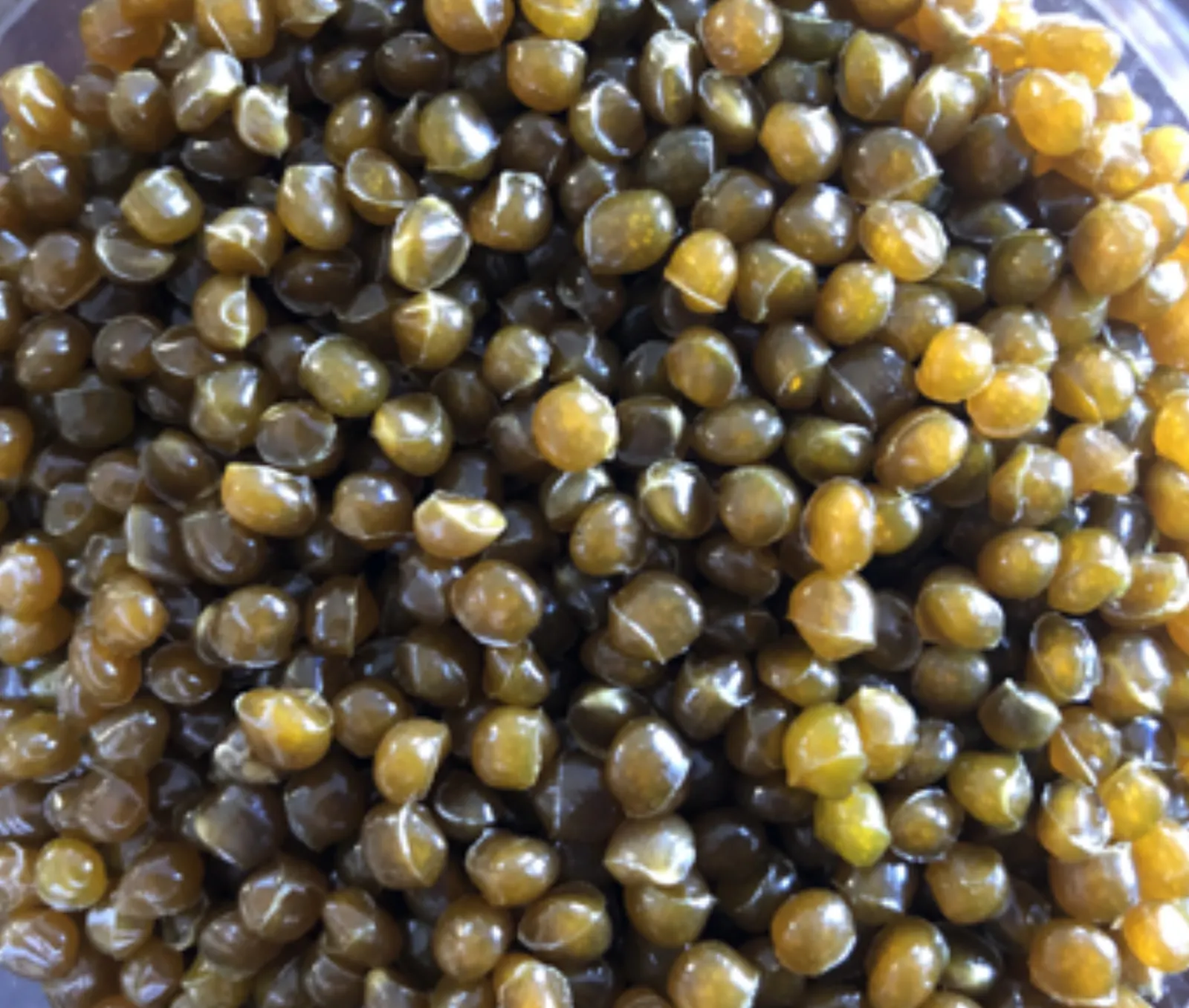

PS Granules

Parameter

Model Screw Dia L/D PE (kg/h) PP (kg/h)
RC100 100mm 30 160-200 150-180
RC100/100 100/100mm 30:12
RC120 120mm 30 230-280 220-250
RC120/120 120/120mm 30:12
RC150 150mm 28 500-550 450-480
RC150/150 150/150mm 28:12
RC180 180mm 25 750-800 650-700
RC180/180 180/180mm 25:10
RC200 200mm 25 800-1000 750-850
RC200/200 200/200mm 25:10

Granulating Process

  • * Side force feeder or ration feeder as optional.
  • * Simple operation of economy plastic pelletizing machine.
  • * Single stage or double stage pelletizer machine.
  • * Degassing vent for humidity and useless molecule.
  • * Automatically filter screen with big filtration area.
No Equipment name Quantity
1 Screw conveyor 1
2 Force feeder 1
3 Main extruder 1
4 Second extruder 1
5 Hydraulic screen changer 1
6 Die face or noodle cutting system 1
7 Water cooling tank 1
8 Vibrator 1
9 Blower dryer 1
10 Packaing system 1

Quality Assurance

Final moisture below 1%. Granules in good looking for film blowing or injection.

Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,Mesutronic metal detector,38CrMoA1A bimetal screw,etc.



Faq

Q

Are you trading company or manufacturer?

A

We are a manufacturer which producing the machines by ourselves.

Q

What’s your guarantee or the warranty of the quality if we buy your machines?

A

Our warranty year is one year. During the period, we provide you spare parts free of charge asap. But the technical guide is forever.

Q

How can I install my machine when it arrives?

A

We will send the instruction manual and videos to you,your workers can install the machine accorded to it. If the situation is ok, we can arrange our engineer to your factory, who will teach your labors how to install machines.

Q

How to maintenance machines in factory?

A

We will provide maintenance instruction, it will mark the oil model and time. And how many times you should check the machines. Any problems about machines, you can ask us anytime.

Q

If our machine is not working suddenly, but we have not spare parts, how to solve?

A

We promise our machine’s quality. Also we will prepare enough spare parts from the beginning for using urgently. Some vulnerable parts(blades), we will suggest you to buy. The last way,we send you spare parts by DHL.

Q

How to maintence recycling machine:

A

We will send you manuals for product maintenance and how to solve common problems. By the way, you can contact with us, we will try our best to teach you by instruction book or video.

Q

Warranty:

A

We provide 12 months’ warranty period usually.In this Period, any machine’s quality problem,we will send spare parts soon by DHL. We will do our best to teach your worker how to change the spare parts by video or instruction.

Q

24hours technical service:

A

We will online 24 hours every day, You can contact with us anytime. Our engineer will send you machine maintenance manuals.

×
