PET Bottle Washing Line
Complete PET bottle washing line for washing dirty PET drinking bottles into clean PET flakes, capability ranges from 500kg/h to 3000 kg/h. Call us for the best price!
At a Glance
Equipment Overview
- Category
- Washing Machine
- Models
- RT1000, RT2000, RT3000
- Capacity options
- 1000kg/h, 2000kg/h, 3000kg/h
- Typical application
- Our PET bottle washing line is widely used for PET Bottle, PET Baled Brick, Waste PET Cola Bottle and Other Mineral Water Bottle.
- Output
- Clean flakes or recycled pellets — confirmed per project
Product 01
Overview
Retech plastic PET bottle recycling line is the ideal solution for your PET recycling project. Our PET bottle washing recycling line is used to recycle and reprocess waste plastic PET bottles to clean PET flakes including Cola bottle, Pepsi cola bottle, Mineral water bottle, etc. The PET bottle washing line is designed and manufactured by our professional plastic recycling team and can produce the PET bottle plastic washing line between 500kg/h to 5000kg/h models according to customer requirements.
The final PET flakes humidity will be less than 1% after processing by our recycling PET bottle washing line, dry and clean flakes could send to our pelletizing machine to make granules directly. Our standard PET bottle recycling washing line consists of a series of plastic recycling machines connected by various types of conveyor systems. The whole sections of waste PET bottle washing line including de-baling section, sieving section, label separation section, bottle prewashing section, floatation section and dewatering section. With rich experience in PET bottle recycling machine design, according to the frequently changing needs of the market, we also support custom PET bottle washing line services. We candesign different models of capacity PET bottle recycling line based on quality of flakes and next usage of requirements. The PET bottle washing recycling line can be installed "I", "L", and "U" shapes according to your workshop. We also help you to design how to install the machines in your factory.
Features of PET bottle washing line
- Various Capacity - PET bottle recycling line with fully automatic and intelligentialize from 500kg/h to 5000 kg/h
- Water Saving - provide waste water treatment to decrease water consumption to be lower than 1 liter for each ton of PET flake
- Optional Functional Unit - automatic detergent dosing system, water saving system, pet fines purification and automatic monitoring system
- High Purity - The finished PET sheet, PVC leve is less than 150PPM, and the impurity content is less than 100PPM.
- Several Key Parts - The main parts of the PET washing and recycling equipment are label separation, crushing, hot and cold washing, cap separation, dehydrator and drying parts.
Product 02
Applications & Suitable Materials
Our PET bottle washing line is widely used for PET Bottle, PET Baled Brick, Waste PET Cola Bottle and Other Mineral Water Bottle.
Product 03

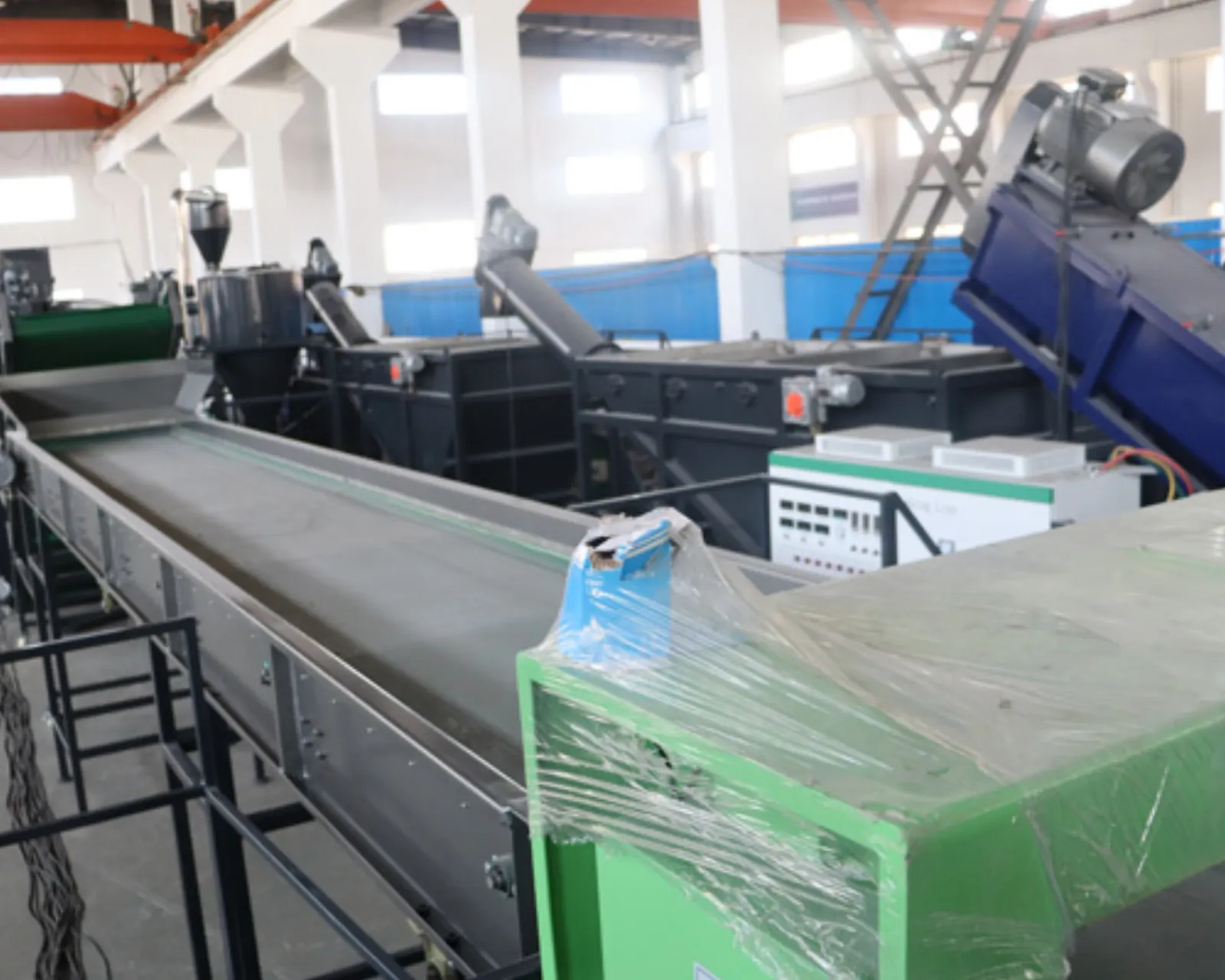

Cleaning Process
| Equipment name | Details |
|---|---|

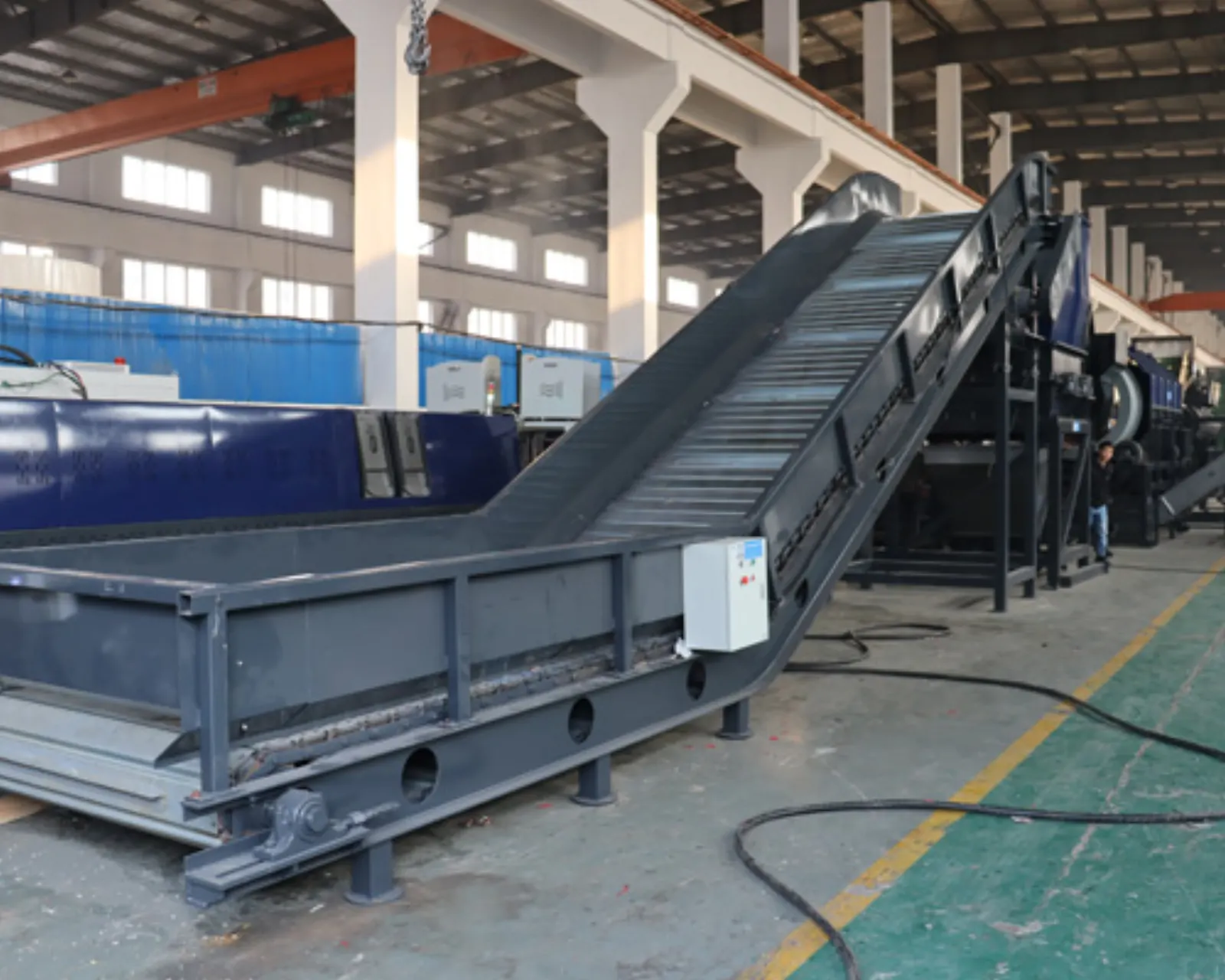

| De-baler Open the packaging PET bottles Motor power: 7.5kw + 7.5kw Rotating diameter: φ500 mm Rotating length: 1400 mm Speed: 20 rpm Overall size: 2800 * 1850 * 3500 mm Weight: 3000 Kg |  |

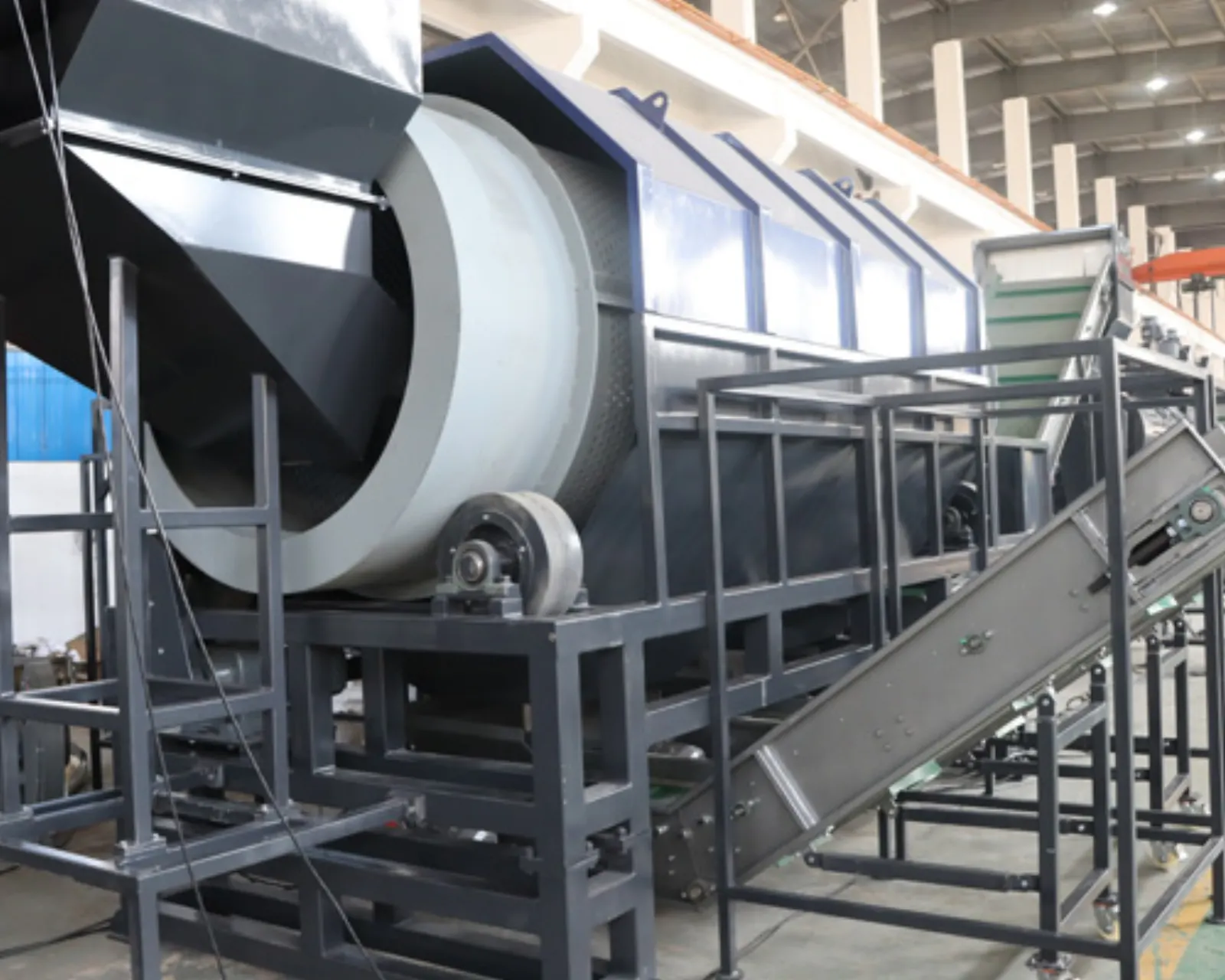

| Trommel Separate different impurities, such as sand, stone, metal and so on according to the size of the holes Motor power: 4kw + 4kw Hole diameter: 12-50 mm Drum diameter: 1600 mm Length of rotary drum: 6000mm Shelf: carbon steel Overall size: 6875 * 2000 * 3150 mm |  |
| Manual sorting table Manually separate any impurities that can be seen Belt Material: PVC Belt Width: 1000 mm Belt length: 8000 mm Overall size: 8300 * 1200 * 1000 mm Motor power: 2.2kw |  |

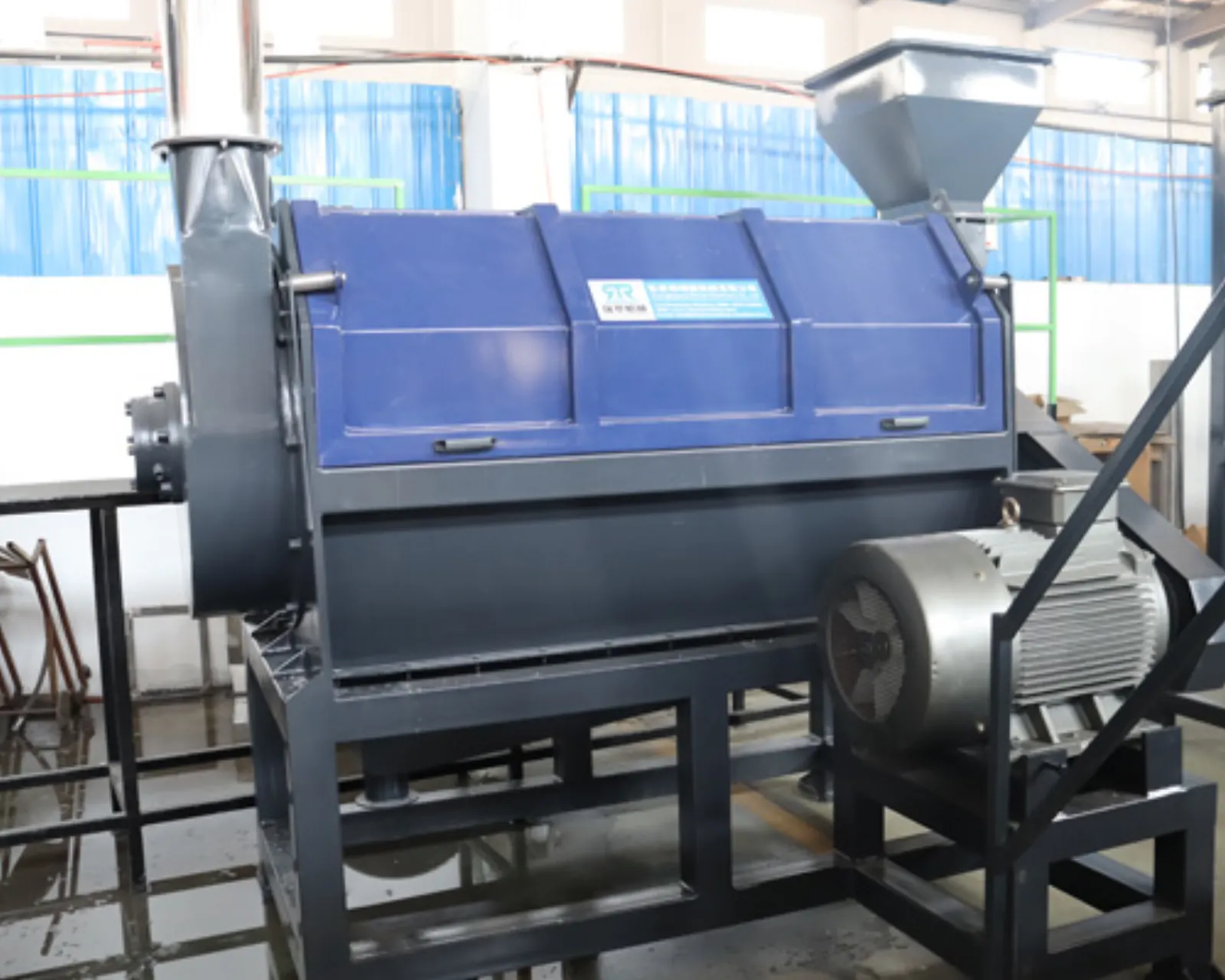

| Steam washer wash with hot water and detergent to get rid of oil, dirties and some labels Motor power: 11 kw Speed: 17 r / min Diameter: 1900 mm Length: 3000 mm Volume: 6m3 |  |
| De-watering machine get rid of glue, dirties, oil, detergent and etc. Motor power: 55 kw Rotating diameter: 700 mm Length: 2000 mm Speed: 1800 rpm Bearing: NSK The parts which contact with wet flakes is made of SUS304. |  |
| Zig-zag separator separate little amount labels and dust from PET flakes. Motor power: 3KW + 2.2KW The parts which contacts with flakes is made of SUS304. |  |
Technical Data
Specifications & Parameters
| Model | Power | Water | Capacity |
|---|---|---|---|
| RT1000 | 155kw/h | 5-6 t/h | 1000kg/h |
| RT2000 | 320kw/h | 8-10 t/h | 2000kg/h |
| RT3000 | 530kw/h | 10-12 t/h | 3000kg/h |
Quality
Quality Assurance
Final moisture below 1%. Dry and clean.
Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,SUS 304 stainless steel, SKD-11 blades,etc.
Video
Machine Video
Video plays on demand. Source: Retech Machine official channel.
FAQ
PET Bottle Washing Line — Questions
Are you trading company or manufacturer?
We are a manufacturer which producing the machines by ourselves.
What’s your guarantee or the warranty of the quality if we buy your machines?
Our warranty year is one year. During the period, we provide you spare parts free of charge asap. But the technical guide is forever.
How can I install my machine when it arrives?
We will send the instruction manual and videos to you,your workers can install the machine accorded to it. If the situation is ok, we can arrange our engineer to your factory, who will teach your labors how to install machines.
How to maintenance machines in factory?
We will provide maintenance instruction, it will mark the oil model and time. And how many times you should check the machines. Any problems about machines, you can ask us anytime.
If our machine is not working suddenly, but we have not spare parts, how to solve?
We promise our machine’s quality. Also we will prepare enough spare parts from the beginning for using urgently. Some vulnerable parts(blades), we will suggest you to buy. The last way,we send you spare parts by DHL.
How to maintence recycling machine:
We will send you manuals for product maintenance and how to solve common problems. By the way, you can contact with us, we will try our best to teach you by instruction book or video.
Warranty:
We provide 12 months’ warranty period usually.In this Period, any machine’s quality problem,we will send spare parts soon by DHL. We will do our best to teach your worker how to change the spare parts by video or instruction.
24hours technical service:
We will online 24 hours every day, You can contact with us anytime. Our engineer will send you machine maintenance manuals.
