PP Woven Bag PP Non Woven Fabric Recycling Granulating Line is used to recycling plastic waste plastic PP woven bag,PP jumbo bag scrap,PP non woven fabric,tape,silk,raffia,fiber materials. With compactor cutter to heat and compact the film,it is more easy to feeding material to extruder. Degassing vacuum vent could remove humidity and useless element efficiently. Die face water ring cutting plastic pelletizing system to cut the granules in uniform. The final pellets could make new plastic PP bag and other injection application.

Share this:

Product Description

Our PP Woven Bag Recycling Granulating Line is used to recycle and pelletizing waste plastic such as PP woven bag, PP jumbo bag scrap, PP non woven raffia fabric, BOPP CPP PE OPP POF film, PS XPS foam, etc. The whole process includes shredding, water risning, friction washing, washing system drying, compaction, plasticization, granulation and drying through the granulation system. The enPLC intelligent system is highly automated and greatly saves labor costs.



The final granules will be strong and uniform after processing by our PP Woven Bag PP Non Woven Fabric Compactor Recycling Granulating Line,recycled granules could apply to make new PP bag,pipe making,injection,etc.We could supply the PP woven bag recycling granulation machine in different capacity between 200kg/h to 800kg/h.



We are a manufacturer specializing in plastic washing and recycling granulation equipment, we provide professional customized plastic recycling solutions. We can design PP woven bags and non-woven fabric recycling granulation lines according to your specific needs, all the recycling machinery has been debugged , you can use our pp woven recycling machines with confidence.

Application

PP Woven Bag,Washed PP Jumbo Bag Scrap,PP Non Woven Fabric,Other Soft Plastic Like PE OPP CPP BOPP film,PS foam,PP Raffia Recycling,etc.
Material shapes: film, bag, (PE, PP) regrind
Material types: rolls, loose, bundled

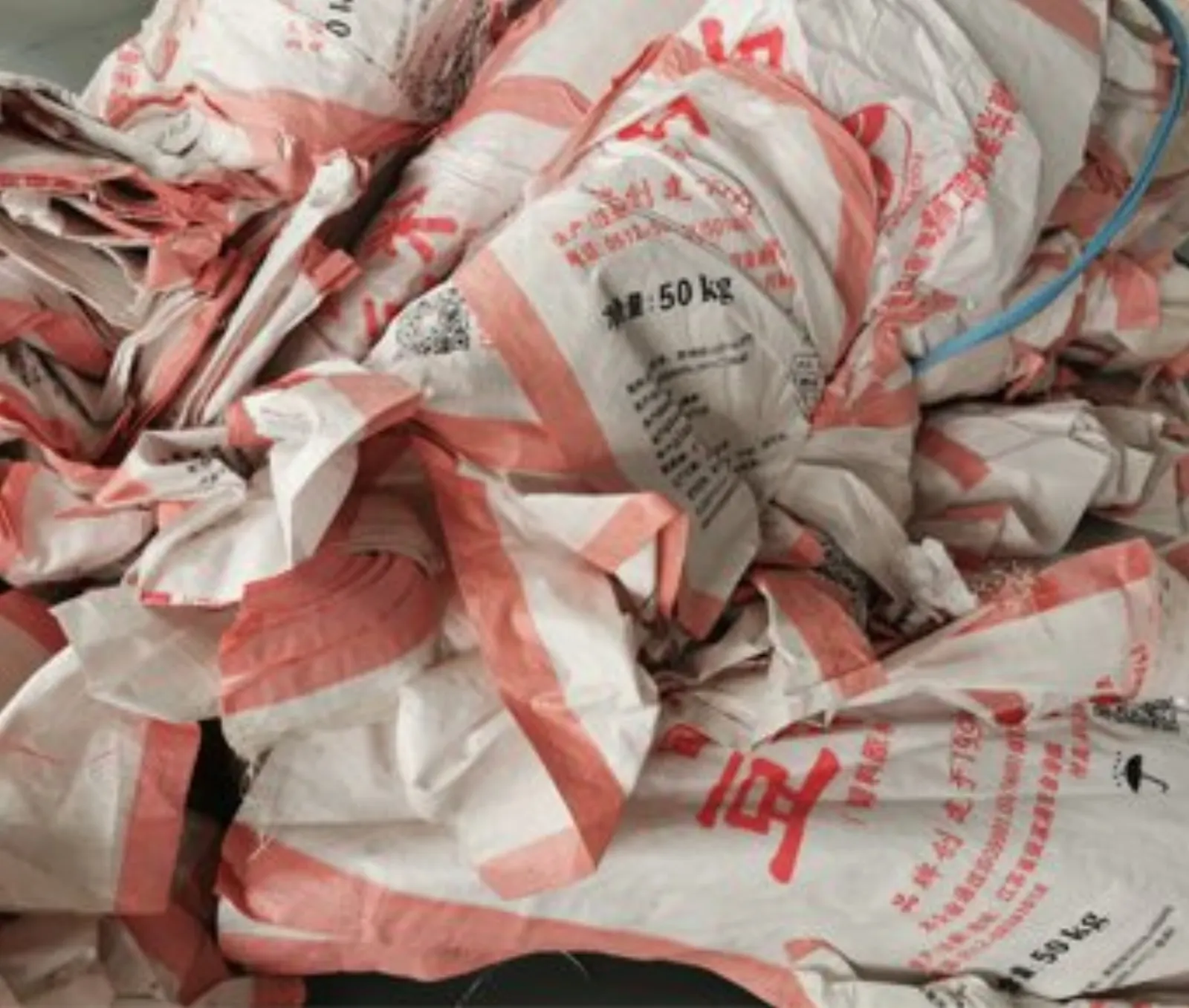

PP woven bag

PP washed scrap flakes

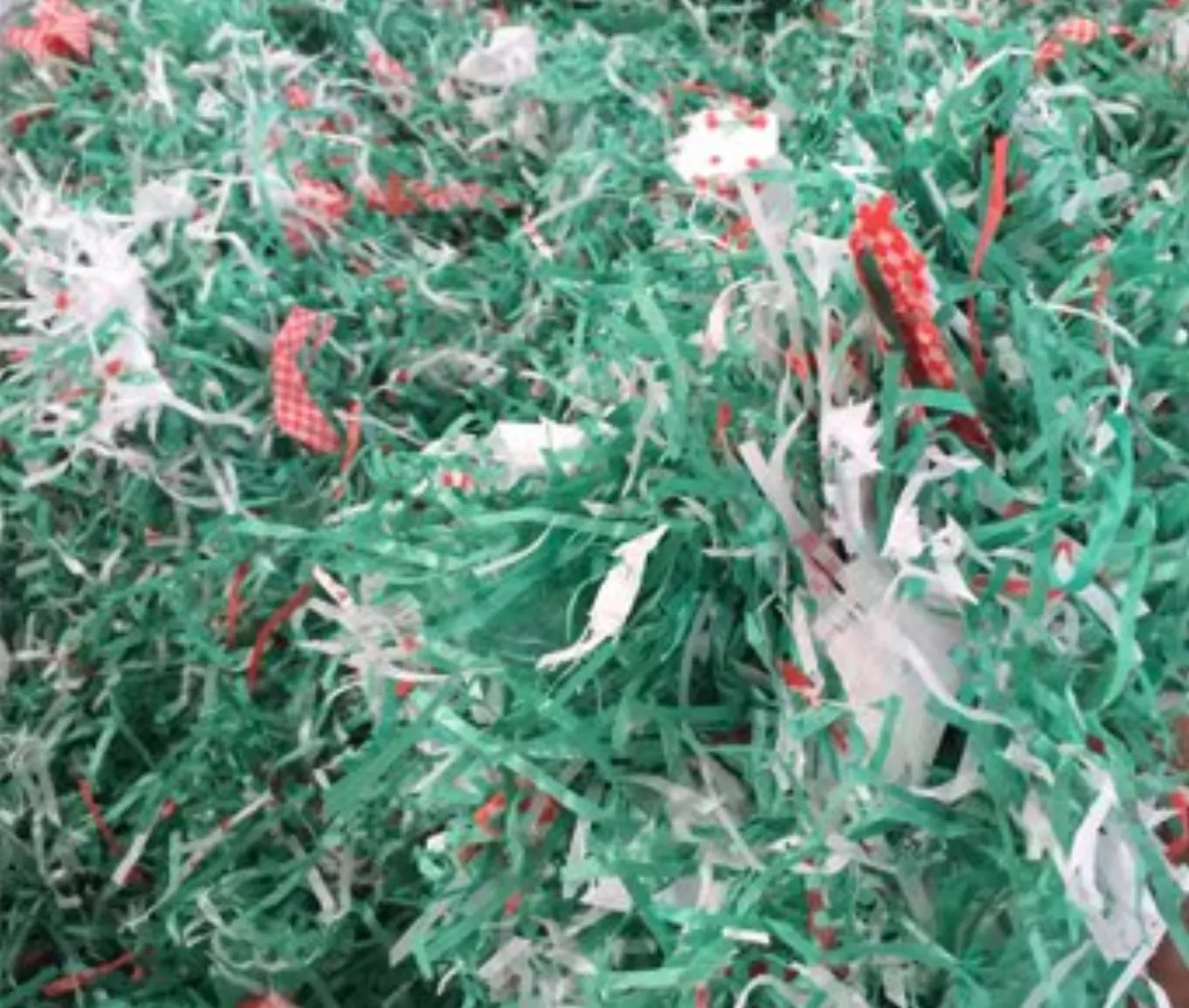

PP crushed scrap

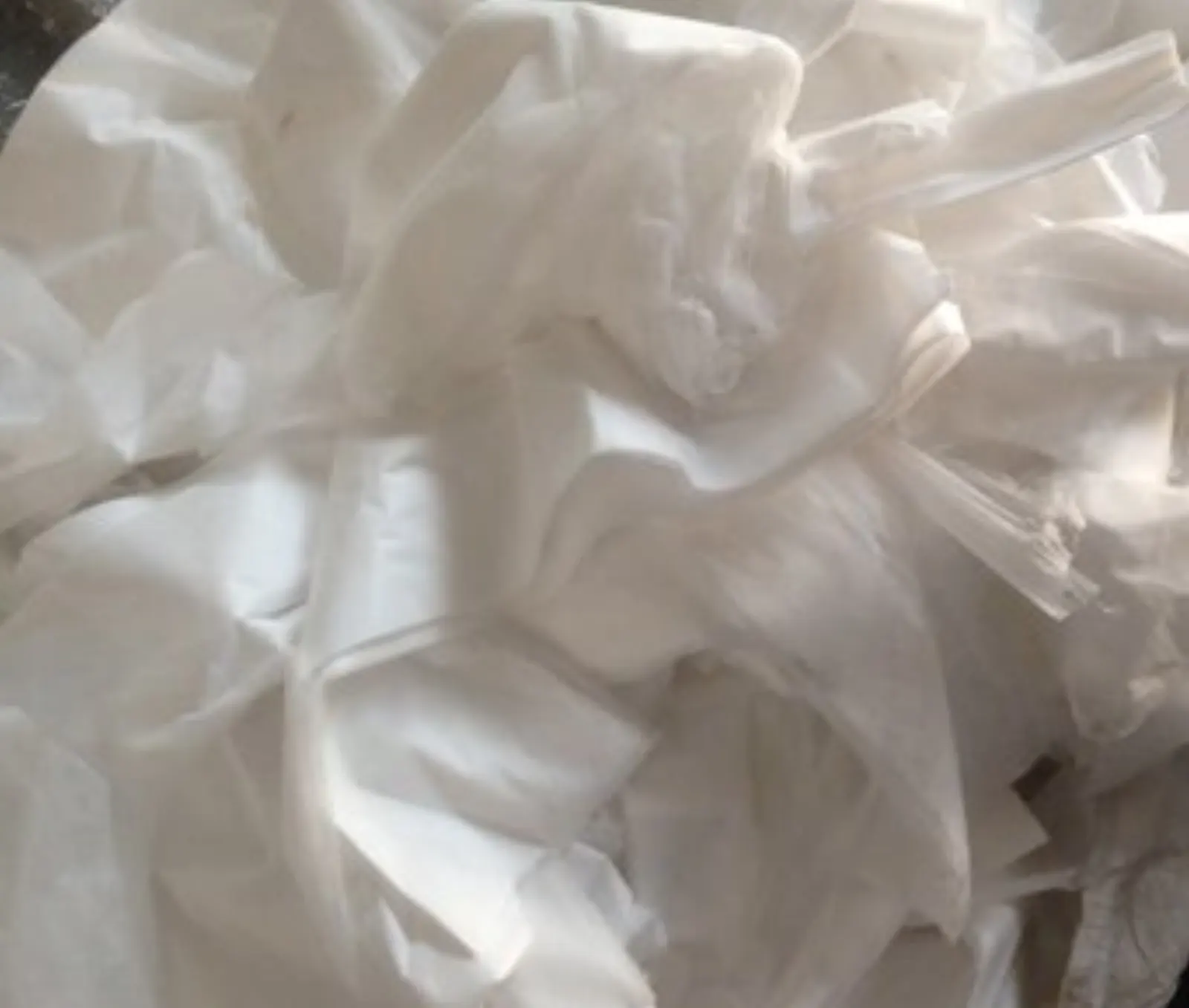

PP non woven fabric raffia

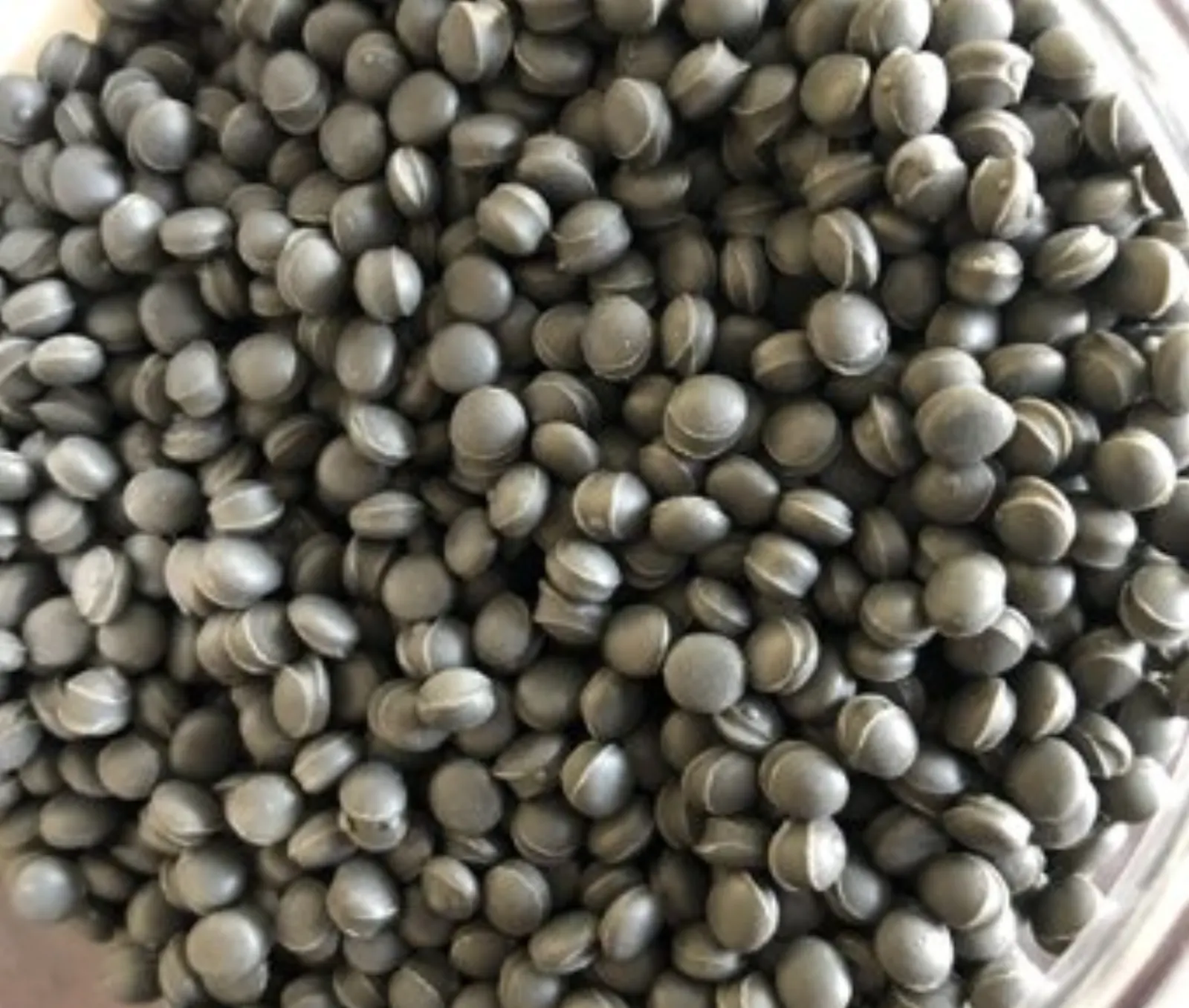

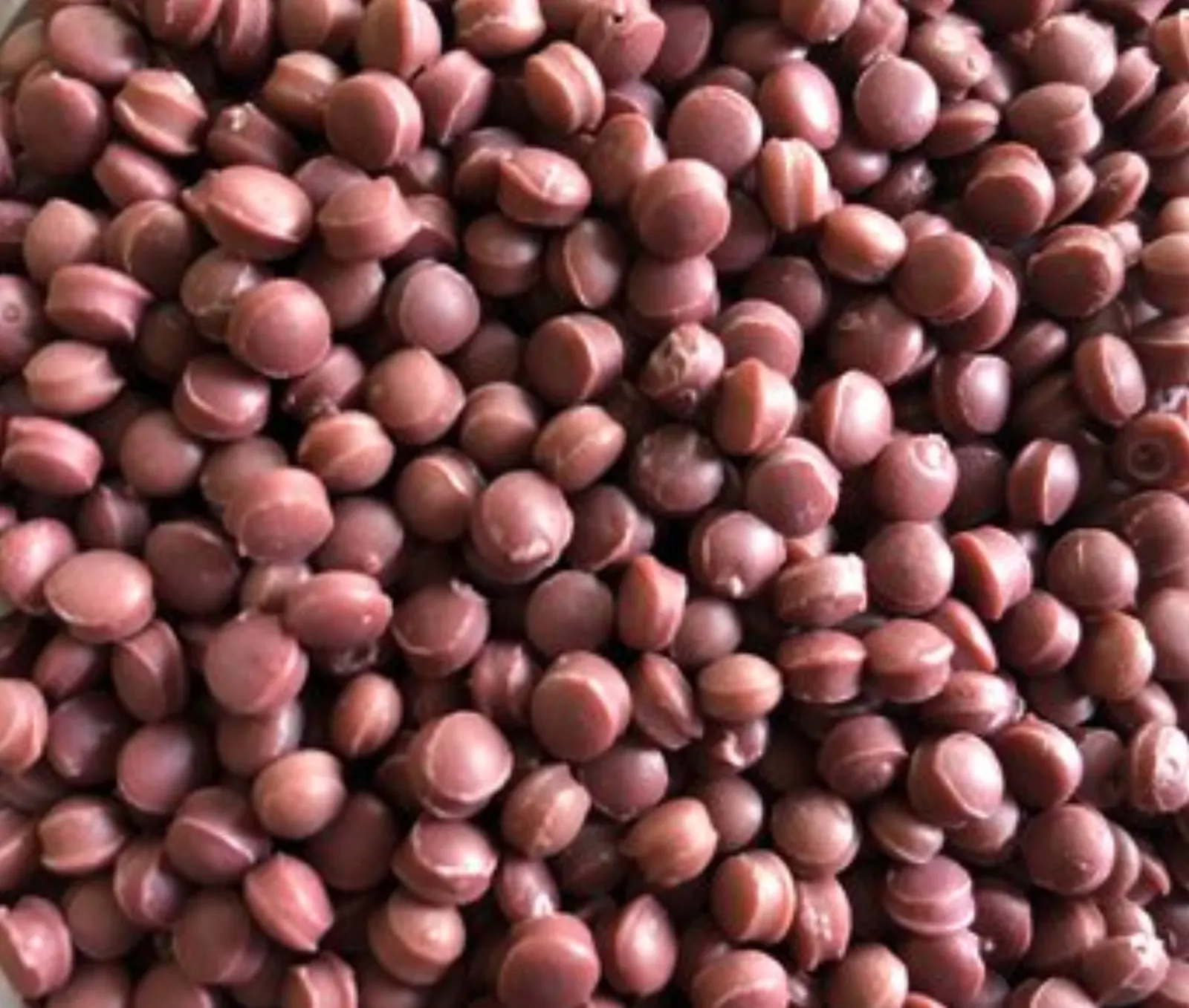

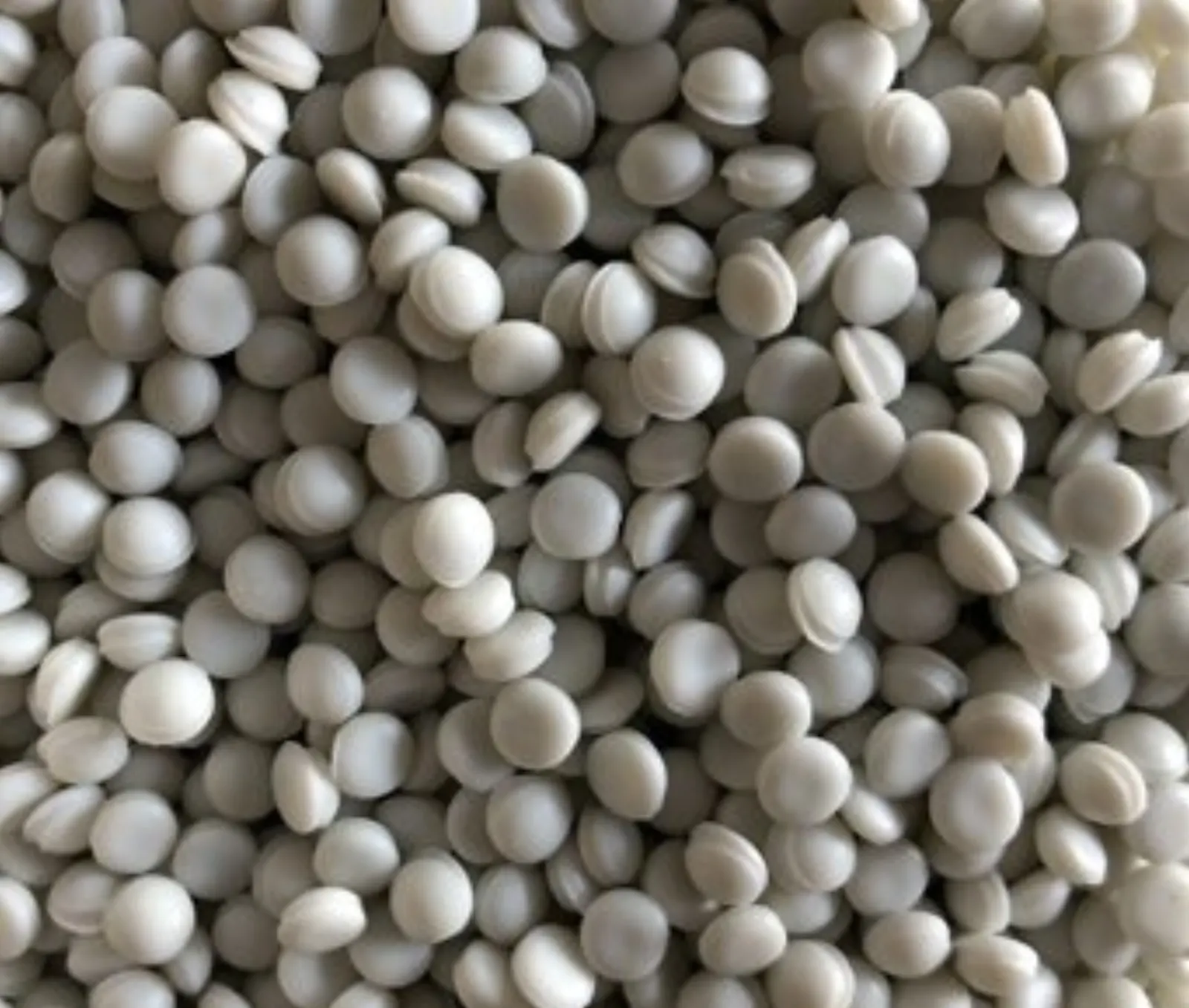

After process

After process

After process

After process

Parameter

Model Screw Dia L/D PE (kg/h) PP (kg/h)
RCDJ85 85mm 33 180-220 160-200
RCSJ85/100 85/100mm 33:12
RCDJ100 100mm 33 260-320 220-280
RCSJ100/120 100/120mm 33:12
RCDJ130 130mm 33 450-550 360-420
RCSJ130/150 130/150mm 33:12
RCDJ160 160mm 30 650-750 500-600
RCSJ160/180 160/180mm 30:10
RCDJ180 180mm 28 800-1000 650-800
RCSJ180/200 180/200mm 28:10

Recycling Process

PP Woven Bag Recycling Pelletizing Line Workflow:
PP Woven Bag → Belt Conveyor → Compactor → Mother Extruder → Hydraulic Screen Changer → Baby Extruder → Hydraulic Screen Changer → Die Face Cutting System → Water Cooling Tank → Dehydrator → silo storage

Details Equipment name Function

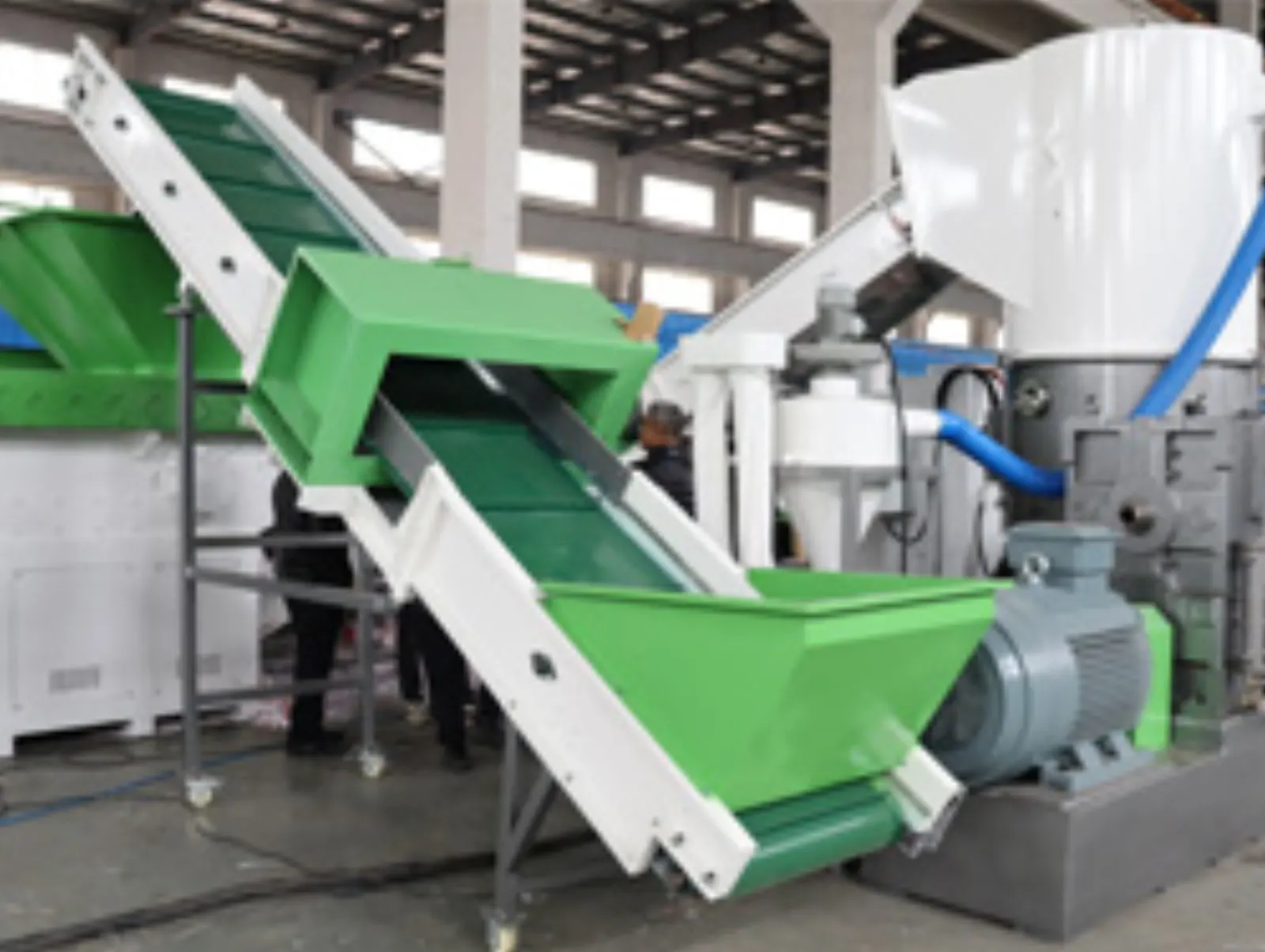

Belt conveyor with metal detector Equipped with a metal detector to remove the metal material and sends plastic waste to the compactor

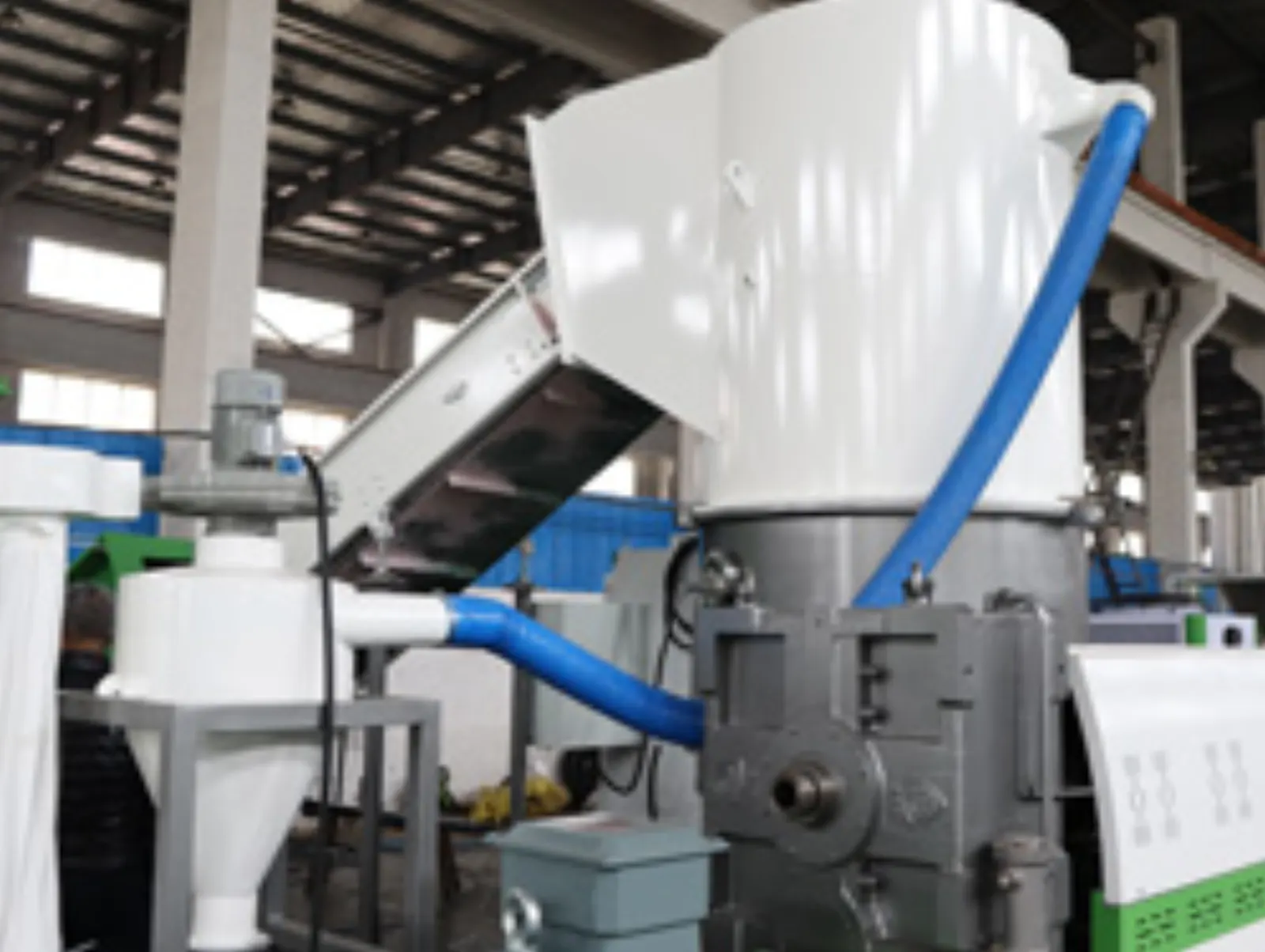

Shredder Compactor

Pre-cut by shredder.Automatic feeding system.  Compactor cutter to improve feeding performance

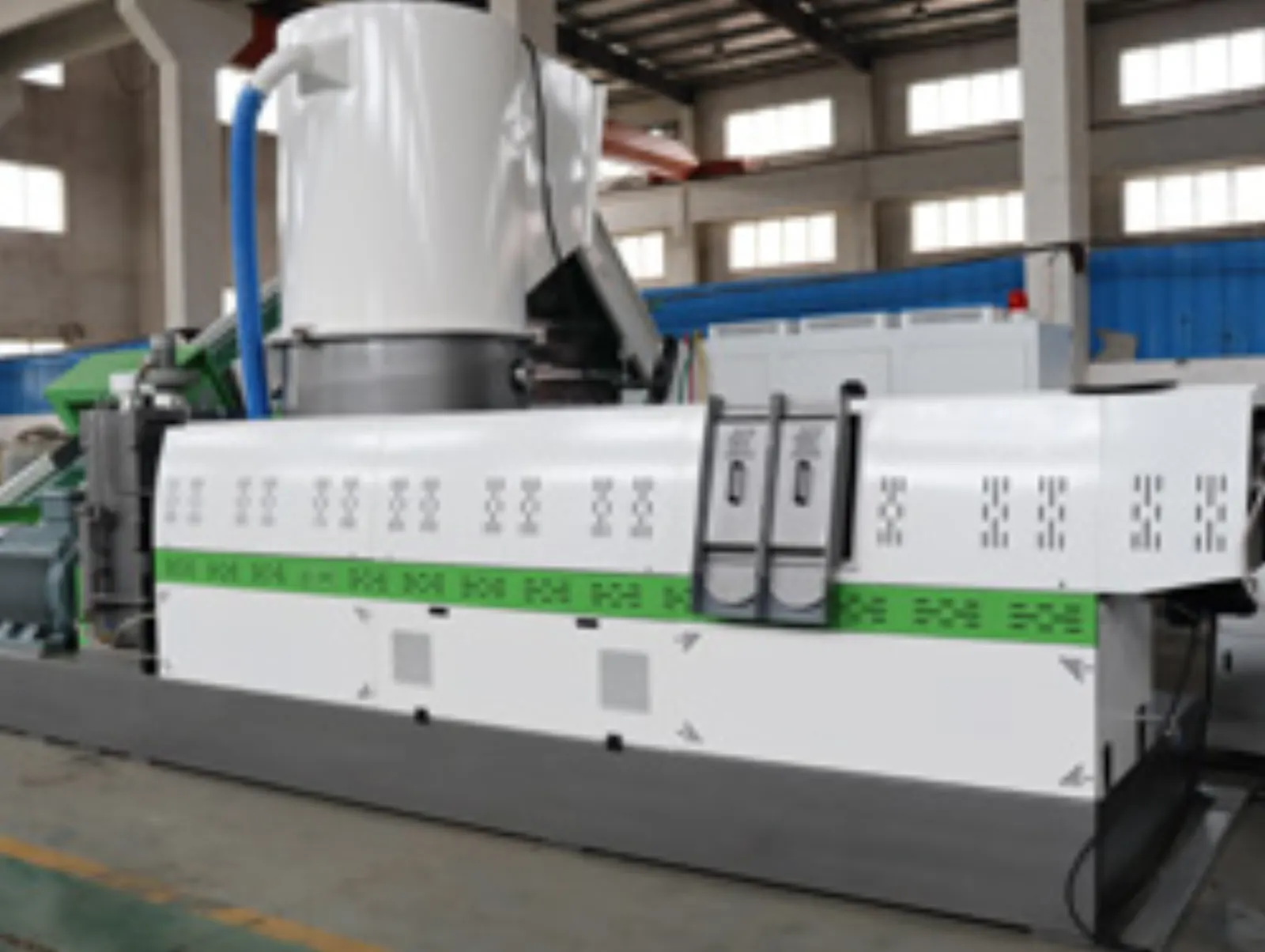

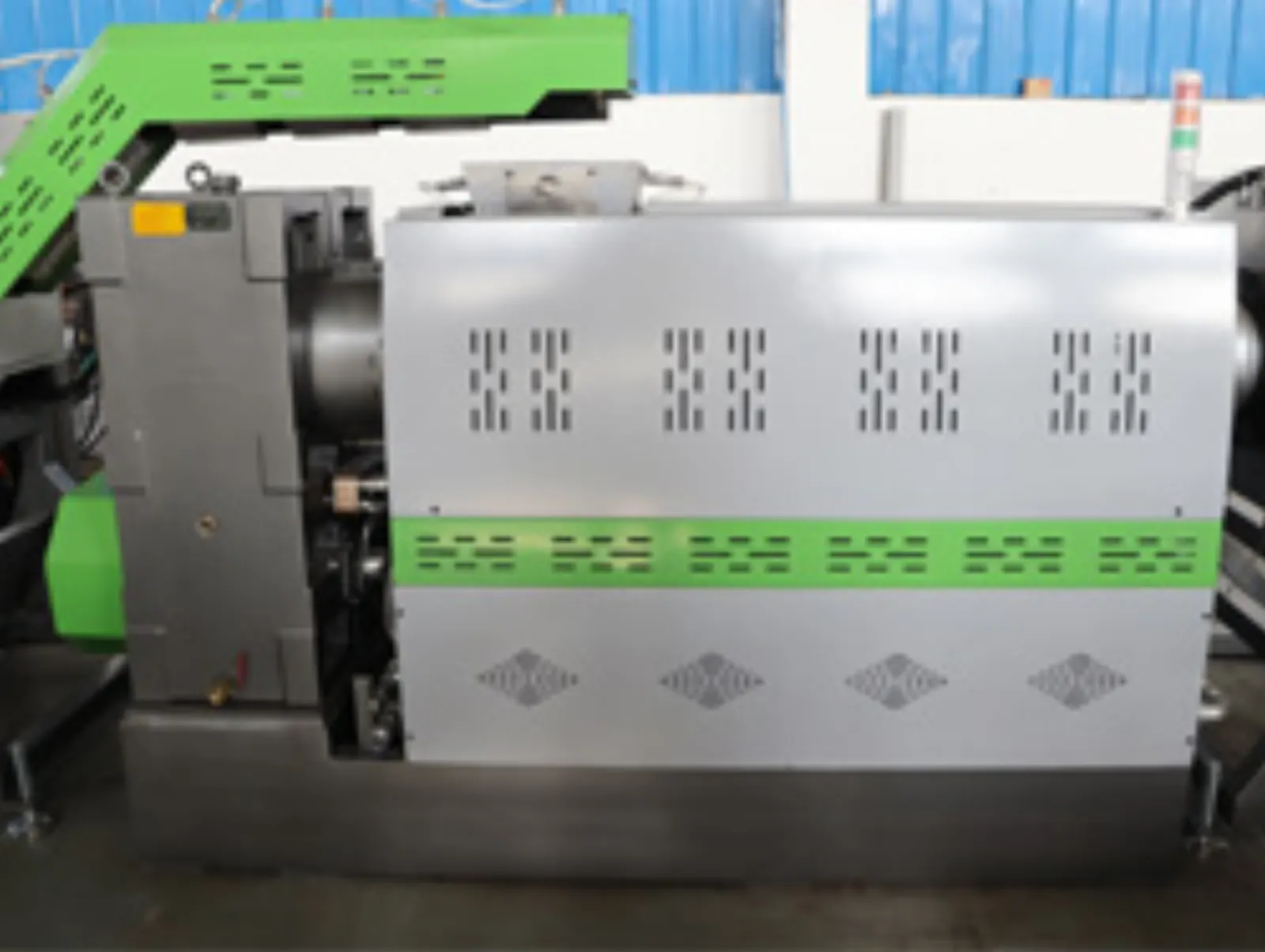

Mother extruder Specially designed screw structure to melt pre-compacted materials, has better melting performance and higher output
Baby extruder

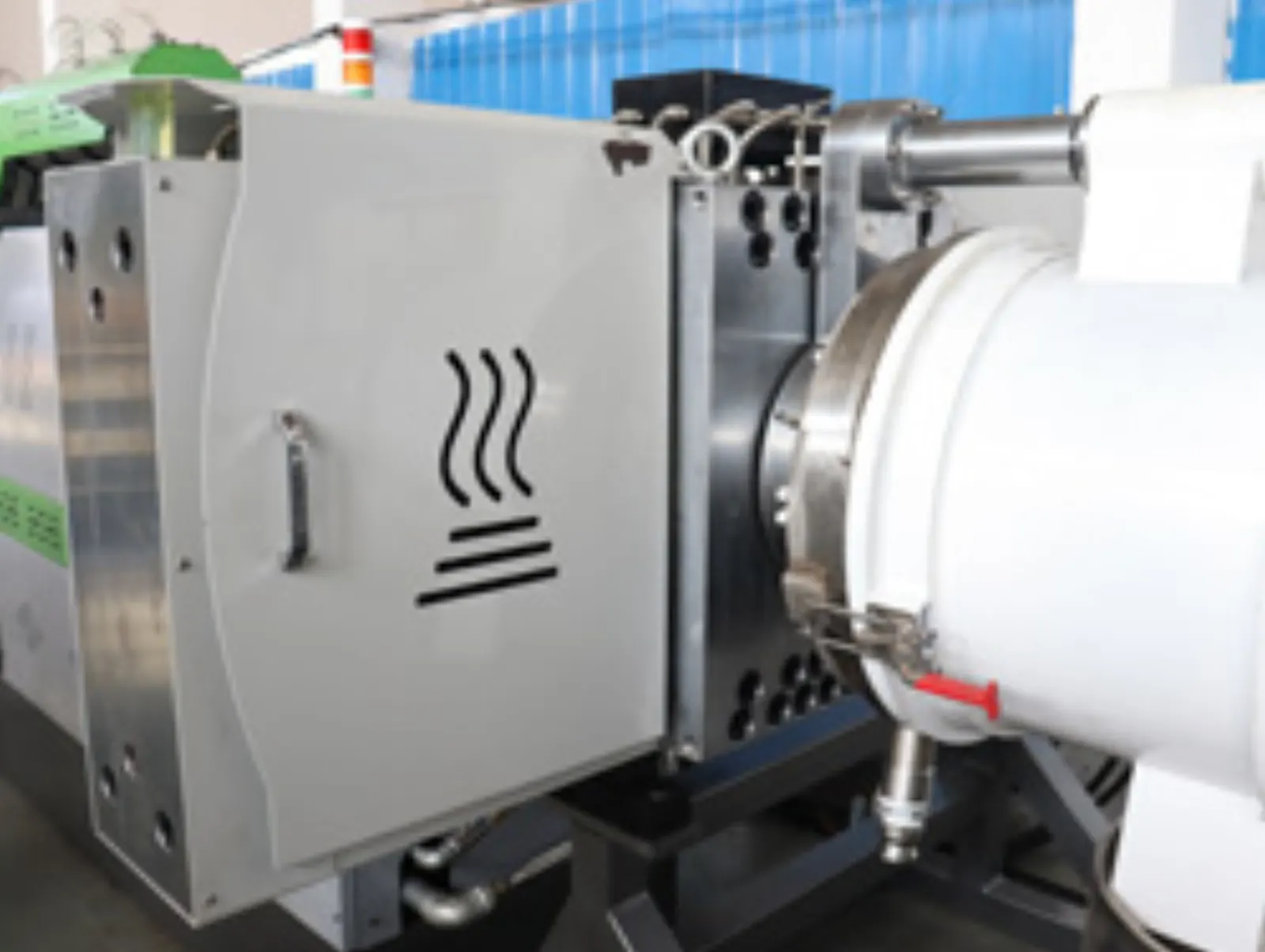

Hydraulic screen changer With pressure sensor to warning the operator to changing nets

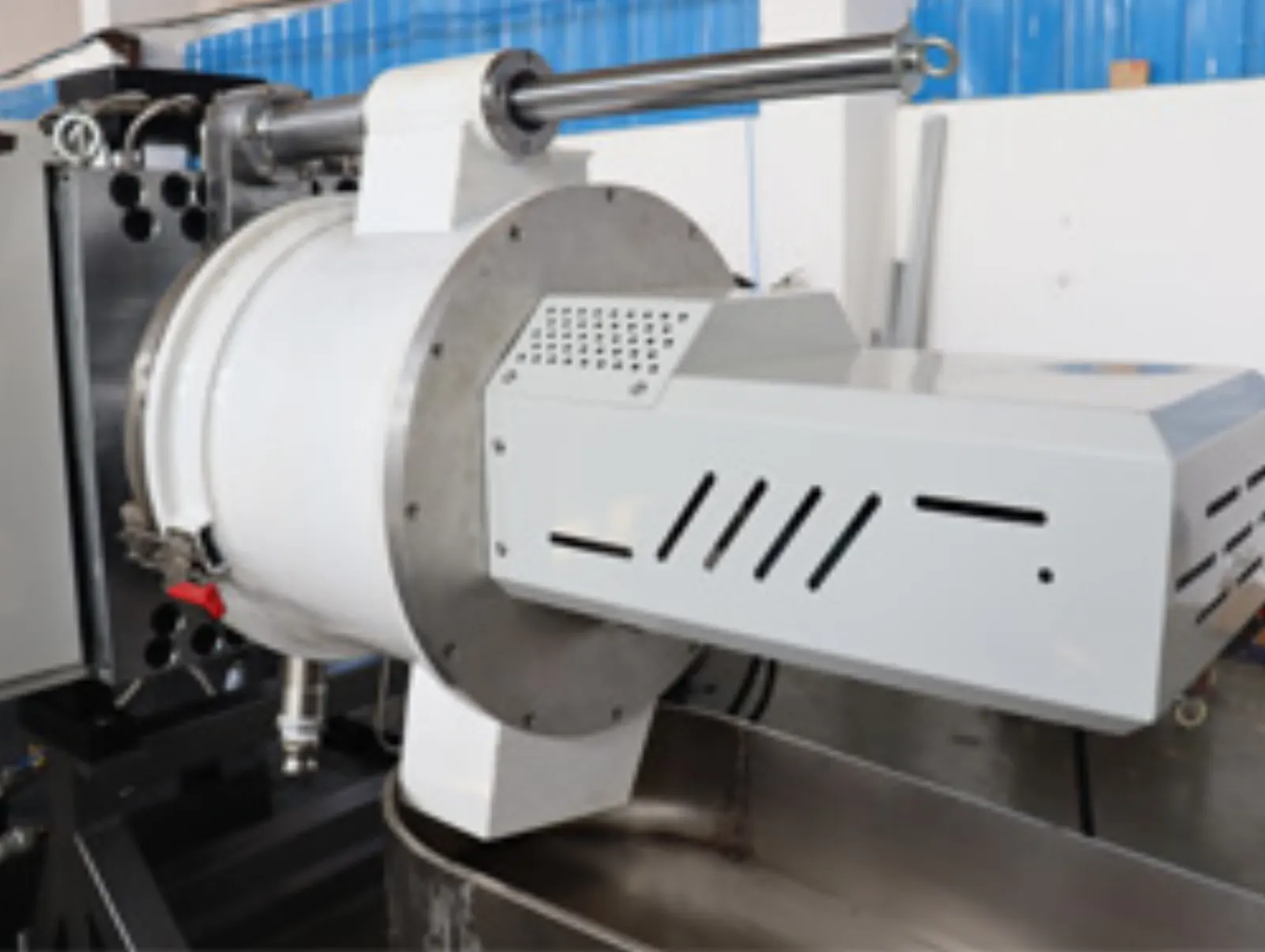

Die face cutter

Die face cutting or strand noodle cutting optionally. The cutting speed is controlled by invert

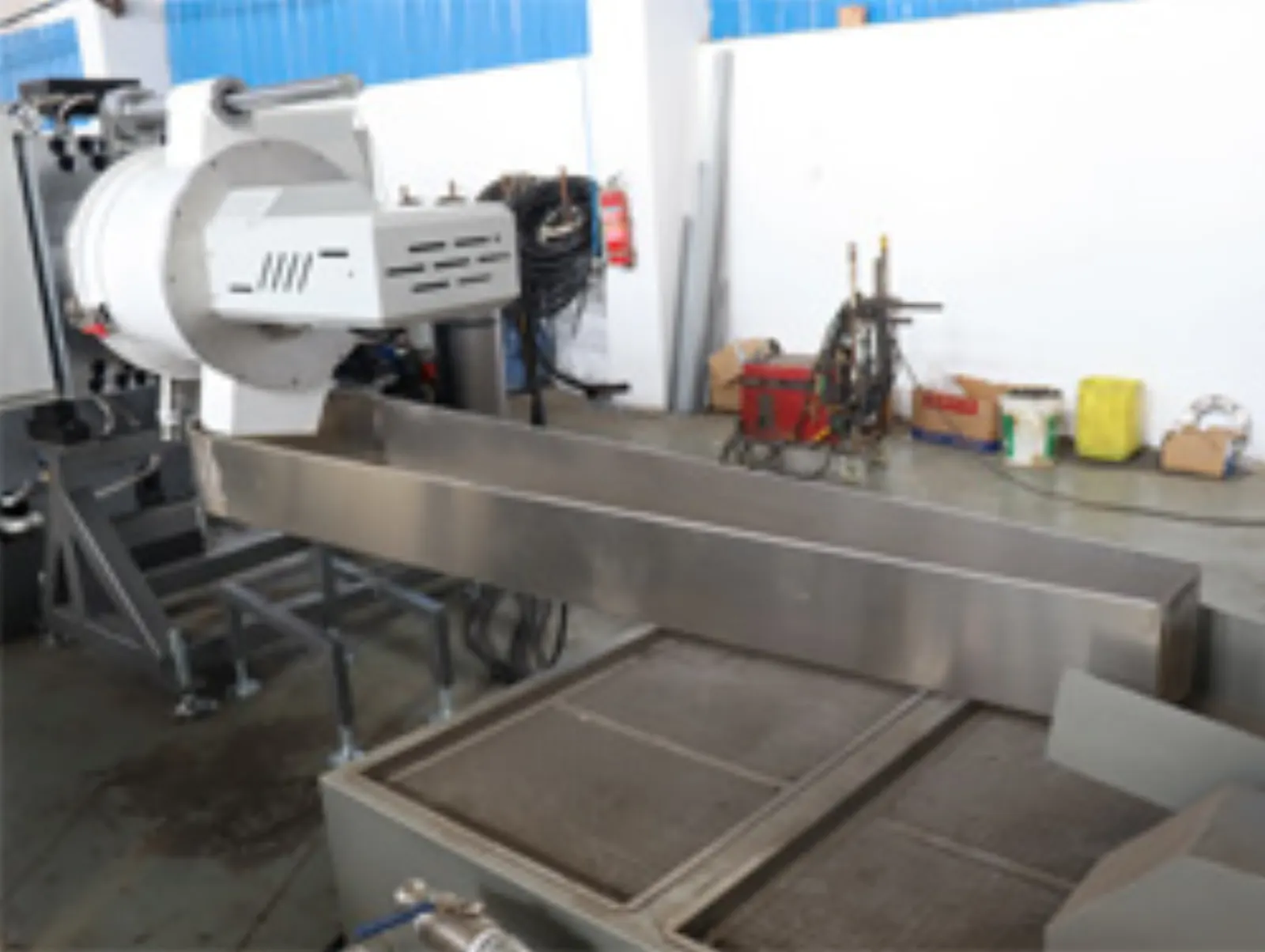

Water cooling flume Made of stainless steel, in L shape cooling

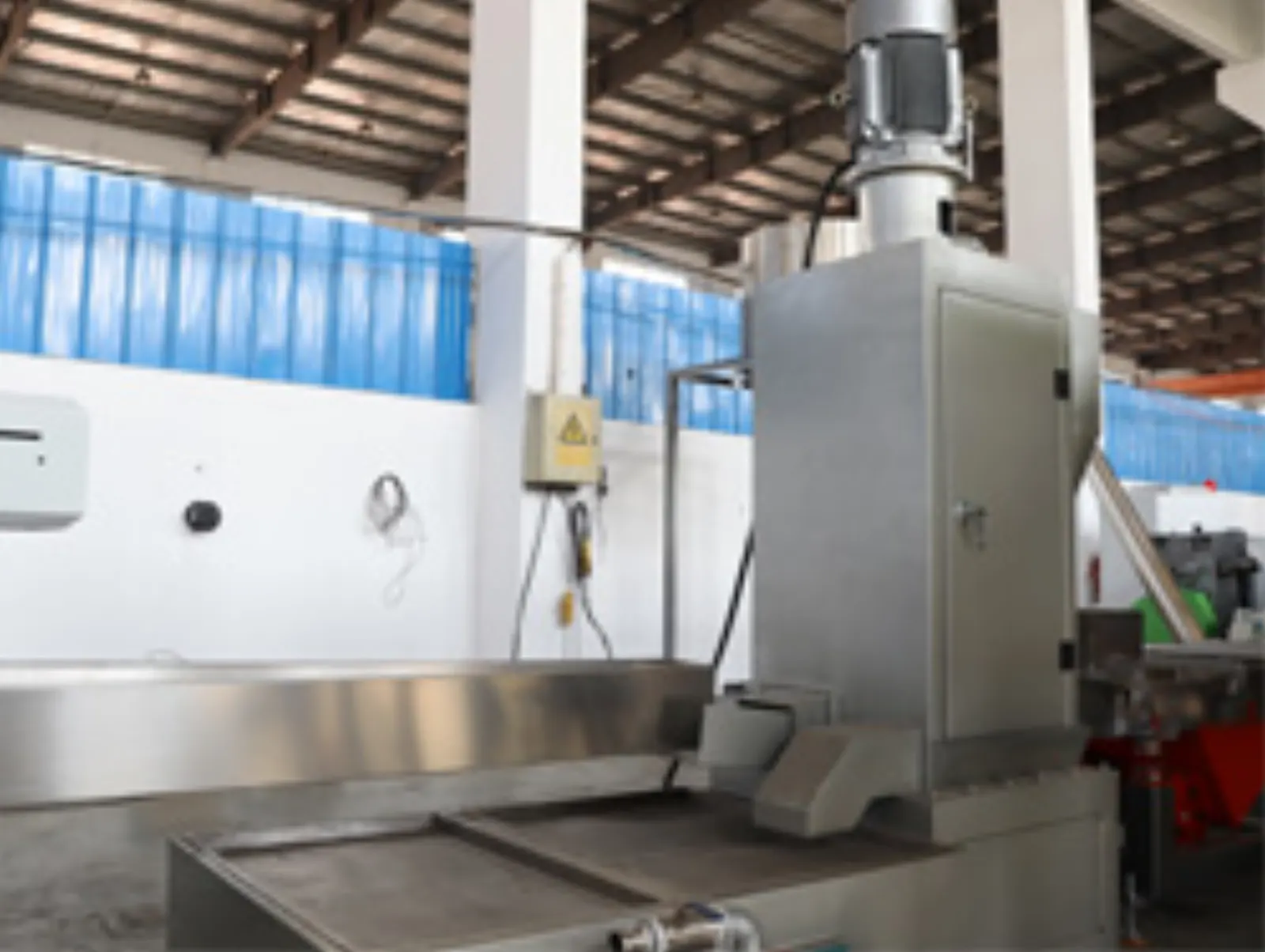

Dewatering machine Vibration dryer combined with horizontal type centrifugal dryer to get well dried final granules

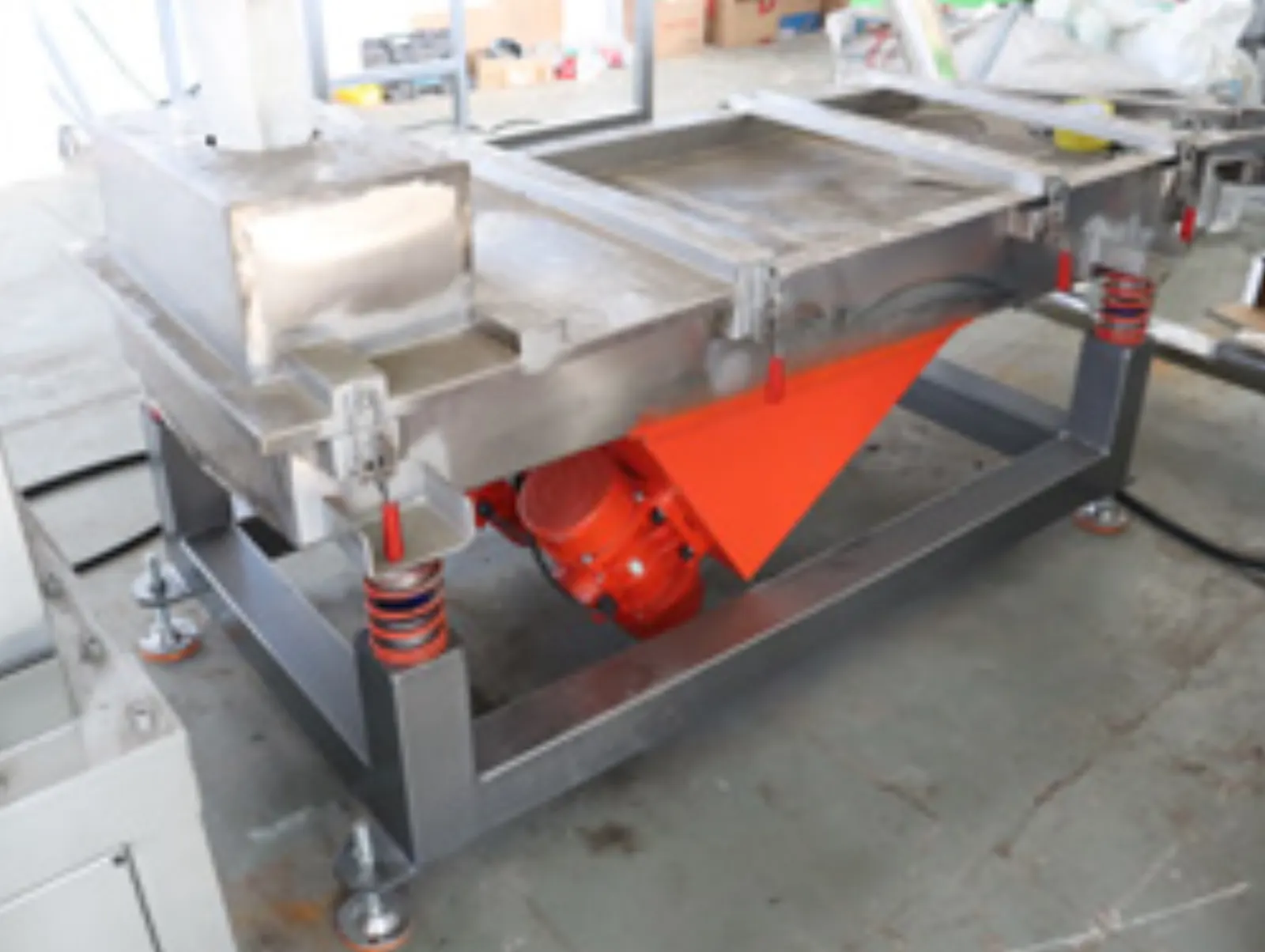

Vibrator screen Made of SUS 304, with double layers in 10mm and 2mm(to select pellets)

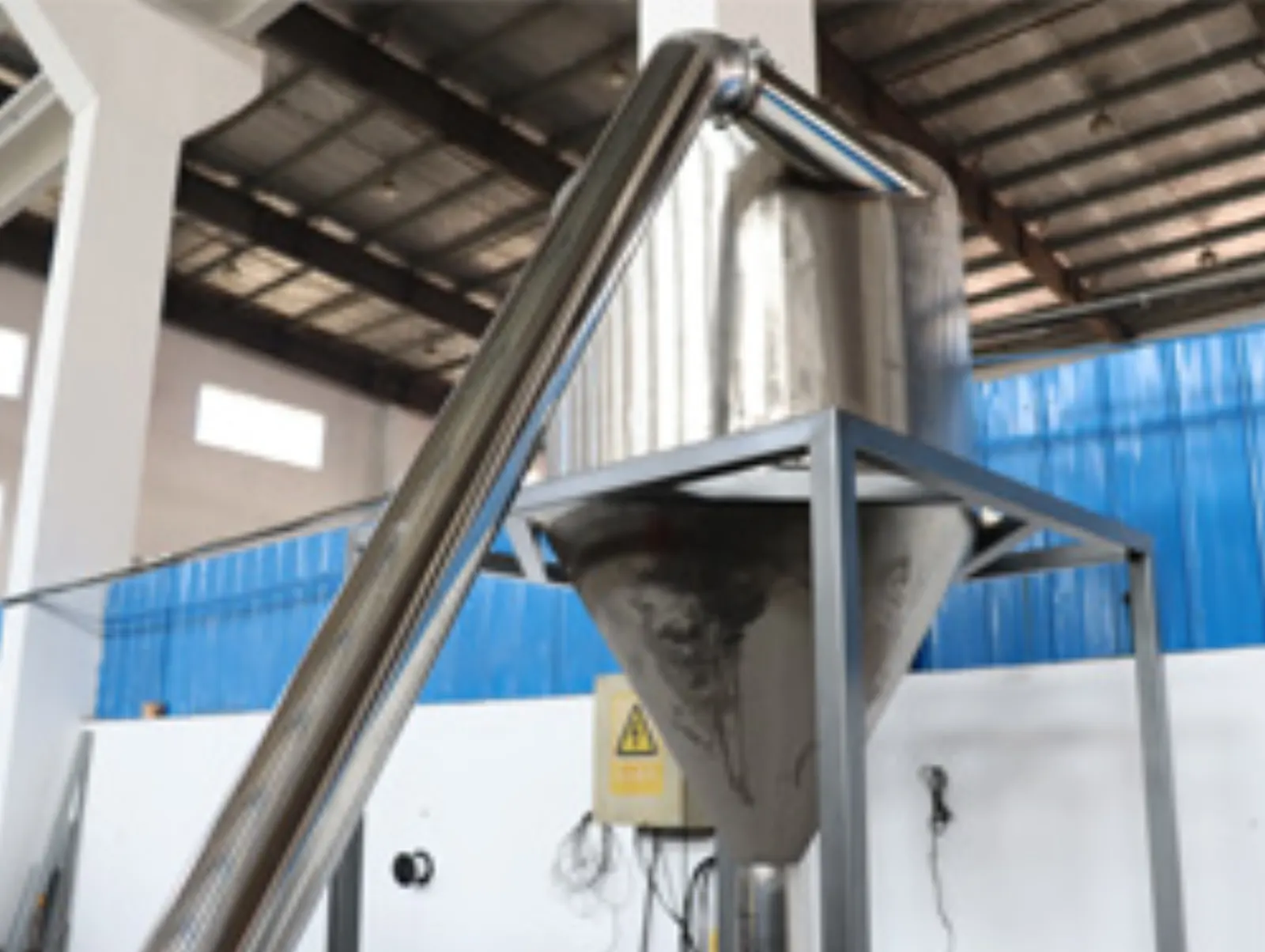

Packaing silo Made of stainless steel SUS304 and with hocks for big bags

Quality Assurance

Final moisture below 1%. Granules in good looking.

Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,Mesutronic metal detector,38CrMoA1A bimetal screw,etc.



Faq

Q

Are you trading company or manufacturer?

A

We are a manufacturer which producing the machines by ourselves.

Q

What’s your guarantee or the warranty of the quality if we buy your machines?

A

Our warranty year is one year. During the period, we provide you spare parts free of charge asap. But the technical guide is forever.

Q

How can I install my machine when it arrives?

A

We will send the instruction manual and videos to you,your workers can install the machine accorded to it. If the situation is ok, we can arrange our engineer to your factory, who will teach your labors how to install machines.

Q

How to maintenance machines in factory?

A

We will provide maintenance instruction, it will mark the oil model and time. And how many times you should check the machines. Any problems about machines, you can ask us anytime.

Q

If our machine is not working suddenly, but we have not spare parts, how to solve?

A

We promise our machine’s quality. Also we will prepare enough spare parts from the beginning for using urgently. Some vulnerable parts(blades), we will suggest you to buy. The last way,we send you spare parts by DHL.

Q

How to maintence recycling machine:

A

We will send you manuals for product maintenance and how to solve common problems. By the way, you can contact with us, we will try our best to teach you by instruction book or video.

Q

Warranty:

A

We provide 12 months’ warranty period usually.In this Period, any machine’s quality problem,we will send spare parts soon by DHL. We will do our best to teach your worker how to change the spare parts by video or instruction.

Q

24hours technical service:

A

We will online 24 hours every day, You can contact with us anytime. Our engineer will send you machine maintenance manuals.

×
