The plastic film squeezer is a specialized piece of mechanical equipment designed to enhance the recycling process of plastic films, such as agricultural mulch films, packaging films, and other flexible plastic materials. By efficiently dehydrating and squeezing cleaned plastic films, this device facilitates subsequent recycling or processing. Below, we delve into the working principle, key features, and applications of the plastic film squeezer, highlighting its importance in sustainable plastic waste management.
The operation of a plastic film squeezer involves multiple steps, each contributing to the thorough dehydration and compression of plastic films.
Feeding Process:
Cleaned plastic film, often containing moisture and impurities, is fed into the machine through a conveying device, such as a screw conveyor.
Moisture Limits:
To ensure optimal performance, the moisture content of the film should not exceed 60% before entering the machine.
Core Component: Screw
The heart of the squeezer is its specially designed screw, which rotates under the power of a motor. The rotation generates strong extrusion force, pushing the film forward.
Core Component: Gearbox
Equipped with a D-type heavy-duty gearbox, the machine operates smoothly under high torque. The thickened internal dimensions of the gearbox ensure durability and stability.
Extrusion Force:
As the film moves along the screw, it is compressed between the screw and the outer wall, forcing out excess water.
Drainage Mechanism:
Water squeezed out during the extrusion process exits through drain holes or a filter screen located on the outer barrel.
Water Collection System:
The discharged water is collected via pipes or troughs and directed to a drain port, ensuring clean and efficient removal.
Some models are equipped with heating devices to further enhance the dehydration process.
Functionality: Heating accelerates water evaporation by warming the material or screw.
Application: Particularly useful for handling films with high moisture content or thicker films.

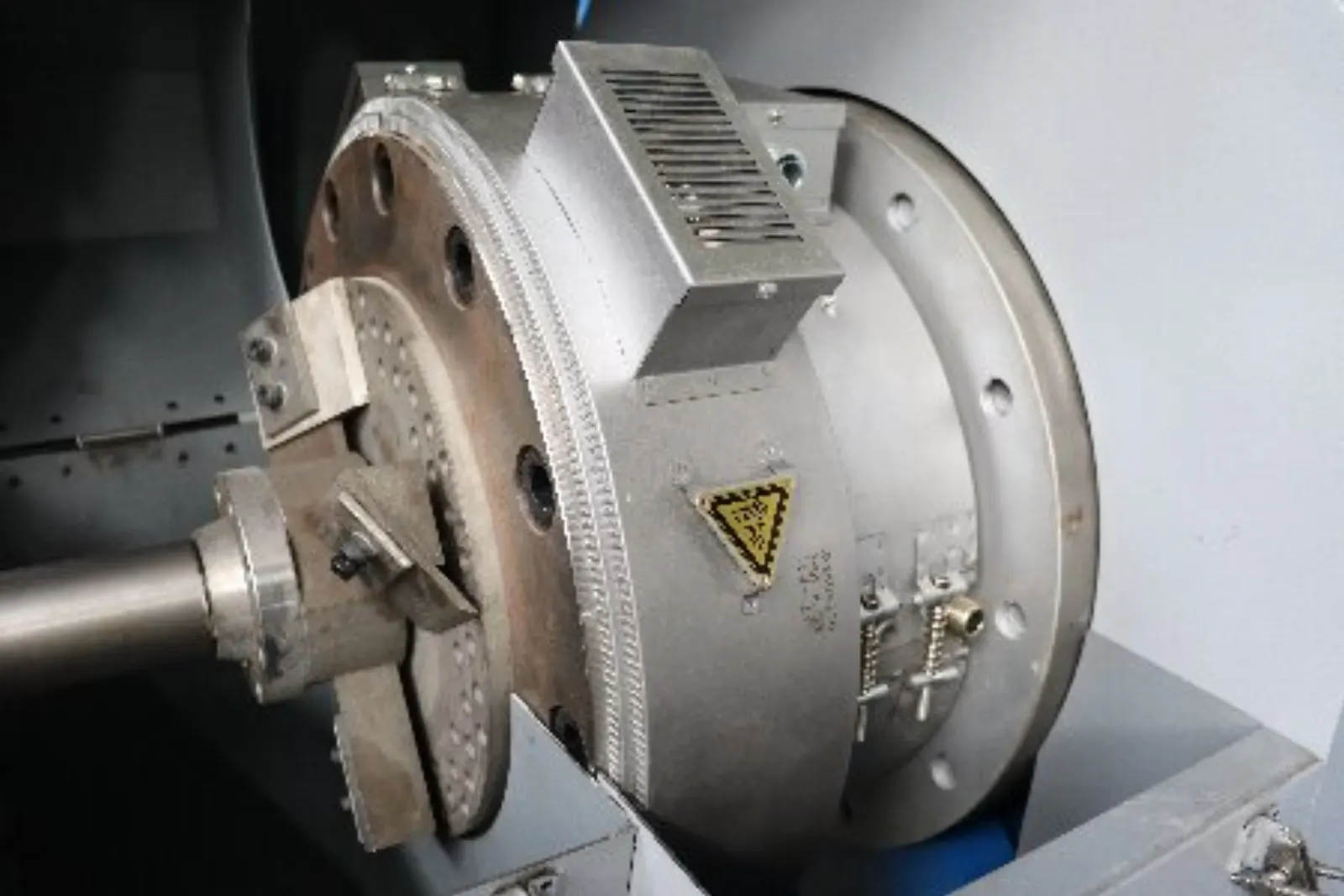

Durable Pelletizing Die: The die is nitrided to withstand long-term use.
Speed Control: The pelletizing speed is managed through frequency conversion, allowing adjustments based on pressure and current requirements.
Output Form: The dehydrated plastic film is compacted into balls or strips for easy handling.
Moisture Content: After processing, the film’s moisture content is reduced to minimal levels, enabling smooth subsequent operations like granulation or extrusion.
Modern plastic film squeezers are equipped with automatic control systems, enabling adjustments based on parameters such as material thickness, humidity, and speed. This improves operational efficiency and stability.
Plastic film squeezers are designed to meet the demands of industrial recycling processes. Their standout features include:
Achieves significant moisture reduction, bringing the moisture content down to around 3% after a single process.
Suitable for a variety of flexible plastic materials, including PE films, PP woven bags, and more.
Replaces traditional drying methods with mechanical extrusion, significantly reducing energy consumption.
Heavy-duty components like the D-type gearbox ensure long-lasting performance under demanding conditions.
Plastic film squeezers play a vital role in various industries, particularly in the field of waste management and recycling:
Used for the recycling and cleaning of agricultural mulch films, helping farmers dispose of used films responsibly.
Essential for the washing and regeneration of waste packaging films, enabling sustainable packaging solutions.
Supports waste treatment during the production of plastic products by handling discarded or defective films.
The implementation of plastic film squeeze technology has transformed the recycling process for flexible plastics. Here are some notable advantages:
The device significantly enhances the speed and quality of recycling processes, minimizing waste and ensuring consistent output.
By enabling efficient dehydration and recycling of plastic films, the equipment supports global efforts toward resource conservation and environmental protection.
Reduced energy consumption and maintenance costs make the plastic film squeezer a financially viable option for industrial-scale recycling operations.
The plastic film squeezer is a cornerstone in modern plastic recycling, particularly for flexible film materials. With its robust construction, high efficiency, and eco-friendly operation, it has become an indispensable tool for industries aiming to meet sustainability targets. By investing in this advanced technology, businesses can enhance their recycling processes, reduce operational costs, and contribute to a cleaner, greener future.
