Washing Machine
Plastic PE LDPE Agriculture Film PP Woven Bag Washing Line
Retech Machine'Plastic Film Washing Woven Bag Recycling Machine: Specialized for the Plastic PE LDPE Agriculture Film PP Woven Bag Washing Line to enable efficient recycling of diverse plastic films and woven bags.
At a Glance
Equipment Overview
- Category
- Washing Machine
- Capacity options
- 300kg/h, 500kg/h, 1000kg/h
- Typical application
- LDPE agriculture film,LLDPE wrapping film,PP woven bags,PP jumbo bag scraps.
- Output
- Clean flakes or recycled pellets — confirmed per project
Product 01
Overview
Our Plastic Complete Film Washing Line is working to recycle waste soft plastic material such as plastic bags, PP woven bags, plastic agriculture film, greenhouse films, mulching films, plastic package films, PE waste film, PP waste film, industrial film, printed film and etc. By high efficiency performance, our PP PE film washing line could remove very contaminated like sands ,stones,price tag stickers. Example of one case of our PE PP film washing plant: Belt Conveyor-Wet Crusher-High Speed Friction Washer-Hot Washer-Cold Washer-Dewatering machine-Packaging. By high efficiency performance, our PP PE film washing line could remove very contaminated like sands ,stones,price tag stickers.
Our PE film PP woven bag washing recycling machine process includes shredder, water rinsing, friction washing, drying and washing system, the final flakes scrap humidity will be less than 5%, it could send to our compactor granulating machine to make new granules directly. We could supply PP PE film bag washing line between 300kg/hr to 2000kg/hr. Although our standard plastic woven bag recycling lines are sufficient for most facilities, to meet your specific needs, custom lines with additional machinery are warmly welcomed.
Product 02
Applications & Suitable Materials

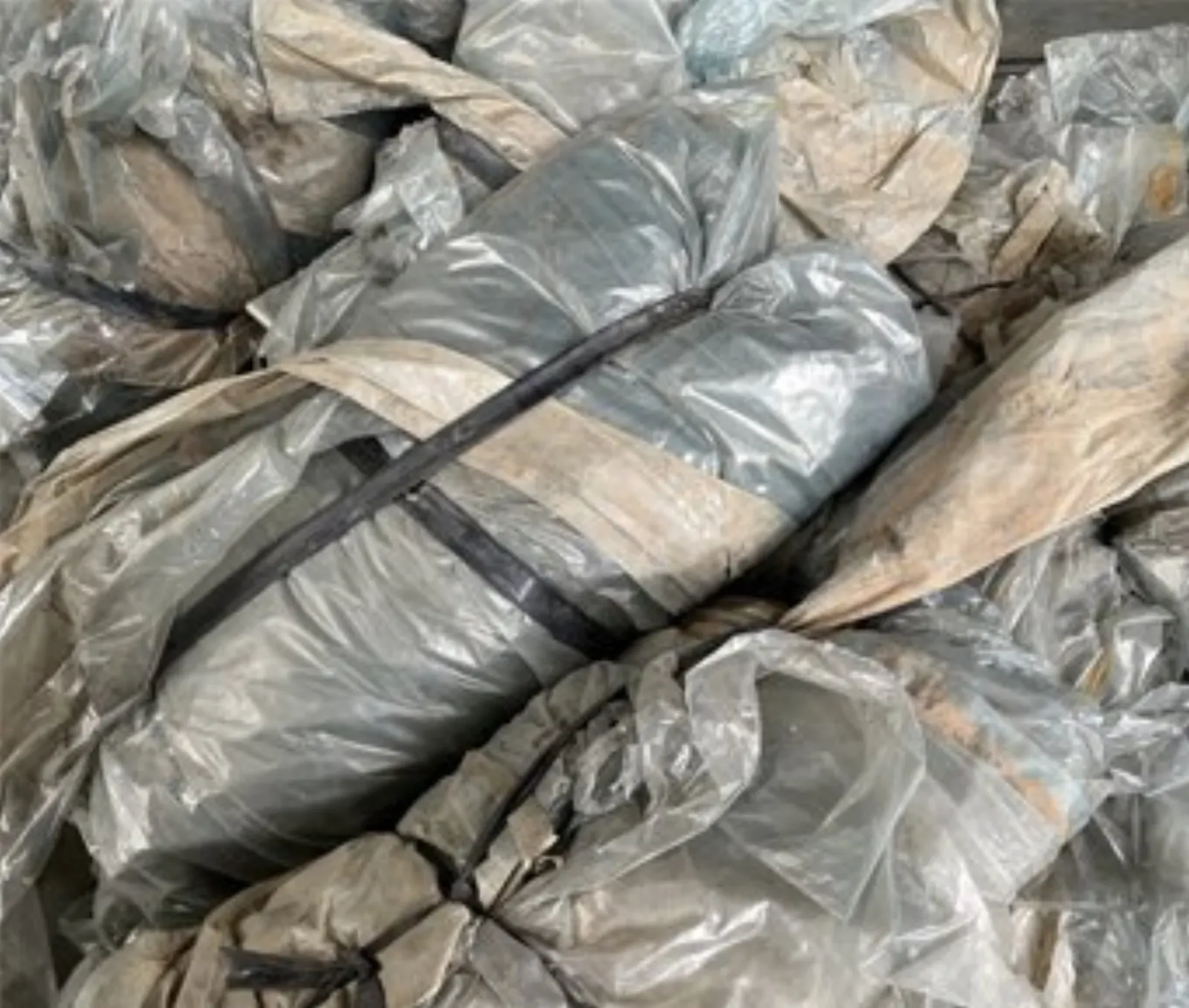

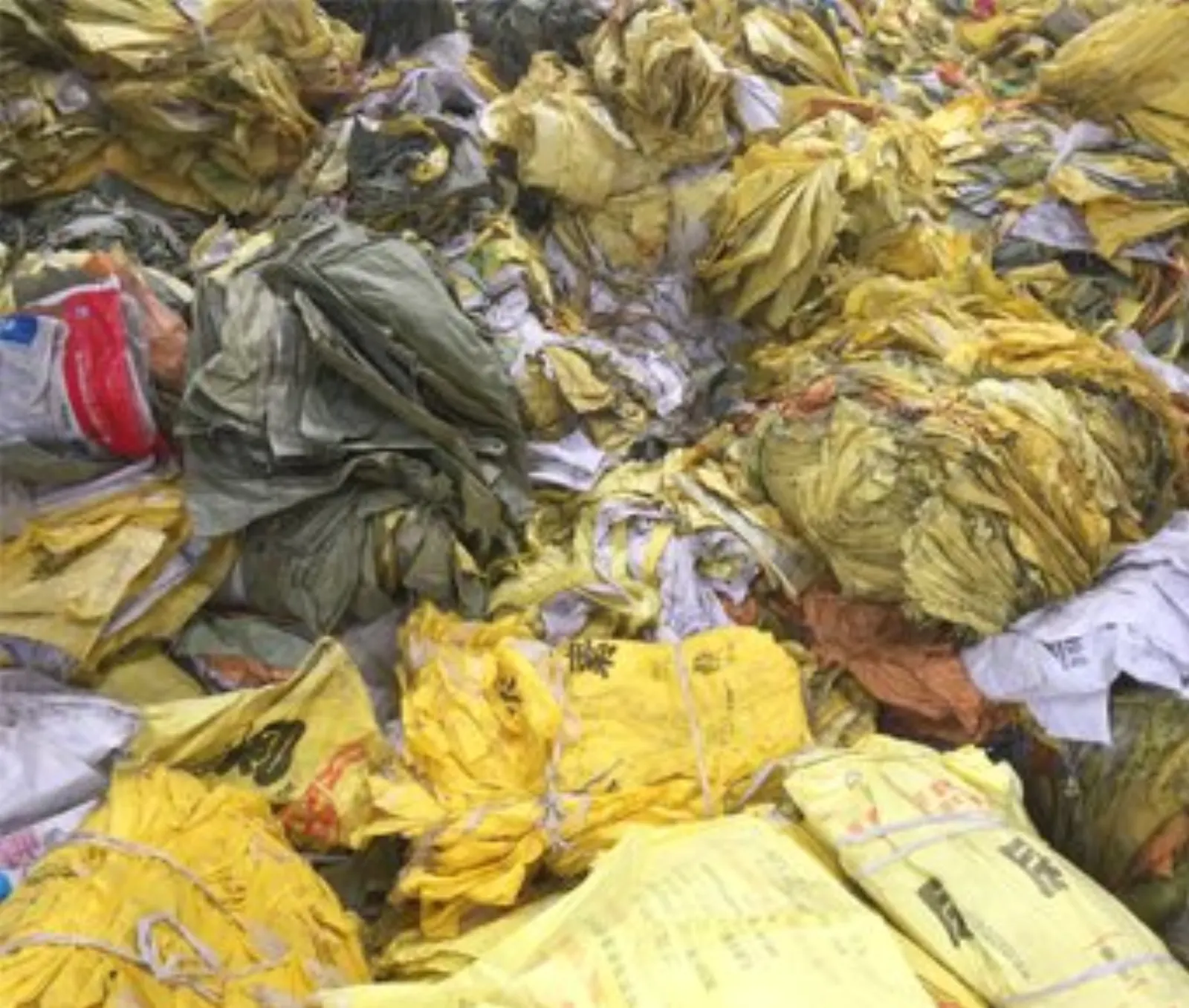

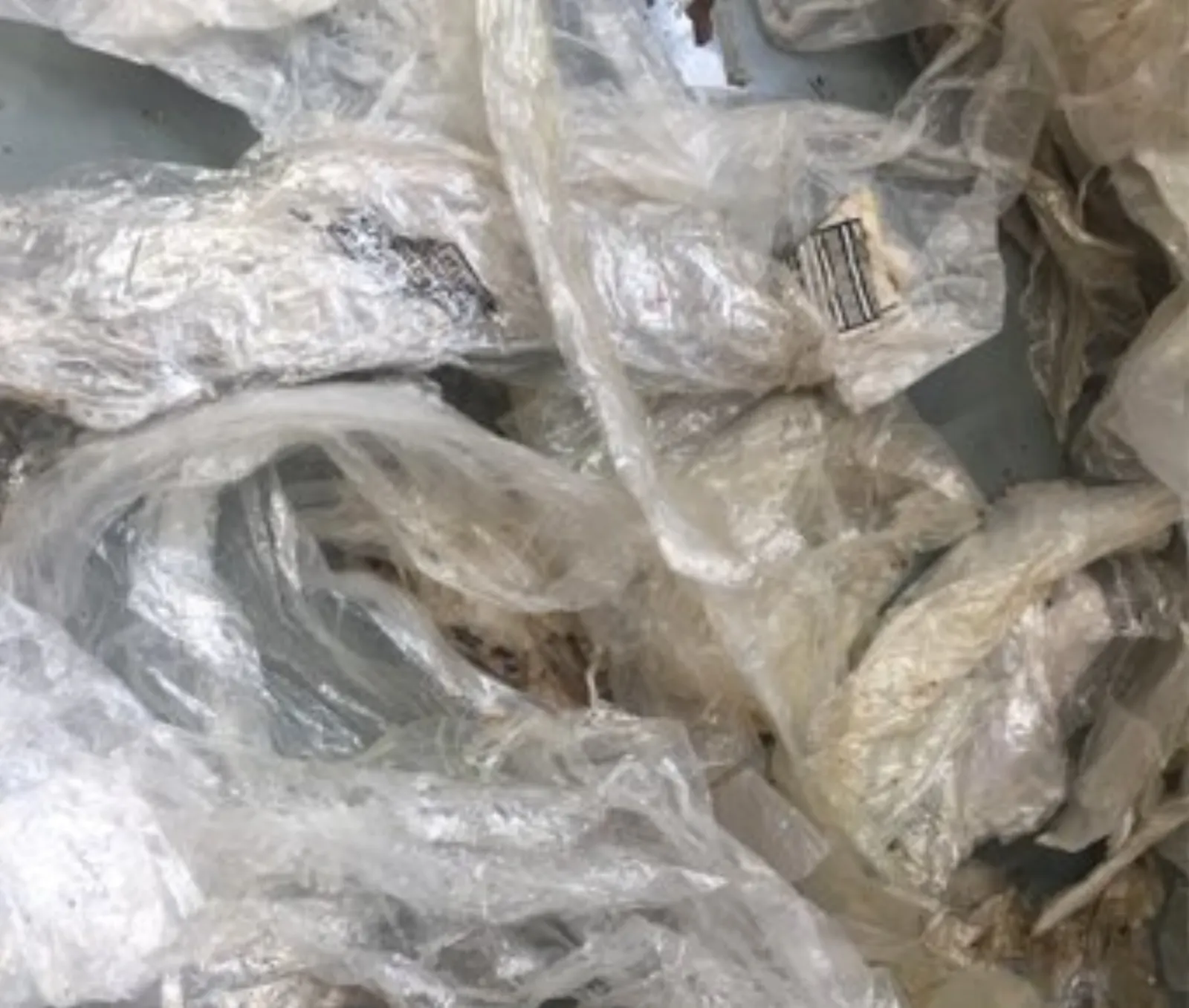

LDPE agriculture film,LLDPE wrapping film,PP woven bags,PP jumbo bag scraps.
Product 03
Cleaning Process
- * Shredder&crusher as a team to cut the big bale or normal film or PP big bag to standard sizes that are easy for washing cleaning drying.
- * Unique design new angle of blades in crusher to max improving crushing capacity.
- * High speed friction washer and label remover system to separate film and stickers especially for LLDPE packaging film,dirty like sand and stones are well removed.
- * PP PE Film&Bag squeezer machine or centrifuge dryer optionally.
- * Easy operation with low consumption of whole PP woven bag washing plant,dry scrap could make granules immediately.
| No | Equipment name | Quantity |
|---|---|---|
| 1 | Heavy Duty Shredder | 1 |
| 2 | Wet PE PP film bag crusher | 1 |
| 3 | High speed friction washer | 1 |
| 4 | PP PE Film floating washer | 1 |
| 5 | Hot floating tank | 1 |
| 6 | PP PE Film Washing Machine | 1 |
| 7 | Friction washer | 1 |
| 8 | Squeezer | 1 |
| 9 | Storage hopper | 1 |
| 10 | Electric panel | 1 |
Technical Data
Specifications & Parameters
| Model | Power | Water | Capacity |
|---|---|---|---|
| RM300 | 88kw/h | 4-6 t/h | 300kg/h |
| RM500 | 165kw/h | 6-8 t/h | 500kg/h |
| RM1000 | 330kw/h | 8-10 t/h | 1000kg/h |
Quality
Quality Assurance

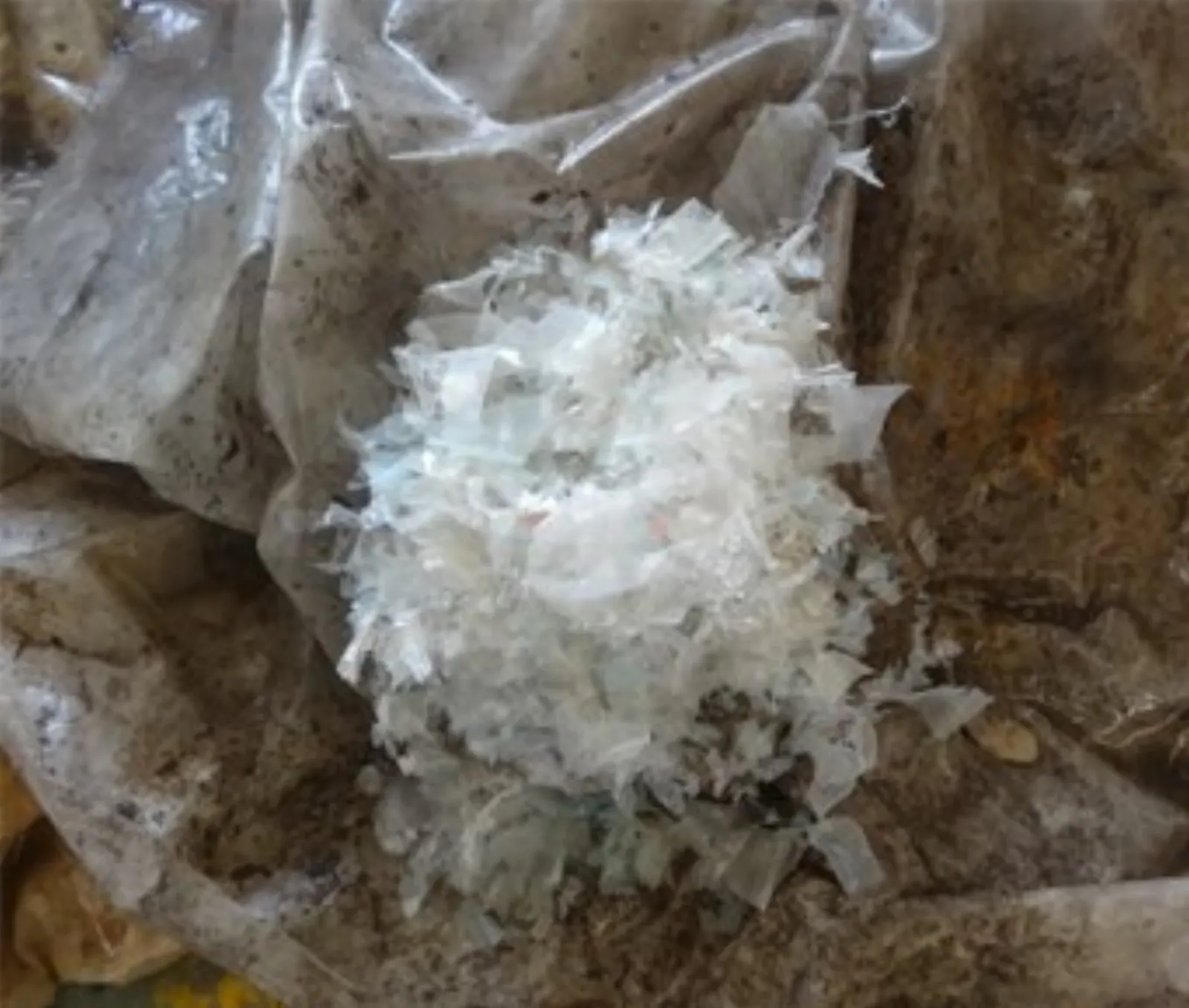

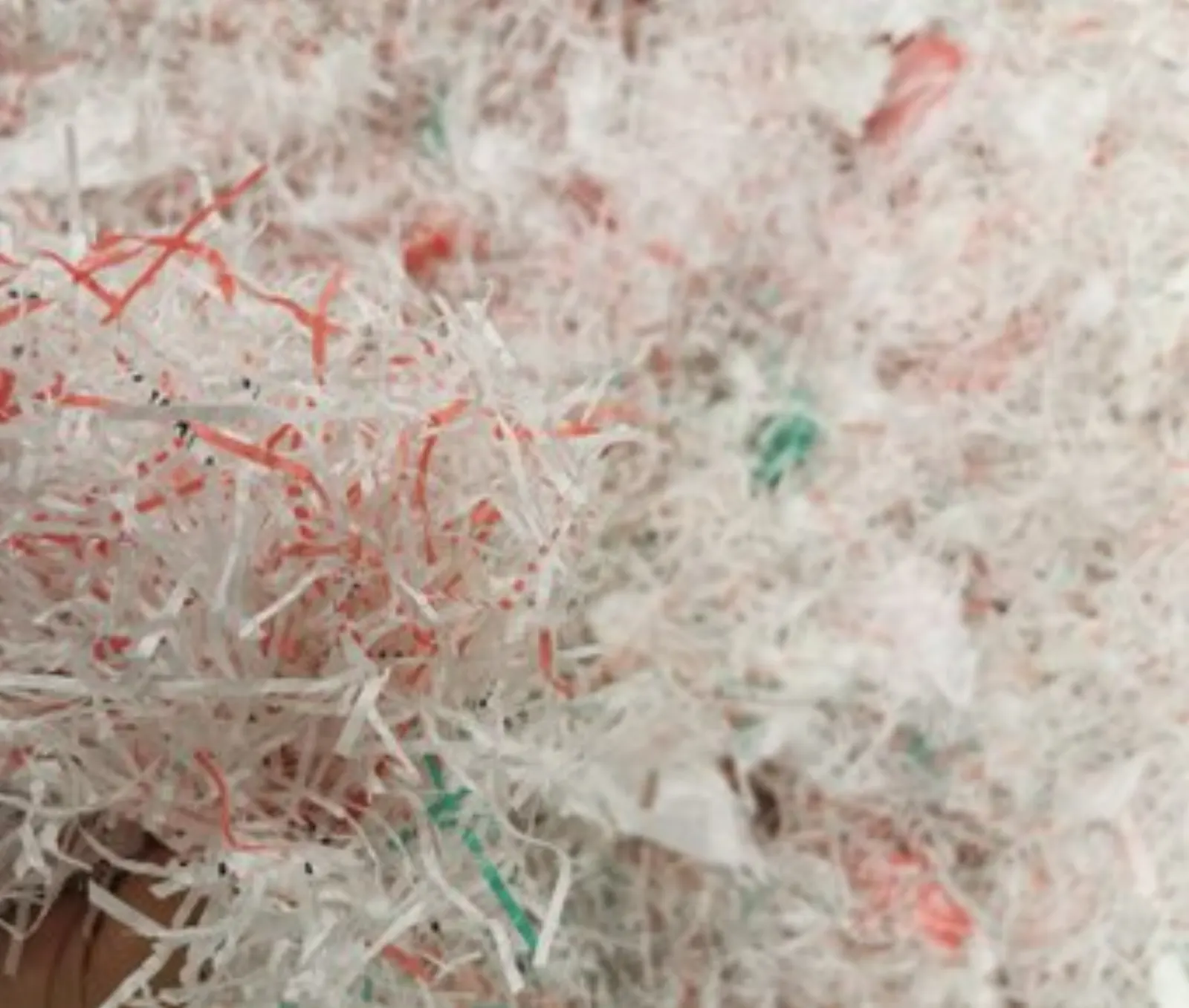

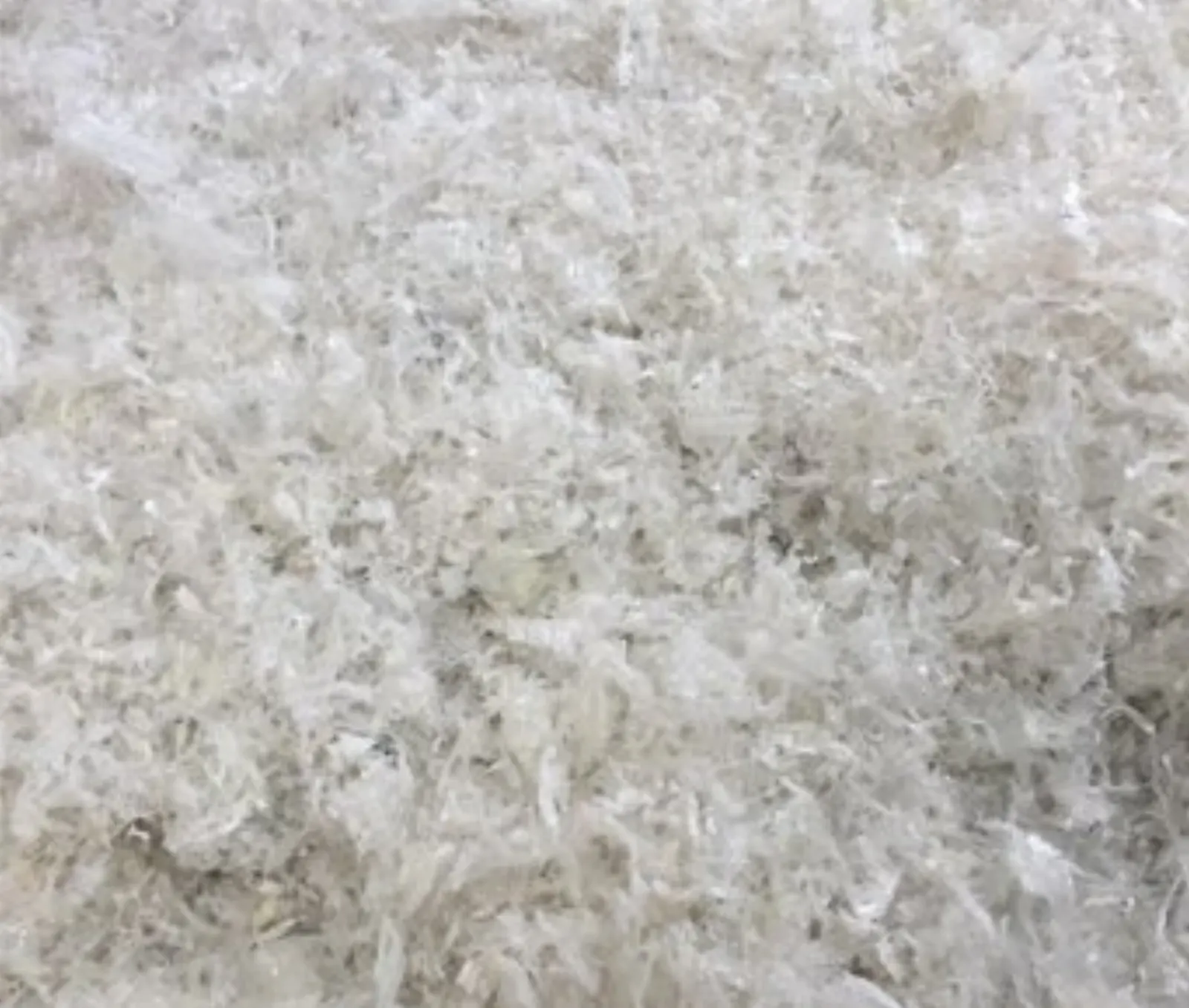

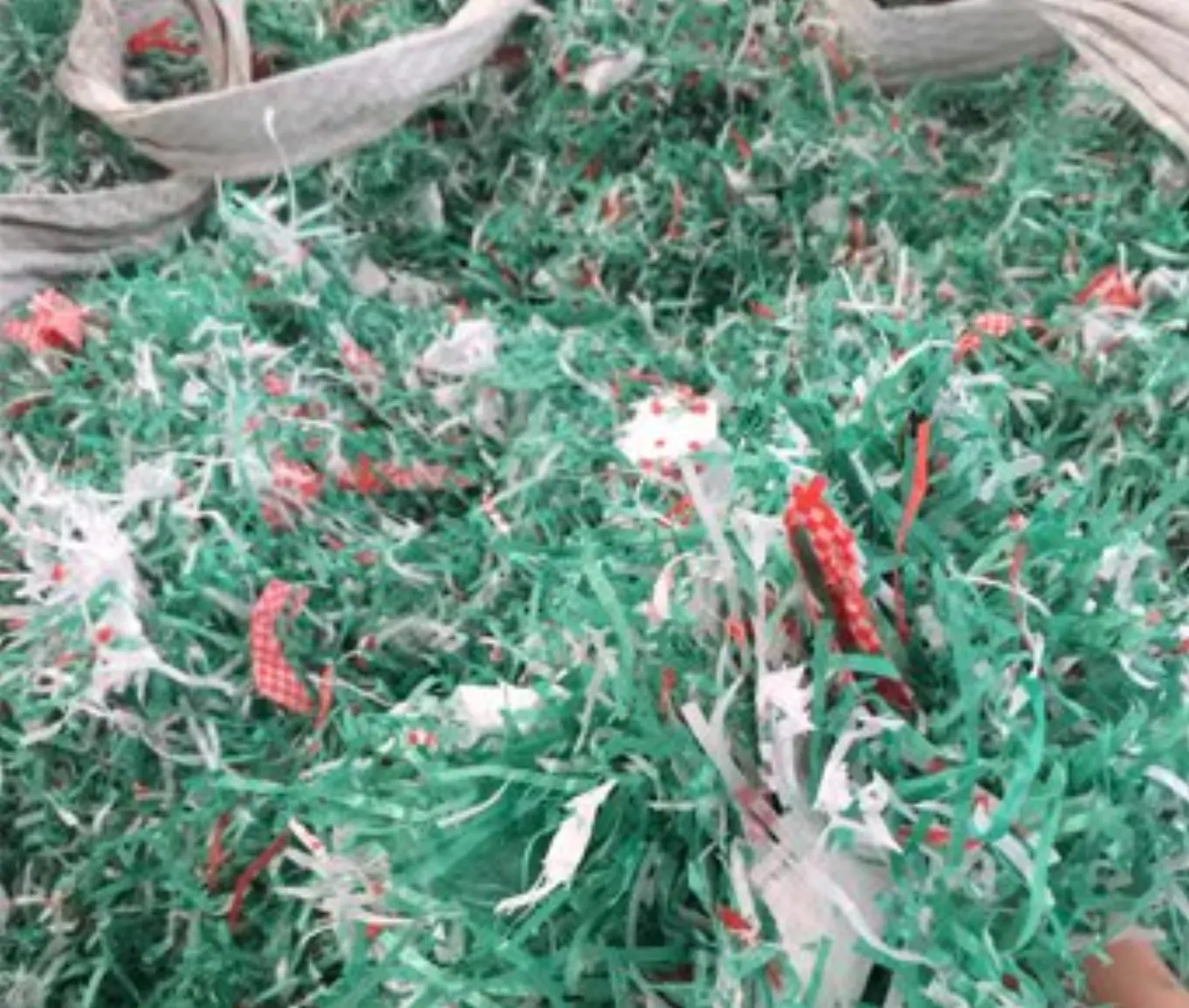

Final PP PE scrap flakes are clean and dry,moisture between 3%-5%.
Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,SUS 304 stainless steel, D2 blades,etc.
Video
Machine Video
Video plays on demand. Source: Retech Machine official channel.
FAQ
Plastic PE LDPE Agriculture Film PP Woven Bag Washing Line — Questions
Are you trading company or manufacturer?
We are a manufacturer which producing the machines by ourselves.
What’s your guarantee or the warranty of the quality if we buy your machines?
Our warranty year is one year. During the period, we provide you spare parts free of charge asap. But the technical guide is forever.
How can I install my machine when it arrives?
We will send the instruction manual and videos to you,your workers can install the machine accorded to it. If the situation is ok, we can arrange our engineer to your factory, who will teach your labors how to install machines.
How to maintenance machines in factory?
We will provide maintenance instruction, it will mark the oil model and time. And how many times you should check the machines. Any problems about machines, you can ask us anytime.
If our machine is not working suddenly, but we have not spare parts, how to solve?
We promise our machine’s quality. Also we will prepare enough spare parts from the beginning for using urgently. Some vulnerable parts(blades), we will suggest you to buy. The last way,we send you spare parts by DHL.
How to maintence recycling machine:
We will send you manuals for product maintenance and how to solve common problems. By the way, you can contact with us, we will try our best to teach you by instruction book or video.
Warranty:
We provide 12 months’ warranty period usually.In this Period, any machine’s quality problem,we will send spare parts soon by DHL. We will do our best to teach your worker how to change the spare parts by video or instruction.
24hours technical service:
We will online 24 hours every day, You can contact with us anytime. Our engineer will send you machine maintenance manuals.
Answers are carried over from the published product information. Commercial terms are confirmed per project.
Ready to review your material?
Need a Configuration for Plastic PE LDPE Agriculture Film PP Woven Bag Washing Line?
Send us your material form, contamination level and target capacity. We will come back with a preliminary process route and equipment configuration.
