Agricultural films, including mulch film, greenhouse film, and silage wrap, play a critical role in modern farming by improving crop yields, regulating soil temperature, and conserving moisture. However, once their useful life ends, these plastics often become contaminated with soil, pesticides, and organic residues, making recycling a technical challenge. Effective washing and recycling pelletizing of agricultural films not only prevents environmental pollution but also allows valuable materials to be reintroduced into the production cycle.
This guide provides a comprehensive overview of the process, the technologies involved, and the machinery required for efficient agricultural film recycling.
Unlike post-consumer plastic waste such as bottles or packaging, agricultural films are heavily contaminated when collected from the field. The recycling process must address several key challenges:
High levels of contamination: Films often contain up to 70% by weight in soil, sand, pesticides, and organic materials.
Thin and flexible nature: Films are lightweight, easy to tear, and difficult to handle with standard recycling equipment.
Moisture content: Waterlogged films complicate mechanical processing and increase energy consumption.
Mixed materials: Agricultural films may include additives, multi-layer structures, or different types of polymers.
Overcoming these obstacles requires specialized machinery and carefully designed process steps.
Recycling agricultural films typically follows a multi-stage process, each designed to gradually remove contaminants and prepare the material for reprocessing into new pellets.
The first step begins at the source — collection. Proper sorting at the farm level can significantly improve recycling efficiency. Separating different types of films (e.g., clear greenhouse films from black mulch films) and removing large foreign objects like rocks, metal parts, and ropes are crucial.
In some cases, mobile pre-cleaning units are used at farms to shake off excess dirt and moisture, minimizing transportation costs and wear on recycling machinery.
Before washing, the films need to be reduced in size. Specialized shredders or pre-crushers designed for thin, flexible materials are employed. These machines feature low-speed, high-torque rotors that minimize heat generation and prevent film wrapping around the blades.
Key features of effective film shredders include:
Heavy-duty cutting chambers
Anti-wrapping blade designs
Hydraulic drive options for consistent torque
Robust construction for abrasive contaminants
After shredding, the material undergoes a cold washing phase to remove loose soil and organic residues. This typically involves:
Washing tanks: Floating/sinking separation can occur, helping to separate heavy contaminants from plastic.
Friction washers: High-speed paddles scrub the film surfaces, removing finer dirt particles and pesticides.
Water recycling systems are often incorporated to minimize freshwater consumption and to treat wastewater.
For heavily contaminated films, a hot washing step using heated water (and sometimes mild detergents) can improve cleaning efficiency. Hot washing helps remove oils, adhesives, and stubborn organic materials.
Hot wash systems must be carefully managed to balance cleaning performance with energy consumption and environmental considerations.
Drying is critical before pelletizing to ensure material quality and protect downstream equipment. Film materials are passed through:
Centrifugal dryers: Using rapid spinning to fling off excess water.
Thermal dryers: Applying controlled hot air to reduce moisture to acceptable levels (typically below 1%).
Some systems also include mechanical presses or squeezing machines to remove water mechanically before final thermal drying, which saves energy.
In some recycling lines, an agglomerator is used to pre-compact the film flakes into denser, easier-to-handle material before extrusion. This step can improve pelletizing efficiency and material consistency, especially for very thin or low-bulk-density films.
The final step involves melting the clean, dry film material and forming it into uniform pellets using extrusion lines. Key stages include:
Feeding: Controlled feeding of the washed and dried flakes into the extruder.
Plasticizing and degassing: The material is heated, melted, and impurities such as residual moisture or volatile contaminants are removed through vacuum degassing.
Filtration: Melt filters screen out any remaining fine contaminants to ensure high-quality pellets.
Pelletizing: The molten material is cut into uniform pellets using either strand-cut or underwater pelletizing systems.
The resulting recycled pellets (regranulates) can be used for various applications, including new agricultural films, garbage bags, and other flexible packaging products.

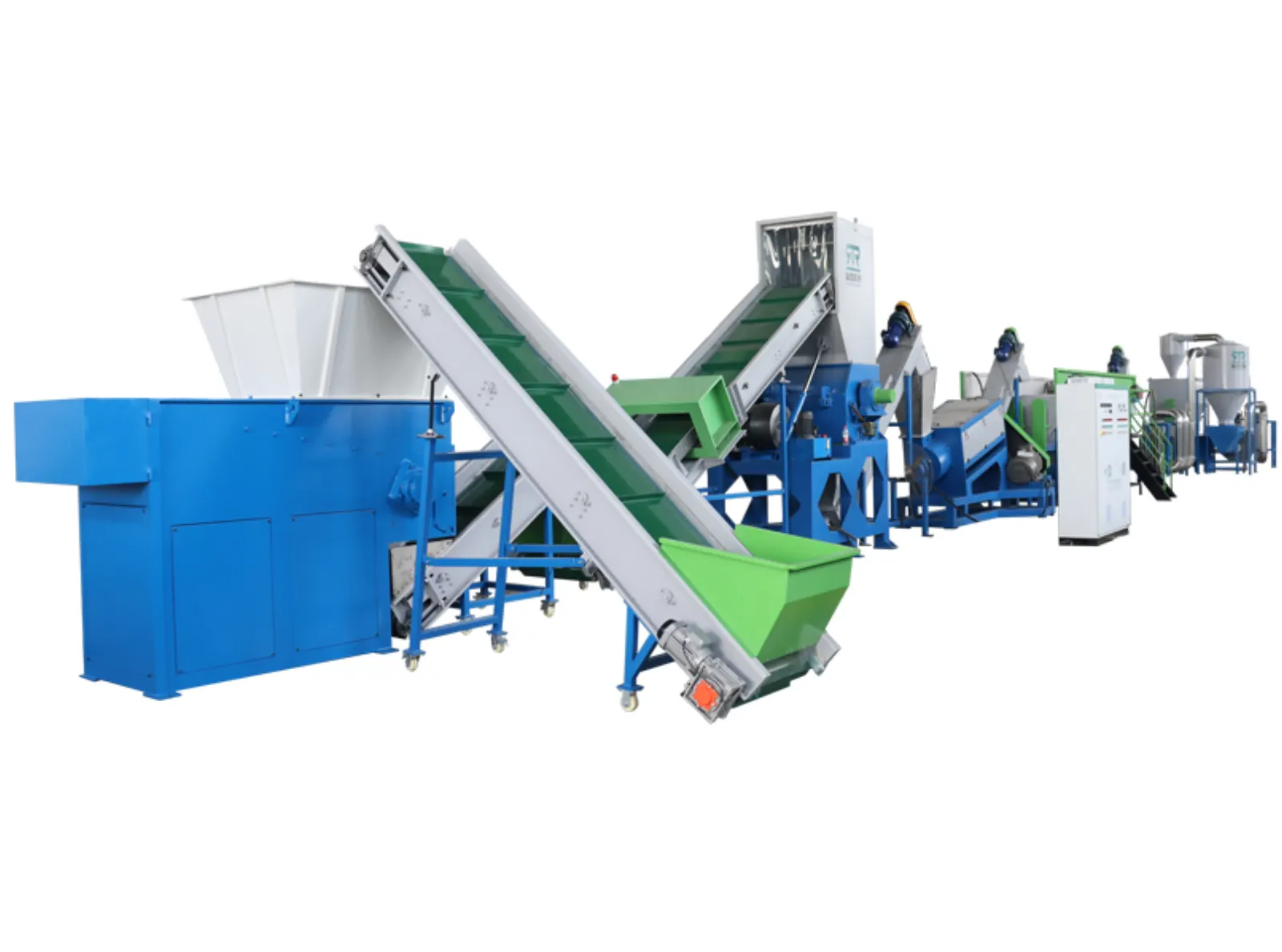

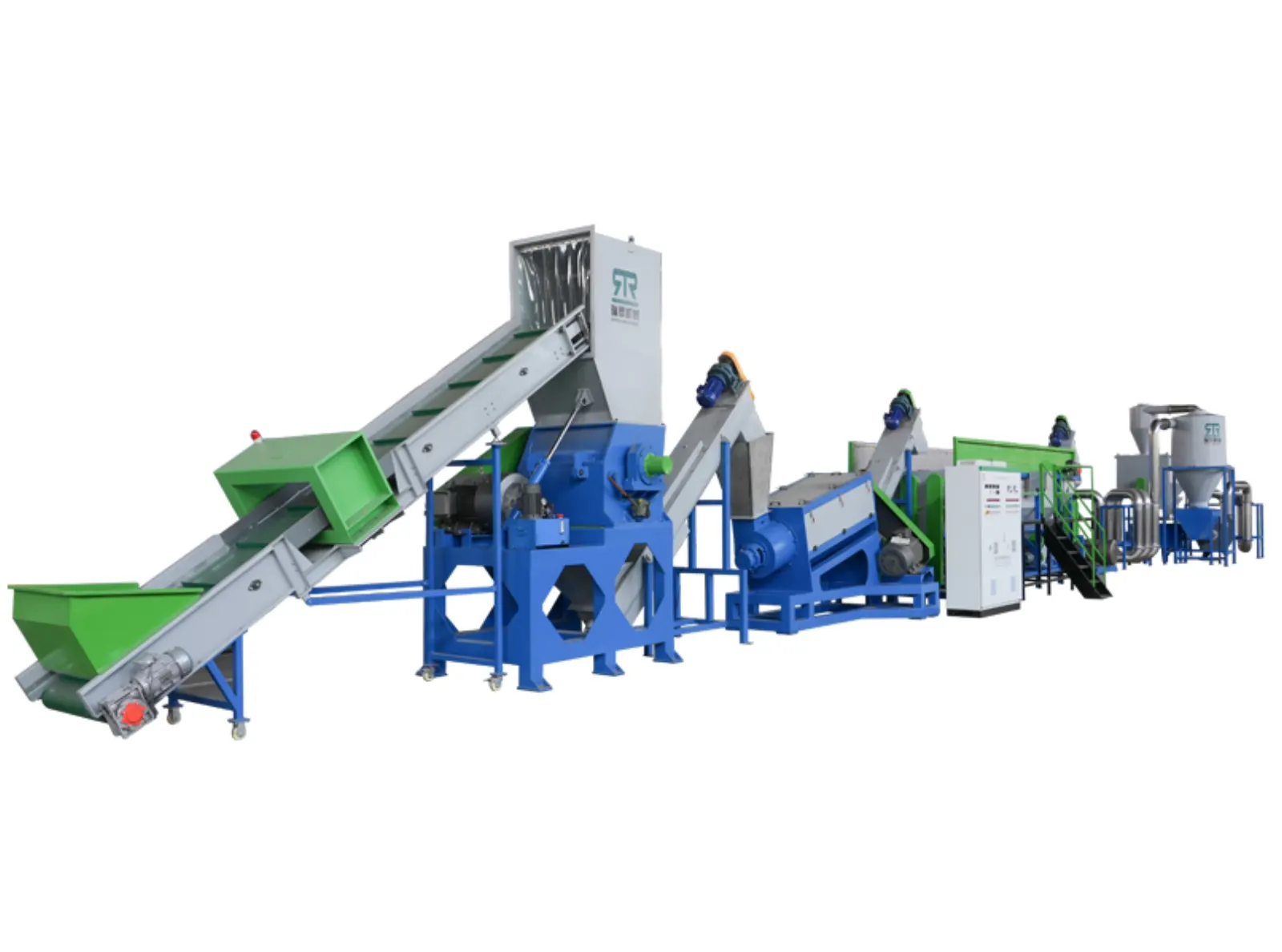

An effective agricultural film recycling line includes several specialized machines, each designed to handle the unique properties of agricultural plastics.
Film Shredders and Crushers
Heavy-duty shredders equipped with specialized anti-wrapping designs are essential to handle thin, contaminated films. Adjustable screens allow control over output size to match downstream washing requirements.
Washing Systems
Floating tanks: Separate films from heavy contaminants.
Friction washers: Provide intensive cleaning.
Hot washing tanks: Optional but useful for stubborn contamination.
Water filtration and recycling units: Help minimize environmental impact and reduce operational costs.
Drying Units
Centrifugal dryers: Remove the bulk of surface water.
Thermal drying systems: Achieve final drying to industry moisture standards.
Agglomerators (Optional)
Pre-compacting materials helps improve feeding consistency and reduce the burden on extruders, particularly for lightweight films.
Extrusion and Pelletizing Lines
Modern extrusion systems for recycled films typically include:
Single-screw or twin-screw extruders
Vacuum degassing zones
High-efficiency filtration systems
Strand or underwater pelletizers depending on material requirements
Integrated process monitoring and automated control systems ensure consistent pellet quality and optimal energy use.
Operating a successful agricultural film recycling facility involves more than just buying the right equipment. Critical factors include:
Input material quality: Proper collection and pre-sorting dramatically improve output quality and reduce operational costs.
Water management: Water recycling systems are crucial to maintaining environmental compliance and reducing running costs.
Contamination handling: Plan for dealing with non-plastic contaminants and wastewater treatment.
Energy consumption: Drying and extrusion are energy-intensive; investing in energy-efficient equipment saves money over time.
Maintenance: Regular maintenance is essential, especially given the abrasive and dirty nature of agricultural film input streams.
Market demand: Understand the requirements of your target markets for recycled pellets — specifications like color, melt flow index (MFI), and contamination thresholds matter.
Recycling agricultural films has substantial benefits beyond just waste management:
Resource conservation: Reduces the need for virgin plastics, conserving oil and natural gas resources.
Pollution prevention: Keeps plastics out of landfills, rivers, and oceans, protecting ecosystems.
Cost savings: Farmers and agricultural companies may save on waste disposal fees and even generate revenue from selling collected films.
Job creation: Recycling facilities provide local employment opportunities in sorting, processing, and maintenance roles.
Circular economy: Encourages sustainable agricultural practices and supports the global push toward a more circular plastics economy.
Agricultural film washing and recycling pelletizing is a technically challenging but increasingly vital process in today's drive toward sustainability. Through careful material handling, advanced washing techniques, and precise extrusion and pelletizing, contaminated farm plastics can be transformed into valuable resources rather than environmental burdens.
Investing in the right machinery, implementing efficient process controls, and committing to continuous improvement can position recycling operations for long-term success. As regulations tighten and environmental awareness grows, the agricultural film recycling industry is set to play an even larger role in building a greener, cleaner future for global agriculture.
