Final moisture within 1%. Dry and clean HDPE flakes.
Use world famous brand units,like Siemens motor,Fuji Inverter,SKF bearing,SUS 304 stainless steel,SKD-11 blades,etc.
Product Description
Our HDPE Milk Bottle Washing Recycling Line is used to recycle and reprocessing waste rigid plastic like HDPE milk bottle,PE barrel,HDPE drum,PP pipe,PP battery box,ABS flakes,etc.
The final flakes humidity after washing will be less than 1%,dry and clean flakes could send to our HDPE flakes pelletizing machine to make granules directly.We could supply HDPE Milk Bottle Washing Recycling Line between 500kg/hr to 3000kg/hr.
Application
HDPE Bottle Rigid Plastic in Bale.
HDPE Shampoo Bottle
PP PE Rigid Bottle
PP Drum Pipe
PP Lumps

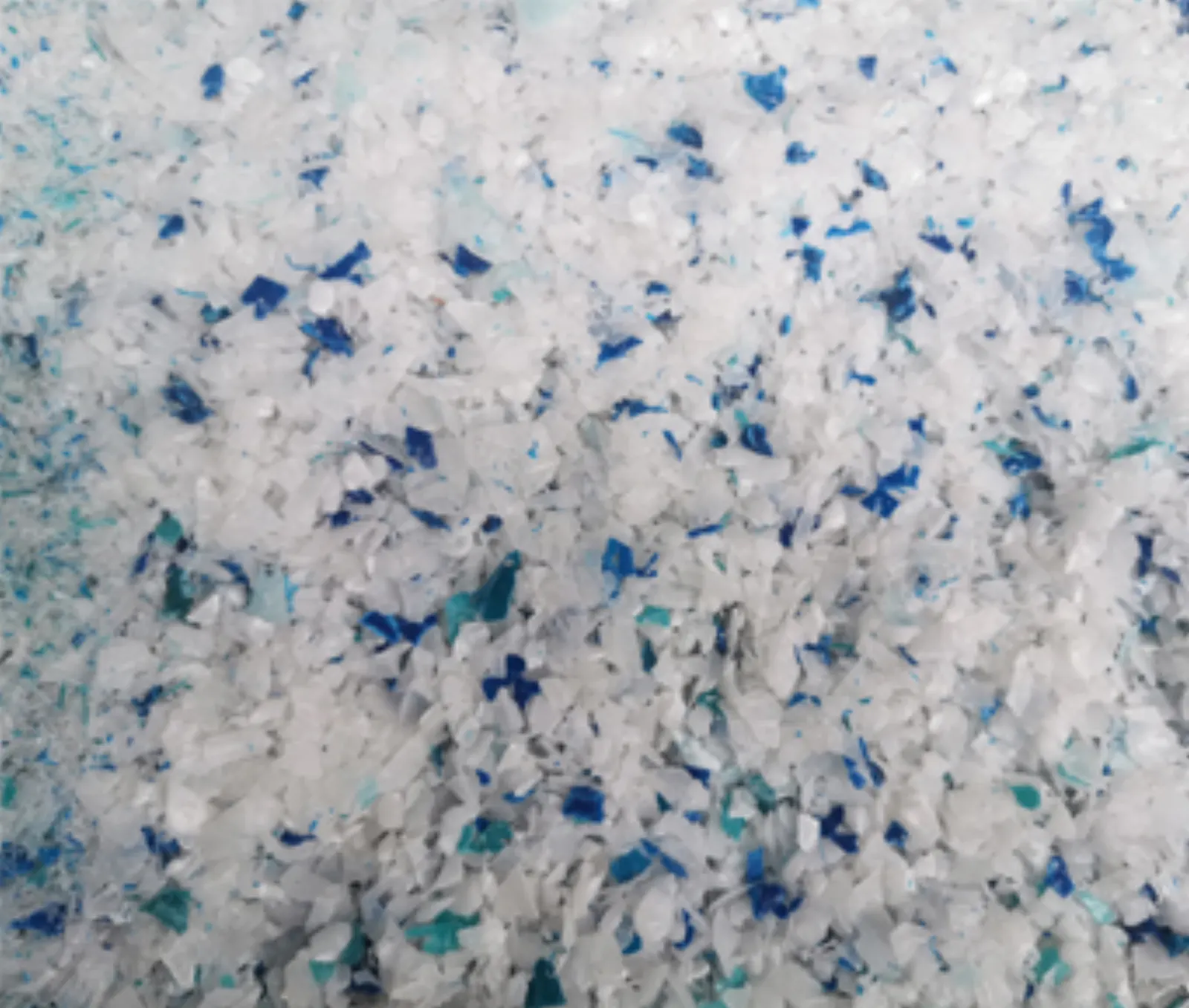

After process
After process
After process
After process
Parameter
| Model | Power | Water | Capacity |
| RH-1000 | 125kw/h | 3-4 t/h | 1000kg/h |
| RH-2000 | 205kw/h | 5-6 t/h | 2000kg/h |
| RH-3000 | 280kw/h | 6-8 t/h | 3000kg/h |
Cleaning Process
- * Bale opener to open the big plastic bottles baled block.
- * Maganet separator to remove the irons to protect blades in shredder and crusher,trommel screen to remove small stones.
- * High speed friction washer and hot washing system to wash and remove the dirt like oil,glue,paper,etc.
- * High efficiency dehydrator dryer in rotation speed 2000 RPM .
- * Easy operation with low consumption,clean and dry flakes.
| No | Equipment name | Quantity |
| 1 | Bale opener | 1 |
| 2 | Trommel screen | 1 |
| 3 | Double shaft shredder | 1 |
| 4 | HDPE Crusher | 1 |
| 5 | Hot washing floating tank | 1 |
| 6 | High speed friction washer | 1 |
| 7 | Cold water washing tank | 1 |
| 8 | Dewatering machine | 1 |
| 9 | Storage hopper | 1 |
| 10 | Electric panel | 1 |
Quality Assurance
