Pelletizing Machine

CPP OPP Film Compactor Cutter Recycling Pelletizing Line

Upgrade your PP and PE film recycling with Retech Machine’s granulating line to achieve stable pellet quality, higher output, and lower operating costs—contact us today to get a tailored solution and quote for your project.

At a Glance

Equipment Overview

Category
Pelletizing Machine
Typical application
PE agriculture film,LLDPE stretch film,PP Woven Bag,Washed PP Jumbo Bag Scrap,PP Non Woven Fabric,Other Soft Plastic Like PE OPP…
Output
Clean flakes or recycled pellets — confirmed per project
CPP OPP Film Compactor Cutter Recycling Pelletizing Line

Product 01

Overview

CPP OPP Film Recycling Compactor Pelletizing Machine is working to processing waste offcut plastics like post industrial OPP film,CPP film,BOPP film,etc. Use advanced 3 in 1 cutter compacting technology design. It will fine cutting,pre-heating and agglomeration film in same drum. The deflector widening design,which is stop film flying and helpful for PP film for a better crushing.A powerful extruder with high torque gearbox ensure supply constantly energy for extrusion and pelletizing system. Equipped with vacuum degassing vent,it could melt the material and discharge moisture or gas. Self cleaning automatic filter screen is a good choice to save labor cost. A horizontal die face cutting system is stable for getting the best uniform granules. In the end of CPP OPP recycling granulating line,you will get a clean,dry,strong pellets for next step like film blowing,injection,etc.

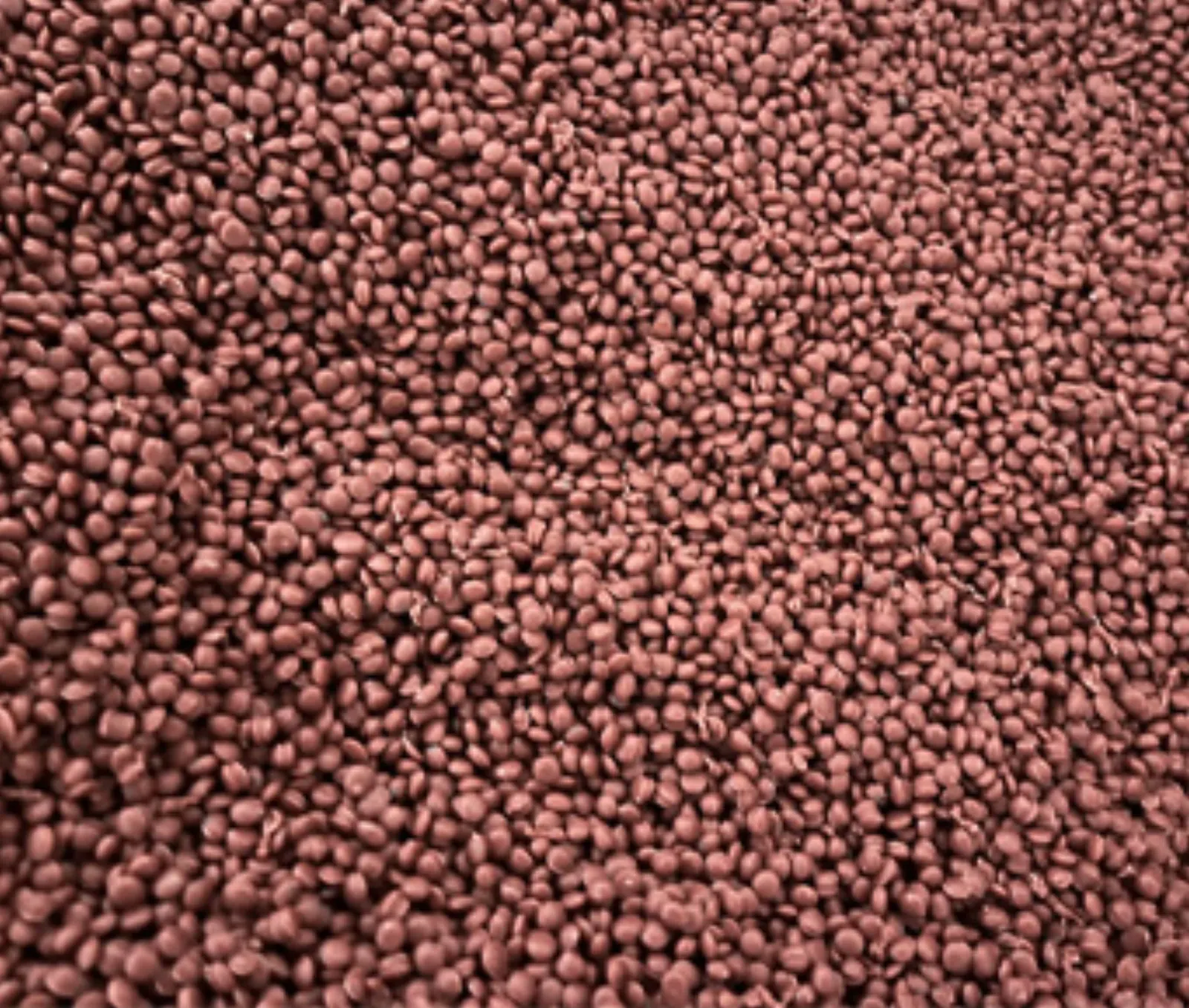

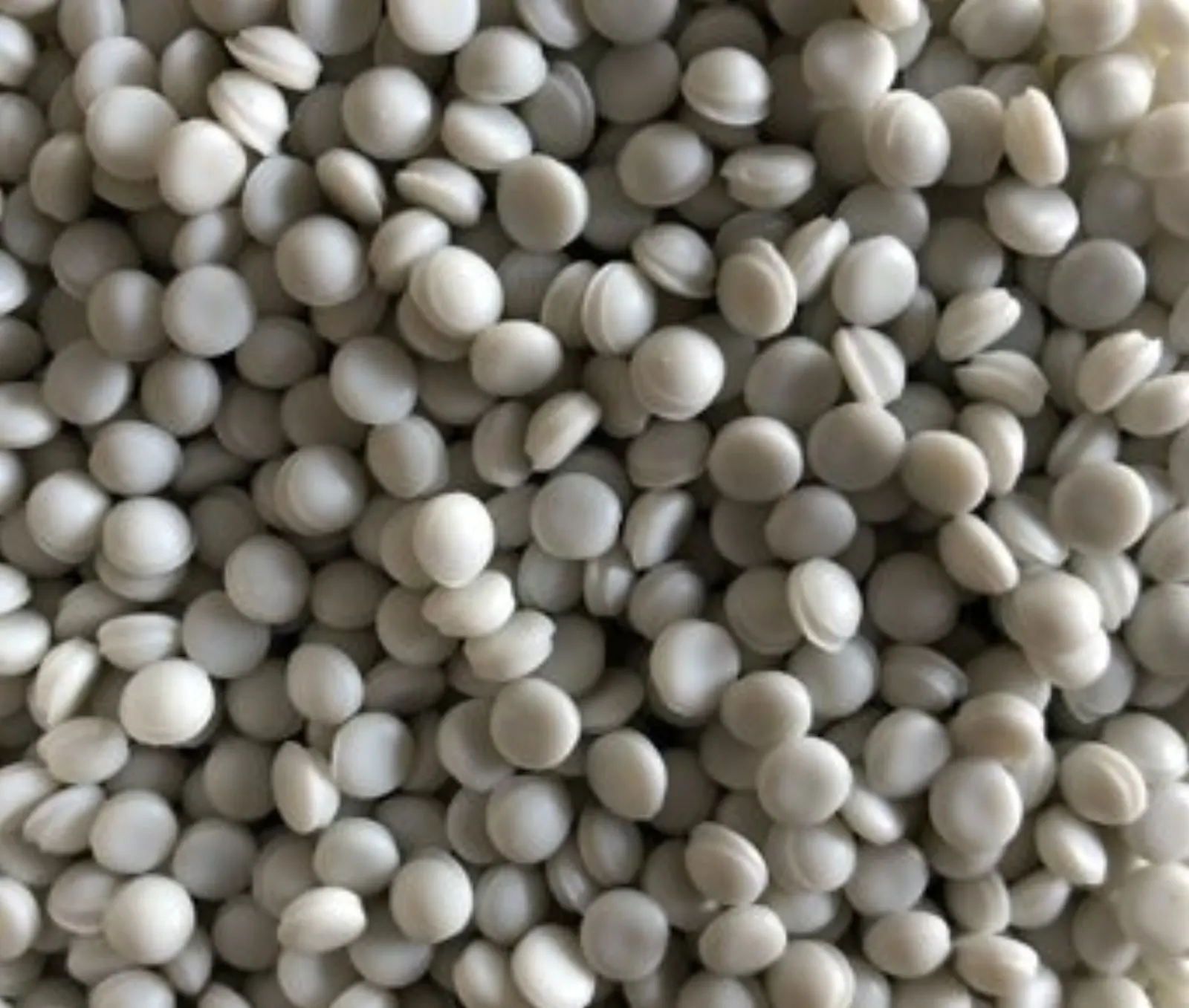

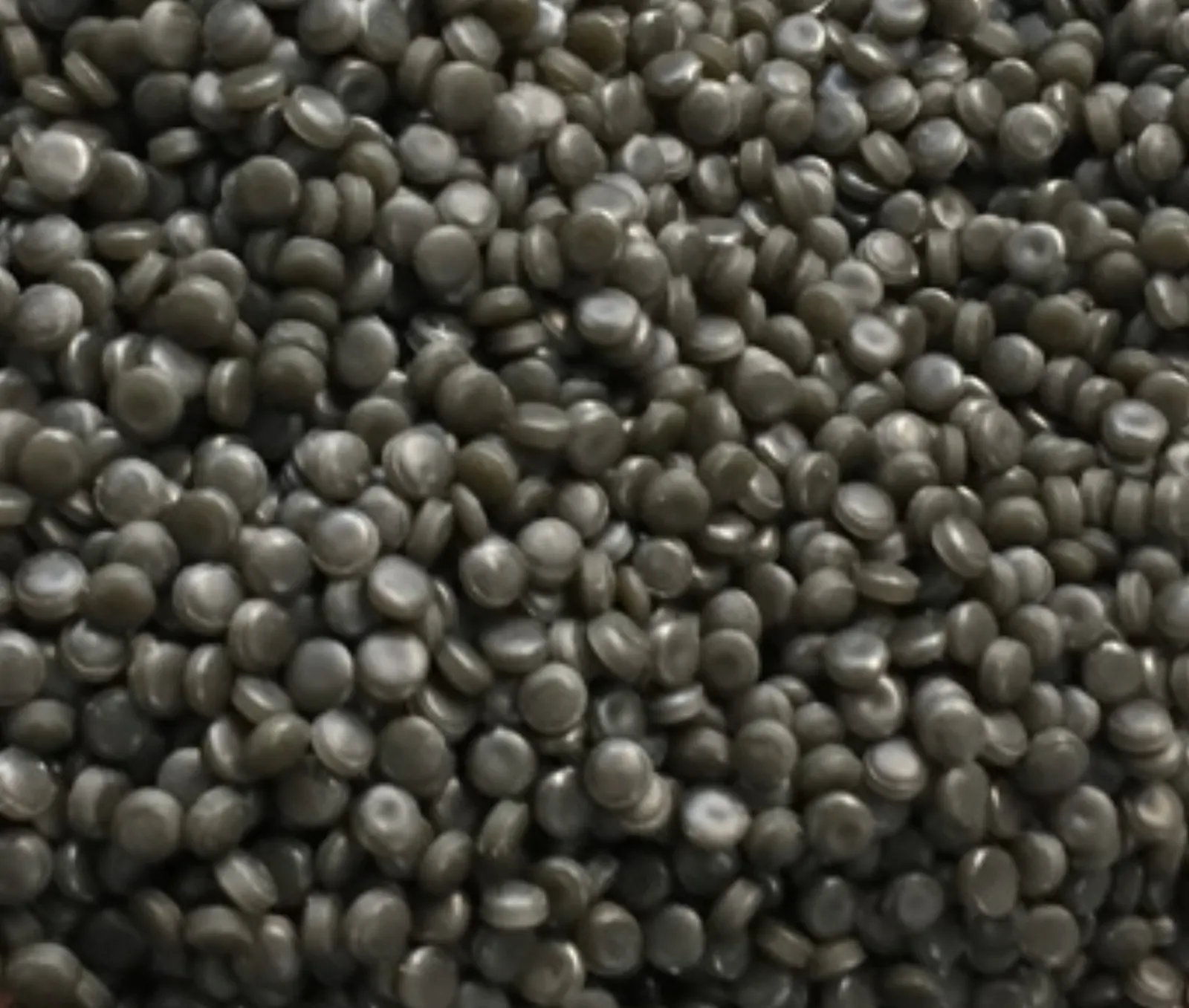

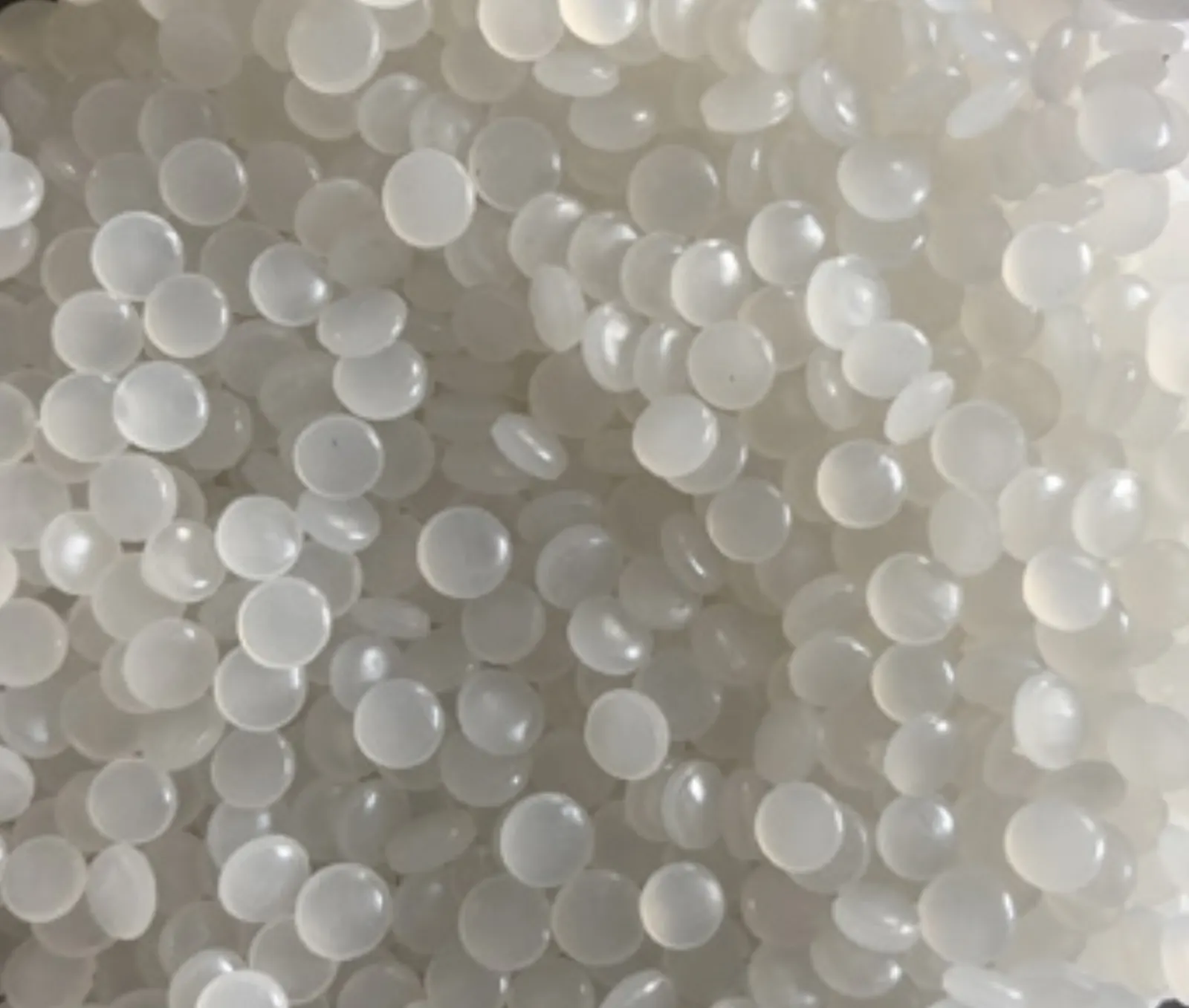

The final granules are uniform looking after processing by our Compactor Integrated Plastic PE Film PP Woven Bag Recycling Pelletizing Line.

We are a manufacturer specialize in plastic recycling equipment, we provide professional customized plastic recycling solutions. We can design PE film PP woven bags and recycling granulation lines according to your specific demand,all the recycling machinery has been debugged , you can use our LD LLD HD-PE film recycling machines with confidence.

Product 02

Applications & Suitable Materials

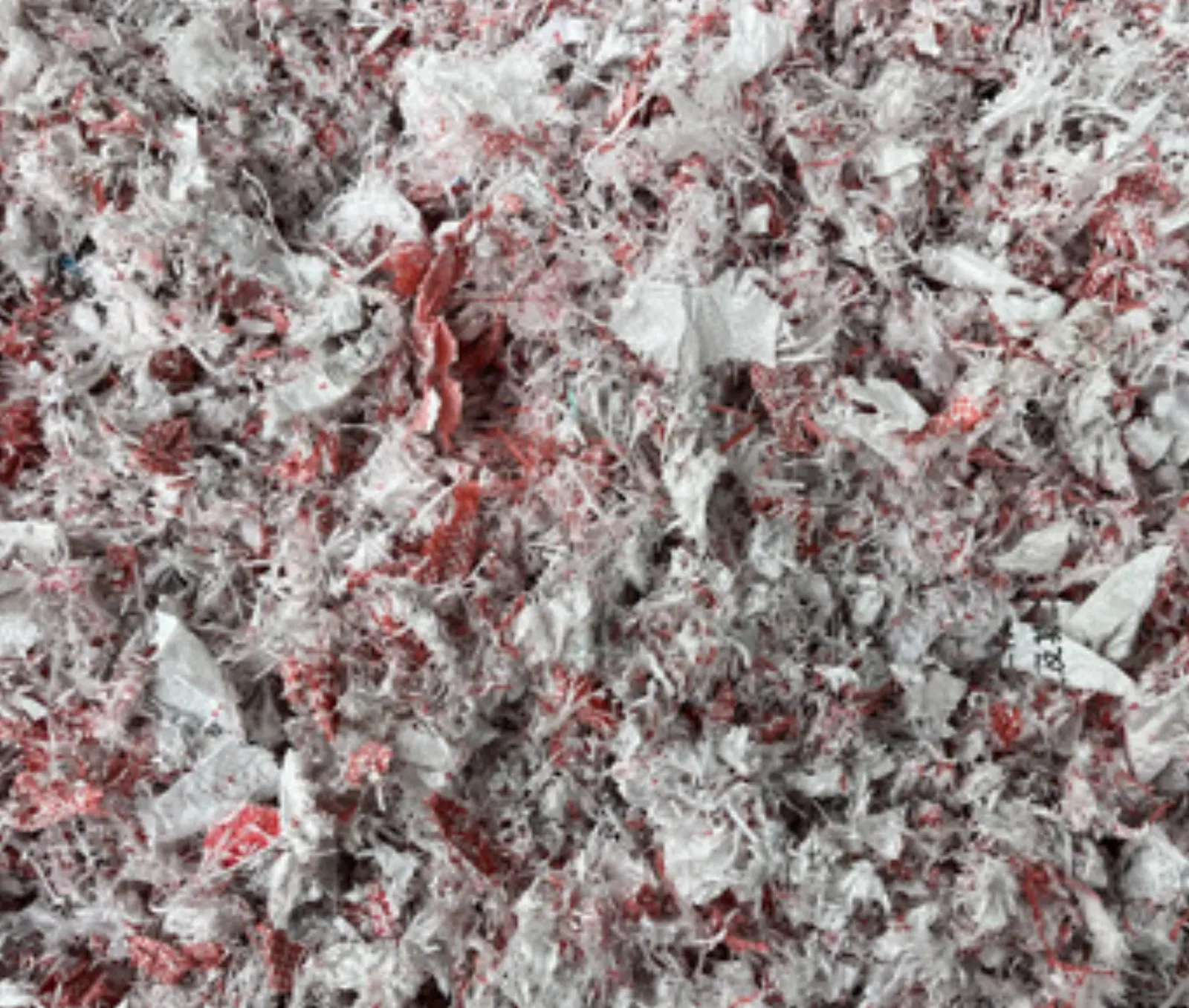

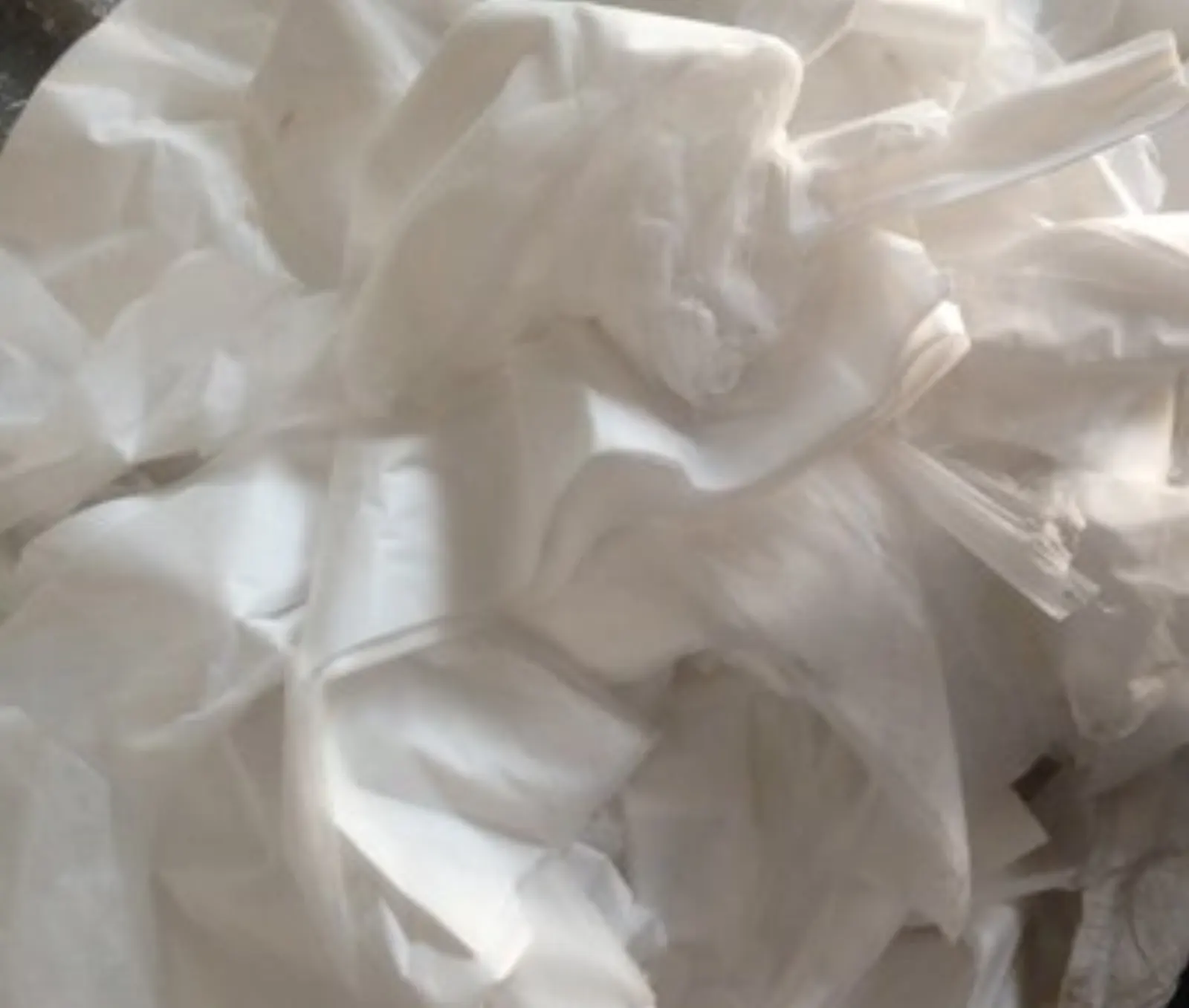

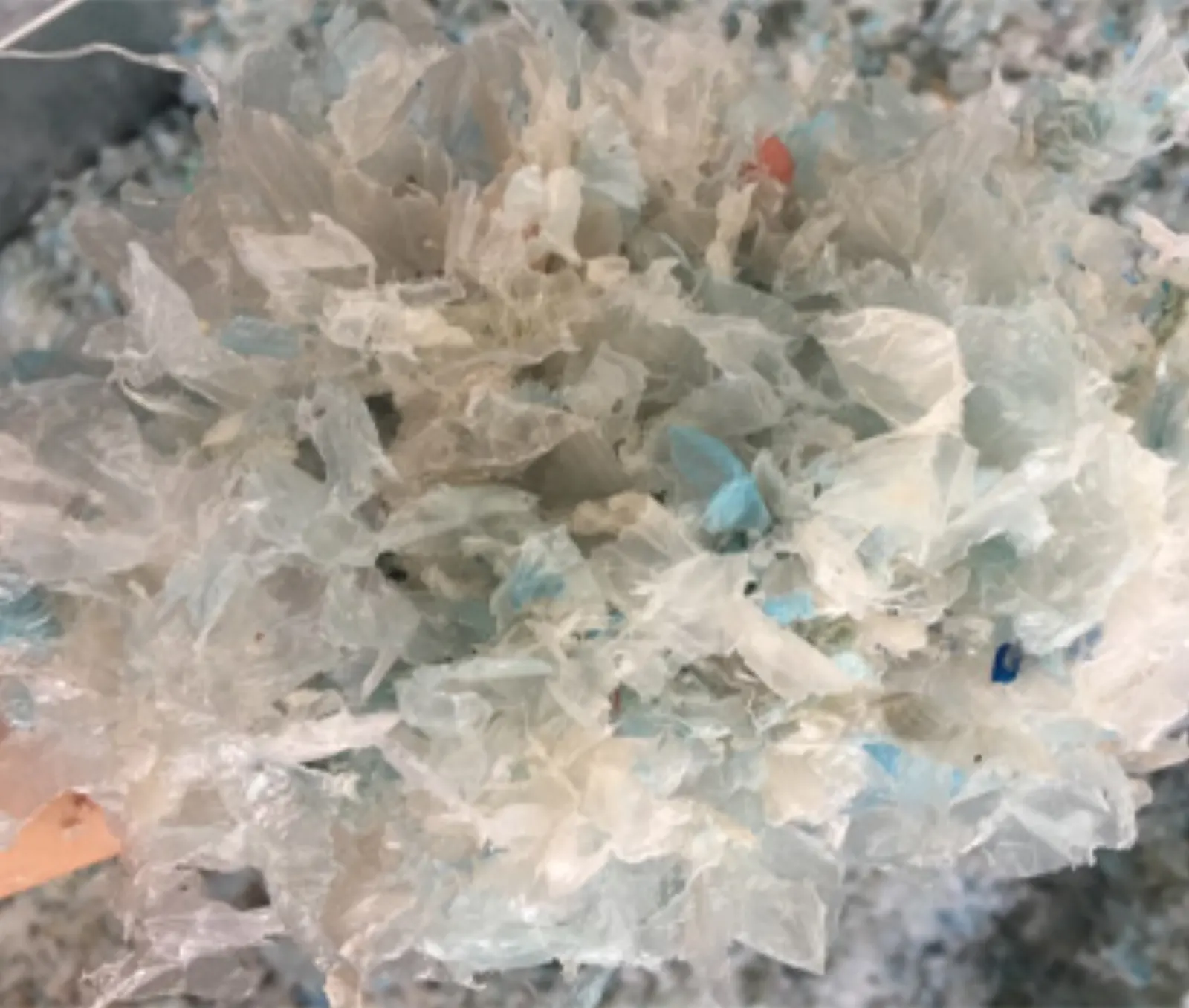

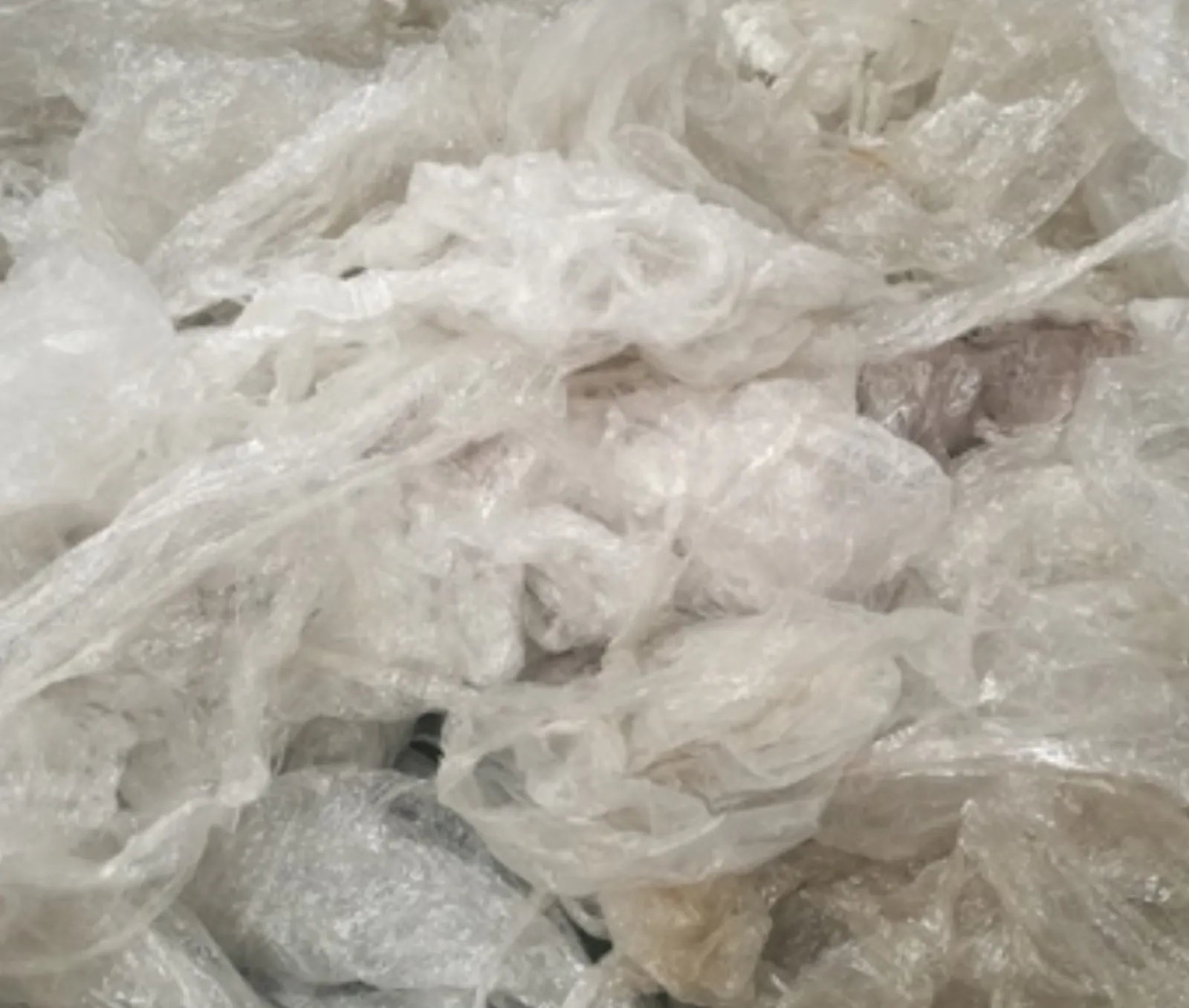

PE agriculture film,LLDPE stretch film,PP Woven Bag,Washed PP Jumbo Bag Scrap,PP Non Woven Fabric,Other Soft Plastic Like PE OPP CPP BOPP film,PS foam,PP Raffia Recycling,etc.

Material shapes: film, bag, (PE, PP) regrind

Material types: rolls, loose, bundled

Product 03

Recycling Process

DetailsEquipment nameFunction

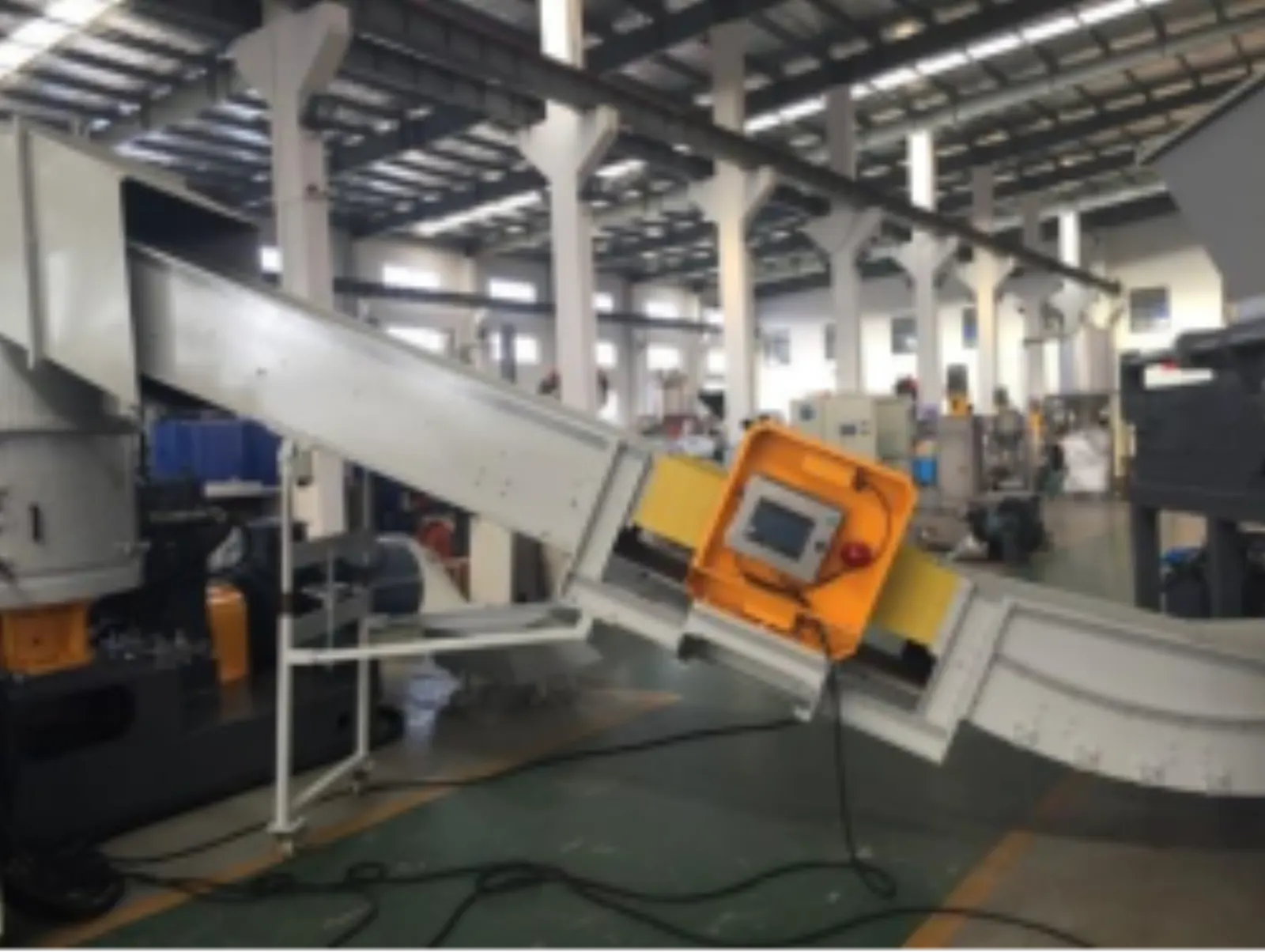

Cpp Opp Film Compactor Cutter Recycling Pelletizing Line Recycling Process 1Belt conveyor with metal detectorEquipped with a metal detector to remove the metal material and sends plastic waste to the compactor

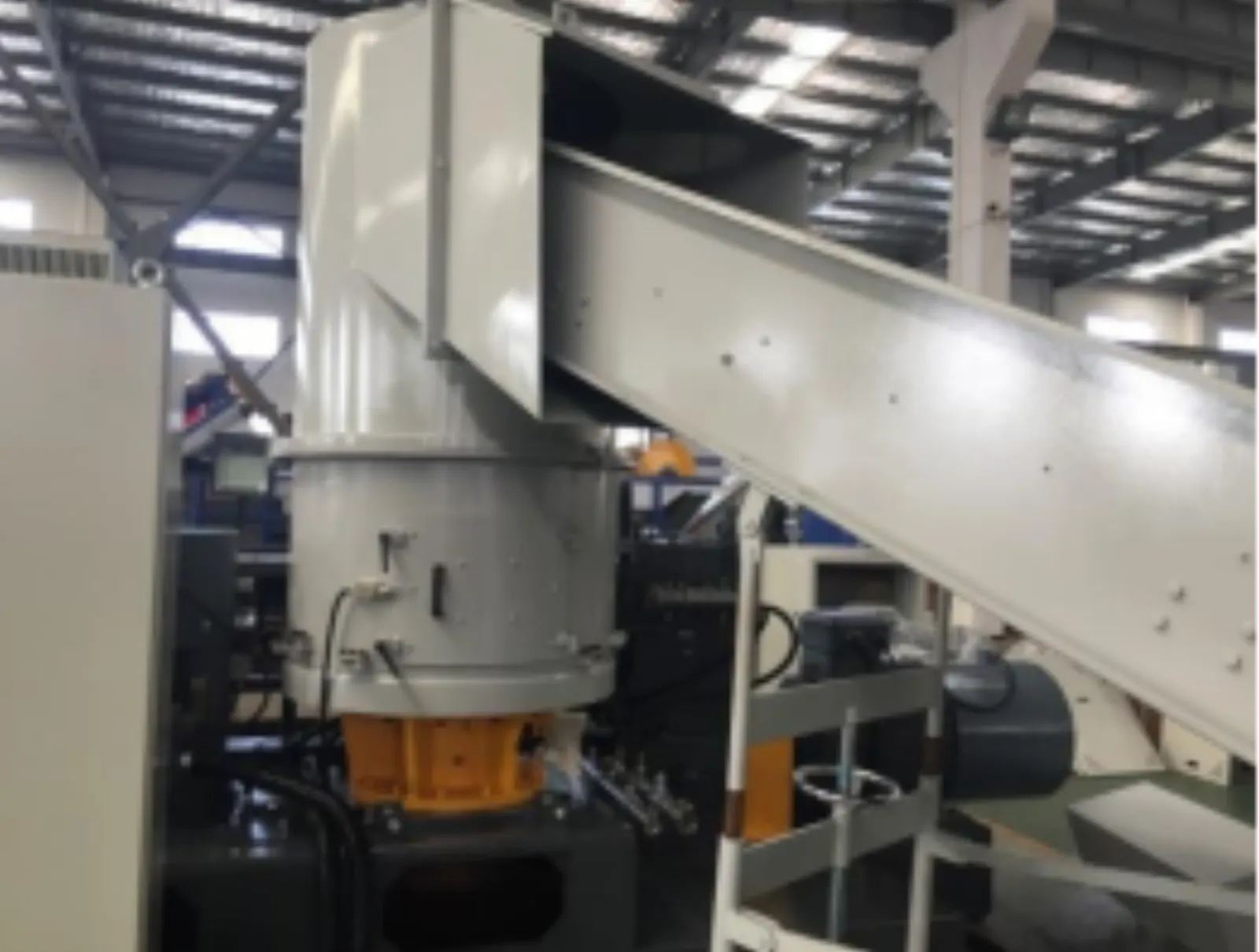

Cpp Opp Film Compactor Cutter Recycling Pelletizing Line Recycling Process 2Shredder CompactorPre-cut by shredder.Automatic feeding system. Compactor cutter to improve feeding performance

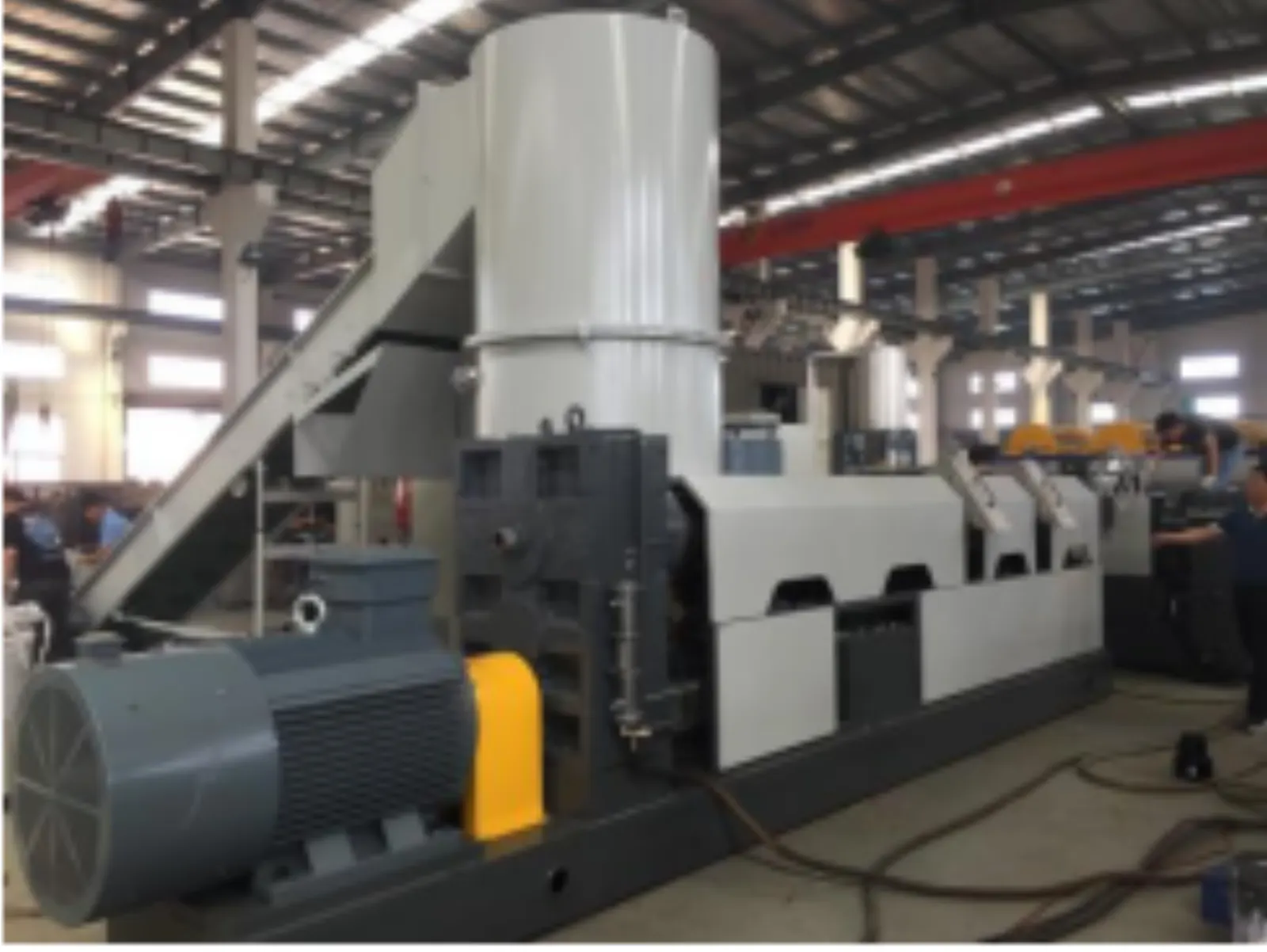

Cpp Opp Film Compactor Cutter Recycling Pelletizing Line Recycling Process 3Mother extruderSpecially designed screw structure to melt pre-compacted materials, has better melting performance and higher output

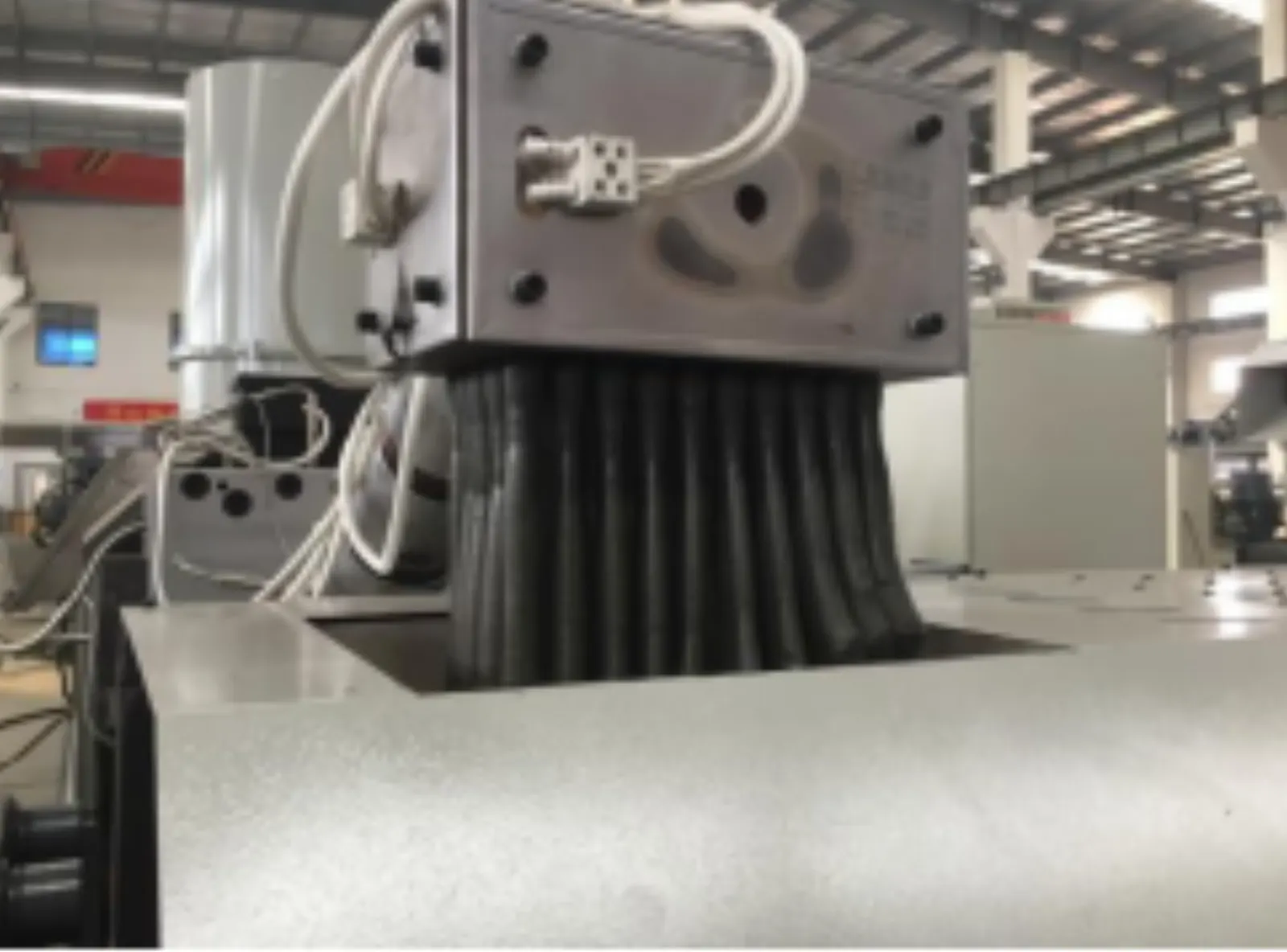

Cpp Opp Film Compactor Cutter Recycling Pelletizing Line Recycling Process 4Baby extruder

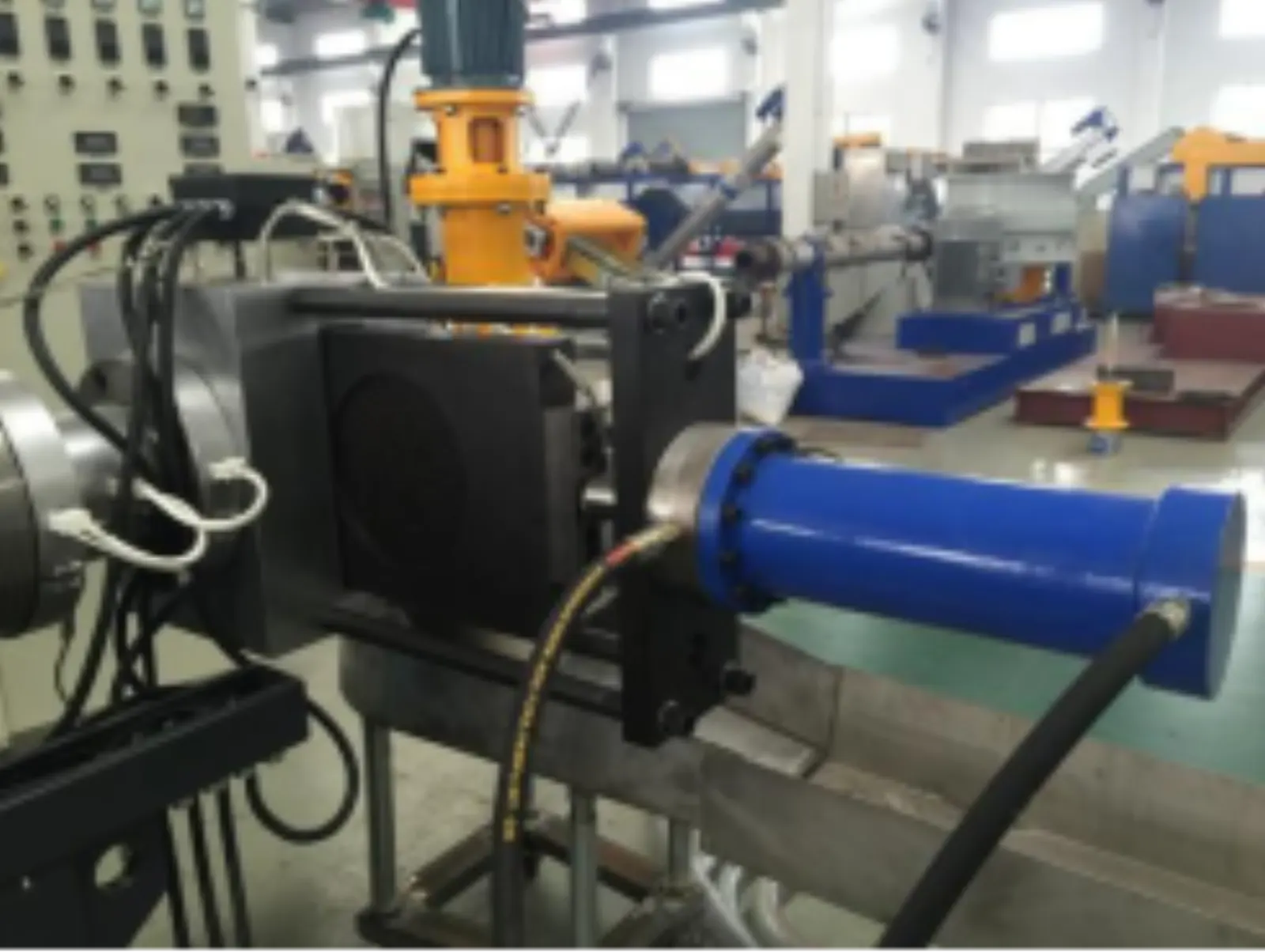

Cpp Opp Film Compactor Cutter Recycling Pelletizing Line Recycling Process 5Hydraulic screen changerWith pressure sensor to warning the operator to changing nets

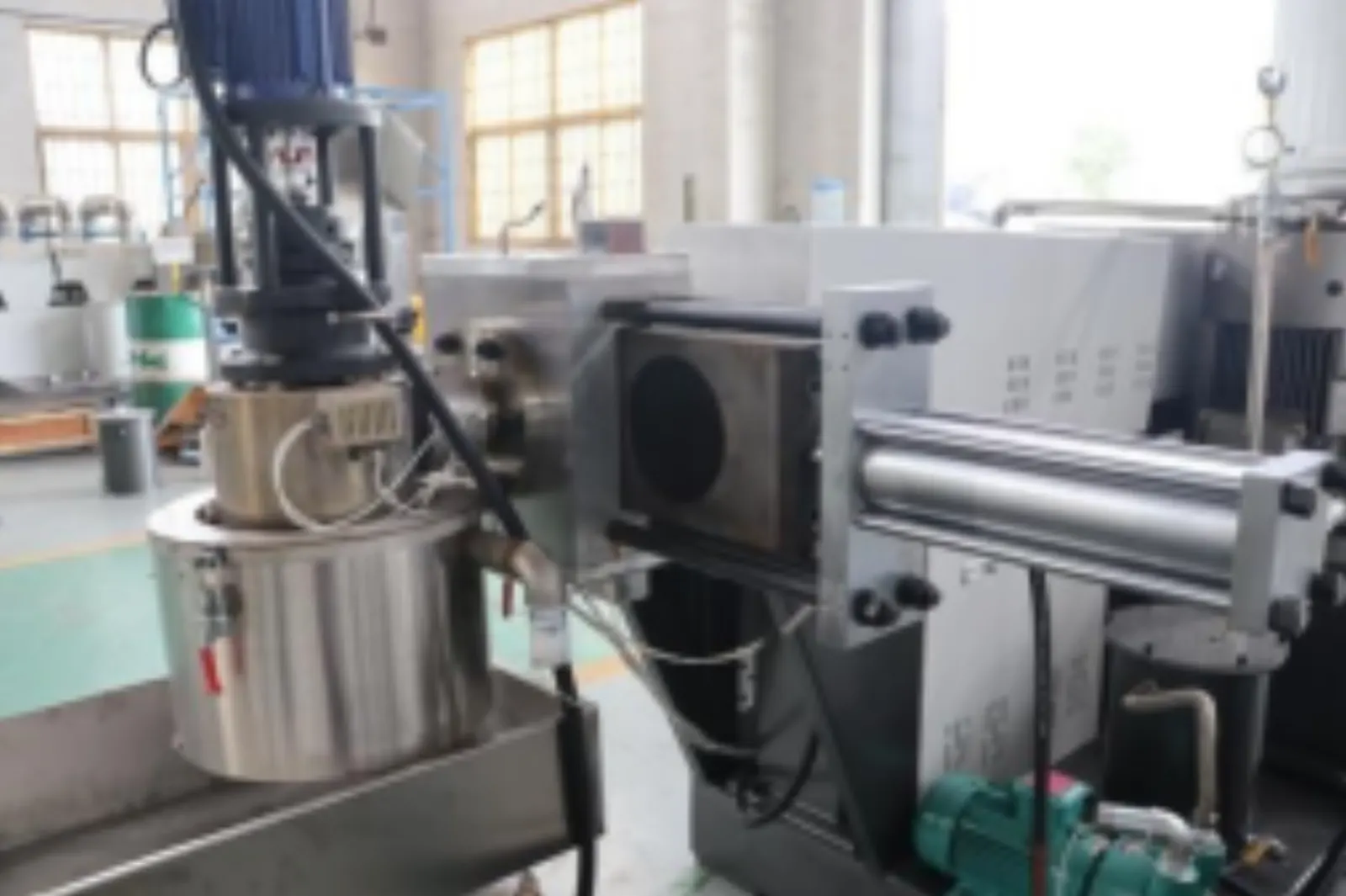

Cpp Opp Film Compactor Cutter Recycling Pelletizing Line Recycling Process 6Die face cutterDie face cutting or strand noodle cutting optionally. The cutting speed is controlled by invert

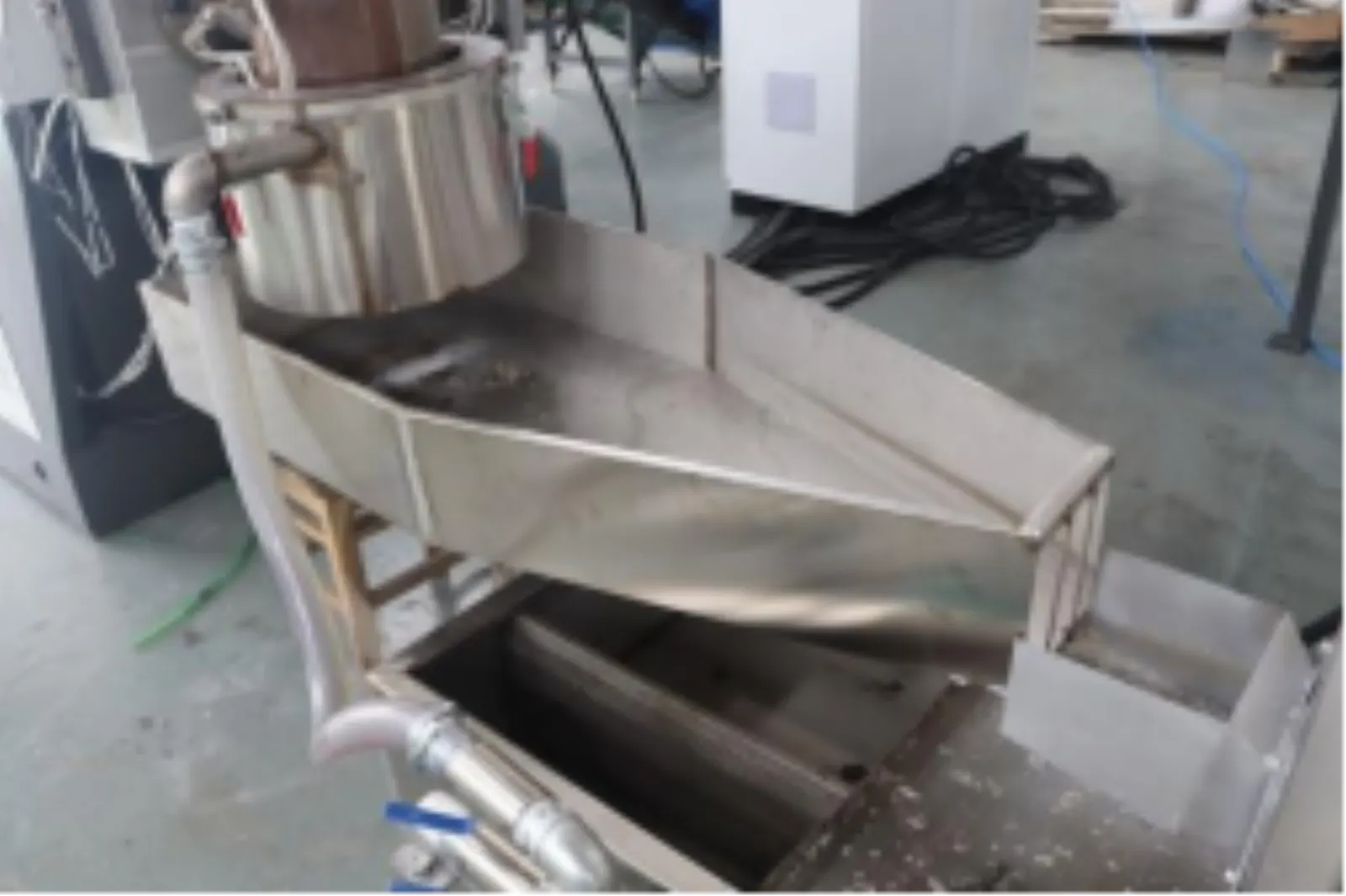

Cpp Opp Film Compactor Cutter Recycling Pelletizing Line Recycling Process 7Water cooling flumeMade of stainless steel, in L shape cooling

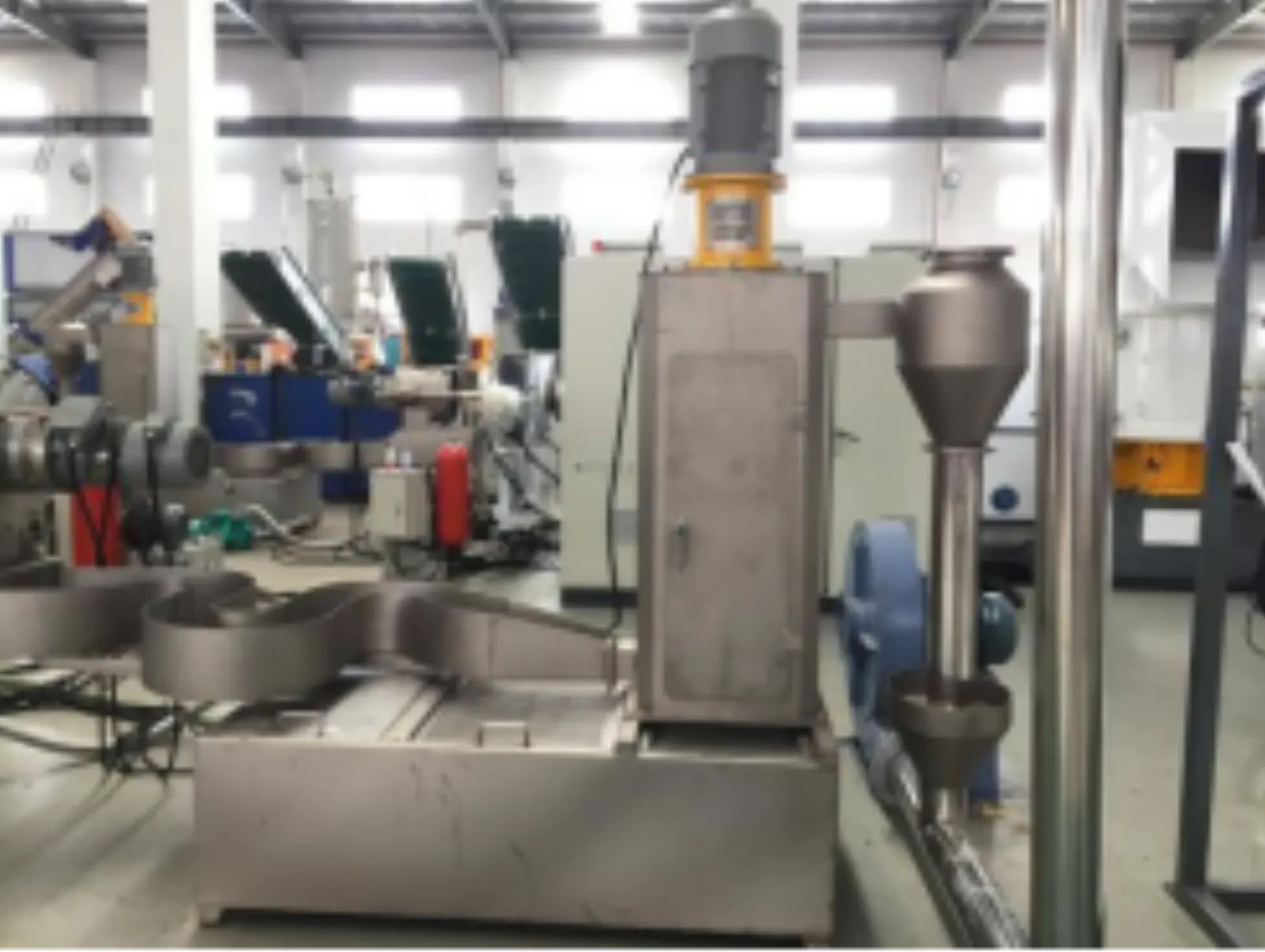

Cpp Opp Film Compactor Cutter Recycling Pelletizing Line Recycling Process 8Dewatering machineVibration dryer combined with horizontal type centrifugal dryer to get well dried final granules

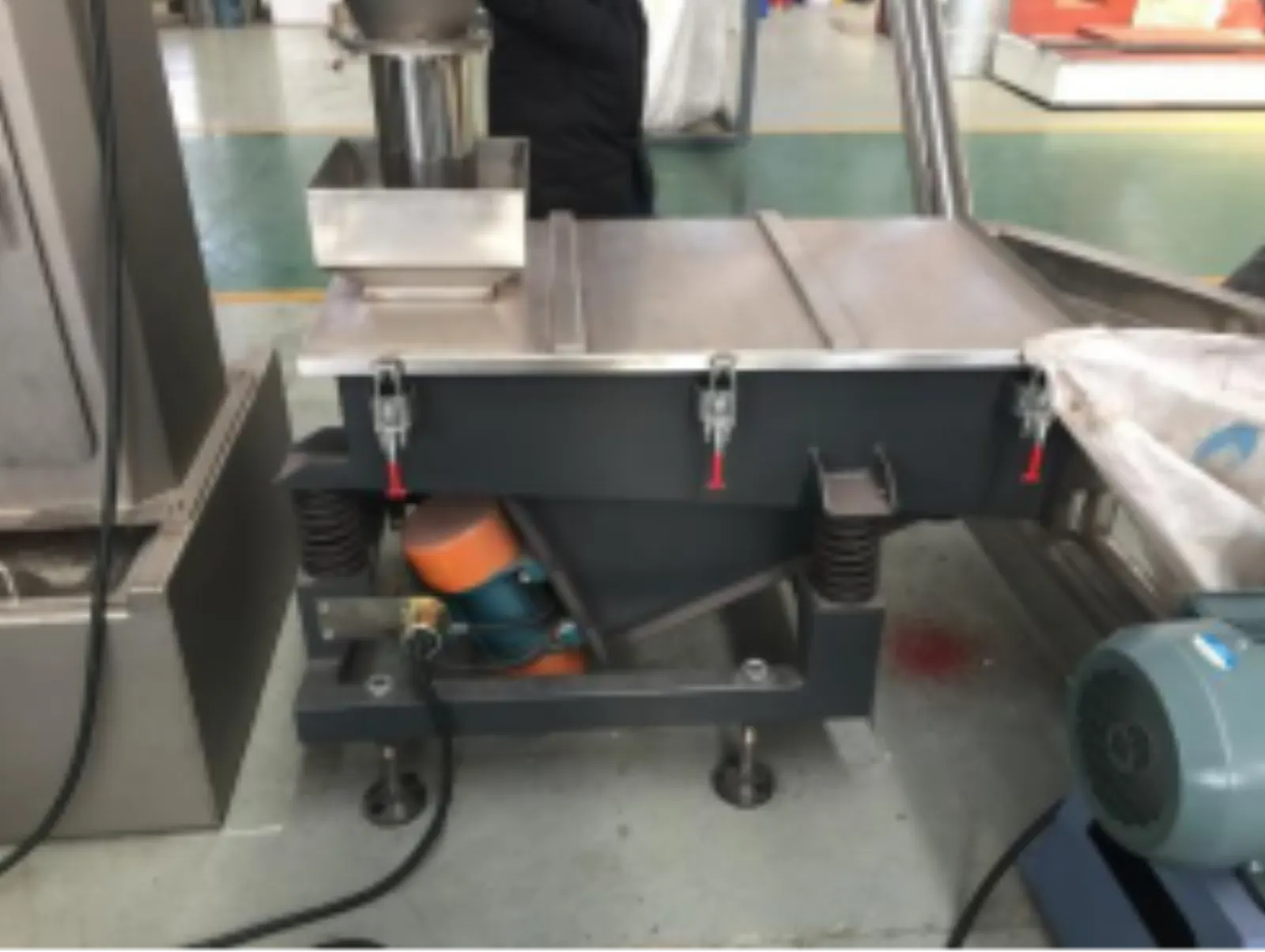

Cpp Opp Film Compactor Cutter Recycling Pelletizing Line Recycling Process 9Vibrator screenMade of SUS 304, with double layers in 10mm and 2mm(to select pellets)

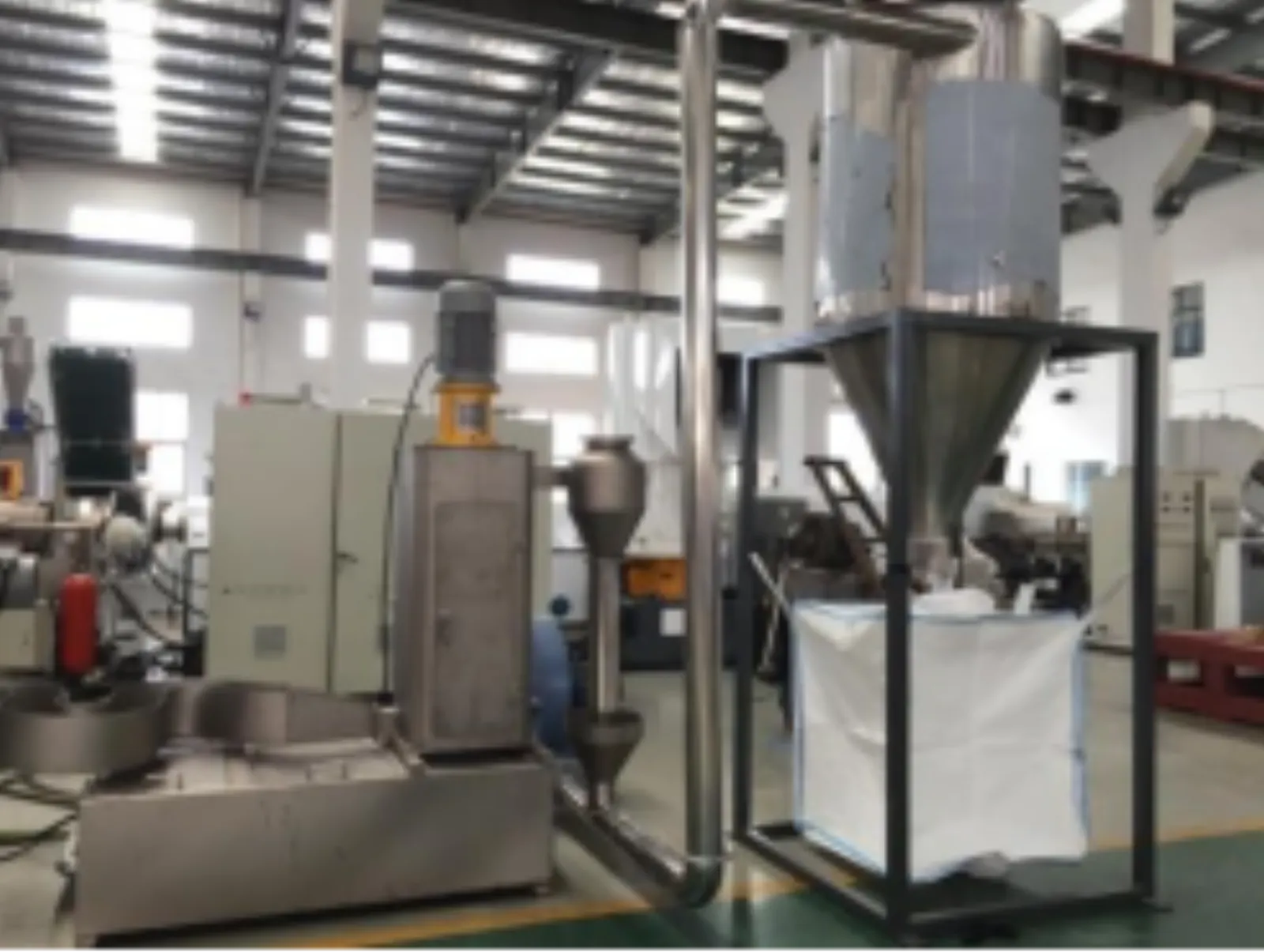

Cpp Opp Film Compactor Cutter Recycling Pelletizing Line Recycling Process 10Packaing siloMade of stainless steel SUS304 and with hocks for big bags

Technical Data

Specifications & Parameters

ModelScrew DiaL/DPE (kg/h)PP (kg/h)
RCDJ8585mm33180-220160-200
RCSJ85/10085/100mm33:12
RCDJ100100mm33260-320220-280
RCSJ100/120100/120mm33:12
RCDJ130130mm33450-550360-420
RCSJ130/150130/150mm33:12
RCDJ160160mm30650-750500-600
RCSJ160/180160/180mm30:10
RCDJ180180mm28800-1000650-800
RCSJ180/200180/200mm28:10

Quality

Quality Assurance

Final moisture below 1%. Granules are uniform and in good looking.

Use world famous brand parts,like Siemens motor,Fuji Inverter,SKF bearing,Mesutronic metal detector,38CrMoA1A bimetal screw,etc.

Video

Machine Video

Watch on YouTube

Video plays on demand. Source: Retech Machine official channel.

Ready to review your material?

Need a Configuration for CPP OPP Film Compactor Cutter Recycling Pelletizing Line?

Send us your material form, contamination level and target capacity. We will come back with a preliminary process route and equipment configuration.
