With the increasing global emphasis on sustainable development and circular economies, the recycling and reuse of plastic materials—especially polyethylene terephthalate (PET)—have emerged as crucial components in the modern plastic industry. Among various recycling methods, PET bottle-to-bottle recycling has gained significant traction due to its high efficiency, strong environmental benefits, and ability to produce food-grade recycled material.
PET bottle-to-bottle recycling refers to the process of transforming used PET bottles into new ones through a comprehensive series of treatment steps. Unlike downcycling, which converts PET into lower-grade materials, this closed-loop process maintains material integrity, allowing PET to be reused for the same high-quality applications. The primary stages of this process include:
Collection and Sorting
Used PET bottles are collected through recycling systems and sorted based on color, material type, and contamination levels.
Label Removal and Screening
Labels, adhesives, caps, and non-PET contaminants are removed to ensure input purity.
Crushing and Cleaning

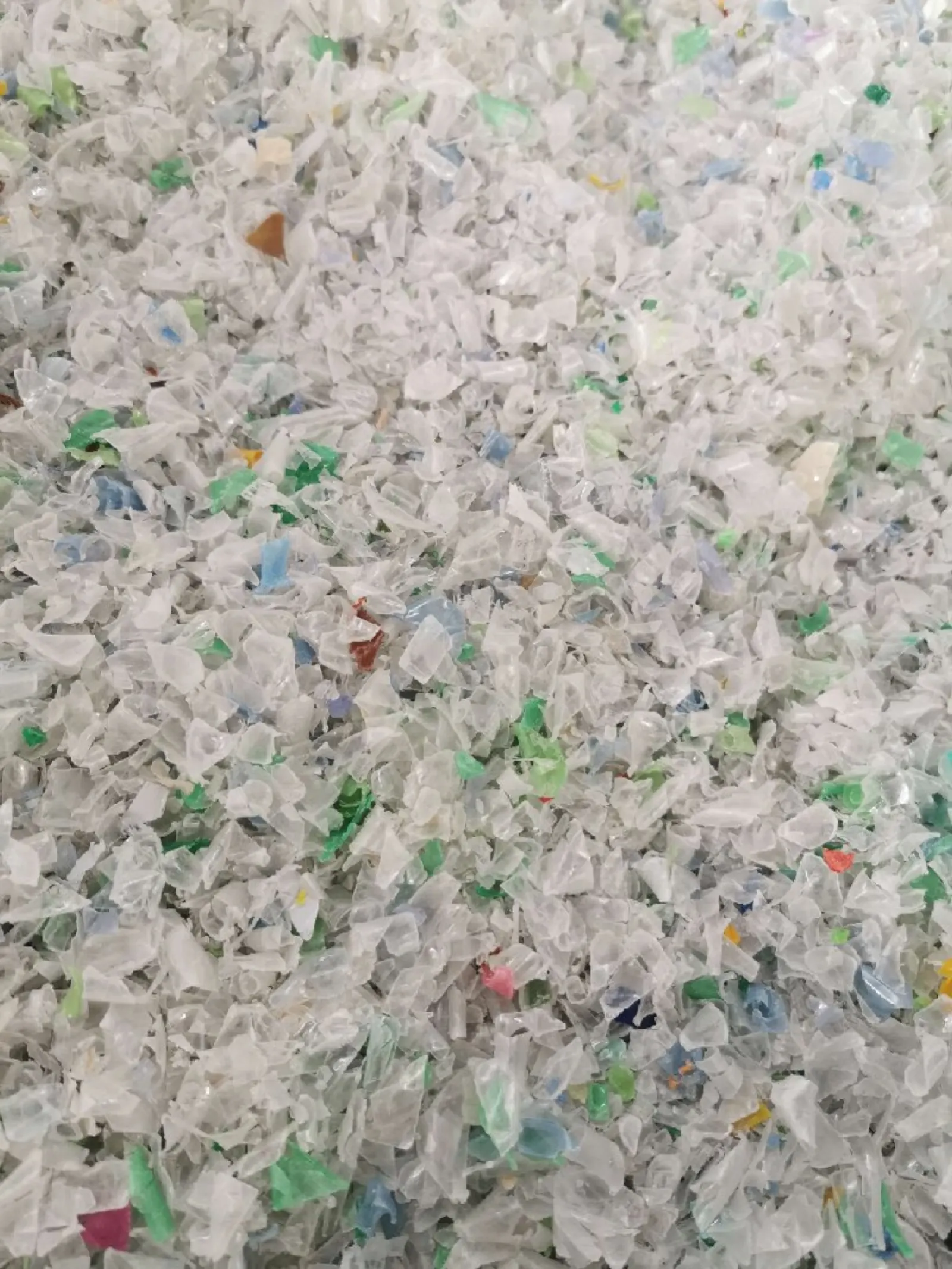

Bottles are shredded into PET flakes, which undergo multiple cleaning steps—hot washing, cold washing, and chemical treatment—to remove residual glue, liquids, and organic contaminants.
Drying and Melt Filtration
Clean PET flakes are dried to remove moisture, then melted and passed through a filtration system to eliminate any remaining impurities.
Pelletizing and Reprocessing
The filtered PET melt is cooled, cut into pellets, and ready for use in manufacturing new PET bottles.
Among all these steps, cleaning and melt filtration play pivotal roles in ensuring the quality, safety, and functionality of recycled PET (rPET).
What Is Melt Filtration?
Melt filtration is a critical step in the PET bottle recycling process that occurs after the PET flakes are melted. During this phase, the molten PET passes through a fine filtration system designed to remove:
Tiny solid particles
Unmelted PET fragments
Residual labels, glue, or inks
Metal shavings and sand
These contaminants, if not removed, can compromise the optical clarity, mechanical strength, and food safety compliance of the recycled PET. Moreover, impurities can clog molds, damage extruder screws, and disrupt downstream processing, resulting in significant operational downtime and cost increases.
To maintain the highest quality standards, manufacturers rely on advanced melt filtration systems. The most commonly used types include:
1. Backwashing Melt Filters
These filters automatically clean themselves through reverse pressure flow, which dislodges collected impurities from the filter screen. While efficient under moderate contamination, backwashing filters tend to wear out more quickly when exposed to high impurity levels. Frequent backwashing also reduces production continuity and increases maintenance time.
Pros:
Automated cleaning
Reusable filter elements
Cons:
Less effective under high contamination
Frequent maintenance in impure conditions
2. Laser-Drilled Melt Filters
Laser filters utilize precise laser drilling technology to create ultra-fine holes that capture even the smallest impurities. This enables a higher filtration precision compared to traditional screens. However, their precision also makes them more vulnerable to hard contaminants like sand and metal, which can rapidly degrade the filter mesh.
Pros:
Exceptional filtration accuracy
Ideal for high-purity applications
Cons:
Shorter lifespan under harsh conditions
Sensitive to metallic or mineral contaminants
The Interdependency of Cleaning and Filtration
A robust cleaning process is not merely a preliminary step; it is a strategic safeguard that directly influences the longevity and effectiveness of the melt filter. Poor cleaning leaves behind glue residues, paper fibers, label fragments, and micro-particles that eventually overload the filter. This leads to:
Increased backwashing cycles
Accelerated filter wear
Reduced production efficiency
Higher operational and maintenance costs
On the other hand, high-efficiency cleaning processes—such as friction washing, hot caustic washing, and density separation—can significantly reduce the contaminant load on melt filters, thus:
Enhancing the throughput capacity
Extending the filter’s service life
Improving the overall quality of the final PET pellet
Enhancing Recycling Efficiency with Integrated Systems
Advanced PET recycling facilities are now adopting integrated cleaning and filtration systems, where the performance of each module is optimized to complement the other. Key features include:
Inline quality monitoring sensors
Automated impurity detection
Real-time adjustment of filtration pressure
Modular filtration units with quick-change mechanisms
Such innovations not only improve output quality but also ensure regulatory compliance for food-grade PET recycling, especially under standards like FDA and EFSA.
Melt filtration is not an isolated step but a culmination of all upstream efforts in the PET recycling process. As consumer and regulatory demands for sustainable packaging increase, the importance of advanced melt filtration systems will continue to grow. Coupled with efficient cleaning technologies, they form the backbone of a successful bottle-to-bottle recycling operation.
To ensure long-term success in PET recycling, stakeholders must invest in:
High-precision melt filters suitable for varying contamination loads
Efficient cleaning systems to reduce filter stress
Maintenance strategies that balance performance and cost
By focusing on these critical quality assurance measures, the industry can continue to push toward a closed-loop, environmentally responsible PET lifecycle—a win for manufacturers, consumers, and the planet alike.
