Plastic PP PE Film Woven Bag/PET HDPE Bottle Crusher
Retech PET bottle crushers are used for cutting large, thin films or rigid plastic materials in baled or long strips. For more product information, please contact us to learn more and make your purchase.
At a Glance
Equipment Overview
- Category
- Auxiliary Machine
- Capacity options
- 300kg/h, 500kg/h, 1000kg/h
- Typical application
- PE film crusher,PP woven bag crusher,HDPE bottle crusher,PET bottle crusher.
- Output
- Clean flakes or recycled pellets — confirmed per project
Product 01
Overview
Our Plastic PP PE Film Woven Bag/PET HDPE Bottle Crusher is used to crush and grind waste plastics like PE film,PP woven bag,HDPE bottle,PET bottle,etc.
We can supply and design different type of crusher shaft blades according to your material and capacity demand Like V shape shaft,stepped shaft,etc. All shafts are with tempering and balance treatment to get a long life using.
Product 02
Applications & Suitable Materials
PE film crusher,PP woven bag crusher,HDPE bottle crusher,PET bottle crusher.
Product 03
Processing Steps
- * Adapt to different kind of plastic grinding,good to cut both soft and rigid plastic.
- * Crushing with water is more efficiency.
- * Flake size control by bottom mesh hole diameter.
- * All rotor shaft treatment by balance and tempering to get long life use.
- * High capacity performance in low noise.
| No | Equipment name | Quantity |
|---|---|---|
| 1 | Belt conveyor | 1 |
| 2 | Plastic crusher/grinder | 1 |
| 3 | Blowing system | 1 |
| 4 | Storage hopper | 1 |
| 5 | Electrics | 1 |
Technical Data
Specifications & Parameters
| Model | Power | Rotor size | Capacity |
|---|---|---|---|
| RSPC-800 | 37/45kw | 800*520mm | 300kg/h |
| RSPC-1000 | 55/75kw/h | 1000*520mm | 500kg/h |
| RSPC-1400 | 110/132kw/h | 1400*700mm | 1000kg/h |
Quality
Quality Assurance

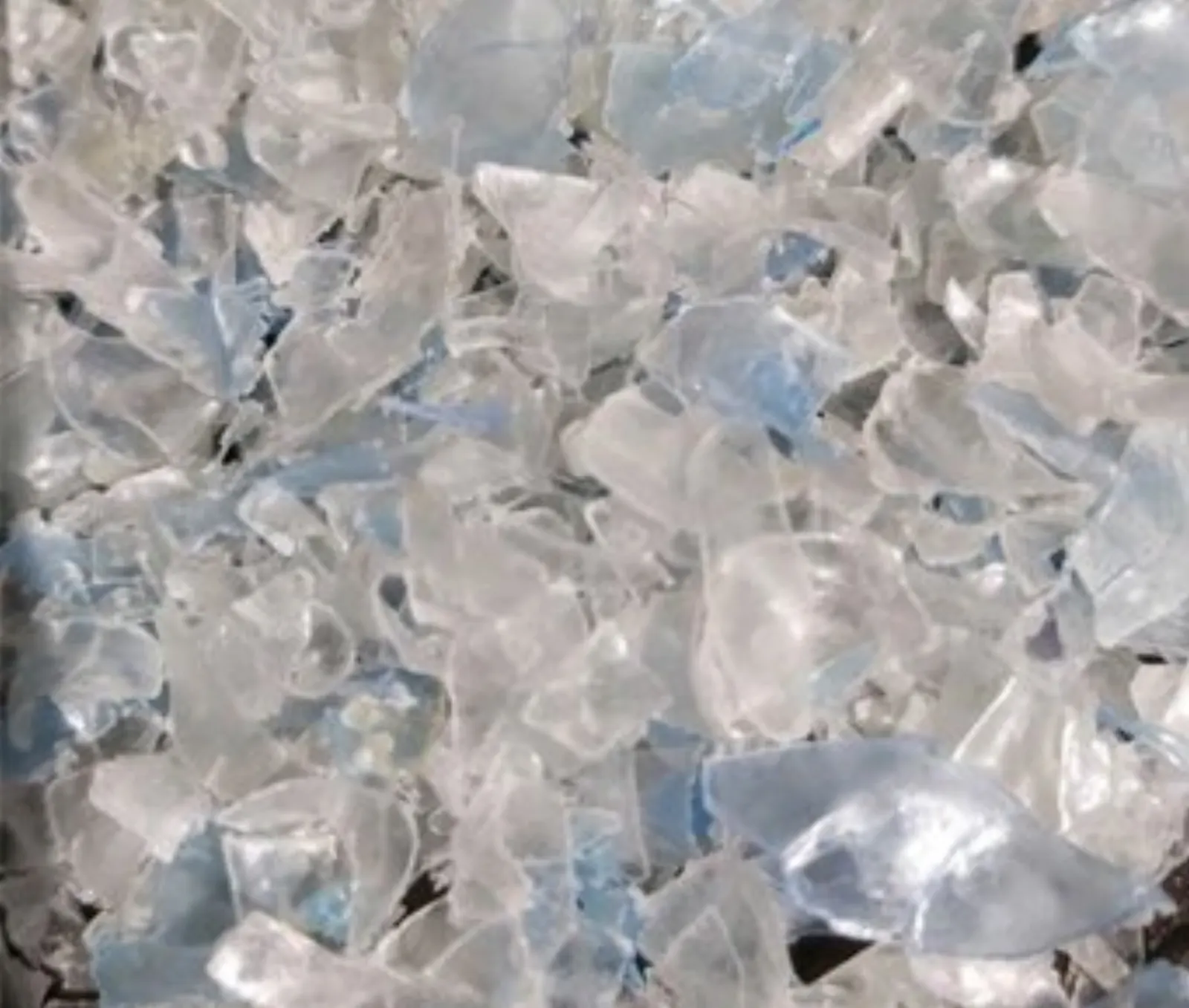

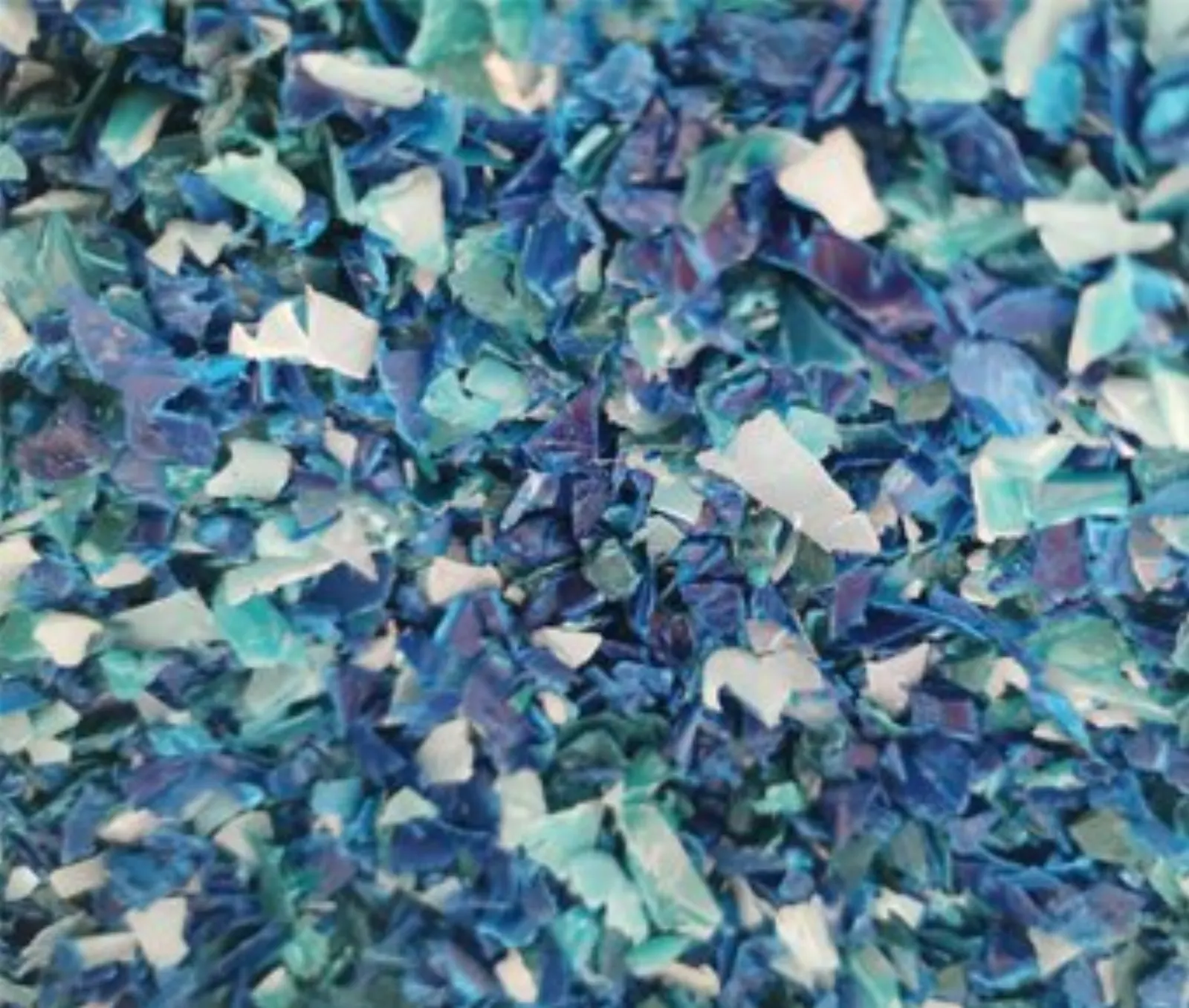

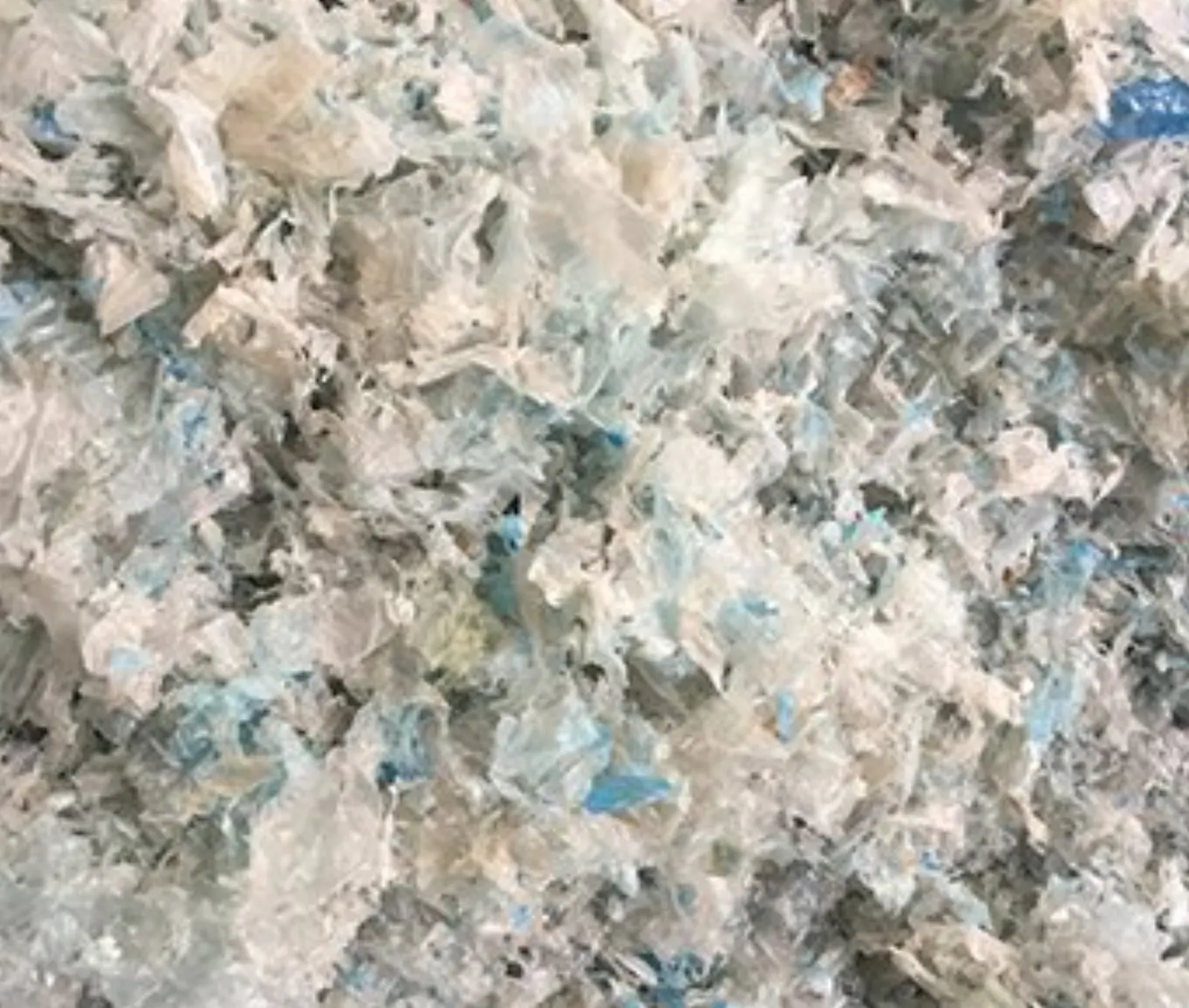

Adjust plastic flake size,usually 40-60mm for film,10-12mm for rigid.
Use world famous brand parts,like Siemens motor,SKF bearing,SKD-11 blades,etc.
Ready to review your material?
Need a Configuration for Plastic PP PE Film Woven Bag/PET HDPE Bottle Crusher?
Send us your material form, contamination level and target capacity. We will come back with a preliminary process route and equipment configuration.
