Hydraulic Double-Cylinder Single-Blade Plastic Film Guillotine Cutter

Suitable Materials for Cutting

1:Plastics: PE agricultural film rolls, master rolls of packaging film, PET rolls, PVC rolls, plastic purge lumps, waste plastic film rolls, bubble wrap rolls

2:Rubber & Plastics: Natural rubber, synthetic rubber, rubber rolls, silicone blocks

3:Others: Paper rolls, non-woven fabric rolls, aluminum foil rolls, thick plastic blocks, plastic drum material

Core Structural Components

1:Reinforced Gantry Frame: Heavy-duty welded steel plate construction offering high load-bearing capacity and deformation resistance; features a bottom-mounted material platform for holding full rolls of film.

2:Hydraulic Cutting Unit

 Cylinder: Single or dual-cylinder configuration; pressure range of 40–120 tons (dual-cylinder models recommended for large rolls of thick film).
 High-Speed ​​Steel (HSS) Flat Blade: Quenched for wear resistance; ensures clean, burr-free cuts and prevents plastic adhesion.

3:Hydraulic Power Station: Motor, oil pump, and hydraulic valve assembly; 11–22 kW motor.

4:Electrical Control Console: Controls for manual (inching) and automatic blade descent; includes an emergency stop button and safety limit switches.

5:Safety Protection: Blade assembly guard rails and upper/lower limit switches to prevent injury from accidental operation.

Key Specifications
Effective cutting width: 800mm–2000mm
Cutting force: 40–120 tons
Motor power: 11–22 kW
Applications: Plastic film rolls, thin rubber blocks, waste film for recycling

Equipment Advantages
1. High cutting force: Cuts through thick rolls and multi-layer stretch wrap in a single pass; no manual separation required.
2. Clean cuts: Vertical shearing action ensures smooth edges without stringing or chipping, facilitating subsequent granulation.
3. Simple operation: Single-operator roll loading and one-touch cutting; replaces manual cutting, enhancing safety and reducing labor.
4. Versatility: Multi-purpose machine suitable for plastic film, rubber, paper rolls, and waste plastic blocks.
5. Durability and stability: Heavy-duty frame and wear-resistant blades; designed for continuous 24-hour operation in recycling plants.

Safety Guidelines
1. Before startup, check hydraulic oil levels and for leaks; ensure blades are free of nicks or rolled edges.
2. Center the material; strictly prohibit placing hands in the cutting zone beneath the blade assembly.
3. Equipment features upper and lower limit switches; keep the body away from the gantry frame during the cutting stroke.
4. Power must be disconnected and hydraulic pressure released before maintenance or cleaning.
5. Cutting metal or hard, rigid objects is prohibited to prevent blade damage.

Plastic granulation and recycling plants, greenhouse film processing plants, packaging material factories, rubber product factories, waste resource recycling enterprises, and film extrusion workshops.

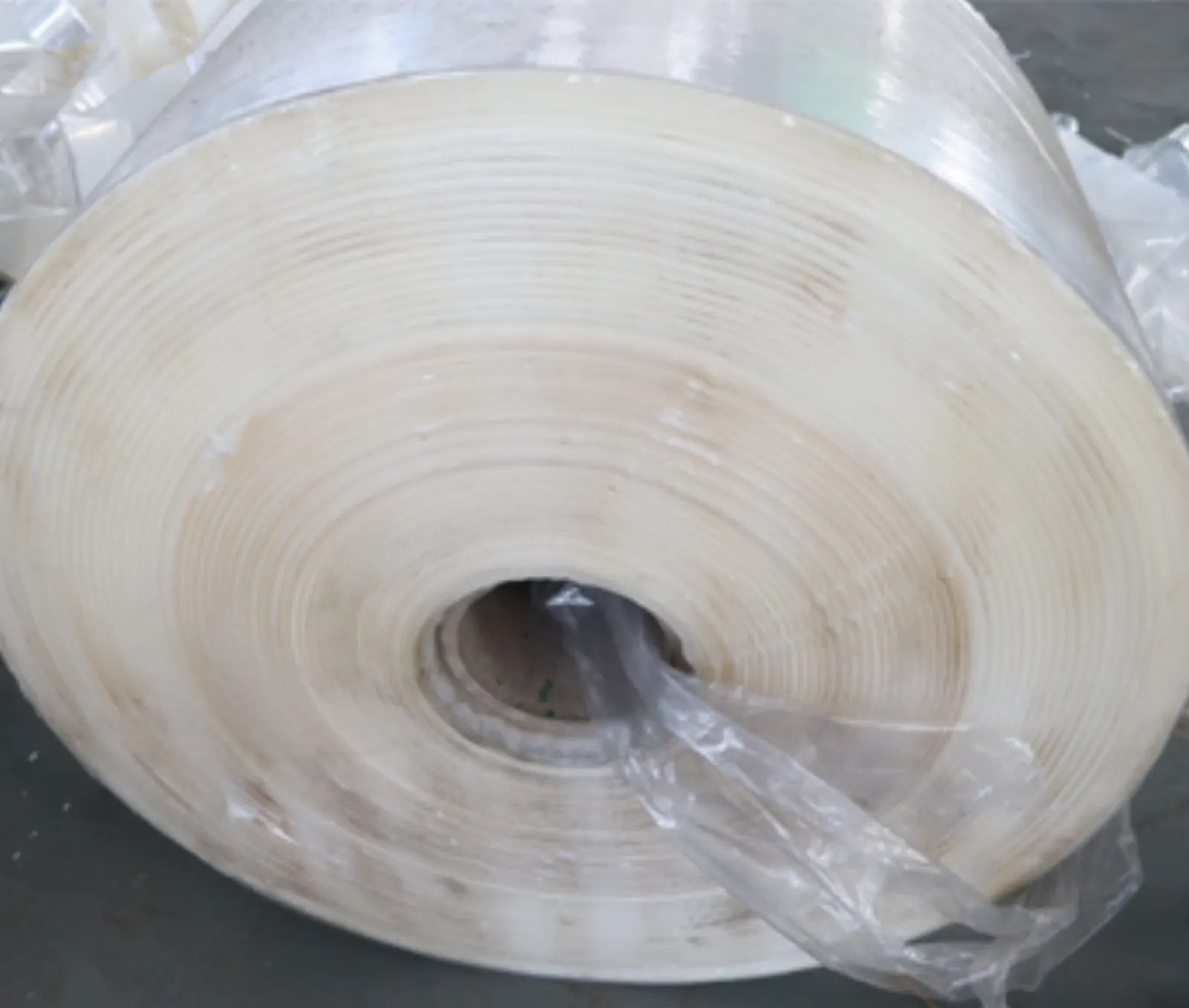

Roll Film

Roll Film

Roll Film

Roll Film

Roll Film

Roll Film

Lumps

Roll Film

• * Place the entire roll of plastic film flat onto the material platform at the base of the machine.
• * Activate the hydraulic system; the hydraulic cylinder drives the heavy-duty guillotine blade to descend vertically.
• * Use hydraulic pressure to cut through the entire roll of thick film or rubber block in a single stroke.
• * The blade assembly automatically retracts, the cut material is removed, and the cycle repeats.
