The working principle of the meshless screen changer on the pelletizing machine

The working principle of the meshless screen changer on the pelletizing machine

Name of laser filter:

Laser filter (no screen filter) is a different from the traditional screen filter of plastic filter, in the majority of users have many kinds of names: such as no screen filter, automatic die head, automatic impurity removal die head, automatic slag filter, non-stop impurity removal die head, non-stop automatic impurity die, etc., but in fact the most appropriate name should be: no screen filter.

The two most critical components of the netless die head are the filter plate and the scraper.

Working principle:

The filter screen is made of super wear-resistant alloy steel, and there are a large number of conical microholes on the filter screen (to prevent blockage) to play a filtering role, and the filter screen plays a key role in allowing molten plastics to pass through and blocking impurities.

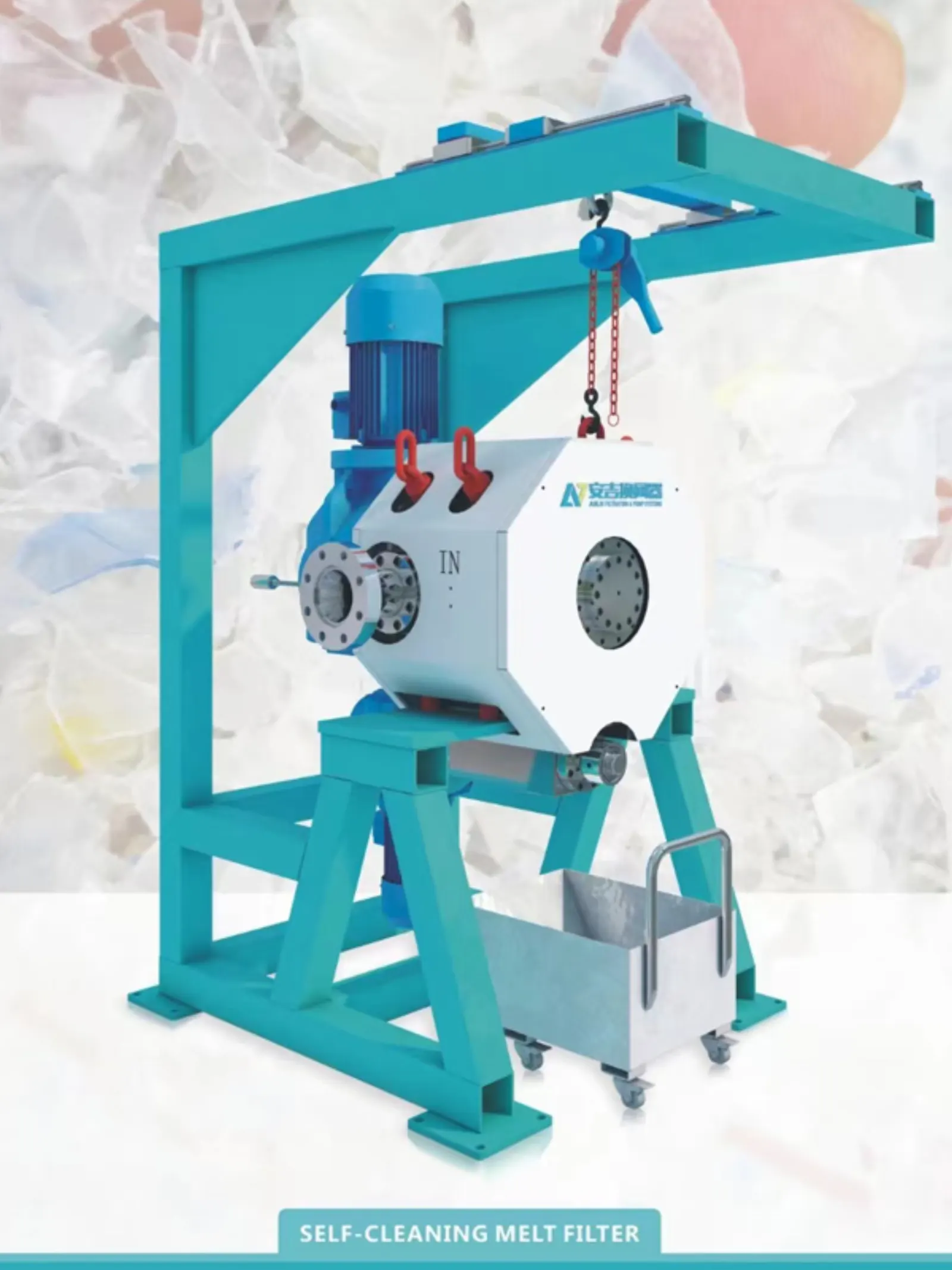

In addition, the grid-free die head is equipped with a simultaneous operation of the impurity removal scraper. When working, the melt plastic passes through the microhole, the impurities and dirt remain on the side of the filter screen board, and the impurities are removed by the impurity removal scraper at a speed of 2 to 3 turns per minute. During this process, the impurities are pushed by the rotating scraper to the impurity storage chamber. Automatic elimination by manual or hydraulic mechanism, so repeated, to achieve 24 hours of uninterrupted automatic slag discharge, and no need to frequently replace the filter function. This is the working principle of the netless die head.

The use of the netless die in the plastic recycling granulation production line greatly improves the use efficiency of the recycled plastic extruder, reduces the labor intensity of workers, reduces the use cost of the traditional filter screen, improves the production efficiency, and brings great convenience to the granulation production.

Usage of laser filter:

Usually the automatic filter is widely used on pre-filtration on the first stage of a plastic pelletizing machine,it is mature technology now for 40 mesh,60 mesh,80 mesh for preliminary filtration.You can make a deep filtration on the second stage granulating machine with a traditional filter.
